Elite IL Multimode OM3 MPO 12F to LC Fan-out Patch Cord 3.0mm LSZH Aqua Color

Short Description:

+ Product Name:

Elite IL Multimode OM3 MPO 12F to LC Fan-out Patch Cord

+ Side A Connector Type:

MPO Male / Female

MTP Male / Female

+ Side B Connector Type:

LC duplex

+ Fiber Type:

Multimode OM3-150 (less than 100m length)

Multimode OM3-300 (more than 100m length)

+ Fiber Count: 12F

+ Cable Dia.: 3.0mm

+ Fanout length: 30cm / 50cm

+ Cable Out-sheath Material: LSZH, ONFR, PVC

+ Trunk Cable Length: Customized

+ Polarity: Type A, Type B, Type C

Unit Price: US $0.02 - 99.99 / Piece

MOQ: 10 Piece/Pieces

Supply Ability: 100000pcs/Month

Origin: Guangdong, China

Seaport/airport : Shenzhen

Send email to us

Product Detail

Product Tags

[KCO Fiber] 3.0mm micro cable for MPO MTP patch cord

- 12F multimode OM3 micro cable is spacial designed for MPO 12F or MTP 12F patch cord that come with out-sheath diameter 3.0mm.

- Typically using OM3-150 or OM3-300 (50/125μm) fiber.

- The Multimode OM3 MPO 12F to LC fanout patch cord splits a MPO 12F (or MTP 12F) connector on one end into 12 individual LC simplex or 6 LC duplex connectors on the other.

- These cables are primarily used for 40G/100G parallel optics and direct 800G/1.6T transceiver links.

- OM3 fiber is a laser-optimized, commonly used for short to medium range data transmission in data centers and enterprise networks.

- Distinguishable by its characteristic aqua outer jacket, OM3-300 delivers high bandwidth and supports up to 10 Gbps speeds over distances of 300 meters, and 40G/100G speeds up to 100 meters

- The MPO MTP Trunk Cables are Female-to-Female or Male-to-Male MPO/MTP connections used as permanent backbone links between patch panels.

- The MPO MTP to LC Breakout/Fanout Cables Adapts an 8F MPO/MTP connector to 4x Duplex LC connectors, commonly used to connect 40G/100G switch ports to individual 10G/25G servers.

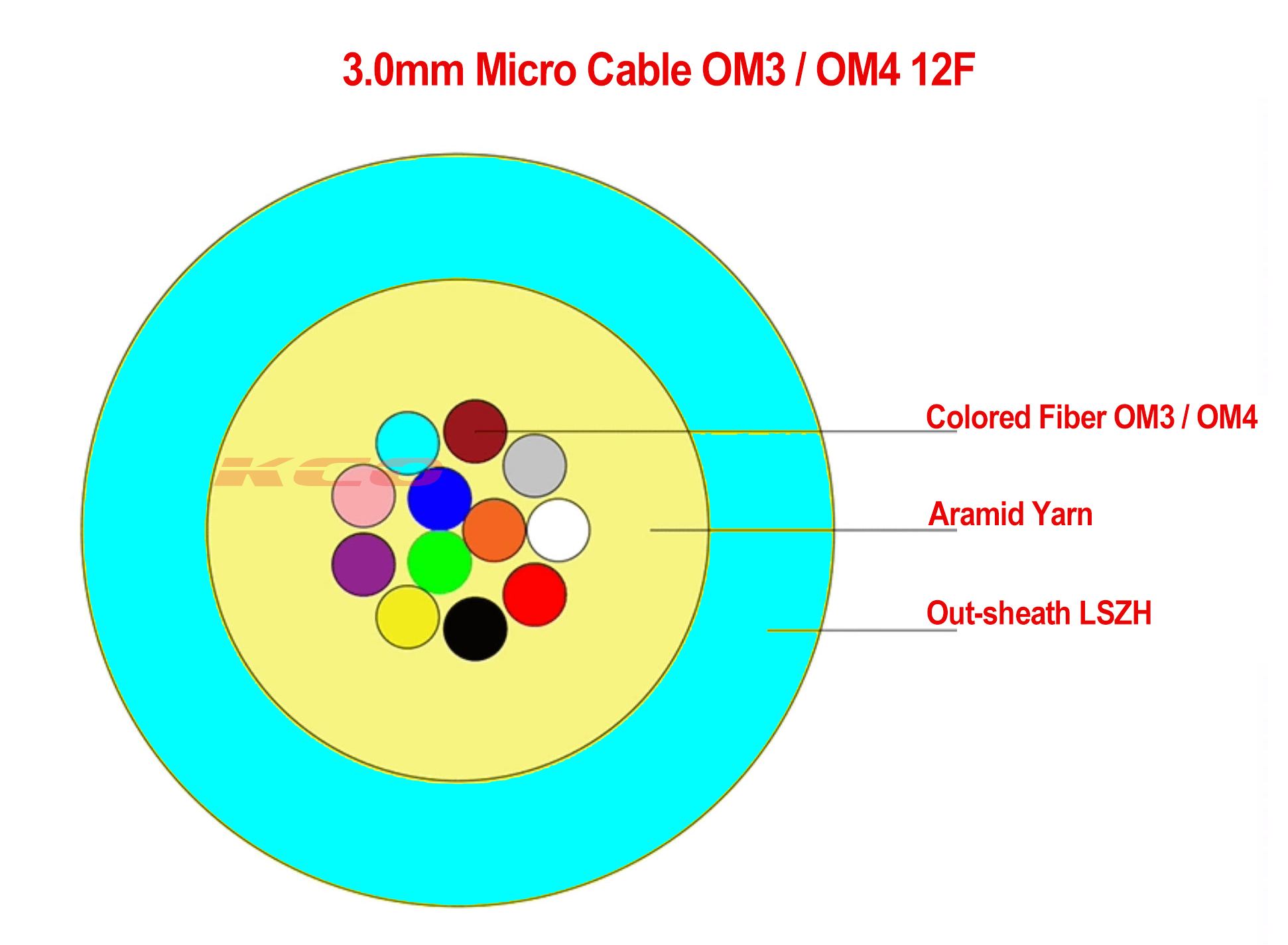

OM3 12F Micro Cable Structure

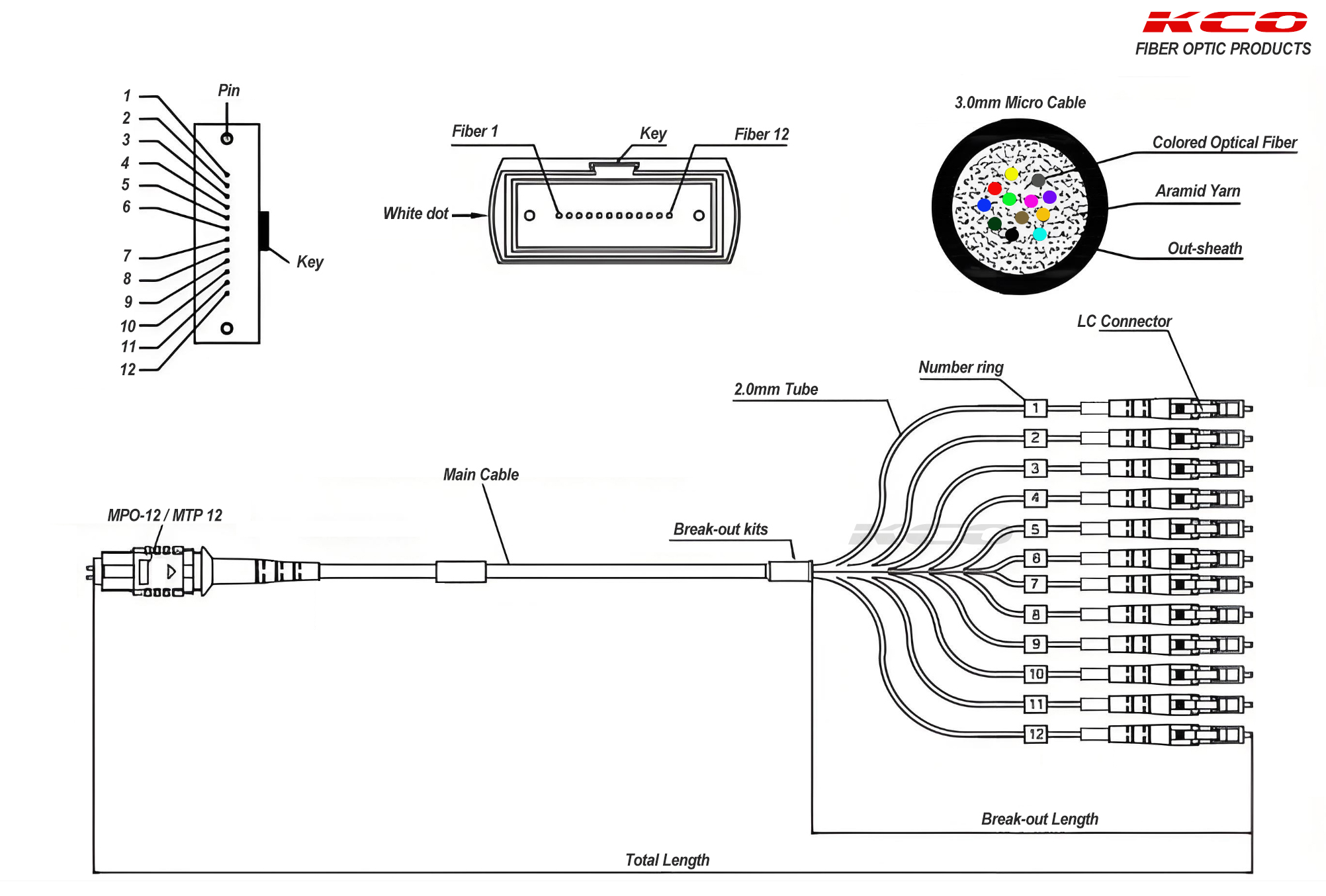

12F OM3 MPO to LC / MTP to LC Cable Structure:

MPO 12F / MTP 12F to LC fanout patch cord

- Fiber Type: 50/125 Multimode OM3

- Fiber count: 12F

- Main cable:

Dia.: 3.0mm

Color: Aqua

- Connector End A: (Typically Female / no pins)

MPO 12F

MTP 12F

- Connector End B: 12 * LC (UPC polish)

- Fan-out/Breakout part:

Diameter: 0.9 mm, 2.0 mm, or 3.0 mm, depending on customer's request

Length: 30cm/ 50cm

- Jacket Type: OFNR (Riser), OFNP (Plenum), LSZH

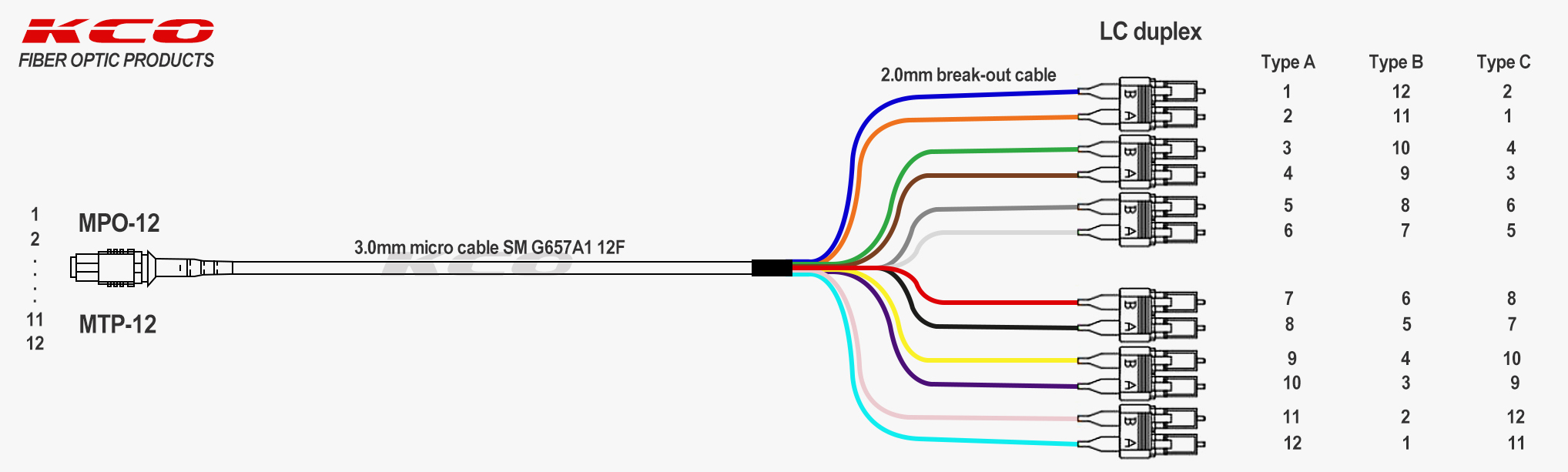

- Polarity:

Method A,

Method B,

Method C

- Speed/Bandwidth: 10 Gbps (up to 300 meters), with capability for up to 100 Gbps over shorter distances

MPO 12F/ MTP 12F Connector

Specifications

Type	Single Mode		Single Mode		Multi Mode
	(APC Polish)		(UPC Polish)		(PC Polish)
Fiber Count	8f,12f, 16f, 24f, 32f, 48f		8f,12f, 16f, 24f, 32f, 48f		8f,12f, 16f, 24f, 32f, 48f
Fiber Type	G657A1, G657A2		G657A1, G657A2		OM1,OM2,OM3, OM4, OM5, etc.
Max. Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
	Ultra Low Loss		Ultra Low Loss		Low Loss
	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.60dB
Return Loss	≥60 dB		≥60 dB		NA
Durability	≥500 times		≥500 times		≥500 times
Operating Temperature	-40℃~+80℃		-40℃~+80℃		-40℃~+80℃
Test Wavelength	1310nm		1310nm		1310nm
Insert-pull test	1000 times＜0.5 dB
Interchange	＜0.5 dB
Anti-tensile force	15kgf
