Single Mode 2-48 Cores Aerial Cable GYXTC8S Figure-8 Self-Supporting Outdoor Armored Fiber Optic Cable

Short Description:

+ Cable type: GXTC8S

+ Cable Name: Figure-8 self-supporting outdoor armored fiber optic cable

+ Application: aerial, pipeline, long haul

+ Fiber count: 2 to 24 fibers

+ Fiber type:

SM: G652D, SM G657A1, SM G657A2, G655

MM: OM1, OM2, OM3, OM4, OM5

+ Cable out-sheath: PE, black

+ Cable diameter: 7.2*14.2mm

+ Cable net weight: 100kg/km

+ Cable printing and labelling: accept.

Unit Price: US $0.02 - 99.99 / Piece

MOQ: 10 Piece/Pieces

Supply Ability: 100000pcs/Month

Origin: Guangdong, China

Seaport/airport : Shenzhen

Send email to us

Product Detail

Product Tags

GYXTC8S Self-supporting Outdoor Cable Description

- The GYXTC8S fiber optic cable cable is an outdoor, armored, figure-8 self-supporting aerial fiber optic cable engineered for overhead telecommunication deployments.

- It features a unique uni-tube (central loose tube) design accompanied by an integrated steel messenger wire, allowing for direct pole-to-pole installation without requiring a separate external suspension wire.

- GYXTC8S meaning:

Code Component	Technical Meaning	Description
GY	Outdoor Optical Cable	Specially designed to withstand harsh outdoor environments.
Y	Loose Tube Structure	The optical fibers are housed loosely inside protective plastic tubes.
X	Central Tube Design	Features a single, compact central loose tube rather than multiple stranded tubes.
T	Filled Structure	The tube is fully filled with a water-resistant jelly compound to block moisture.
C	Self-Supporting Layout	Incorporates an integrated messenger wire so it can support its own weight between poles.
8	"Figure-8" Cross-Section	The outer profile looks like the number "8", separating the fiber unit from the steel suspension wire.
S	Steel Tape Armored	Features a corrugated steel tape wrap (PSP) that protects the core against crushing, rodents, and mechanical stress.

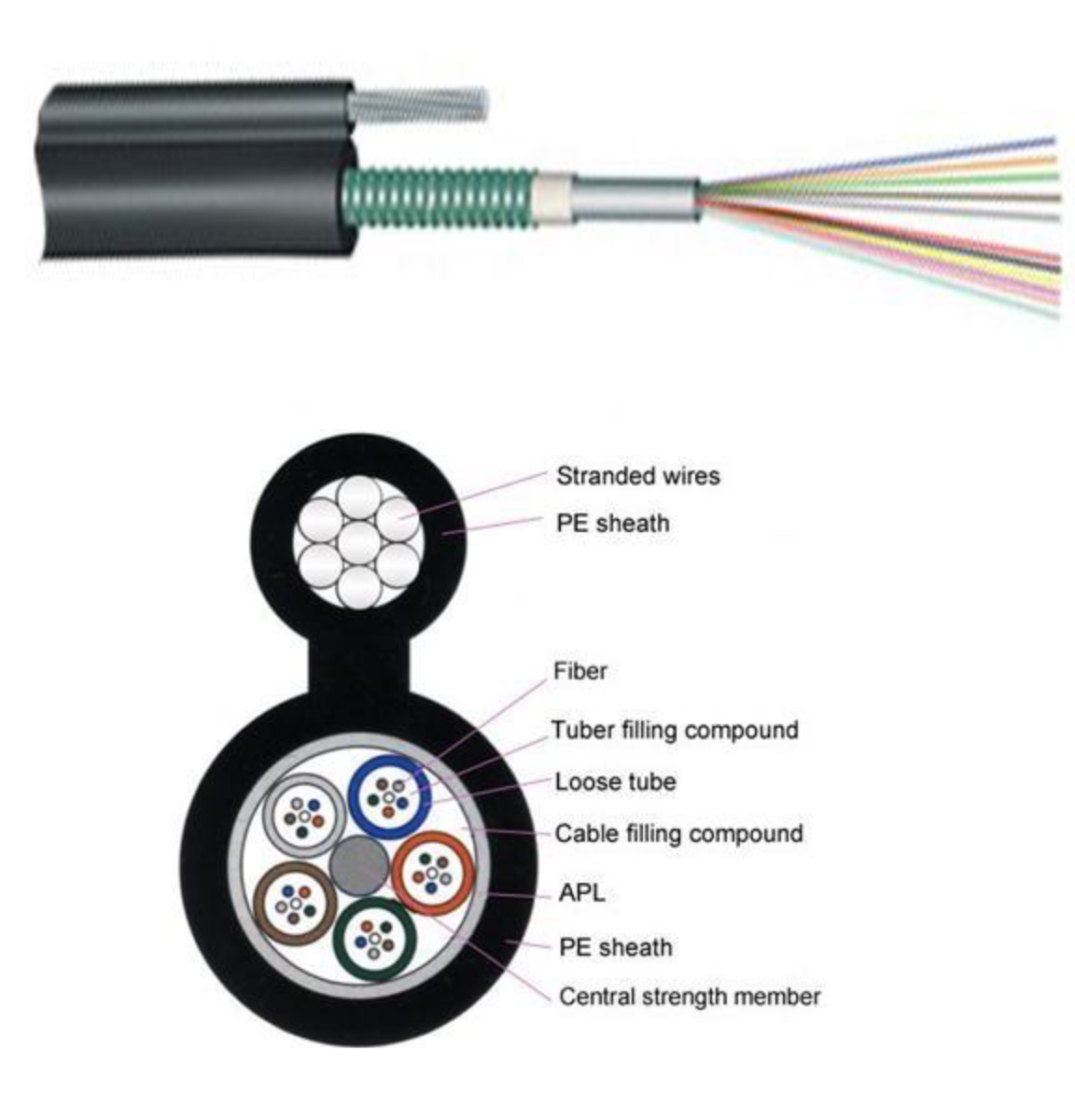

GYXTC8S Cable Main Structure

Layer / Component	Material & Description	Key Function
Messenger Wire	Stranded or solid galvanized steel wire (7 × 1.0 mm typical).	Provides high tensile strength (1500N to 5000N) to carry the structural load over long aerial spans.
Optical Core (Unitube)	Central loose tube made of high-modulus plastic (such as PBT) housing up to 24 color-coded fibers (250 μm).	Isolates optical fibers from physical strain, flattening forces, and microbending.
Moisture Protection	Hydrolysis-resistant thixotropic gel filling inside the tube coupled with water-blocking yarn/tape.	Prevents longitudinal water ingress and protects against severe humidity.
Armor Layer	Corrugated steel tape laminate (PSP - Plastic Steel Polyethylene) longitudinally wrapped around the central core.	Delivers robust crush resistance, lateral pressure support, and localized protection against external forces or animal damage (such as bird peck or gunshot resistance).
Outer Sheath	High-density, UV-stabilized Polyethylene (PE).	Offers prolonged weatherproofing and environmental durability under long-term solar exposure.

GYXTC8S Cable Technical Data

Items		Specifications
MNF		Kocent Optec Limited
Origin		Guangdong, China
Fiber Count		6-48fo
Colored Coating Fiber	Dimension	250µm±15µm
Colored Coating Fiber	Color	Blue, Orange, Blue, Brown, Gray, White, Red, Black, Yellow, Purple, Pink, Aqua
Loose Tube	Dimension	2.0±0.2mm
	Material	PBT
	Color	Natural
Messenger Wire Steel Wire	Diameter	7*1.0mm
Messenger Wire Steel Wire	Material	Phosphating steel strand
Outer Jacket	Dimension	4~12fo: 7.013.5mm±0.2mm24fo: 9.017.0±0.5mm48fo: 9.5*17.5±0.5mm
	Material	PE
	Color	Black

Fiber characteristic:

Fiber style		Unit	SM G652D	SM G657A	MM 50/125	MM 62.5/125	MM OM3-300	MM OM4-550
Condition		nm	1310/1550	1310/625	850/1300	850/1300	850/1300	850/1300
Attenuation		dB/km	≤0.34/0.22	≤.035/0.21	≤3.0/1.0	≤3.0/1.0	≤3.0/1.0	≤3.5/2.2
Dispersion	1550nm	Ps/(nm*km)	≤18	≤18	----	----	----	----
	1625nm	Ps/(nm*km)	≤22	≤22	----	----	----	----
Bandwidth	850nm	MHZ.KM	----		≥400	≥160
	1300nm	MHZ.KM	----		≥800	≥500
Zero dispersion wavelength		nm	≥1302 ≤1322	≥1302 ≤1322	----	----	≥ 1295, ≤1320	≥ 1295, ≤1340
Zero dispersion slope		nm	≤0.091	≤0.090	----	----	----	----
PMD Maximum Individual Fiber			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*km)	≤0.08	≤0.1	----	----	----	----
Fibre cutoff wavelength λc		nm	≥1180 ≤1330	≥1180 ≤1330	----	----	----	----
Cable cutoff wavelength λcc		nm	≤1260	≤1260	----	----	----	----
MFD	1310nm	um	9.2±0.4	9.0±0.4	----	----	----	----
	1550nm	um	10.4±0.8	10.1±0.5	----	----	----	----
Numerical Aperture (NA)			----	----	0.200± 0.015	0.275± 0.015	0.200± 0.015	0.200± 0.015
Step (mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10	≤0.10
Difference backscatter coefficient		dB/km	≤0.03	≤0.03	≤0.08	≤0.10	≤0.08	≤0.08
Attenuation uniformity		dB/km	≤0.01	≤0.01
Core diameter		um	9	9	50±1.0	62.5±2.5	50±1.0	50±1.0
Cladding diameter		um	125.0±0.1	125.0±0.1	125.0±0.1	125.0±0.1	125.0±0.1	125.0±0.1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter		um	242±7	242±7	242±7	242±7	242±7	242±7
Coating/chaffinch concentrically error		um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error		um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5	≤1.5
Curl(radius)		um	≤4	≤4	----	----	----	----
