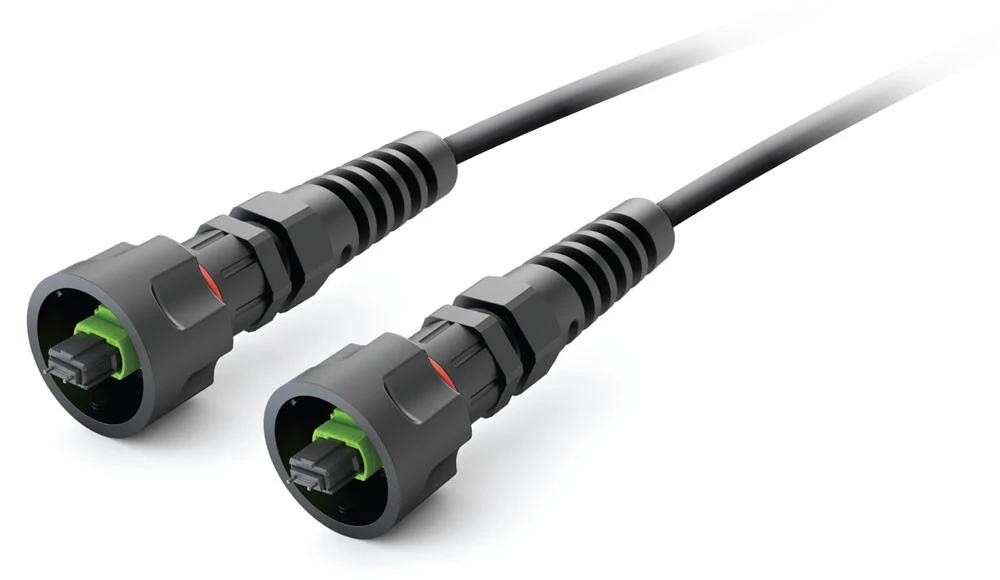

8F ODVA MPO / ODVA MTP CPRI Single Mode APC Outdoor Patch Cable Ultra Low Loss 5.0mm LSZH

Short Description:

+ Product Name:

ODVA MPO / ODVA MTP CPRI Single Mode APC Outdoor Patch Cable Ultra Low Loss 5.0mm LSZH

+ Side A Connector Type:

ODVA MPO Male / Female

ODVA MTP Male / Female

+ Side B Connector Type:

ODVA MPO Male / Female

ODVA MTP Male / Female

Other connector

+ Fiber Type:

Single Mode G657A1

Single Mode G657A2

+ Fiber Count: 8F

+ Main Cable Dia.: 5.0mm

+ Cable Out-sheath Material: LSZH, ONFR, PVC

+ Trunk Cable Length: Customized

+ Polarity: Type A, Type B, Type C

+ Application: Outdoor

Unit Price: US $0.02 - 99.99 / Piece

MOQ: 10 Piece/Pieces

Supply Ability: 100000pcs/Month

Origin: Guangdong, China

Seaport/airport : Shenzhen

Send email to us

Product Detail

Product Tags

8F ODVA MPO / ODVA MTP CPRI Single Mode APC Outdoor Patch Cable Ultra Low Loss 5.0mm LSZH

- 8F ODVA MPP (or ODVA MTP) CPRI Single mode APC Outdoor Patch Cable is an enterprise-grade, ruggedized connectivity solution engineered specifically for next-generation telecommunications infrastructure, including Fiber-to-the-Antenna (FTTA) and Common Public Radio Interface (CPRI) deployments.

- Combining high-density MPO/MTP connection efficiency with an ODVA connector with IP67/IP68 waterproof rating, it ensures uninterrupted, ultra-low-loss performance under extreme environmental stress.

- It is engineered for robust outdoor applications, including FTTA, FTTH, industrial, and military deployments.

- They are commonly used in Fiber-to-the-Antenna (FTTA) and Common Public Radio Interface (CPRI) applications to connect remote radio units on cell towers to base band units, as well as in industrial networks, surveillance systems, and other outdoor installations.

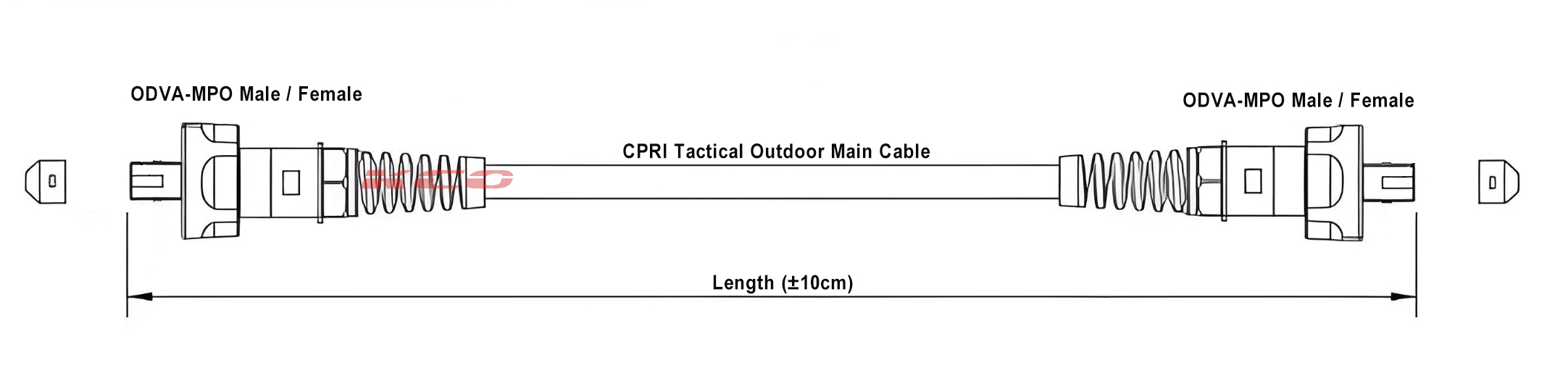

ODVA MPO / ODVA MTP CPRI Single Mode APC Outdoor Patch Cable Structure

ODVA MPO / ODVA MTP CPRI Single Mode APC Outdoor Patch Cable

- Connector side A:

ODVA MPO

ODVA MTP

- Connector End B:

ODVA MPO

ODVA MTP

Other type connector

- Fiber Type:

Single Mode G657A1

Single Mode G657A2

- Fiber count: 8F

- Main cable:

Dia.: 5.0mm

Color: Black

- Main Cable Material:

LSZH

TPU

- Polarity:

Method A,

Method B,

Method C

- Cable Length: customized

- Insertion Loss:

Standard IL

Ultra Low Loss

- Return Loss:

Standard RL

MPO / MTP Connector Fiber Count

Specifications

Type	Single Mode		Single Mode		Multi Mode
	(APC Polish)		(UPC Polish)		(PC Polish)
Fiber Count	8f,12f, 16f, 24f, 32f, 48f		8f,12f, 16f, 24f, 32f, 48f		8f,12f, 16f, 24f, 32f, 48f
Fiber Type	G657A1, G657A2		G657A1, G657A2		OM1,OM2,OM3, OM4, OM5, etc.
Max. Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
	Ultra Low Loss		Ultra Low Loss		Low Loss
	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.60dB
Return Loss	≥60 dB		≥60 dB		NA
Durability	≥500 times		≥500 times		≥500 times
Operating Temperature	-40℃~+80℃		-40℃~+80℃		-40℃~+80℃
Test Wavelength	1310nm		1310nm		1310nm
Insert-pull test	1000 times＜0.5 dB
Interchange	＜0.5 dB
Anti-tensile force	15kgf

Applications

+ Fiber-to-the-Antenna (FTTA)

+ Common Public Radio Interface (CPRI) applications

+ Wireless Macro Cells & Small Cells:

Bridging the connection between the Base Band Unit (BBU) at ground level or in a cabinet and the mast-mounted Remote Radio Unit (RRU) over a CPRI interface.

+ Industrial and Harsh Environments:

Distributing high-bandwidth links across smart city camera nodes, transport hubs, or rail corridors susceptible to moisture, mud, and vibration.

+ Data Center Building-to-Building Interconnects:

Ideal for routing high-density single-mode backbones outdoors or through exposed cable trays before transitioning directly inside to internal server halls.
