Multimode OM4 12F MPO Female to LC / MTP Male to LC Optical Fiber Fan-out Patch Cord

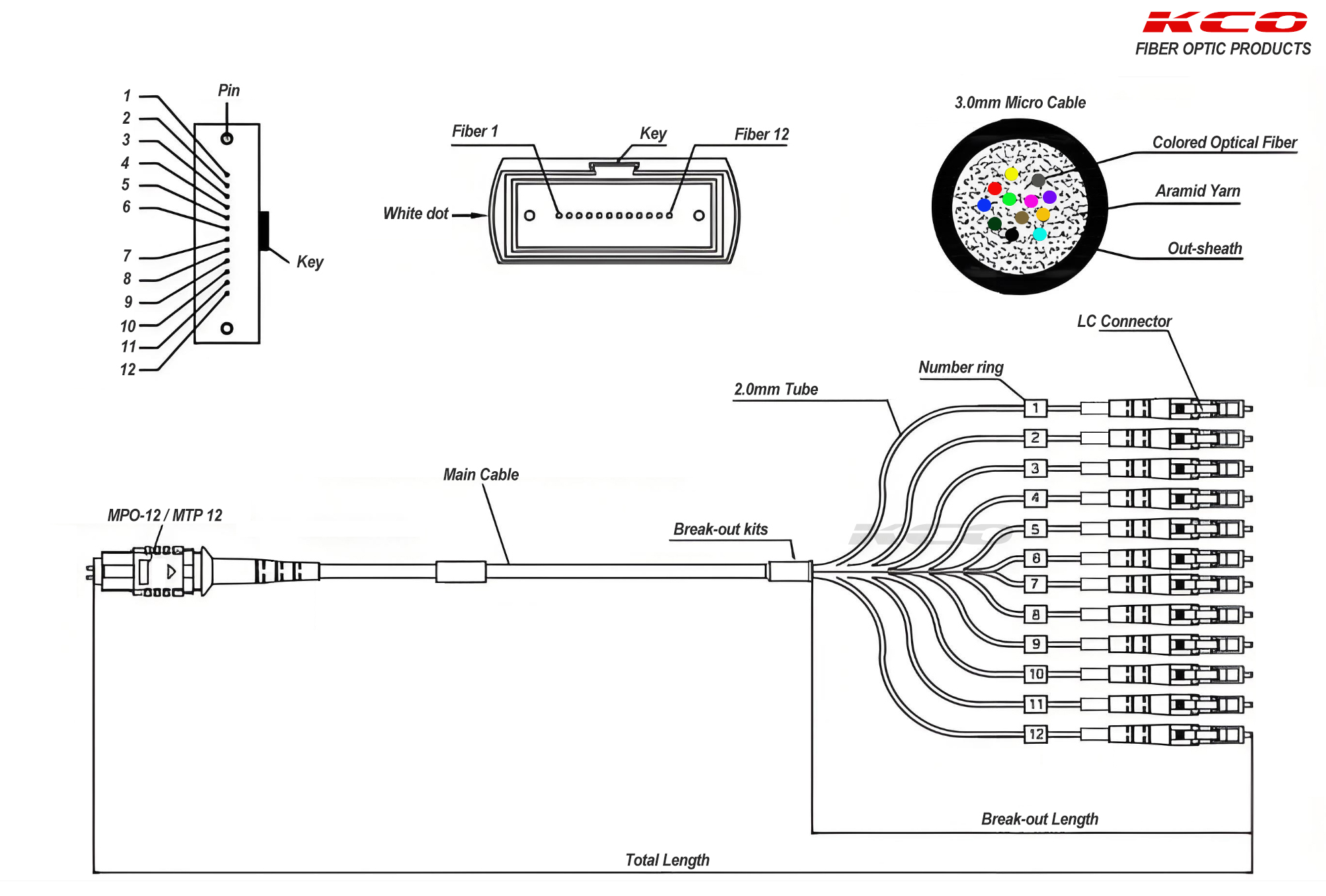

- A 12F OM4 MPO / MTP to LC fan-out patch cord transitions a single 12F MPO/MTP connector on one end into 12 individual LC connectors on the other.

- It is a high-performance, low-loss solution for high-speed fiber optic networks.

- OM4 fiber patch cord optimize for 40G/100G high-density data center. They are typically used for patching within a cabinet.

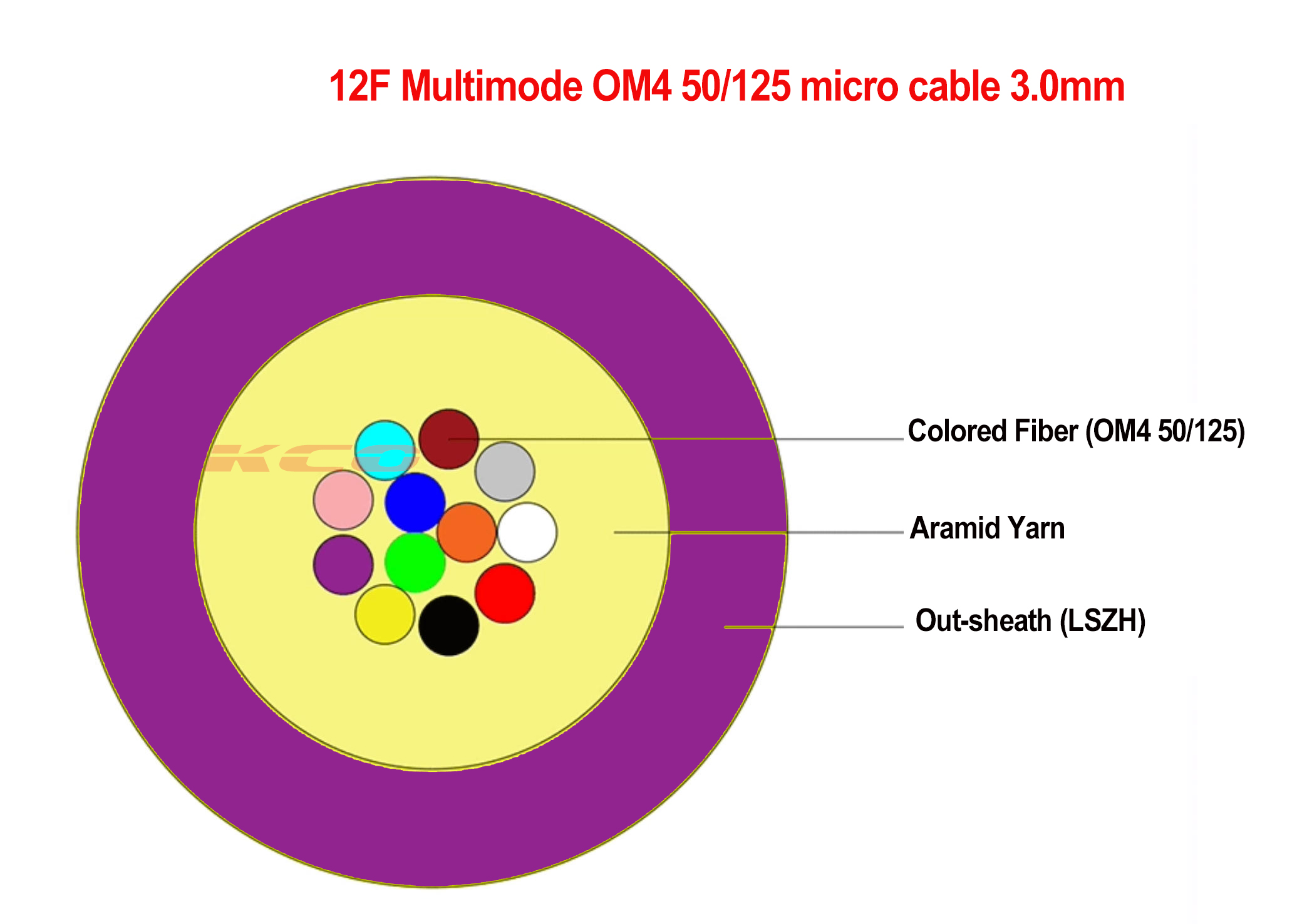

- Built with OM4 multimode fiber, the cable supports high-speed transmissions at 40G, 100G, 200G, or 400G, ensuring reliable and stable performance. Its uniboot LC connectors reduce cable clutter and allow for reversible polarity, making installation and maintenance more efficient.

- It is explicitly engineered to connect QSFP+ transceivers on high-speed switches to four individual 10G SFP+ ports.

- Key usage:

+ Switch-to-Switch (Port Aggregation/Breakout): Commonly used in data centers to bridge high-speed QSFP+ or QSFP28 switch ports (40G/100G) to multiple downstream 10G/25G SFP+ ports on standard servers or switches. Supports up to 100Gbps (40Gbps/100Gbps SR4 transmission).

+ Patch Panel Consolidation: Connects centralized MPO trunk cables in a Fiber Distribution Frame to individual LC ports on active equipment (SAN switches, routers, and servers).

+ Equipment Migration: Facilitates the transition from legacy 10G duplex LC-based infrastructure to high-speed 40G/100G parallel optics transmission.

- The MPO / MTP connector use 12F type. It can be Male (with pin) or Female (without pin)
