Military Tactical YZC Outdoor Fiber Optic Patch Cable

Short Description:

• IP67 rated to ensure protection from dust and water immersion.

• Temperature range: -40°C to +85°C.

• Bayonet-style mechanical lock.

• Flame retardant materials per UL 94 V-0.

• Core number available: 2fo, 4fo, 6fo, 8fo, 12fo.

Send email to us

Product Detail

Product Tags

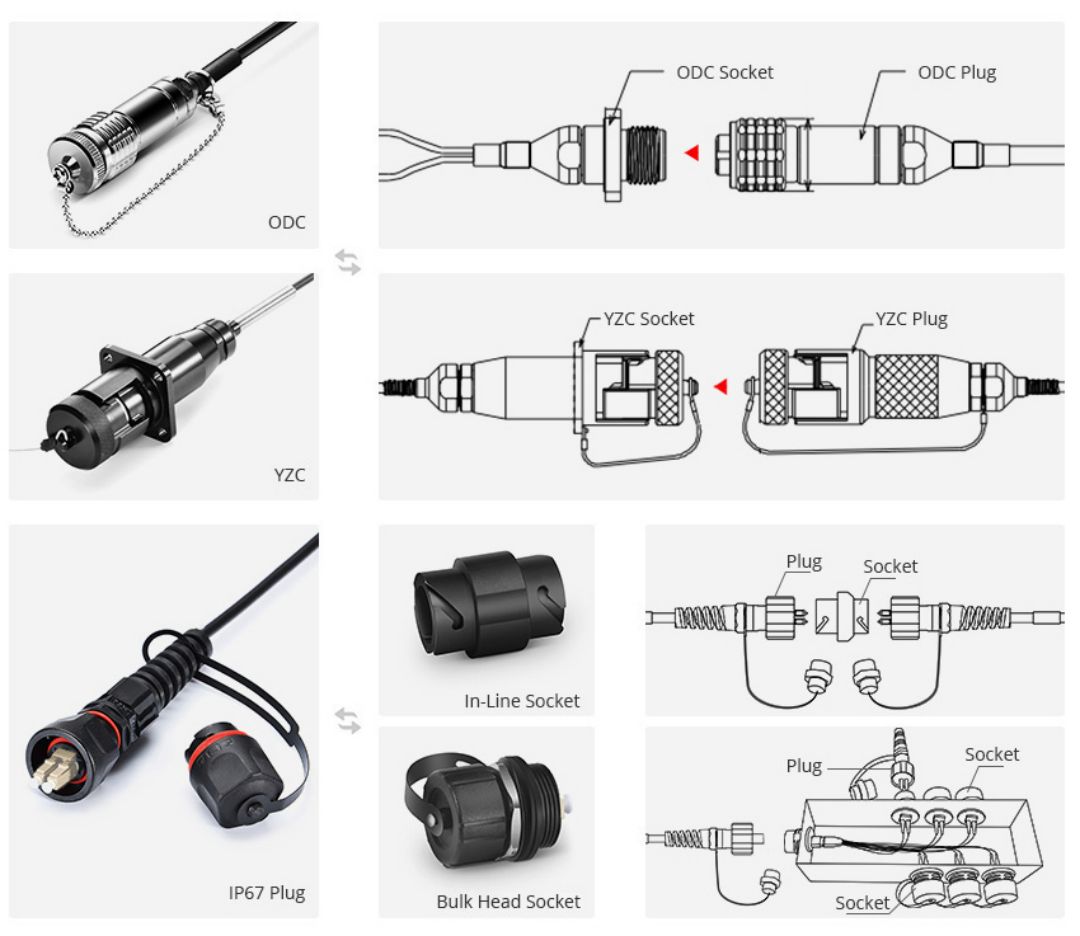

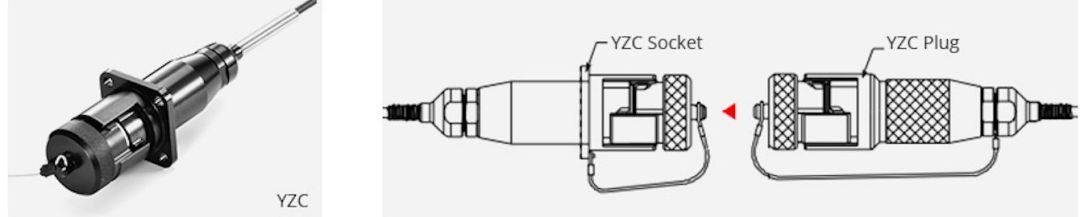

About the YZC connector:

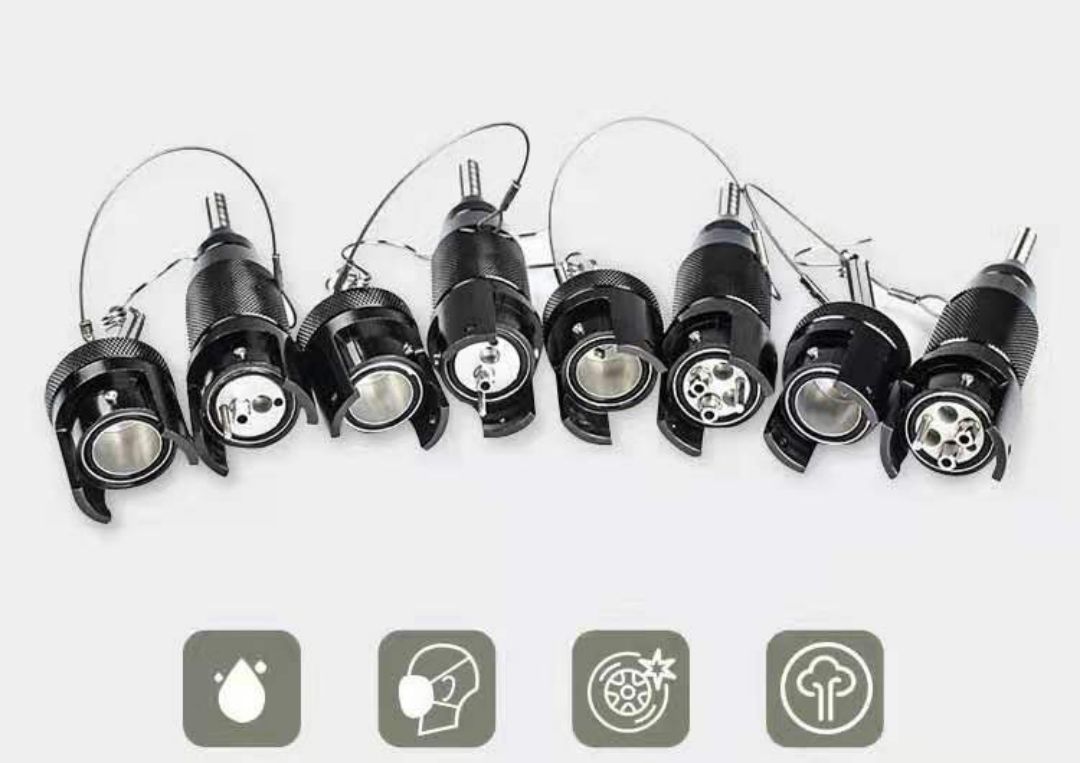

• The YZ series of military tactical connector have 3 types, they are YZA, YZB and YZC.

• YZC designed for military field fiber optic cable supporting, neutral bayonet locking structure can be realized head and seat, head and head, seat and seat fast any connection.

• With multi-core once connected and blind insertion; connection loss, high reliability; rugged, waterproof, dustproof, resistance to harsh environments, etc.

• It can be used in a variety of optical fiber communication network field army, military computer systems, airborne or ship borne equipment, repair and other outdoor optical cable system temporary connection.

• Product specifications are: 2 core, 4 core, 6-core, 8-core, 12 core. Products are mainly used for: military emergency communications, broadcast television, emergency rush through optical fiber communications, mining, oil and so on.

Characterisics:

• Protection of stainless steel tube with small caliber.

• Avoid the damage of torsion.

• High tensile coefficient and stress coefficient.

• Convenient for application, highly security.

• Application without damage to cable.

• Manufacture without damage to cable.

• Cost cutting for maintenance.

• Adopting neutral connection technology, without using adapter or flange, the design of quick connecting.

• Key location, With multi-core once connected and blind insertion.

• Aluminium alloy shell, light weight and high strength.

• Connector plugs and receptacles are provided with dust-proof covers to ensure the quality of connection.

• Standard ceramic pin and housing connection dimensions, fully compatible with existing equipment.

Applications:

• FTTA

• WiMax base station,

• CATV outdoor Application;

• Network

• Automation and industrial cabling

• Surveillance systems

• Naval and ship building

• Broadcast

Assembly Performance:

Item	Data
Connector type	YZC
Fiber Type	Single mode G652DSingle mode G655 Single mode G657A Single mode G657B3		Multimode 62.5/125Multimode 50/125 Multimode OM3 Multimode OM4 Multimode OM5
Polish	UPC	APC	UPC
Insertion Loss	≤1.0dB (Typical≤0.5dB)		≤1.0dB (Typical≤0.9dB)
Return Loss	UPC≥50dB APC≥60dB		UPC≥20dB
mechanical character	Socket/Plug：≤1000N (Main Cable）
	LC/SC: ≤100N（Branch Cable）
Tensile Strength	Short term600N / Long term：200N
Protection level	IP67
Fiber count(optional)	2 ~ 12
Cable Diameter(optional)	4.8mm 5.5mm 6.0mm 7.0mm (or Customize)
Jacket Material(optional)	PVC LSZH TPU
Jacket Color	Black
Strength member	Kevlar
Operating Temperature	-40 ~ +85℃

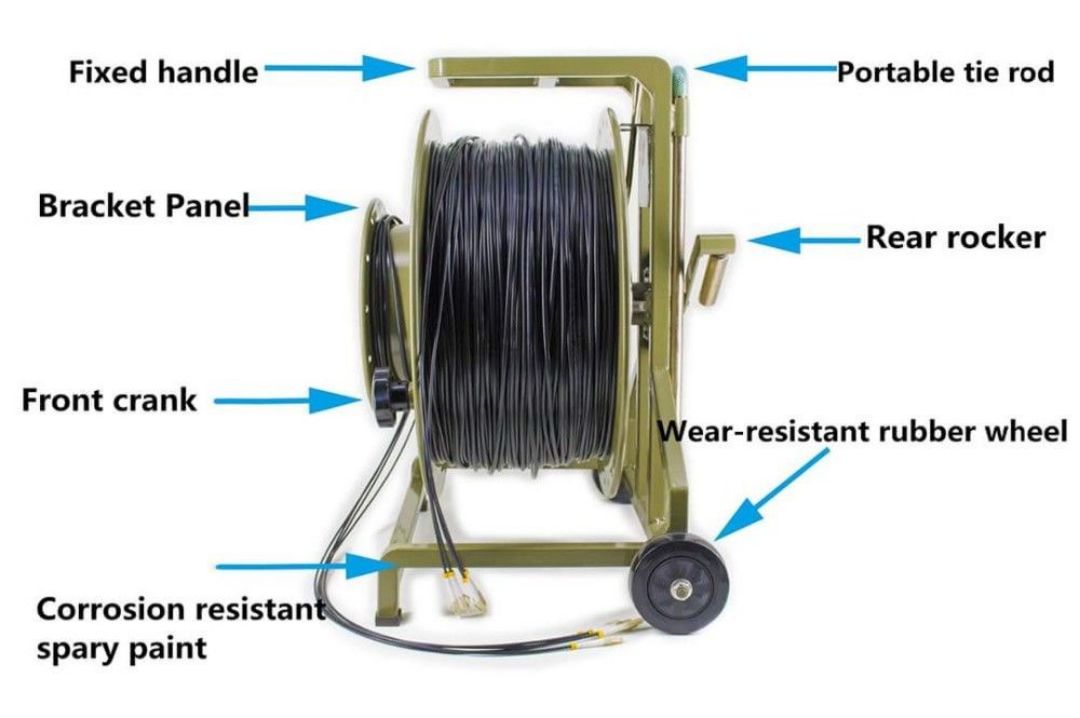

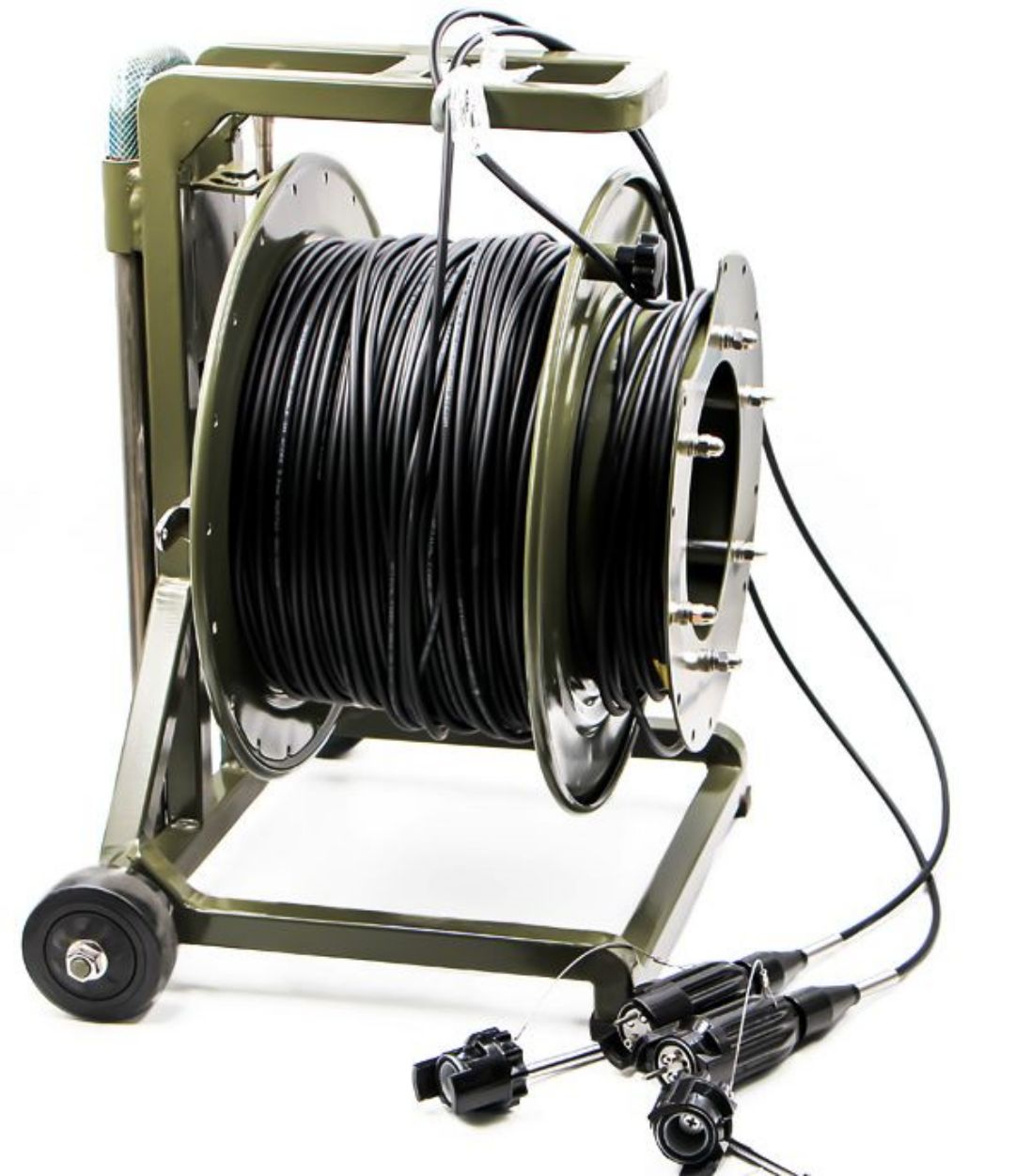

Field Fiber Cable:

• Military tactical field fiber optical cable is a kind of non-metal optical cable which can be quickly retrieved and replaced in the field and harsh environment.
• It is specially designed for rapid deployment or repeated deployment in field and complex environments.
• It is used for military networks, industrial Ethernet, combat vehicles and other harsh environment.

Feature:

• IP67 rated to ensure protection from dust and water immersion.

• Temperature range: -40°C to +85°C.

• Bayonet-style mechanical lock.

• Flame retardant materials per UL 94 V-0.

Applications:

• Harsh environments where chemicals, corrosive gases and liquids are commonplace.

• Inside and outside industrial plant and equipment that interface with industrial Ethernet networks.

• Remote interface applications such as towers and antennae as well as FTTX in PON and at the home applications.

• Mobile routers and internet hardware.

• Tactical Communication Connection.

• Oil, Mine Communication Connection.

• Remote Wireless Base Station.

• CCTV System.

• Fiber Sensor.

• Railway signal Control Application.

• Intelligent Power Station Communication.

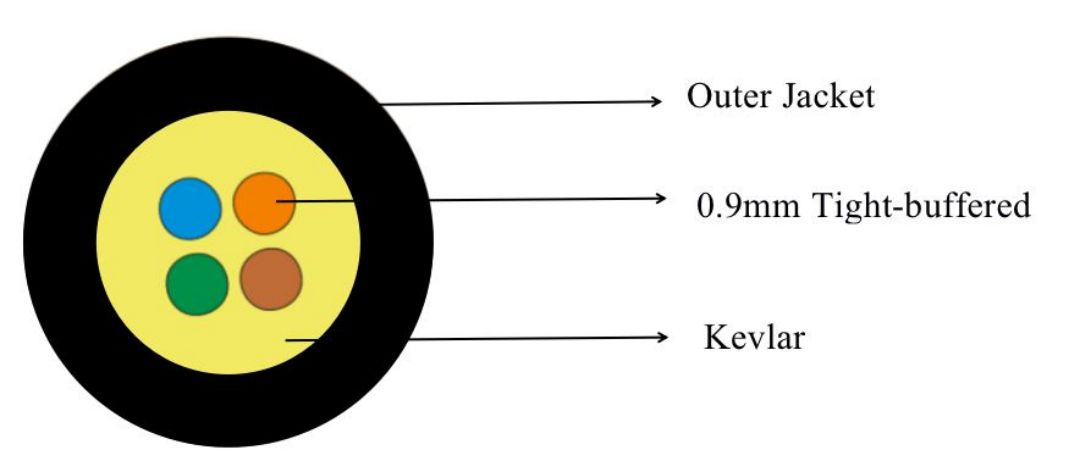

Construction of cable:

Technical Data:

Item	Data
Fiber type	Single mode G657A1
Buffered fibers diameter	850±50μm
Buffered fibers cover	LSZH
Fiber count	4 fibers
Out sheath	TPU
Out sheath color	Black
Out sheath diameter	5.5 ± 0.5mm
Wave length	1310nm, 1550nm
Attenuation	1310nm: ≤ 0.4dB/km1550nm: ≤ 0.3 dB/km
Strength member	Kevlar 1580
Crush	Long term: 900NShort term: 1800N
Max. Crishing resistance	1000 N/100mm2
Bend	Min. bend radius (dynamic): 20DMin. bend radius (static): 10D
Maximum compressive capacity	≥ 1800 (N/10cm)
Torsion resistance Number of cycles	Max. 50 times
Withstands knotting	Max. 500N load
90° cornering capacity (offline):	Withstands 90° folding with Max 500N . load
Working environment	Temperature: -40°C~+85° C
UV resistant	Yes
