Ultra Low Loss Multimode OM3 8F MPO to 8 LC Harness Fiber Optic Cable Method B

Short Description:

+ Product Name:

Ultra Low Loss Multimode OM3 8F MPO to 8 LC Harness Fiber Optic Cable

+ Side A Connector Type:

MPO Male / Female

MTP Male / Female

+ Side B Connector Type:

LC duplex

+ Fiber Type:

Multimode OM3-150 (less than 100m length)

Multimode OM3-300 (more than 100m length)

+ Fiber Count: 8F

+ Cable Dia.: 3.0mm

+ Fanout length: 30cm / 50cm

+ Cable Out-sheath Material: LSZH, ONFR, PVC

+ Trunk Cable Length: Customized

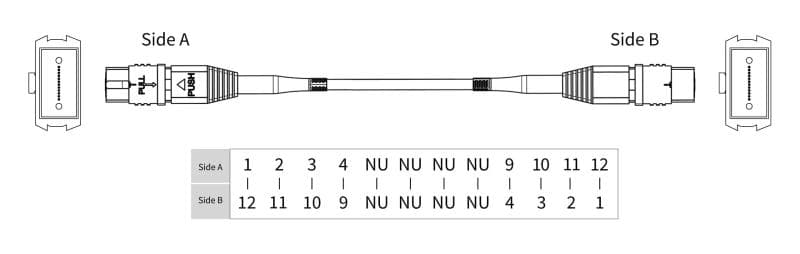

+ Polarity: Method A, Method B, Method C

Unit Price: US $0.02 - 99.99 / Piece

MOQ: 10 Piece/Pieces

Supply Ability: 100000pcs/Month

Origin: Guangdong, China

Seaport/airport : Shenzhen

Send email to us

Product Detail

Product Tags

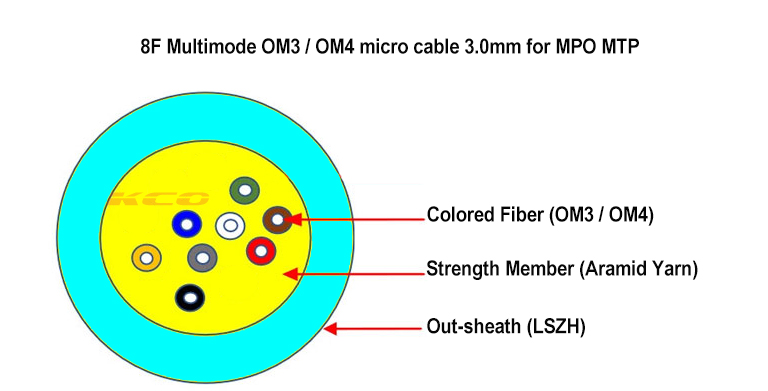

[KCO Fiber] 3.0mm micro cable for MPO MTP patch cord

- 8F multimode micro cable is spacial designed for MPO / MTP patch cord that come with out-sheath diameter 3.0mm only.

- Typically using OM3-150 or OM3-300 (50/125μm) fiber.

- These cables are ideal for 40G/100G parallel optics and direct 800G/1.6T transceiver links.

- OM3 fiber is a laser-optimized, commonly used for short to medium range data transmission in data centers and enterprise networks.

- Distinguishable by its characteristic aqua outer jacket, OM3-300 delivers high bandwidth and supports up to 10 Gbps speeds over distances of 300 meters, and 40G/100G speeds up to 100 meters

- The MPO MTP Trunk Cables are Female-to-Female or Male-to-Male MPO/MTP connections used as permanent backbone links between patch panels.

- The MPO MTP to LC Breakout/Fanout Cables Adapts an 8F MPO/MTP connector to 4x Duplex LC connectors, commonly used to connect 40G/100G switch ports to individual 10G/25G servers.

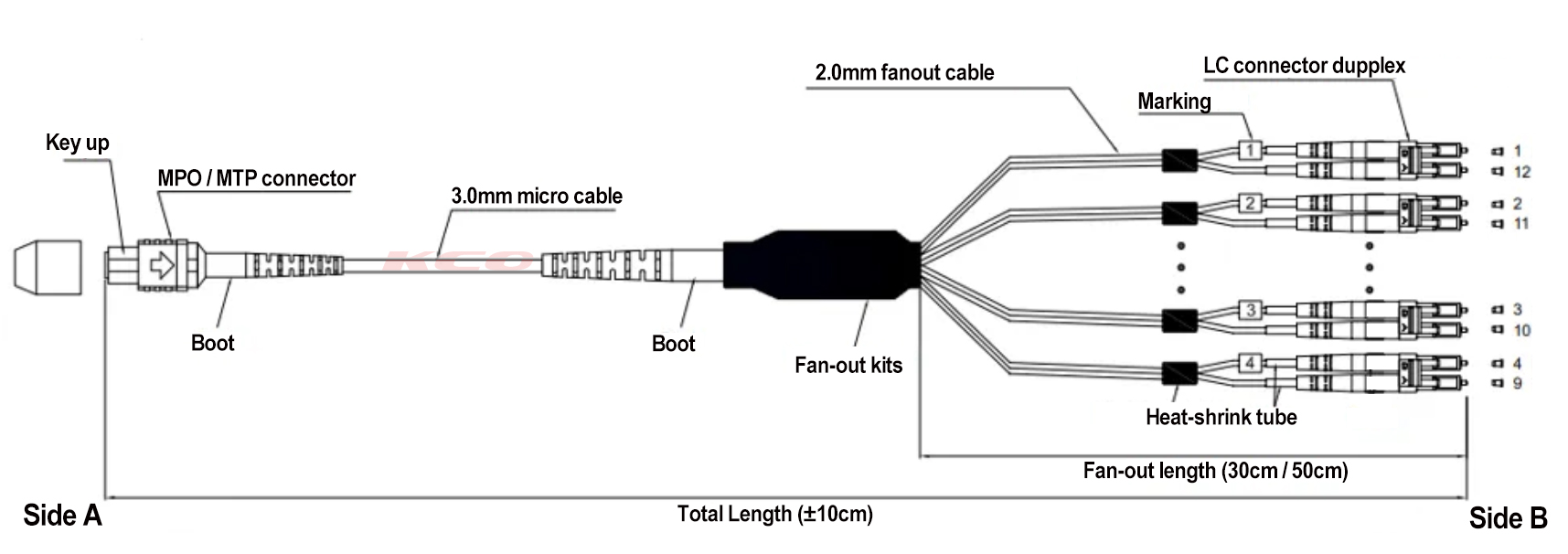

8F OM3 MPO to LC / MTP to LC Cable Structure:

MPO 8F / MTP 8F to LC harness cable

- 8F OM3-150 or OM3-300 MPO to LC breakout cable / MTP to LC harness cable splits a single high-speed MPO-8 / MTP-8 connector into 4 discrete duplex LC connectors.

- It is primarily engineered for parallel-to-duplex migrations, such as connecting a 40G QSFP+ / 100G QSFP28 transceiver directly to four 10G SFP+ / 25G SFP28 ports.

- It features a female MPO-8 or MTP-8 connector on one end and 4* LC duplex UPC connectors on the other.

- It uses the patch the cable from device to distribution frame in data center.

MPO 8F/ MTP 8F Connector

Applications

+ FTTx (FTTA, FTTB, FTTC, FTTH, FTTO, etc)

+ Data Center Interconnection

+ WAN/LAN

+ High-speed railway station control room

+ AI data center

+ Star-link data center

+ Bank data center

Specifications

Type	Single Mode		Single Mode		Multi Mode
	(APC Polish)		(UPC Polish)		(PC Polish)
Fiber Count	8f,12f, 16f, 24f, 32f, 48f		8f,12f, 16f, 24f, 32f, 48f		8f,12f, 16f, 24f, 32f, 48f
Fiber Type	G657A1, G657A2		G657A1, G657A2		OM1,OM2,OM3, OM4, OM5, etc.
Max. Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
	Ultra Low Loss		Ultra Low Loss		Low Loss
	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.60dB
Return Loss	≥60 dB		≥60 dB		NA
Durability	≥500 times		≥500 times		≥500 times
Operating Temperature	-40℃~+80℃		-40℃~+80℃		-40℃~+80℃
Test Wavelength	1310nm		1310nm		1310nm
Insert-pull test	1000 times＜0.5 dB
Interchange	＜0.5 dB
Anti-tensile force	15kgf
