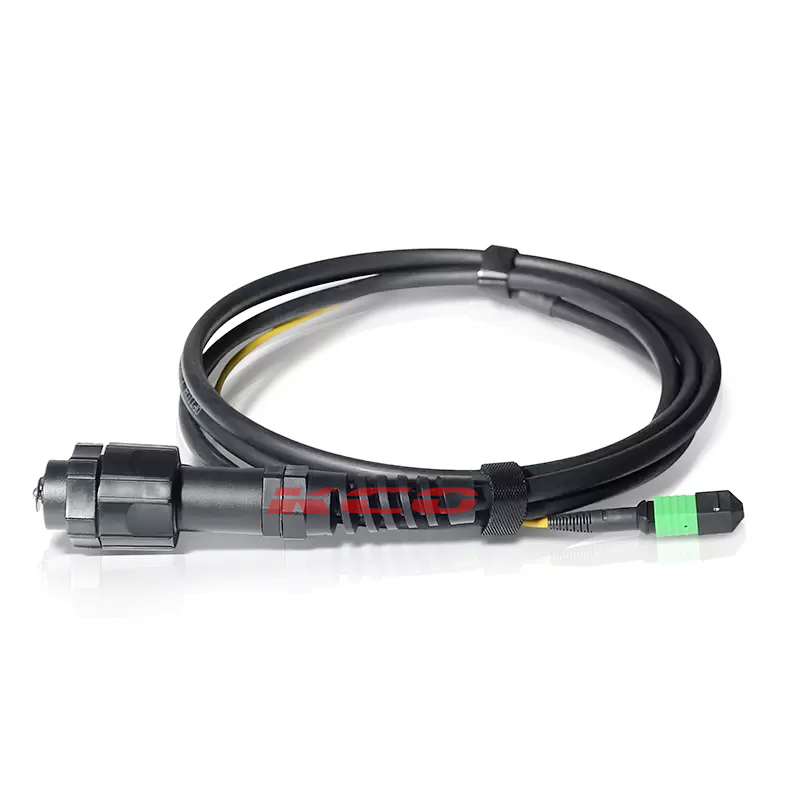

ODVA MPO 12F IP68 Water-proof Fiber Optic Connector / 12 Cores ODVA-MTP Outdoor Patch Cable 7.0mm For FTTA

Short Description:

+ Product Name:

12 Cores ODVA-MTP Outdoor Patch Cable 7.0mm For FTTA

+ Side A Connector Type:

ODVA MPO Male / Female

ODVA MTP Male / Female

+ Side B Connector Type:

ODVA MPO Male / Female

ODVA MTP Male / Female

Other connector

+ Fiber Type:

Single Mode G657A1

Single Mode G657A2

+ Fiber Count: 12F

+ Main Cable Dia.: 7.0mm

+ Cable Out-sheath Material: LSZH, ONFR, PVC

+ Trunk Cable Length: Customized

+ Polarity: Type A, Type B, Type C

+ Application: Outdoor FTTA

Unit Price: US $0.02 - 99.99 / Piece

MOQ: 10 Piece/Pieces

Supply Ability: 100000pcs/Month

Origin: Guangdong, China

Seaport/airport : Shenzhen

Send email to us

Product Detail

Product Tags

12 Cores ODVA-MTP ODVA-MPO Outdoor Patch Cable 7.0mm For FTTA

- 12 Cores ODVA-MTP / ODVA-MPO Outdoor Patch Cable is an industrial-grade optical link engineered for demanding Fiber-to-the-Antenna (FTTA) and macro cell environments.

- It use a robust 7.0mm outer diameter jacket, this heavier cable construction provides enhanced tensile strength and crush resistance required for vertical tower runs and exposed installations, bridging the gap between base stations and Remote Radio Units (RRU).

- It is a heavy-duty, carrier-grade optical assembly engineered for harsh-environment deployments, primarily Fiber-to-the-Antenna (FTTA) infrastructure.

- This assembly bundles 12 optical fibers into a single, highly reinforced 7.0mm ruggedized jacket.

- It consolidates what would typically require multiple duplex cable runs into a single, unified drop, significantly reducing wind load, installation complexity, and total deployment costs on macro cells and distributed antenna systems (DAS).

ODVA MPO / ODVA MTP CPRI Single Mode APC Outdoor Patch Cable Structure

Main Structure:

Connector side A + Main Cable + Connector Side B

- Connector Side A:

ODVA MPO / ODVA MTP

- Connector Side B:

ODVA MPO / ODVA MTP / Other connector

- Main Cable:

Outer Diameter 7.0mm

Fiber type Single mode G657

Fiber count 12F

- Cable Total Length:

Customized

- IL / RL:

Industrial standard

Key Applications

- Fiber-To-The-Antenna (FTTA) Macro Sites

Run vertically up the tower mast to interconnect the Baseband Unit (BBU) inside the ground cabinet to an outdoor Fiber Distribution Box (FDB) or directly to the multi-channel Remote Radio Units (RRU).

- Mobile Backhaul & 5G Small Cells

Connecting high-capacity street-level small cell nodes or poles back to regional distribution hubs.

- Industrial Automation & Defense Transmissions

Deployable in temporary or harsh military operations, oil and gas extraction fields, and mining facilities where standard 4.8mm patch cords would succumb to heavy mechanical crushing or environmental damage.

MPO / MTP Connector Fiber Count

Specifications

Type	Single Mode		Single Mode		Multi Mode
	(APC Polish)		(UPC Polish)		(PC Polish)
Fiber Count	8f,12f, 16f, 24f, 32f, 48f		8f,12f, 16f, 24f, 32f, 48f		8f,12f, 16f, 24f, 32f, 48f
Fiber Type	G657A1, G657A2		G657A1, G657A2		OM1,OM2,OM3, OM4, OM5, etc.
Max. Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
	Ultra Low Loss		Ultra Low Loss		Low Loss
	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.60dB
Return Loss	≥60 dB		≥60 dB		NA
Durability	≥500 times		≥500 times		≥500 times
Operating Temperature	-40℃~+80℃		-40℃~+80℃		-40℃~+80℃
Test Wavelength	1310nm		1310nm		1310nm
Insert-pull test	1000 times＜0.5 dB
Interchange	＜0.5 dB
Anti-tensile force	15kgf
