OM4 50/125 MPO-24 Male to LC / MTP-24 Female To LC Harness Fan-out Patch Cable Polarity Type B

- A 24F micro cable is an ultra-compact, high-density optical cable designed specifically to be terminated with MPO (Multi-fiber Push-On) connectors. By packing 24 fibers into a single connector, it maximizes bandwidth and rack space in data centers and enterprise networks.

- A 24F OM4 MPO / MTP to LC fan-out patch cord transitions a single 24F MPO/MTP connector on one end into 24 individual LC connectors on the other.

- It is a high-performance, low-loss solution for high-speed fiber optic networks.

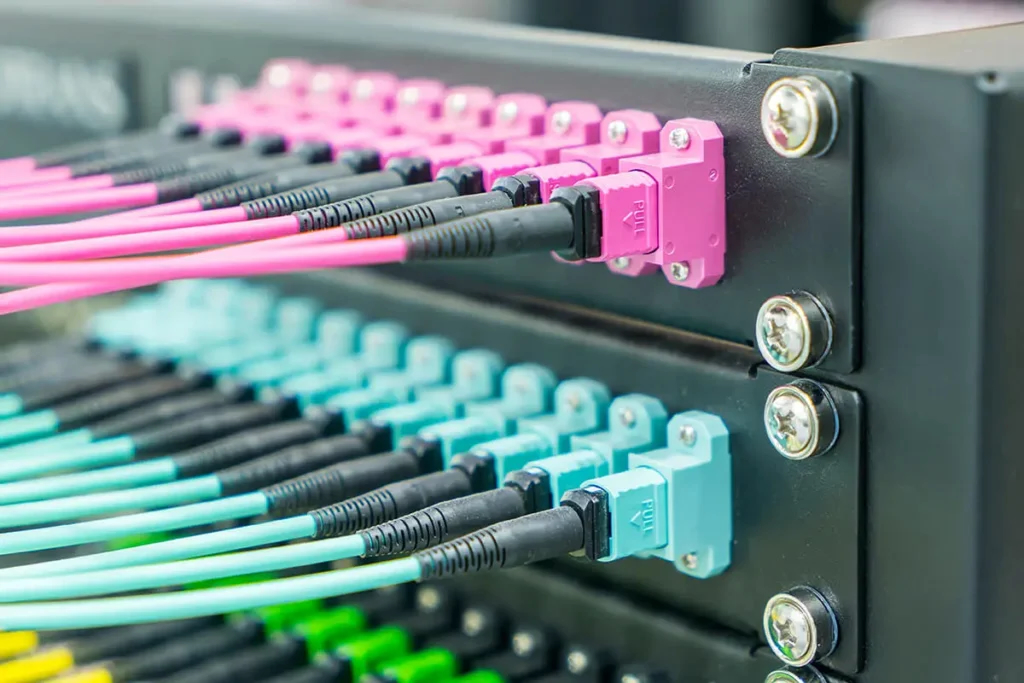

- OM4 fiber patch cord optimize for 40G/100G high-density data center. They are typically used for patching within a cabinet.

- Built with OM4 multimode fiber, the cable supports high-speed transmissions at 40G, 100G, 200G, or 400G, ensuring reliable and stable performance. Its uniboot LC connectors reduce cable clutter and allow for reversible polarity, making installation and maintenance more efficient.

- It is explicitly engineered to connect QSFP+ transceivers on high-speed switches to four individual 10G SFP+ ports.

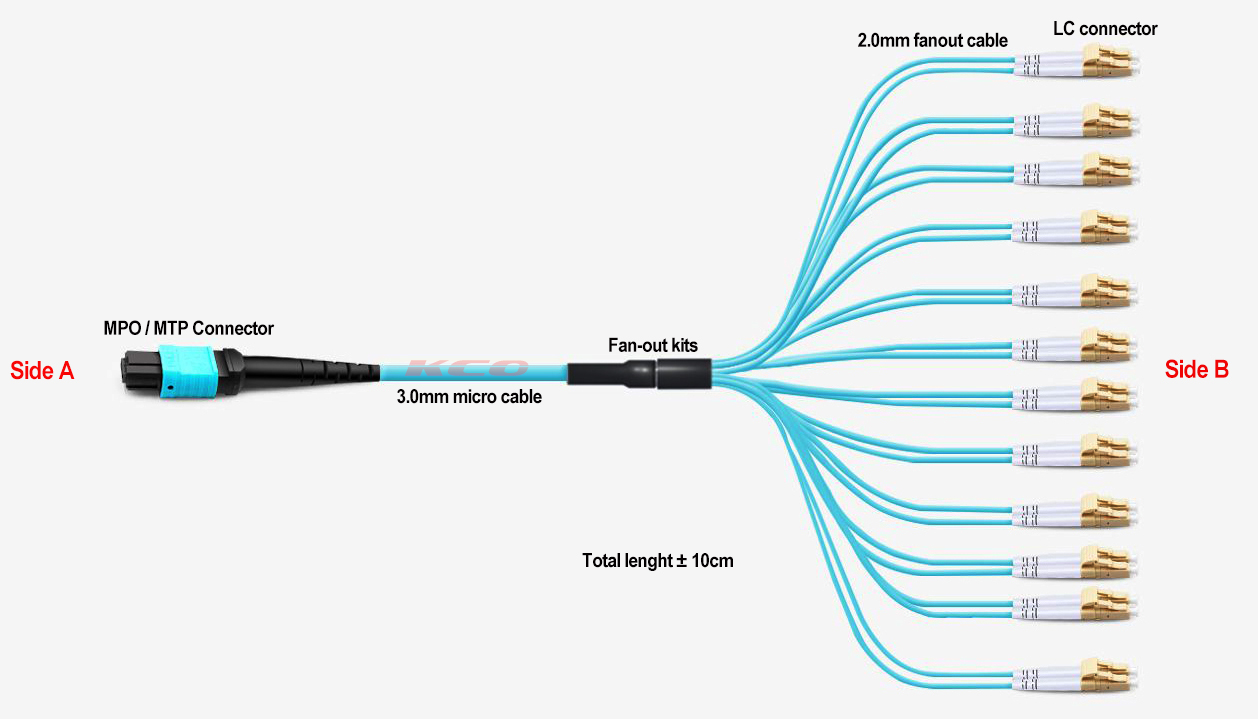

- MPO to LC Fanout patch cable structure:

+ Fiber Count: 24 individual fibers.

+ Connector Type:

MPO

MTP®

+ Connector Gender:

Male (with alignment pins)

Female (without pins)

+ Fiber Type: Multimode OM4 for short-reach data center connections.

+ Cable Construction: Micro-distribution style, typically featuring 250 μm fibers grouped in 24-fiber sub-units with Aramid yarn strength members.

+ Jacket Material: Low Smoke Zero Halogen (LSZH), Plenum, or Riser (OFNR) for local building compliance.

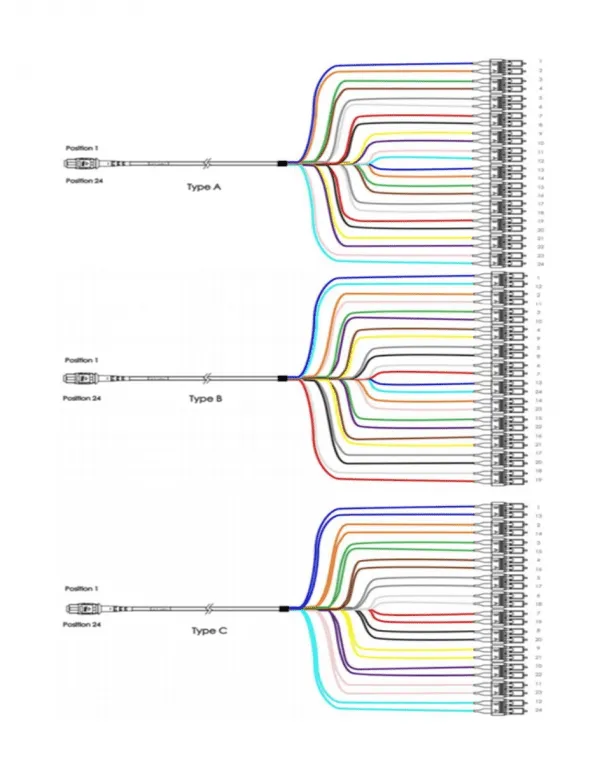

+ Polarity Methods: Method A (straight-through), Method B (cross), or Method C (pair-flipped).

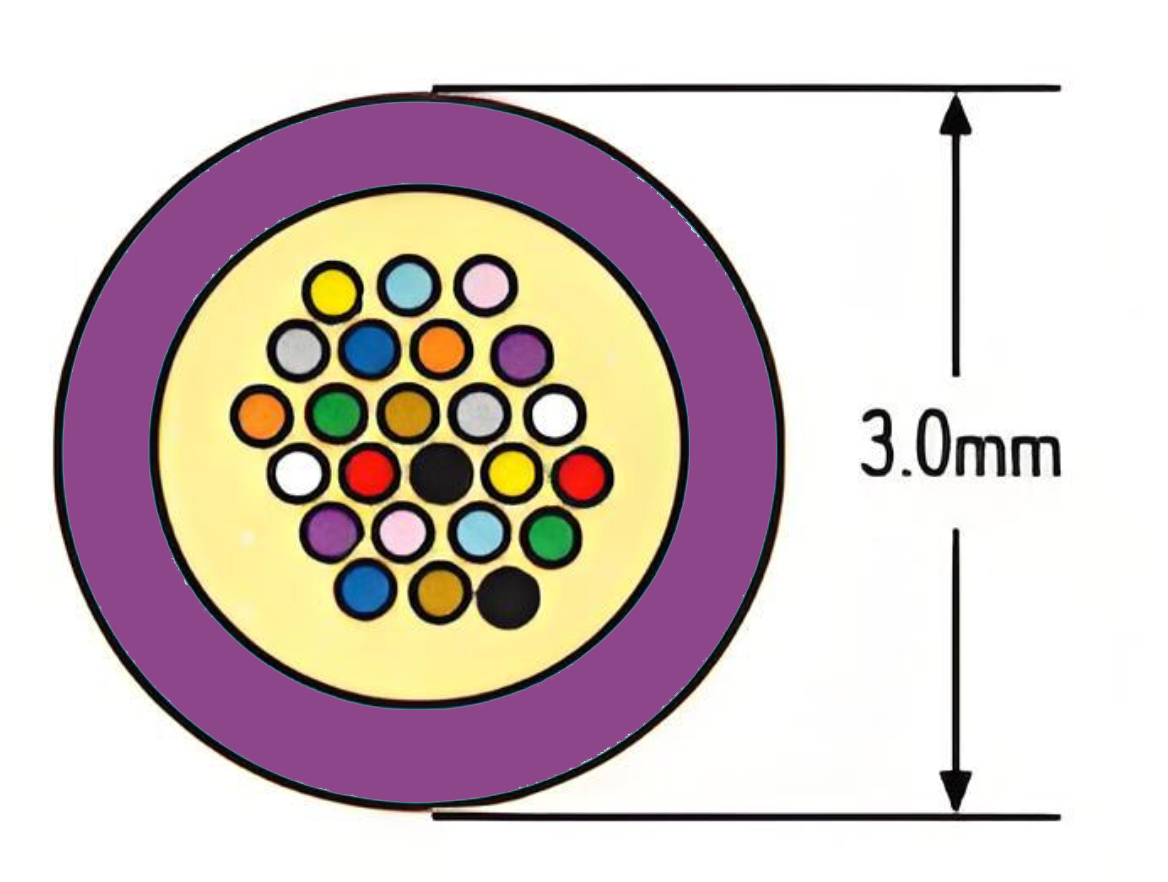

+ Typical Outer Diameter: ~ 3.0 mm.
