Indoor Fiber Optic Micro Cable 8F Single Mode G657A1 For MPO MTP Patch Cord

Short Description:

- Fiber type: Single Mode G657A1

- Strand buffer diameter: 250um

- Fiber count: 8fibers

- Out-sheath diameter: 3.0mm

- Out-sheath material: LSZH, OFNR, OFNP

- Transmission speed: Up to 800Gbps

Send email to us

Product Detail

Product Tags

Descriptions:

• The Micro Indoor Fiber Optical Cable use 8~48 core, use 250μm colored buffer fiber as optical sub cable.

• The fiber wrapped with a layer of aramid yarn as strength member, then completed with a layer of PVC or LSZH material as out jacket.

• The Micro Indoor Fiber Optical Cable out jacket color:

Single mode: Yellow

Multimode OM1 62.5/125: Orange

Multimode OM2 50/125: Orange

Multimode OM3 / OM4 50/125: Aqua

Multimode OM4 50/125: Violet

Multimode OM5 50/125: Lime.

Other color is optional.

Technical Parameters:

Parameter	Unit	Value
Fiber type		Single mode G657A1
Fiber count	n	8
Primary buffer diameter	µm	250
Outer diameter	mm	2.9 ± 0.1 mm
Maximum tensile load (installed)	N	60
Maximum tensile load (installation/loaded)	N	200
Minimum bend radius (installed)	mm	31
Minimum bend radius (installation/loaded)	mm	62
Jacket Material		LSZH
Crush	N/100 mm	500
Strength member		Aramid
Storage temperature	°C	– 20 to 60
Installation temperature	°C	– 5 to 50
Operating temperature	°C	-20 to 60
Drum length	km	2
Drum weight	kg	21

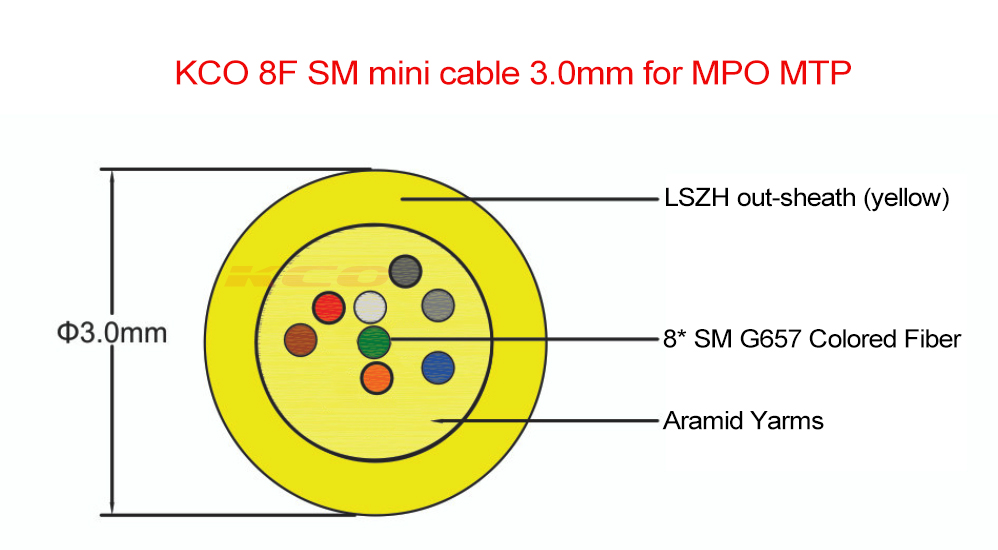

Cable Structure:

Fiber characteristic:

Fiber style		Unit	SMG652	SMG652D	SMG657A	MM50/125	MM62.5/125	MMOM3-300
condition		nm	1310/1550	1310/1550	1310/625	850/1300	850/1300	850/1300
attenuation		dB/km	≤0.36/0.23	≤0.34/0.22	≤.035/0.21	≤3.0/1.0	≤3.0/1.0	≤3.0/1.0
Dispersion	1550nm	Ps/(nm*km)	----	≤18	≤18	----	----	----
	1625nm	Ps/(nm*km)	----	≤22	≤22	----	----	----
Bandwidth	850nm	MHZ.KM	----	----		≥400	≥160
	1300nm	MHZ.KM	----	----		≥800	≥500
Zero dispersion wavelength		nm	≥1302≤1322	≥1302≤1322	≥1302≤1322	----	----	≥ 1295,≤1320
Zero dispersion slope		nm	≤0.092	≤0.091	≤0.090	----	----	----
PMD Maximum Individual Fiber			≤0.2	≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*km)	≤0.12	≤0.08	≤0.1	----	----	----
Fibre cutoff wavelength λc		nm	≥ 1180≤1330	≥1180≤1330	≥1180≤1330	----	----	----
Cable cutoffwavelength λcc		nm	≤1260	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2±0.4	9.2±0.4	9.0±0.4	----	----	----
	1550nm	um	10.4±0.8	10.4±0.8	10.1±0.5	----	----	----
NumericalAperture(NA)			----	----	----	0.200± 0.015	0.275±0.015	0.200±0.015
Step(mean of bidirectionalmeasurement)		dB	≤0.05	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiberlength and point		dB	≤0.05	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Discontinuity
Difference backscattercoefficient		dB/km	≤0.05	≤0.03	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity		dB/km	≤0.01	≤0.01	≤0.01
Core diameter		um	9	9	9	50±1.0	62.5±2.5	50±1.0
Cladding diameter		um	125.0±0.1	125.0±0.1	125.0±0.1	125.0±0.1	125.0±0.1	125.0±0.1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter		um	242±7	242±7	242±7	242±7	242±7	242±7
Coating/chaffinchconcentrically error		um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error		um	≤0.6	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)		um	≤4	≤4	≤4	----	----	----

Application:

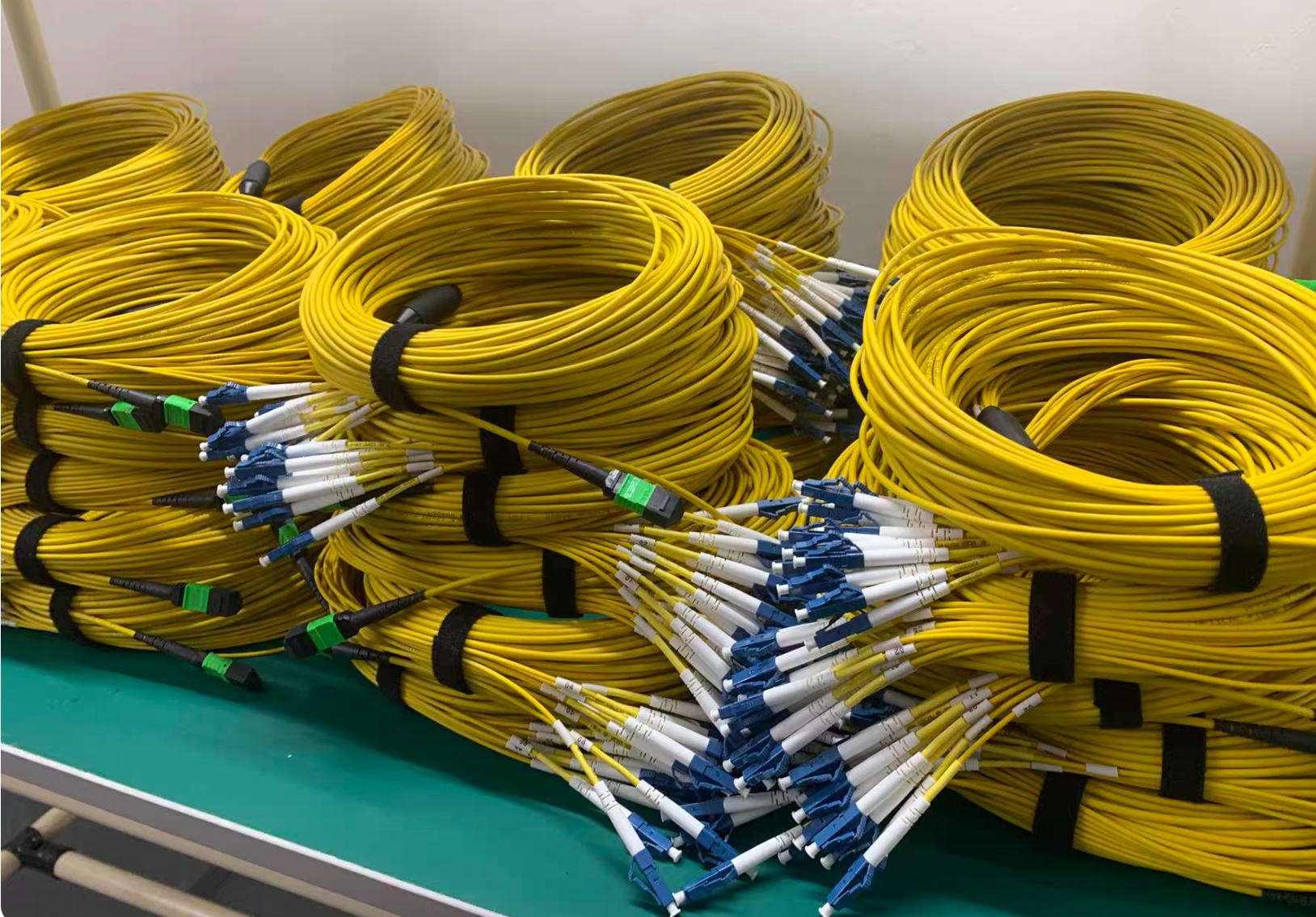

+ Used in pigtails and patch cords.

+ Used as interconnect lines of equipments, and used in optical connections in optical communication rooms, data center and optical distribution frames.

+ Used in indoor cabling, especially used as distribution cable.
