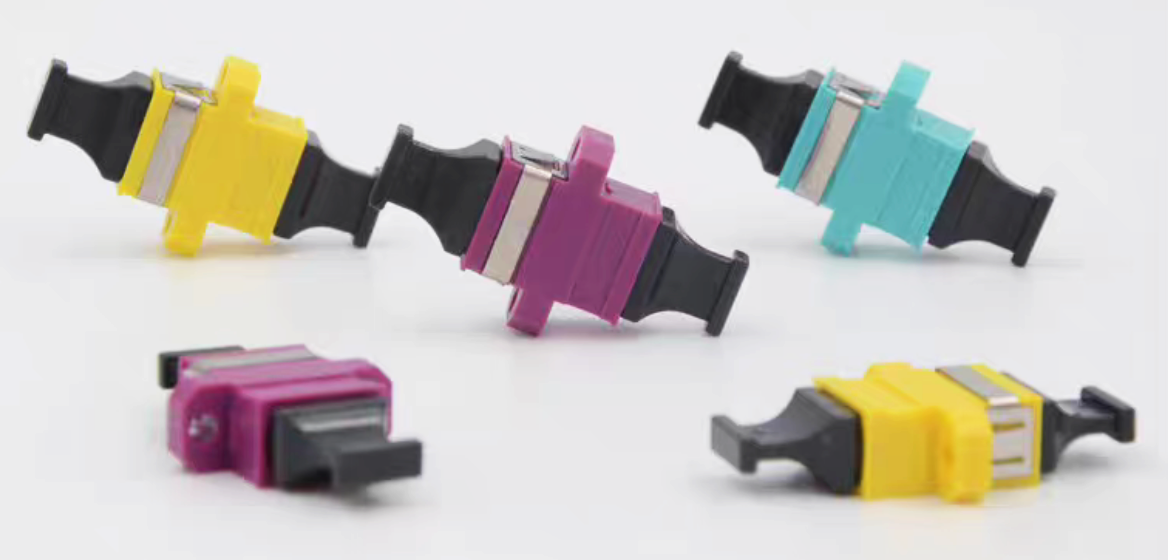

OM3 Aqua MPO Adapter MTP Optical Fiber Coupler With Flange IL 0.2dB

Short Description:

+ Aqua color

+ With flange

+ Use for OM3 and OM4

+ Compatible with all type of MPO connector and MTP connector

+ Low IL, High RL

+ SC type, easy to install

+ Lightweight

+ Durable plastic housings.

+ High wearable.

+ Good repeatability.

+ Factory test 100%

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

Product Tags

MPO Adapter MTP Optical Fiber Coupler Description

+ MPO adapter / MTP optical fiber coupler is a passive fiber optic component used to precisely connect and align two MPO cables or an MPO cable to equipment.

+ It serves as a mechanical interface to maintain low signal loss and proper fiber polarity in high-density cabling environments.

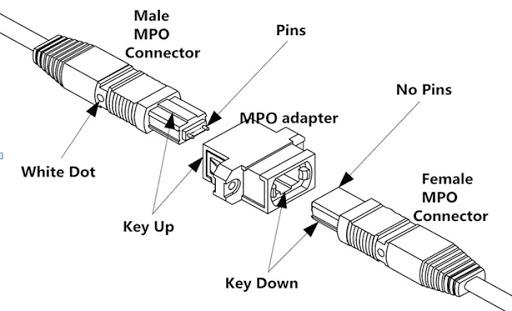

+ Keying Types: MPO Adapters are configured based on orientation.

[1] Key-Up to Key-Down (Opposed): Aligns the key of the first connector facing up with the key of the second connector facing down.

[2] Key-Up to Key-Up (Aligned): Aligns both connectors with the keys facing the same direction.

+ MPO adapter / MTP optical fiber coupler durability: Typically rated for 1,000+ matings, widely used in data centers and cassettes.

+ The MPO adapter / MTP optical fiber coupler provides the exact mechanical layout needed to safely snap these dense multi-fiber connectors into place.

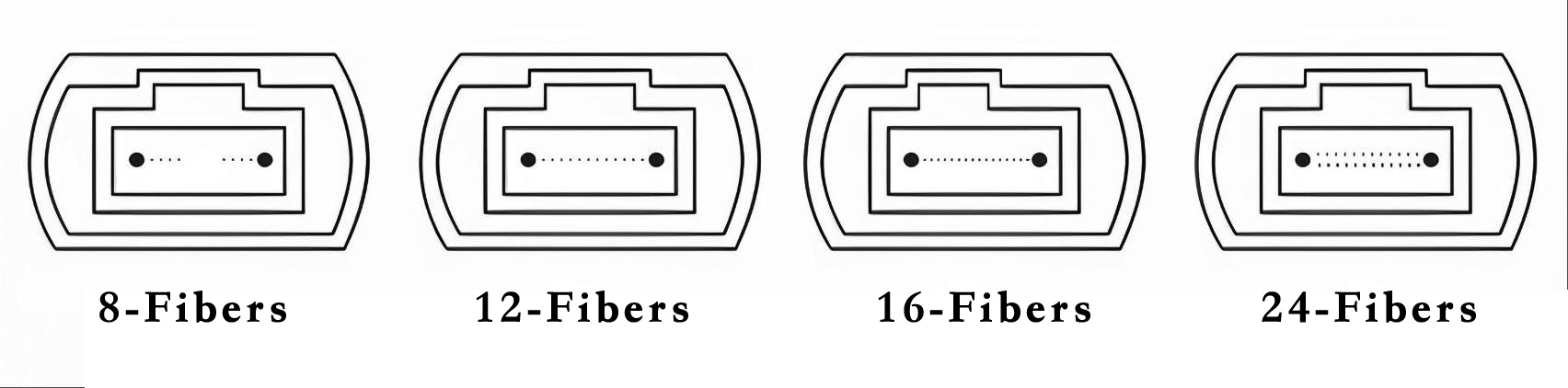

+ MPO connector / MTP connector fiber count:

+ MPO adapter / MTP coupler using:

Specifications

Connector Type	MPO/MTP	Body Style	Simplex
Fiber Mode	Multimode Singlemode	Body Color	Single mode UPC: black Single mode APC: green Multimode: black OM3: aqua OM4: violet
Insertion Loss	≤0.3dB	Mating Durability	500 times
Flange	With flange Without flange	Key Orientation	Aligned (Key Up – Key Up)

Applications

MPO adapters / MTP couplers are heavily utilized in environments requiring high-speed data transmission, space optimization, and quick cable deployment. Their primary applications include:

+ Data Centers & Hyperscale Facilities: Used in high-density patch panels to aggregate and distribute massive amounts of data in backbone cabling.

+ MPO/MTP Cassettes: Act as the internal mating point in fiber cassettes, facilitating the transition of large MPO multi-fiber cables to individual standard connectors (like LC or SC).

+ MPO / MTP patch panel

+ Parallel Optics (40G/100G/400G): Support multi-fiber parallel transceivers where multiple fibers are used simultaneously to transmit and receive higher bandwidths.

+ Telecommunications & FTTx: Installed in central office distribution hubs and local fiber networks for rapid, multi-channel provisioning.

+ Harsh Environments: Specialized ruggedized MPO adapters (often IP-rated) are used in outdoor enclosures, remote radio heads, and broadcast networks.
