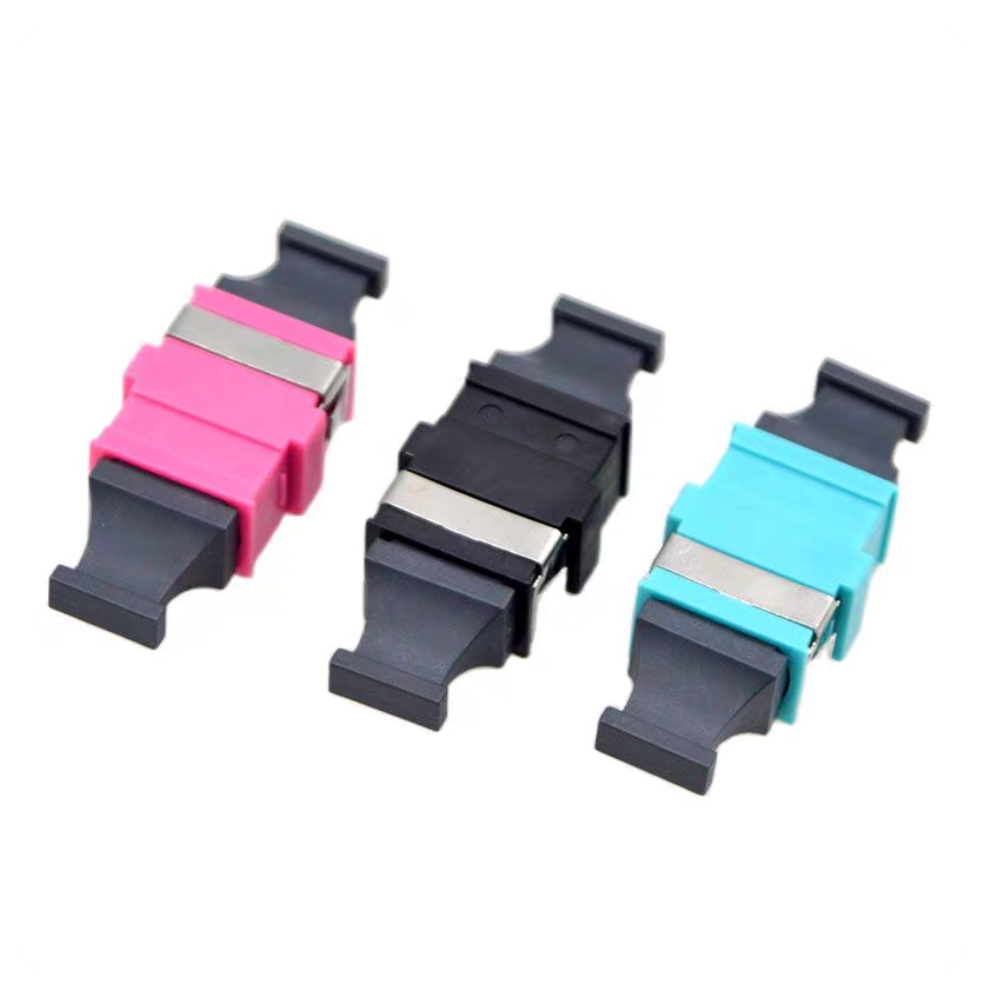

OM4 Aqua 0.15dB non-flange MPO fiber optic coupler / MTP adapter Key up to Key up
MPO fiber optic coupler / MTP adapter Description
+ MPO fiber optic coupler is using for connect between MPO Female fiber optic trunk and MPO Male module or MPO Female trunk cable and MPO Male trunk cable.
+ It is use for MPO-8, MPO-12, MPO-16, MPO-24, MPO-32, MPO-48 connector.
+ The MPO fiber optic coupler use in MPO high density patch panel and FTTA multi-function box.
+ MPO fiber optic couplers have 2 type:

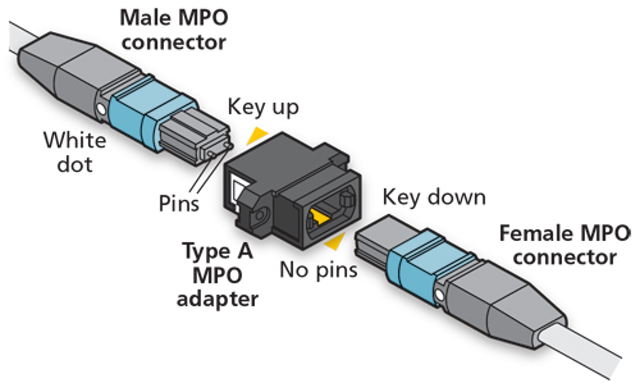

Opposed type (Key Up to Key Down): The top hook on one side flips on the other side. This is standard Type A.
Aligned type(Key Up to Key Up): The top hook stays on top on both sides. This is used in Type B networks.
+ The MPO fiber optic coupler is non-flange, can better save the install space.
+ MPO fiber optic coupler usage:
Specifications
| Connector Type | MPO/MTP | Body Style | Simplex |
| Fiber Mode | MultimodeSinglemode | Body Color | Single mode UPC: blackSingle mode APC: green
Multimode: black OM3: aqua OM4: violet |
| Insertion Loss | ≤0.15dB | Mating Durability | 500 times |
| Flange | With flangeWithout flange | Key Orientation | Aligned (Key Up – Key Up) |
Applications
+ MPO module / MTP module
+ MPO high density patch panel / MTP density patch panel
+ FTTA outdoor multi-function box
+ Data Center Backbone Cabling
+ AI & High-Performance Computing (HPC)
+ MPO Breakout & Fan-Out Solutions
+ Passive fiber optic telecommunication
+ Enterprise network system
+ High speed data transmission.
Features
• Supports speeds up to 40 GbE/100 GbE.
• Push/pull tab connector installs/removes with one hand.
• 8, 12, 16, 24, 32, 48-fibers MTP/MPO connectors.
• Single mode and Multimode are available.
• High size precision.
• Fast and easy connection.
• Lightweight and durable plastic housings.
• One-piece coupler design maximizes coupling strength while minimizing debris generation.
• Black, Aqua color to choose.
• High wearable.
• Good repeatability.
Environment request:
|
Operating temperature |
-20°C to 70°C |
|
Storage temperature |
-40°C to 85°C |
|
Humidity |
95%RH |
