Black Color MPO MTP optic fiber adapter without flange type

Short Description:

+ Black color

+ Without flange

+ Compatible with all type of MPO connector and MTP connector

+ Low IL, High RL

+ SC type, easy to install

+ Fast and easy connection.

+ Lightweight and durable plastic housings.

+ High wearable.

+ Good repeatability.

+ Factory test 100%

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

Product Tags

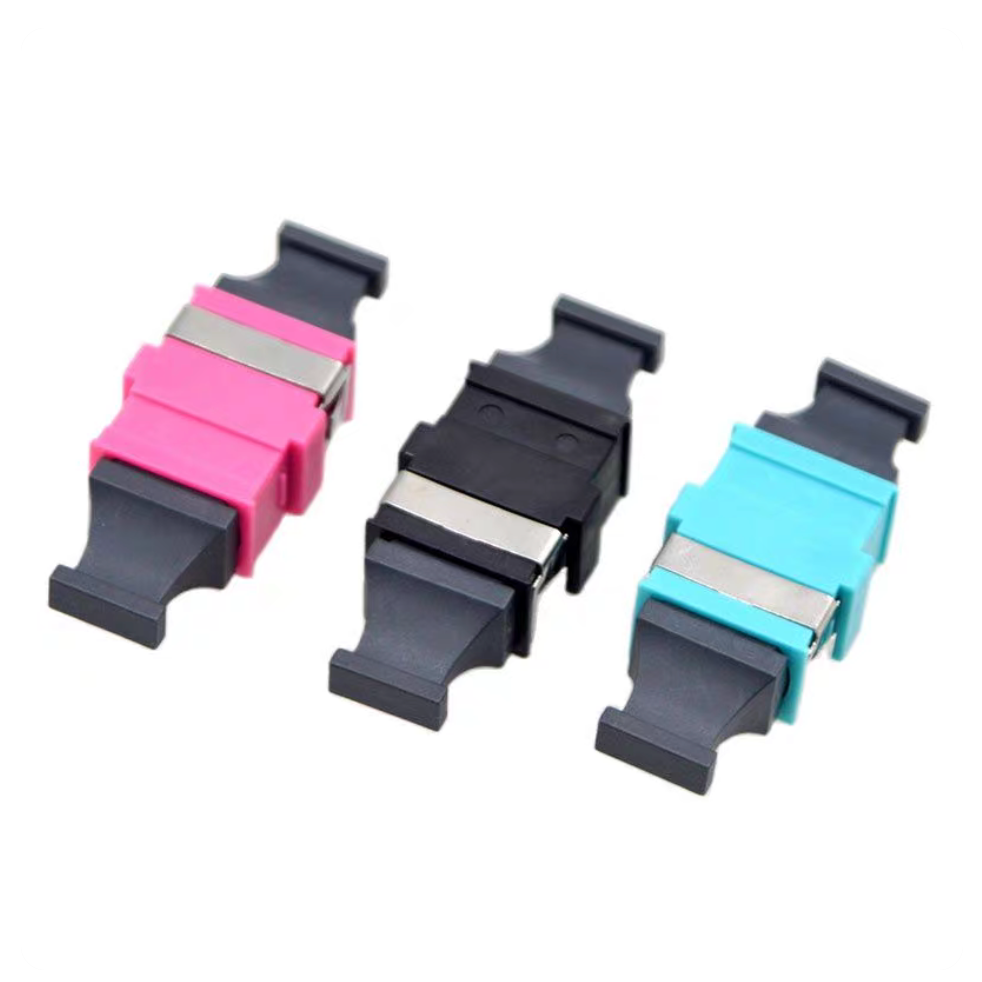

MPO MTP Optic Fiber Adapter Description

• MPO MTP optic fiber adapters are made in both die-cast and industry compliant to insure inter-mateability with industry standard assemblies and connectors.

• MPO MTP optic fiber adapters are able to meet the challenges and mechanical requirements of highly dense system designs while maintaining industry standard footprints.

• MPO MTP optic fiber adapters use a two diameter 0.7mm guide pin holes on the MPO connector core end surface to connect precisely with the guide pin.

• The connectors are Key-Up to Key-Up.

• MPO MTP optic fiber adapters work for any MPO/MTP connector from 8 fibers to 48 fibers.

Specifications

Connector Type	MPO/MTP	Body Style	Simplex
Fiber Mode	Multimode Singlemode	Body Color	Single mode UPC: black Single mode APC: green Multimode: black OM3: aqua OM4: violet
Insertion Loss	≤0.3dB	Mating Durability	500 times
Flange	With flange Without flange	Key Orientation	Aligned (Key Up – Key Up)
