Single Mode OS2 G657A 24cores 3.0mm Micro Fiber Optic Cable for MPO MTP 24F Patch Cord

Short Description:

- Fiber count: 24fibers

- Fiber type:

Single Mode G657A1

Single Mode G657A2

- Strand buffer diameter: 250um

- Out-sheath diameter: 3.0mm

- Out-sheath material: LSZH, OFNR, OFNP

- Application:

MPO MTP trunk cable

MPO MTP fanout cable

MPO MTP break out cable

Send email to us

Product Detail

Product Tags

Descriptions:

- A 24F Single-Mode OS2 Micro Cable for MPO is an ultra-slim, high-density backbone cable designed to pack 24 individual 250µm single-mode fibers into a single compact jacket.

- The fiber wrapped with a layer of aramid yarn as strength member, then completed with a layer of Riser (OFNR), LSZH, or Plenum (OFNP) jackets.

- Cable Diameter is 3.0mm.

- The Micro Indoor Fiber Optical Cable out jacket color:

Single mode: Yellow

Multimode OM1 62.5/125: Orange

Multimode OM2 50/125: Orange

Multimode OM3 / OM4 50/125: Aqua

Multimode OM4 50/125: Violet

Multimode OM5 50/125: Lime.

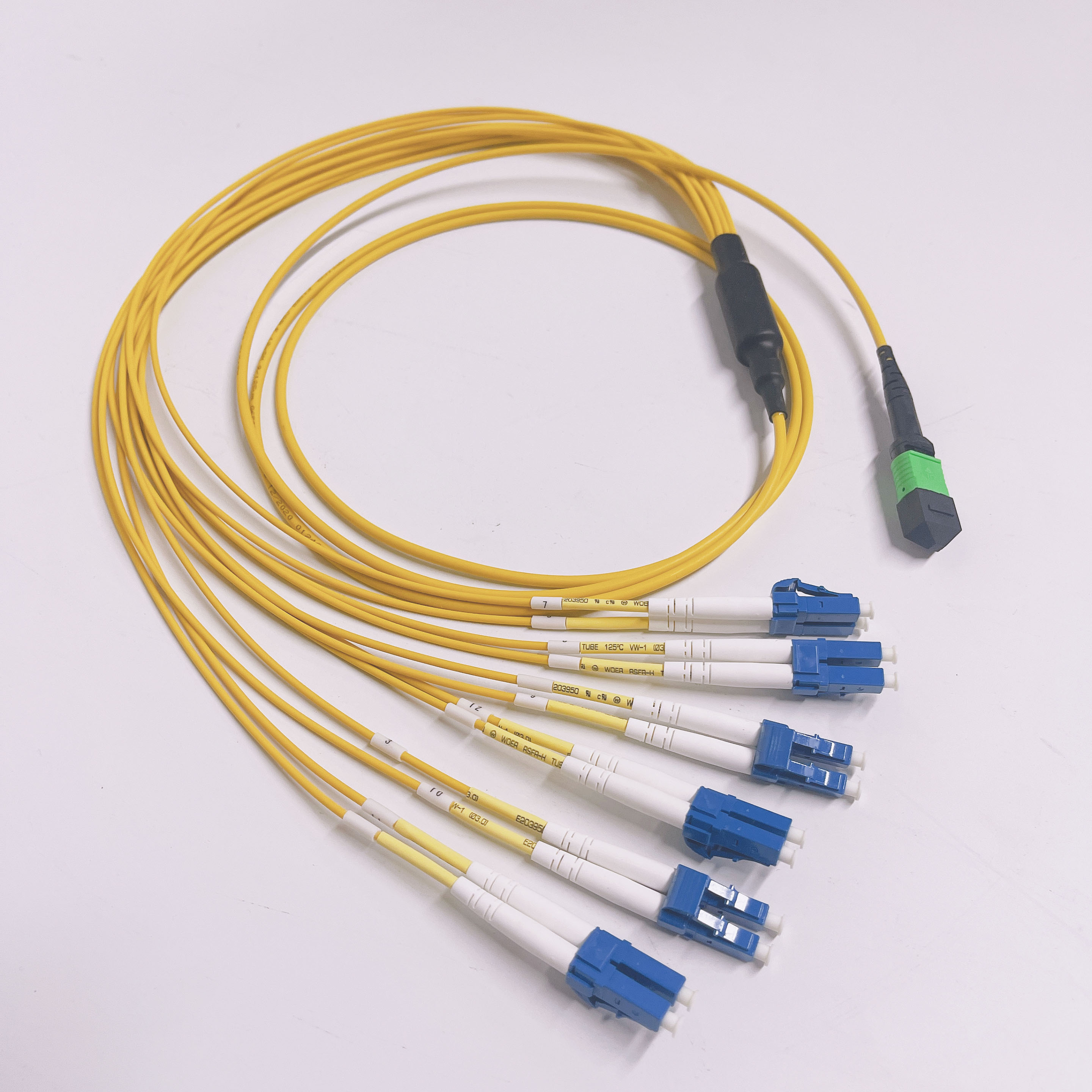

- Application: Use to produce the MPO MTP trunk cable, MPO MTP harness Cable or MPO MTP fan-out cable.

Technical Parameters:

Parameter	Unit	Value
Fiber type		Single mode G657A1Single mode G657A2
Fiber count	core	24
Primary buffer diameter	µm	250
Outer diameter	mm	3.0 ± 0.2 mm
Maximum tensile load (installed)	N	60
Maximum tensile load (installation/loaded)	N	200
Minimum bend radius (installed)	mm	31
Minimum bend radius (installation/loaded)	mm	62
Jacket Material		LSZH
Crush	N/100 mm	500
Strength member		Aramid
Storage temperature	°C	– 20 to 60
Installation temperature	°C	– 5 to 50
Operating temperature	°C	-20 to 60
Drum length	km	2
Drum weight	kg	22.0

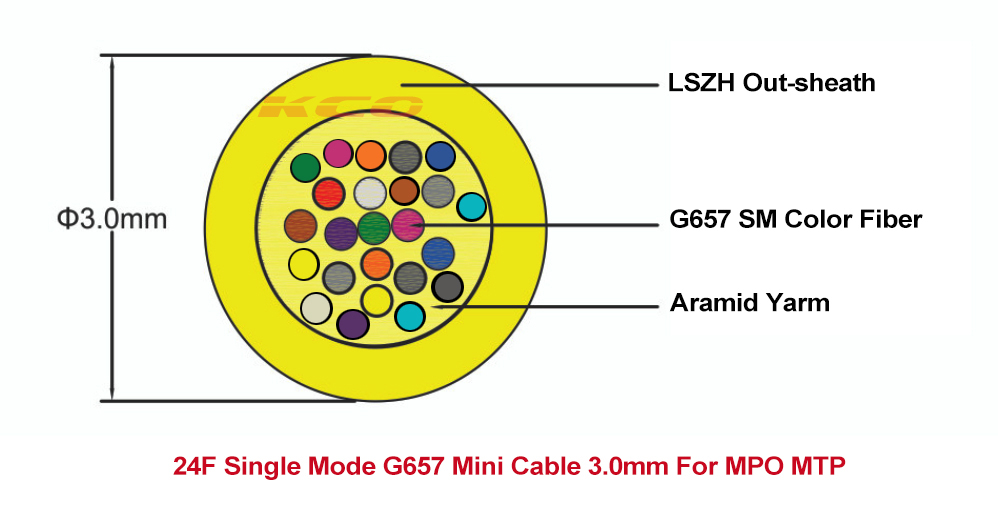

24F SM Mini Cable Structure:

Fiber characteristic:

Fiber style	Unit	SM G652D	SM G657A
condition	nm	1310/1550	1310/625
attenuation	dB/km	≤0.34/0.22	≤.035/0.21
Dispersion	1550nm	----	≤18
	1625nm	----	≤22
Bandwidth	850nm	----	----
	1300nm	----	----
Zero dispersion wavelength	nm	≥1302 ≤1322	≥1302 ≤1322
Zero dispersion slope	nm	≤0.091	≤0.090
PMD Maximum Individual Fiber		≤0.2	≤0.2
PMD Design Link Value	Ps(nm2*km)	≤0.08	≤0.1
Fibre cutoff wavelength λc	nm	≥1180 ≤1330	≥1180 ≤1330
Cable cutoffwavelength λcc	nm	≤1260	≤1260
MFD	1310nm	9.2±0.4	9.2±0.4
	1550nm	10.4±0.8	10.4±0.8
NumericalAperture(NA)		----	----
Step(mean of bidirectionalmeasurement)	dB	≤0.05	≤0.05
Irregularities over fiberlength and point	dB	≤0.05	≤0.05
Discontinuity
Difference backscattercoefficient	dB/km	≤0.03	≤0.03
Attenuation uniformity	dB/km	≤0.01	≤0.01
Core diameter	um	9	9
Cladding diameter	um	125.0±0.1	125.0±0.1
Cladding non-circularity	%	≤1.0	≤1.0
Coating diameter	um	242±7	242±7
Coating/chaffinchconcentrically error	um	≤12.0	≤12.0
Coating non circularity	%	≤6.0	≤6.0
Core/cladding concentricity error	um	≤0.6	≤0.6
Curl(radius)	um	≤4	≤4
