Elite Loss 0.15dB 16fibers 16cores MPO-16 optical fiber coupler / MTP-16 fiber adapter
MPO-16 Optical Fiber Coupler / MTP-16 Fiber Adapter Description
+ MPO-16 optical fiber coupler / MTP-16 fiber adapter is fiber optic adapter with ultra low loss of insertion loss that special designed for MPO-16 MTP-16 fiber optic connector.
+ The MPO-16 optical fiber coupler / MTP-16 fiber adapter use to connect the MPO/MTP female trunk cable and MPO/MTP male trunk cable or the MPO/MTP female trunk cable and MPO/MTP male module (MPO/MTP male to LC module) .
+ It is use for MPO-8 / MTP-8 connector or MPO-16 / MTP-16 connector on 8F or 16F MPO MTP fiber optic trunk cable.
+ MPO optical adapter / MTP fiber optic coupler have 2 type:
- Opposed type (Key Up to Key Down): use for standard Type A trunk cable.
- Aligned type (Key Up to Key Up): use for standard Type B trunk cable.
+ Same as common type of fiber optic adapter, the MPO-16 optical fiber coupler / MTP-16 fiber adapter normally use on the fiber optic patch panel, fiber optic module box, fiber optic terminal box that come with MPO/MTP trunk cable.
+ The MPO-16 optical fiber coupler / MTP-16 fiber adapter is flange adapter with screw hole on two side of adapter so that it can better fix the adapter into patch panel plate.

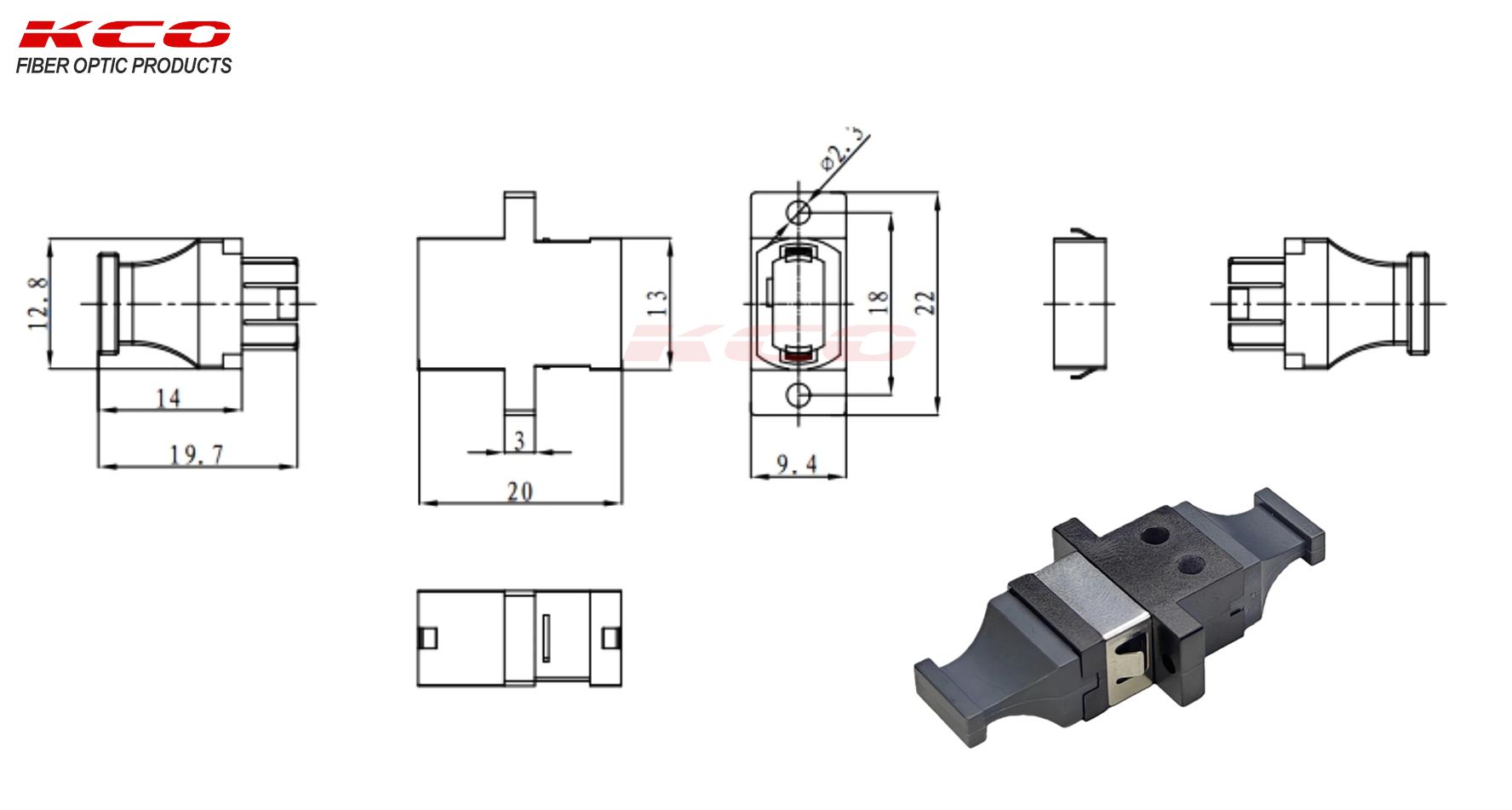

MPO-16 optical fiber coupler / MTP-16 fiber adapter Size :
16F MPO Optical Adapter MTP Fiber Coupler Specifications
| Connector Type | MPO/MTP | Body Style | SC type Simplex |
| Fiber Mode | Multimode / Single mode | Body Color | Black |
| Insertion Loss | ≤0.15dB | Mating Durability | 500 times |
| Flange | With flange | Key Orientation | Key Up – Key Up / Key Up - Key Down |

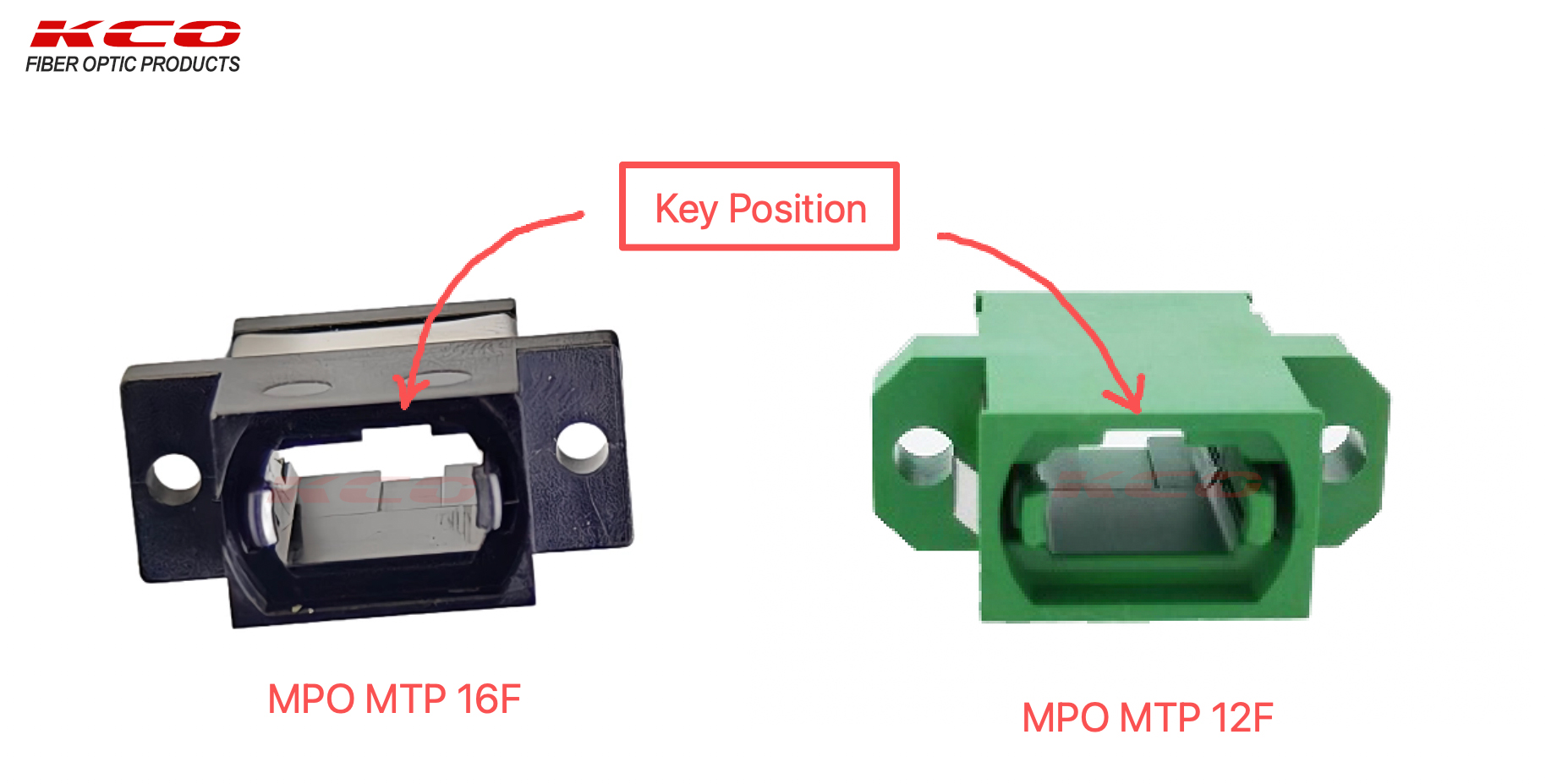

MPO-16 / MTP-16 Adapter vs MPO-12 / MTP-12 Adapter
MPO-16 optical fiber coupler / MTP-16 fiber adapter Applications
+ MPO MTP cabling solution
+ Data center
+ AI cabling transfer system
+ Star-link transfer system
+ FTTx solution
+ High density module
+ High density patch panel
16F MPO Optical Adapter MTP Fiber Coupler Features
• Supports speeds up to 40G, 100G, 200G, 400G
• Push/pull tab connector installs/removes with one hand.
• 8fibers, 32fibers MTP/MPO connectors.
• Single mode and Multimode are available.
• High size precision.
• Fast and easy connection.
• Lightweight and durable plastic housings.
• One-piece coupler design maximizes coupling strength while minimizing debris generation.
• Aqua, Violet color to choose.
• High wearable.
• Good repeatability.
• SC adapter sharp, with flange, easy to install.
Environment request:
|
Operating temperature |
-20°C to 70°C |
|
Storage temperature |
-40°C to 85°C |
|
Humidity |
95%RH |
