16F ULL MPO Single mode SM MPO optical adapter / MTP fiber coupler

Short Description:

+ Product Name:

MPO 16F optical adapter

MTP 16F fiber coupler

+ Fiber Type: Single mode (SM)

+ Fiber count: 16F

+ Flange: Available

+ Insertion Loss: 0.15dB Ultra Low Loss (Elite Loss)

+ Product P/N:

KCO-MPO16-ADT-B

KCO-MTP16-ADT-B

+ Body Color: Black

+ Adapter port to install: SC simplex port

+ MOQ: 1pc

+ Stock status: available

+ Shipping time: immediately

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

Product Tags

16F SM MPO Optical Adapter / MTP Fiber Coupler Description

+ 16F MPO optical adapter / MTP fiber coupler (often used with MPO-16 connector / MTP-16 connectors) is a high-density fiber optic adapter that used to securely mate two 16-fiber MPO / MTP trunk cables or connect transceivers in data centers.

+ They typically feature an offset keying mechanism to prevent accidental insertion of standard 12-fiber cables into 16-fiber setups.

+ It is use for MPO-16 / MTP-16 connector.

+ MPO optical adapter / MTP fiber optic coupler have 2 type:

- Opposed type (Key Up to Key Down): use for standard Type A MPO / MTP trunk cable.

- Aligned type (Key Up to Key Up): use for standard Type B MPO / MTP trunk cable.

+ Same as common type of fiber optic adapter, the MPO-16 optical fiber coupler / MTP-16 fiber adapter normally use on the fiber optic patch panel, fiber optic module box, fiber optic terminal box that come with MPO/MTP trunk cable.

+ 16F MPO optical adapter / MTP fiber coupler is flange adapter with screw hole on two side of adapter so that it can better fix the adapter into patch panel plate.

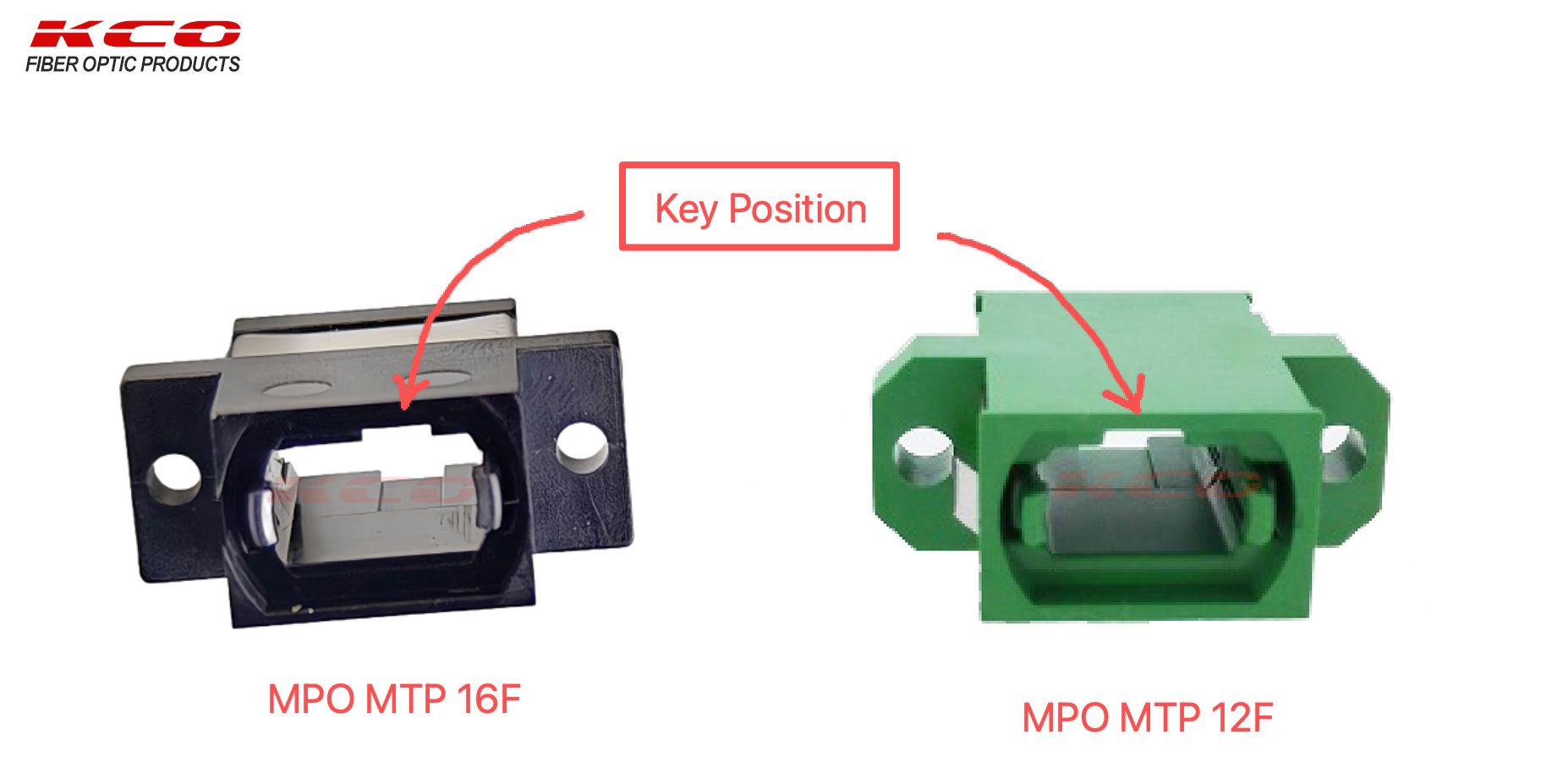

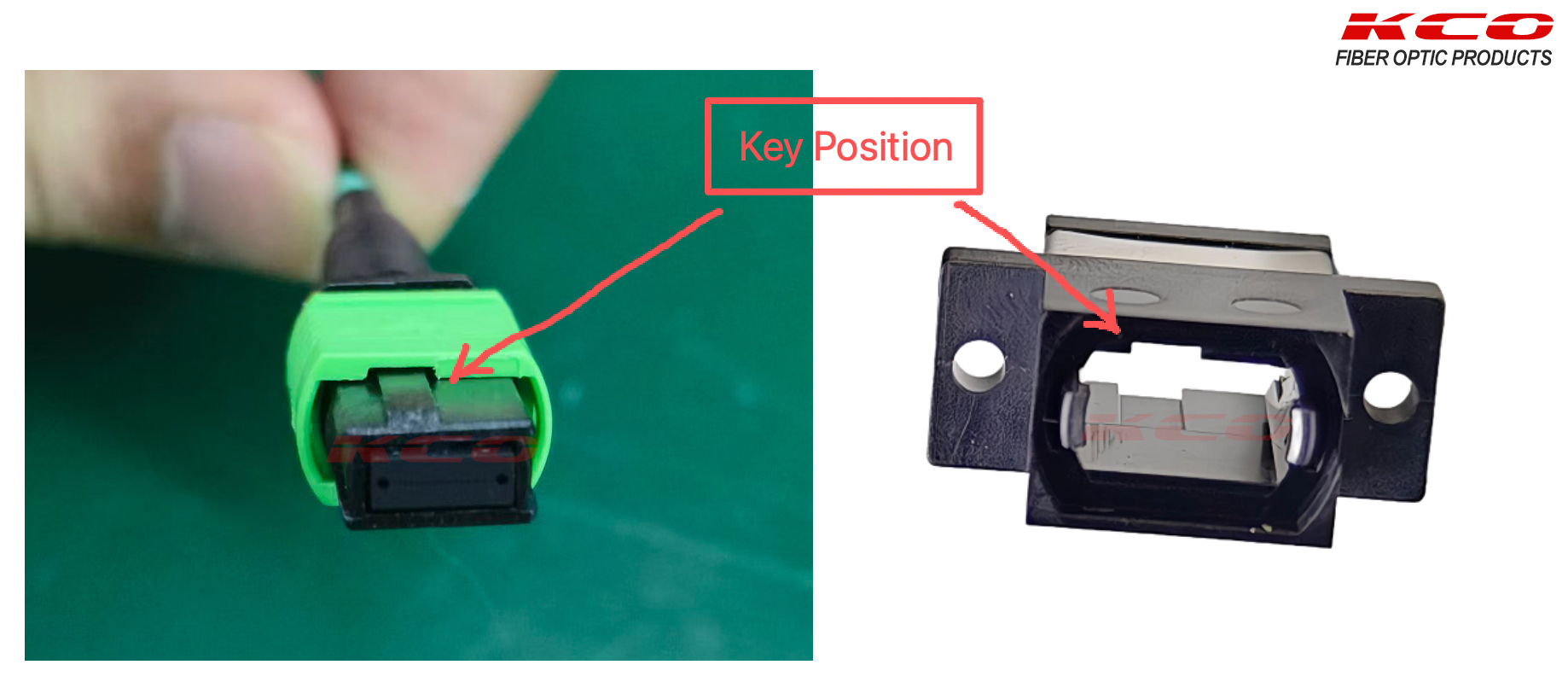

+ 16F MPO optical adapter / MTP fiber coupler key position is different with 12F MPO / MTP adapter:

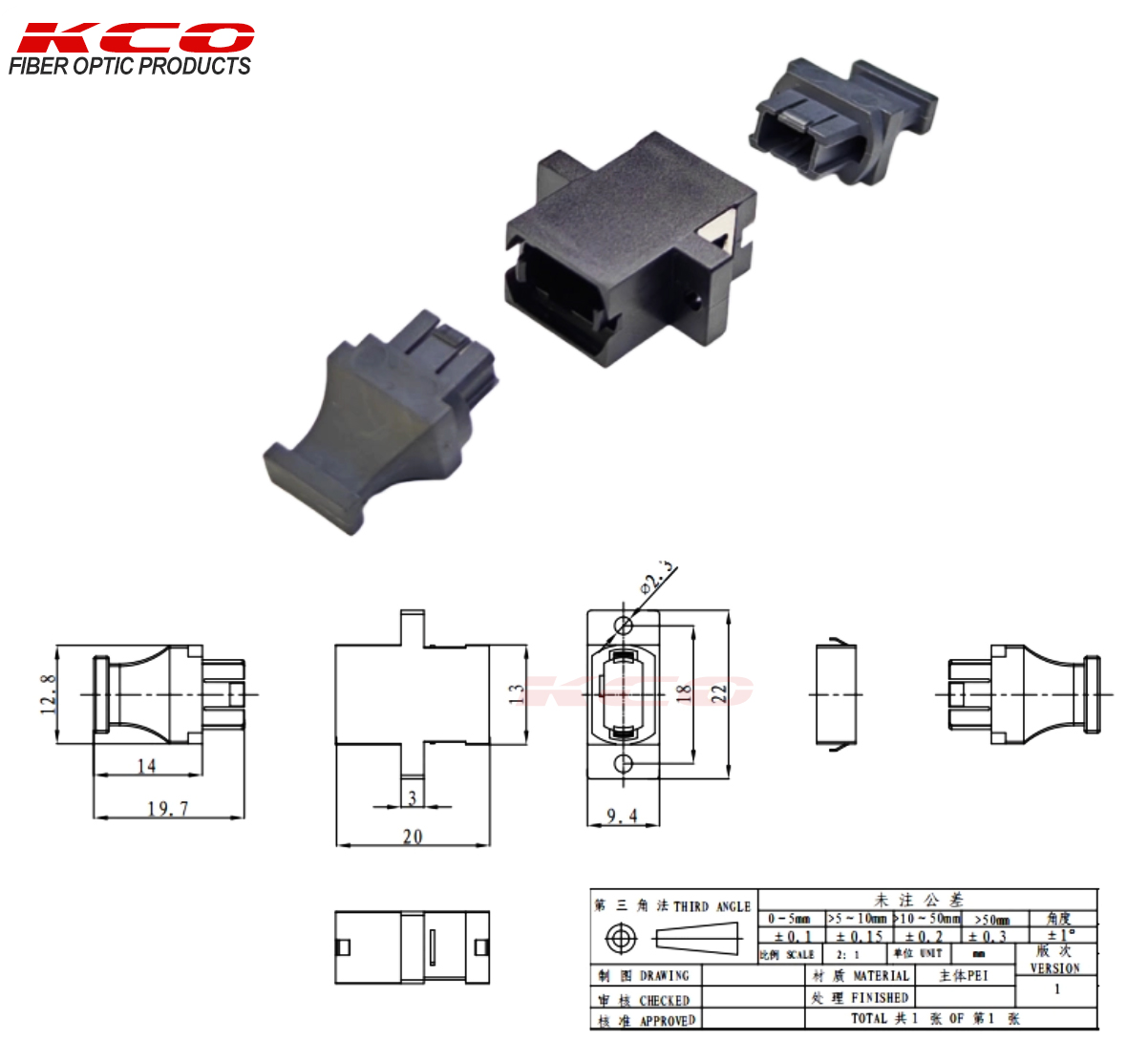

MPO-16 optical fiber coupler / MTP-16 fiber adapter Size :

16F MPO Optical Adapter MTP Fiber Coupler Specifications

Connector Type	MPO/MTP
Body Color	Black
Fiber Mode	Single mode
Fiber Count	16F
Insertion Loss	≤0.15dB
Mating Durability	500 times
Flange	With flange
Adapter port	SC Simplex
Key Orientation	Key Up to Key Up Key Up to Key Down

16F MPO Optical Adapter MTP Fiber Coupler Product photos:

16F MPO Optical Adapter MTP Fiber Coupler Applications

+ MPO MTP cabling solution

+ High density module

+ High density patch panel

+ Data center

+ AI cabling transfer system

+ Star-link transfer system

+ FTTx solution

+ WAN / LAN

+ PON, EPON, GPON

16F MPO Optical Adapter MTP Fiber Coupler Features

• Supports speeds up to 40G, 100G, 200G, 400G

• Push/pull tab connector installs/removes with one hand.

• 8fibers, 32fibers MTP/MPO connectors.

• Single mode and Multimode are available.

• High size precision.

• Fast and easy connection.

• Lightweight and durable plastic housings.

• One-piece coupler design maximizes coupling strength while minimizing debris generation.

• Aqua, Violet color to choose.

• High wearable.

• Good repeatability.

• SC adapter sharp, with flange, easy to install.

Environment request:

Operating temperature	-20°C to 70°C
Storage temperature	-40°C to 85°C
Humidity	95%RH
