16F Up to Down MPO Optical Adapter MTP Fiber Coupler Ultra Low Loss
16F Up to Down MPO Optical Adapter MTP Fiber Coupler Description
+ 16F MPO Optical Adapter MTP Fiber Coupler is Ultra Low Loss fiber optic adapter that use for MPO connector (or MTP connector).
+ It use to connect the MPO/MTP female trunk cable and MPO/MTP male trunk cable or the MPO/MTP female trunk cable and MPO/MTP male module (MPO/MTP male to LC module) .
+ It is use for MPO-8 / MTP-8 connector or MPO-16 / MTP-16 connector on 8F or 16F fiber optic trunk cable.
+ MPO Optical Adapters / MTP Fiber Couplers use in MPO/MTP high density patch panel , MPO/MTP modules box and FTTA multi-function box.
+ MPO Optical Adapter MTP Fiber Coupler is a adapter, and it it female only.
+ The MPO/ MTP trunk cable use on MPO/MTP adapter need come with one side female (without pin) and one side male (with pin)

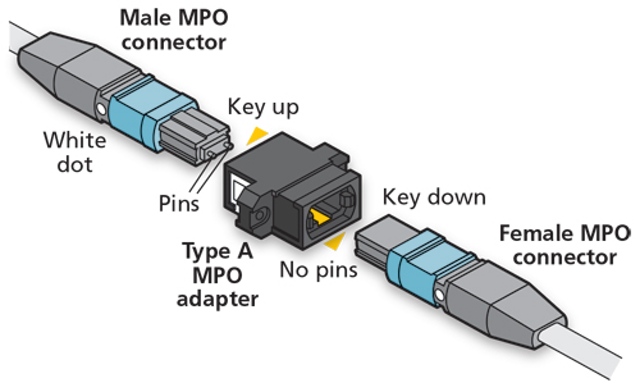

+ MPO optical adapter / MTP fiber optic coupler have 2 type:
- Opposed type (Key Up to Key Down): use for standard Type A trunk cable.
- Aligned type (Key Up to Key Up): use for standard Type B trunk cable.
+ The MPO optical adapter / MTP fiber optic coupler is with flange, can better fix the adapter into patch panel plate.
16F MPO Optical Adapter MTP Fiber Coupler Using:
16F MPO Optical Adapter MTP Fiber Coupler Specifications
| Connector Type | MPO/MTP | Body Style | SC type Simplex |
| Fiber Mode | MultimodeSinglemode | Body Color | Black |
| Insertion Loss | ≤0.15dB | Mating Durability | 500 times |
| Flange | With flange | Key Orientation | Key Up – Key UpKey Up- Key Down |

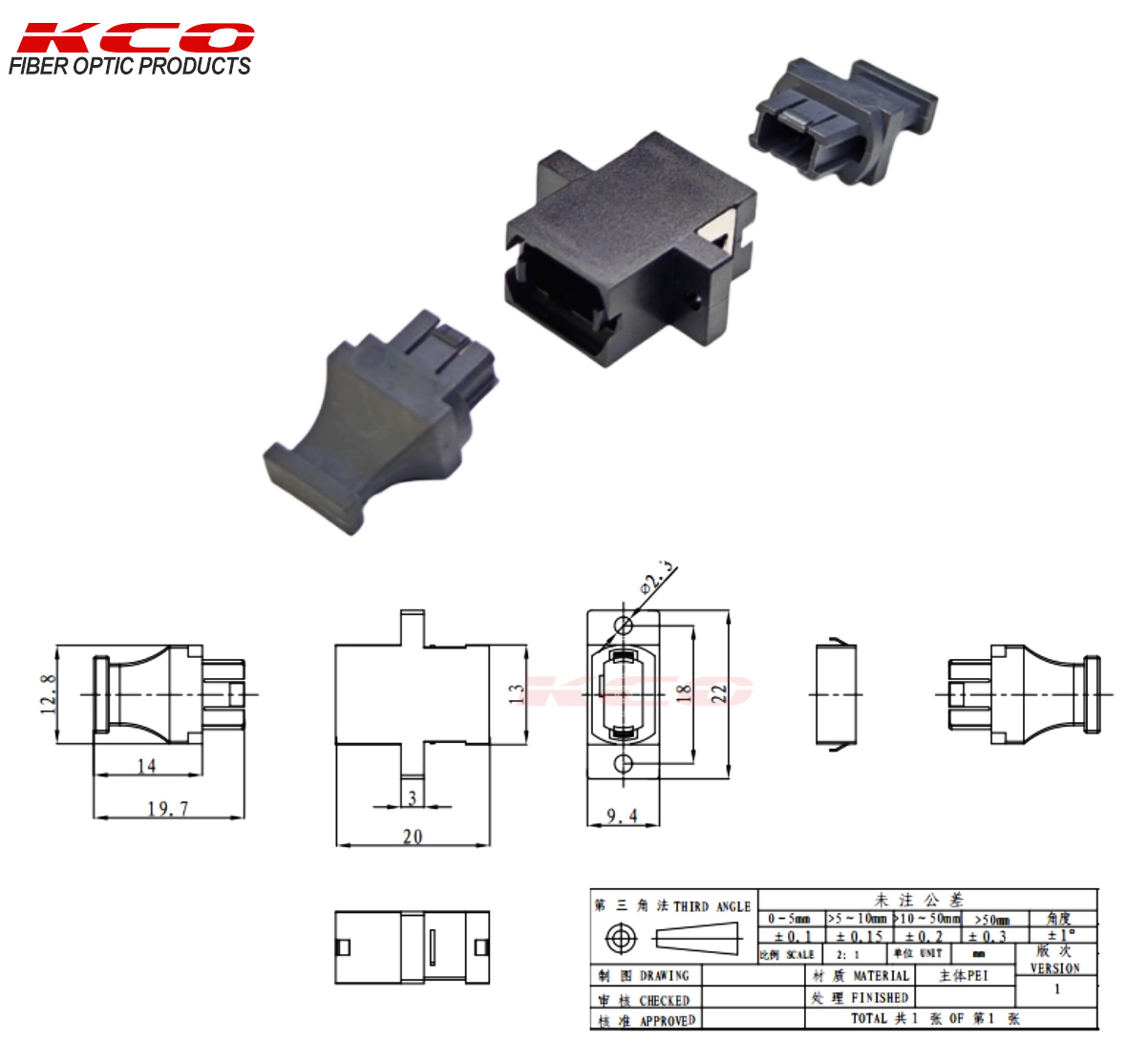

Size Drawing:

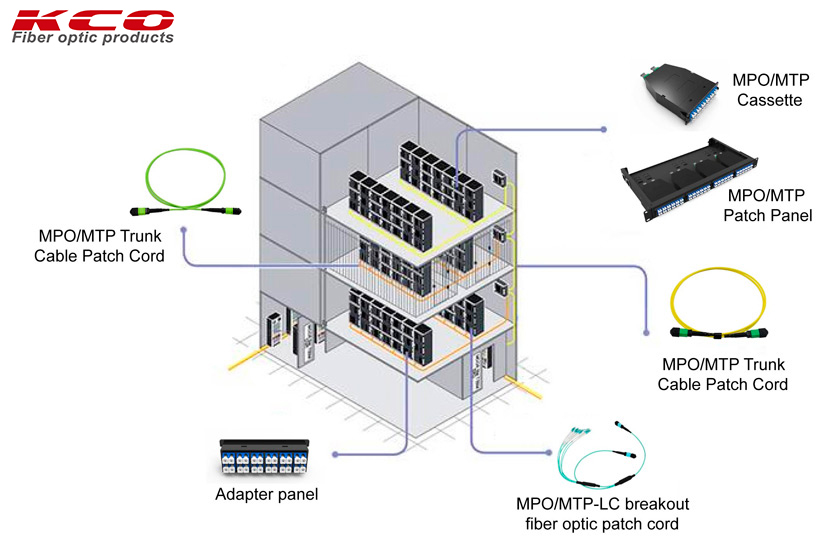

16F MPO Optical Adapter MTP Fiber Coupler Applications
+ MPO / MTP breakout solution
+ MPO / MTP fan-out solution
+ MPO/MTP module box
+ MPO / MTP high-density patch panel
+ Passive fiber optic telecommunication
+ Enterprise network system
+ Test Equipment
+ High-speed data transmission device
+ I-cloud data center
+ AI & High-Performance Computing (HPC)
+ Telecommunication data center
+ FTTA outdoor multi-function box
+ Data Center Backbone Cabling
16F MPO Optical Adapter MTP Fiber Coupler Features
• Supports speeds up to 40G, 100G, 200G, 400G
• Push/pull tab connector installs/removes with one hand.
• 8fibers, 32fibers MTP/MPO connectors.
• Single mode and Multimode are available.
• High size precision.
• Fast and easy connection.
• Lightweight and durable plastic housings.
• One-piece coupler design maximizes coupling strength while minimizing debris generation.
• Aqua, Violet color to choose.
• High wearable.
• Good repeatability.
• SC adapter sharp, with flange, easy to install.
Environment request:
|
Operating temperature |
-20°C to 70°C |
|
Storage temperature |
-40°C to 85°C |
|
Humidity |
95%RH |
