Elite Loss Single Mode MPO optical adapter / Yellow Color SM ULL MTP fiber optic coupler
MPO optical adapter / MTP fiber optic coupler Description
+ MPO optical adapter / MTP fiber optic coupler is the adapter (also call coupler) that use to connect the MPO/MTP female trunk cable and MPO/MTP male trunk cable or the MPO/MTP female trunk cable and MPO/MTP male module (MPO/MTP male to LC module) .
+ It is use for MPO-8, MPO-12, MPO-16, MPO-24, MPO-32, MPO-48 connector.
+ MPO optical adapter / MTP fiber optic coupler use in MPO/MTP high density patch panel and FTTA multi-function box.
+ MPO optical adapter / MTP fiber optic coupler is a adapter, and it it female only. The MPO/ MTP trunk cable use on MPO/MTP adapter need come with one side female (without pin) and one side male (with pin)
+ MPO optical adapter / MTP fiber optic coupler have 2 type:
- Opposed type (Key Up to Key Down): use for standard Type A trunk cable.
- Aligned type (Key Up to Key Up): use for standard Type B trunk cable.
+ The MPO optical adapter / MTP fiber optic coupler is with flange, can better fix the adapter into patch panel plate.
+ MPO optical adapter / MTP fiber optic coupler usage:
Specifications
| Connector Type | MPO/MTP | Body Style | SC type Simplex |
| Fiber Mode | Multimode
Singlemode |
Body Color | Single mode UPC: black
Single mode APC: green Single mode ULL: yellow Multimode: black OM3: aqua OM4: violet |
| Insertion Loss | ≤0.15dB | Mating Durability | 500 times |
| Flange | With flange
Without flange |
Key Orientation | Key Up – Key Up
Key Up- Key Down |

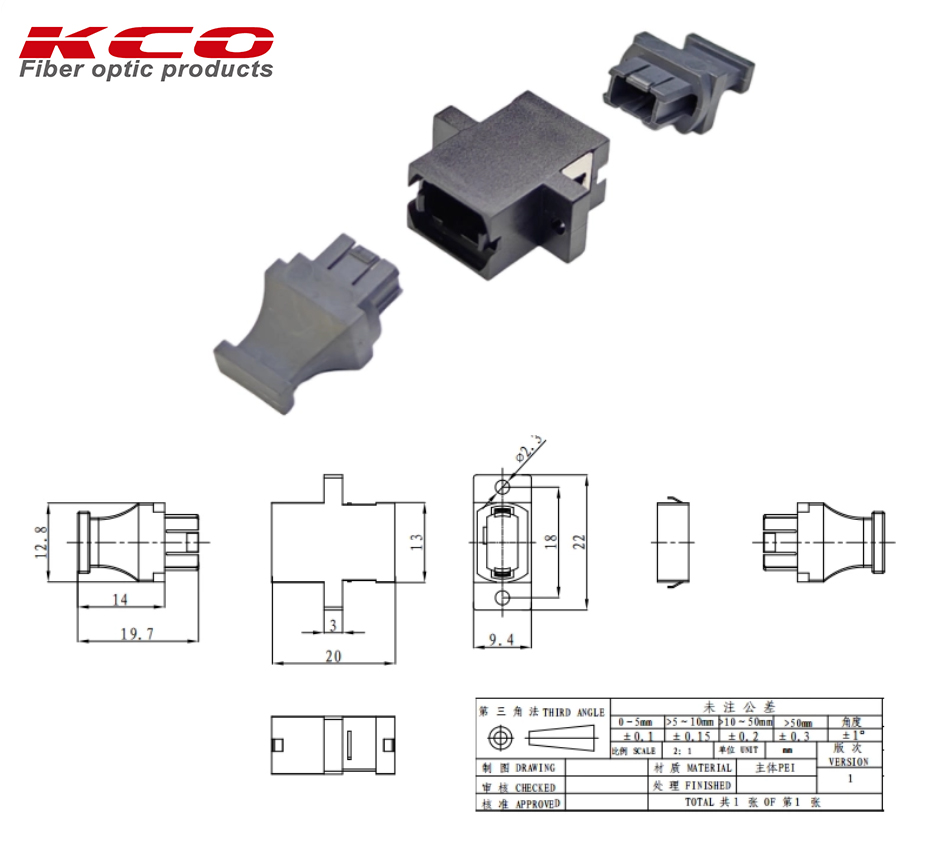

Size Drawing:
Applications
+ MPO Breakout & Fan-Out Solutions
+ Passive fiber optic telecommunication
+ Enterprise network system
+ MPO module / MTP module
+ MPO high density patch panel / MTP density patch panel
+ Test Equipment
+ High-speed data transmission device
+ I-cloud data center
+ AI & High-Performance Computing (HPC)
+ Telecommunication data center
+ FTTA outdoor multi-function box
+ Data Center Backbone Cabling
Features
• Supports speeds up to 40 GbE/100 GbE.
• Push/pull tab connector installs/removes with one hand.
• 8, 12, 16, 24, 32, 48-fibers MTP/MPO connectors.
• Single mode and Multimode are available.
• High size precision.
• Fast and easy connection.
• Lightweight and durable plastic housings.
• One-piece coupler design maximizes coupling strength while minimizing debris generation.
• Aqua, Violet color to choose.
• High wearable.
• Good repeatability.
Environment request:
|
Operating temperature |
-20°C to 70°C |
|
Storage temperature |
-40°C to 85°C |
|
Humidity |
95%RH |
