8F 12F 24F Multimode OM4 Violet Color MTP optical fiber coupler MPO fiber adapter

8F 12F 24F Multimode OM4 Violet Color MTP optical fiber coupler MPO fiber adapter Featured Image
  • 8F 12F 24F Multimode OM4 Violet Color MTP optical fiber coupler MPO fiber adapter
  • 8F 12F 24F Multimode OM4 Violet Color MTP optical fiber coupler MPO fiber adapter
  • 8F 12F 24F Multimode OM4 Violet Color MTP optical fiber coupler MPO fiber adapter

Short Description:

+ Adapter type: MPO adapter / MTP adapter

+ Adapter sharp: SC sharp (SC simplex adapter port)

+ Color: Violet / Pink

+ Flange: with flange

+ Suitable for: OM4 MPO trunk cable, OM4 MTP patch cable

+ IL: 0.15dB

+ Application:

MPO module, MTP module

MPO patch panel, MTP patch panel

+ 100% factory test before shipment.

+ MOQ: 1pc

+ Lead time: 1 day


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month

    • Product Detail

    Product Tags

    MTP optical fiber coupler / MPO fiber adapter Description

    + MTP optical fiber coupler / MPO fiber adapter is the connector use to connect the MPO female trunk cable and MPO male trunk cable, it also uses to connect the MPO female trunk cable and MPO male module (MPO male to LC module) .

    + It is use for MPO-8, MPO-12, MPO-16, MPO-24, MPO-32, MPO-48 connector.

    + The MTP optical fiber coupler / MPO fiber adapter use in MPO high density patch panel and FTTA multi-function box.

    + MTP optical fiber coupler / MPO fiber adapter have 2 type:

    Opposed type (Key Up to Key Down): The top hook on one side flips on the other side. This is standard Type A.

    Aligned type (Key Up to Key Up): The top hook stays on top on both sides. This is used in Type B networks.

    + The MTP optical fiber coupler / MPO fiber adapter is with flange, can better fix the adapter into patch panel plate.

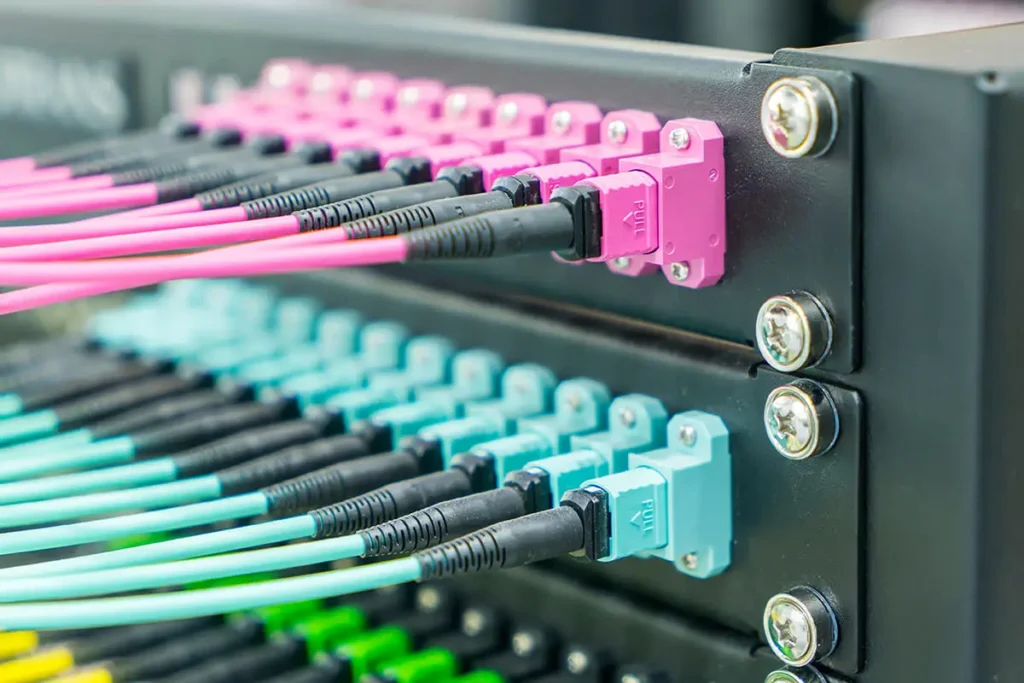

    + MTP optical fiber coupler / MPO fiber adapter usage:

    mpo-connector-in-data-center-patch-panel-1024x683

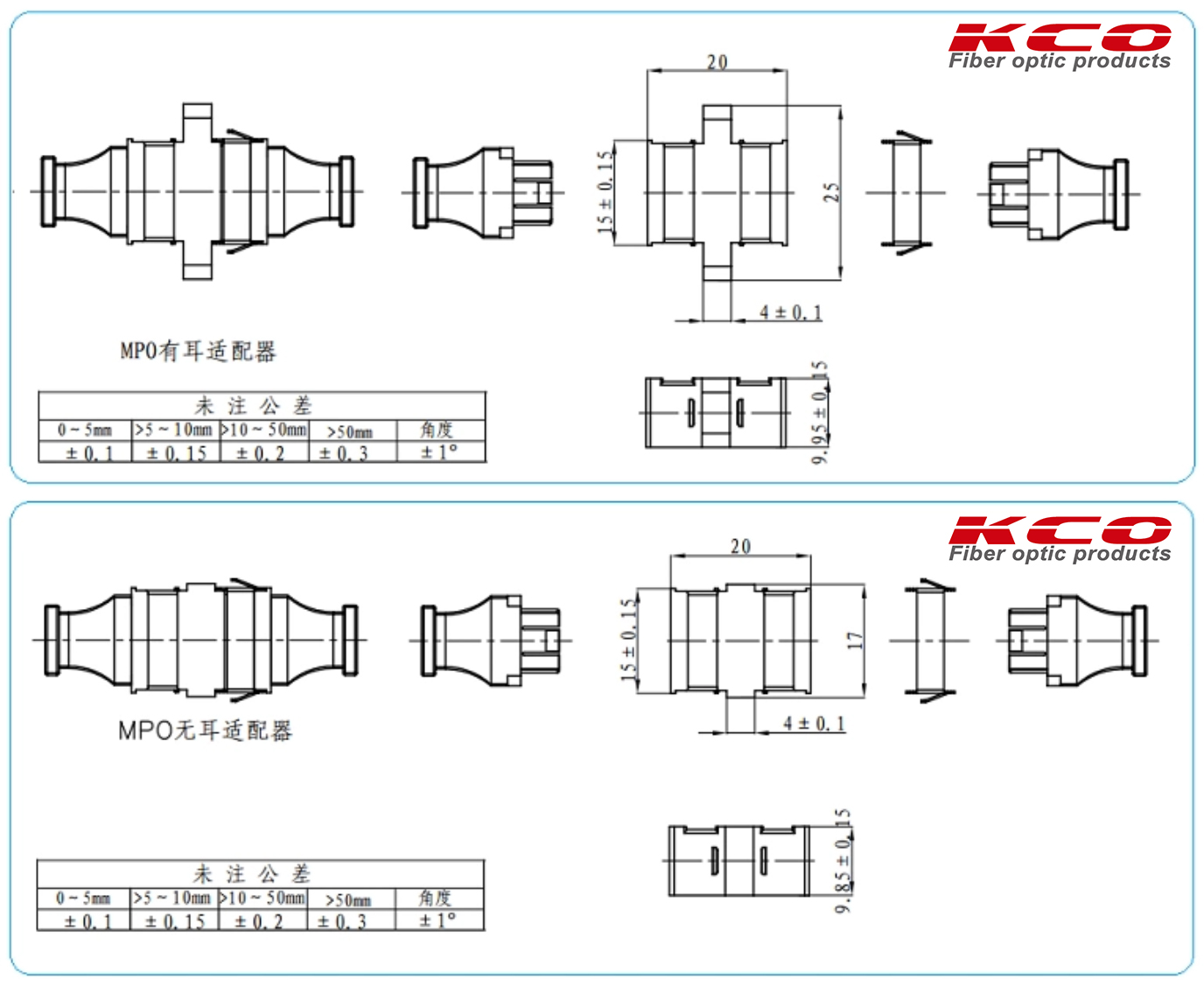

    Specifications

    Connector Type MPO/MTP Body Style Simplex
    Fiber Mode MultimodeSinglemode Body Color Single mode UPC: blackSingle mode APC: green

    Multimode: black

    OM3: aqua

    OM4: violet
    Insertion Loss ≤0.15dB Mating Durability 500 times
    Flange With flangeWithout flange Key Orientation Aligned (Key Up – Key Up)
    ScreenShot_2026-05-25_165023_300

    Applications

    + MPO module / MTP module

    + MPO high density patch panel / MTP density patch panel

    + Test Equipment

    + High-speed data transmission device

    + I-cloud data center

    + Telecommunication data center

    + FTTA outdoor multi-function box

    + Data Center Backbone Cabling

    + AI & High-Performance Computing (HPC)

    + MPO Breakout & Fan-Out Solutions

    + Passive fiber optic telecommunication

    + Enterprise network system



    Features

    • Supports speeds up to 40 GbE/100 GbE.

    • Push/pull tab connector installs/removes with one hand.

    • 8, 12, 16, 24, 32, 48-fibers MTP/MPO connectors.

    • Single mode and Multimode are available.

    • High size precision.

    • Fast and easy connection.

    • Lightweight and durable plastic housings.

    • One-piece coupler design maximizes coupling strength while minimizing debris generation.

    • Aqua, Violet color to choose.

    • High wearable.

    • Good repeatability.


    Environment request:

    Operating temperature

    -20°C to 70°C

    Storage temperature

    -40°C to 85°C

    Humidity

    95%RH
