SCAPC Round FTTH Drop Cable Patch Cord
Technical Specifications:
| Item | Technical Parameters | |
| Fiber | Fiber type | G657A2 |
| Fiber count | 1 | |
| Color | Natural | |
| Tight Buffer | Material | LSZH |
| Diameter (mm) | 0.85±0.05 | |
| Color | White/red/blue/ … | |
| Strength member | Material | Aramid yarn + Water blocking glass yarn |
| Loose tube | Material | PBT |
| Thickness | 0.35±0.1 | |
| Color | Natural | |
| Diameter | 2.0±0.1 | |
| Strength member | Material | Water blocking yarn |
|
Outer jacket |
Material | LSZH |
| Color | Black/white/grey or customized | |
| Thickness (mm) | 0.9±0.1 | |
| Diameter (mm) | 4.8±0.2 | |
| Tripping way | Ripcord | 1 |
| Tension Strength (N) | Long term | 1200 |
| Short term | 600 | |
| Temperature (℃) | Storage | -20~+60 |
| Operating | -20~+60 | |
| Min Bending Radius(mm) | Long term | 10D |
| Short term | 20D | |
| Min allowable Tensile Strength(N) | Long term | 200 |
| Short term | 600 | |
| Crush Load (N/100mm) | Long term | 500 |
| Short term | 1000 | |
Description:
• The fiber-optic patch cord is a fiber-optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunicationequipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.
• The FTTH drop cable patch cord is the fiber optic patch cord with two termination connector (normally is SC/UPC or SC/APC simplex connector) . Its cable use fiber optic ftth drop cable.
• The SCAPC round FTTH drop cable patch cord come with SC/APC termination connector and round type FTTH drop cable. The cable diameter can be 3.5mm, 4.8mm, 5.0mm or can do as customer's request. Cable outter sheath can be PVC, LSZH or TPU, and normally do in black or grey color.
• The round FTTH drop cable patch cords are used in outdoor or indoor for connection to CATV, FTTH, FTTA, Fiber optic telecommunication networks, PON & GPON networks and fiber optic testing.
Features
• Provides superior weather resistance for FTTA and other outdoor applications.
• Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
• Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
• Can be installs without special tooling.
• Threaded style coupling.
• Provides bend protection for installation and long term use.
• Faster network roll out and customer installations.
• 100% tested assemblies built in a controlled environment.
• Lower cost deployment by utilizing plug and play solutions.
• Custom built solutions with quick turnaround times.
Product list:

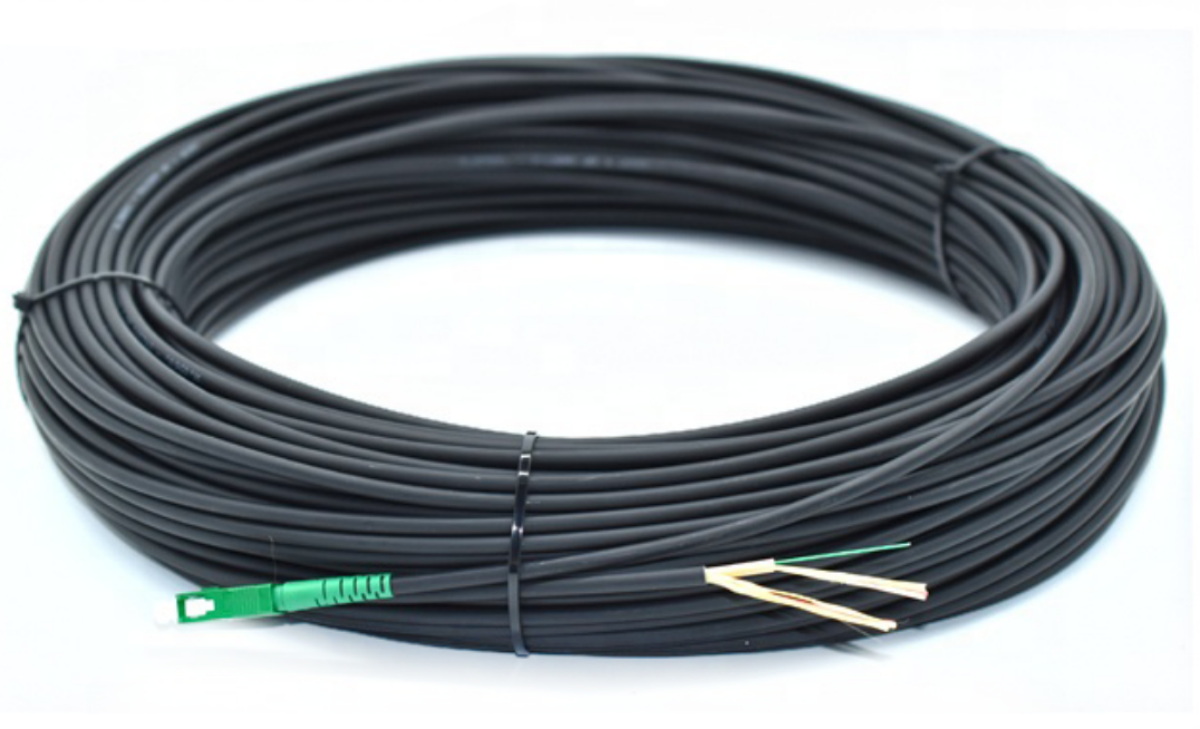

1/ Round FTTH Pigtail with SC/APC connector termination.

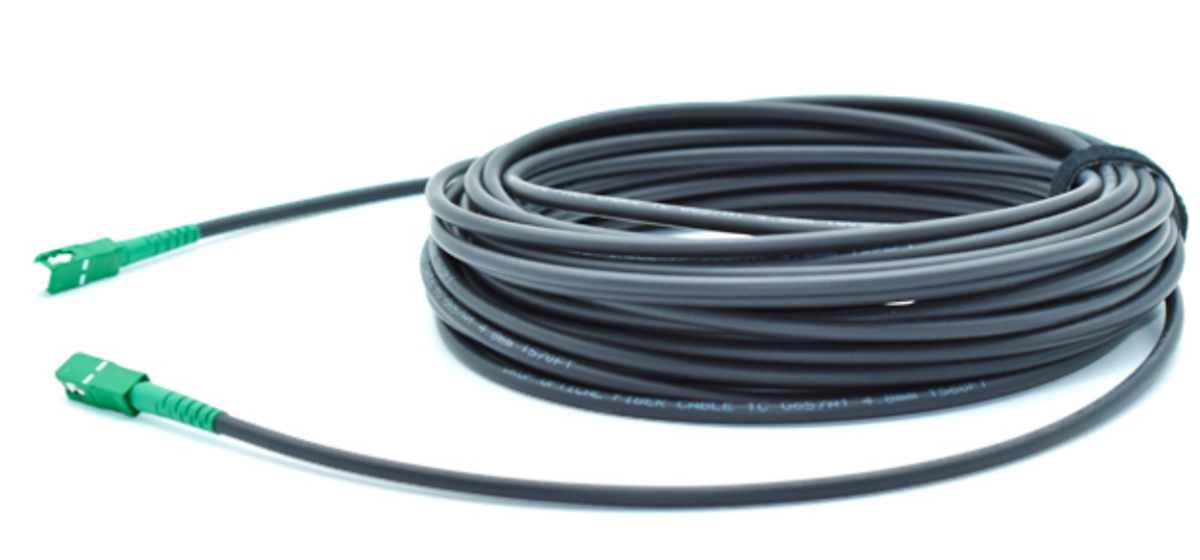

2/ Round FTTH Patch Cable with SC/APC connector termination.

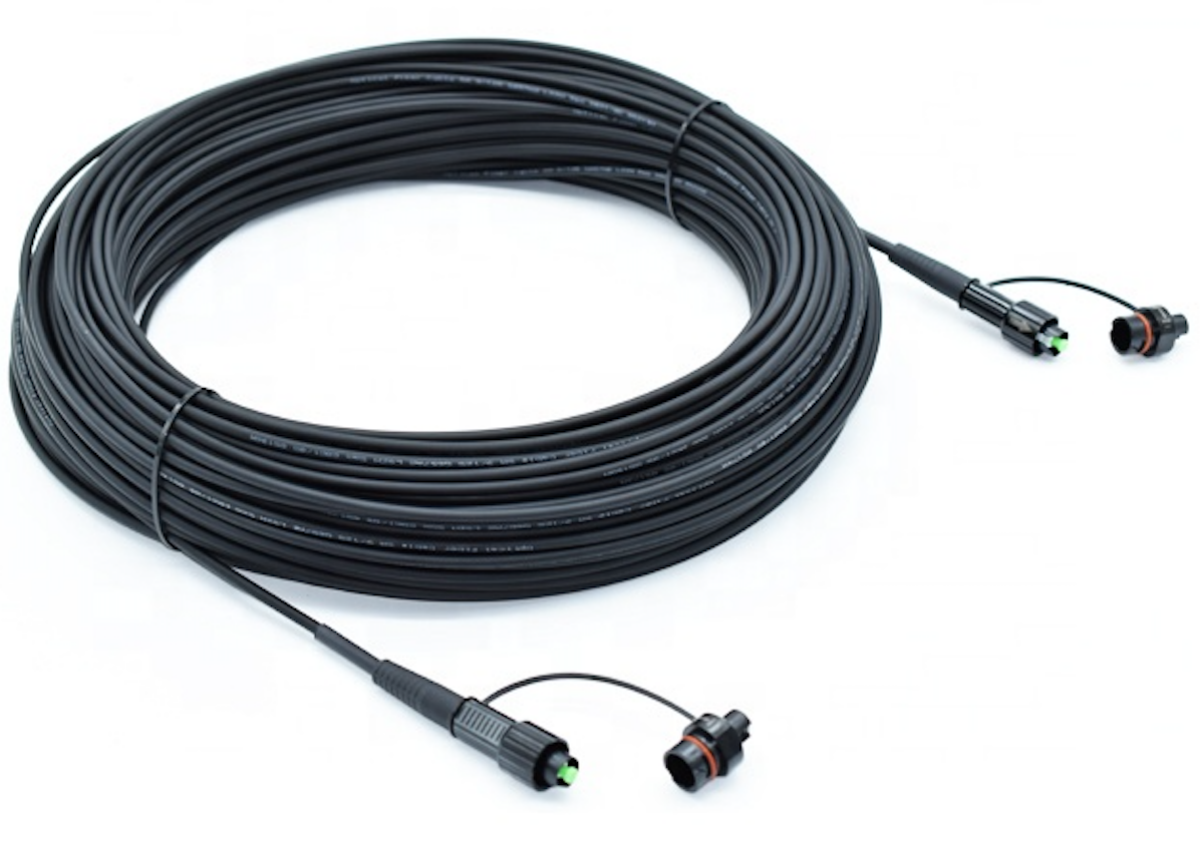

3/ Round FTTH Patch Cable with Water-proof connector termination (Mini SC/APC).

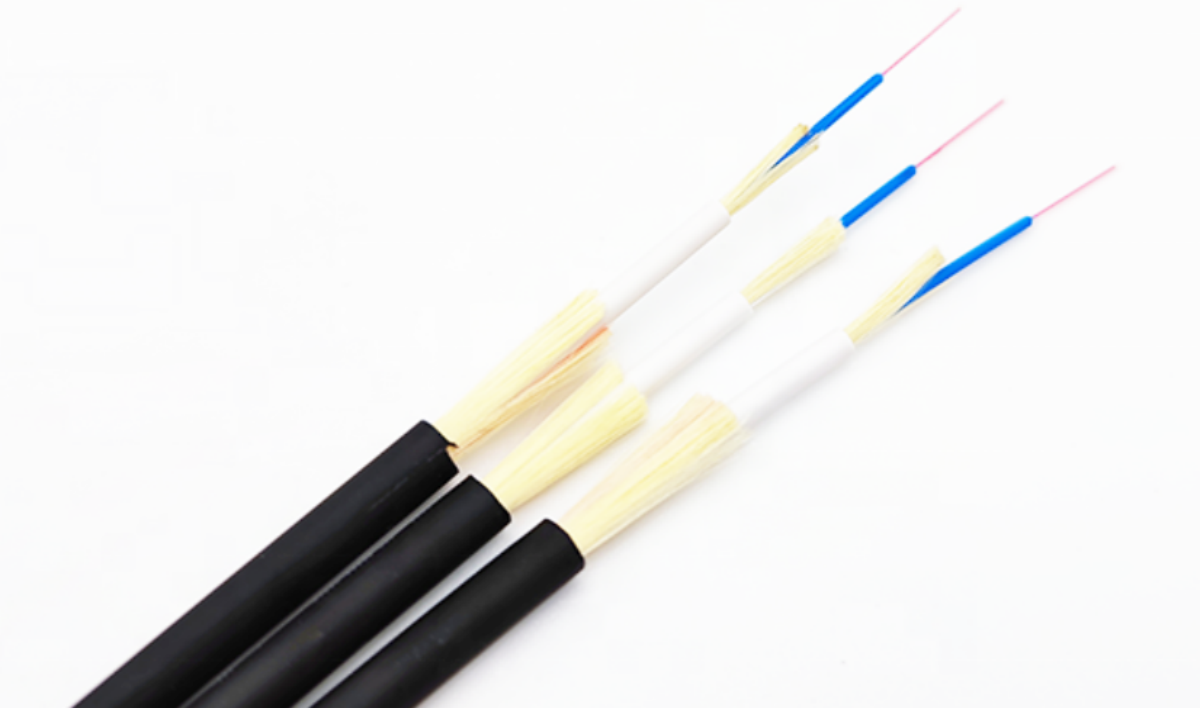

Round FTTH drop cable
Cable Features:
- Tight buffer fiber easystrip.
- With loose tube: protec the fiber more safety.
- Aramid yarn for excellent tensile strength.
- Water blocking glass yarn with good water absorption capacity. No need for a metal (radial) water barrier.
- LSZH out sheath black color with good UV-anti function.
Cable Application:
- FTTx (FTTA, FTTB, FTTO, FTTH, …)
- Telecommunication tower.
- Use for outdoor.
- Use to make optical fiber jumper or pigtail
- Indoor riser level andplenum level cable distribution
- Interconnect between instruments, communication equipment.
Fiber characteristic:
| Fiber style | Unit | SMG652 | SMG652D | SMG657A | MM50/125 | MM62.5/125 | MMOM3-300 | ||
| condition | nm | 1310/1550 | 1310/1550 | 1310/625 | 850/1300 | 850/1300 | 850/1300 | ||
| attenuation | dB/km | ≤0.36/0.23 | ≤0.34/0.22 | ≤.035/0.21 | ≤3.0/1.0 | ≤3.0/1.0 | ≤3.0/1.0 | ||
| Dispersion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ≤18 | ---- | ---- |
---- |
|
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ≤22 | ---- | ---- |
---- |
||
| Bandwidth | 850nm | MHZ.KM | ---- | ---- | ≥400 | ≥160 | |||
| 1300nm | MHZ.KM | ---- | ---- | ≥800 | ≥500 | ||||
| Zero dispersion wavelength | nm | ≥1302≤1322 | ≥1302≤1322 | ≥1302≤1322 | ---- | ---- | ≥ 1295,≤1320 | ||
| Zero dispersion slope | nm | ≤0.092 | ≤0.091 | ≤0.090 | ---- | ---- | ---- | ||
| PMD Maximum Individual Fiber | ≤0.2 | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | |||
| PMD Design Link Value | Ps(nm2*km) | ≤0.12 | ≤0.08 | ≤0.1 | ---- | ---- | ---- | ||
| Fibre cutoff wavelength λc | nm | ≥ 1180≤1330 | ≥1180≤1330 | ≥1180≤1330 | ---- | ---- | ---- | ||
| Cable cutoffwavelength λcc | nm | ≤1260 | ≤1260 | ≤1260 | ---- | ---- | ---- | ||
| MFD | 1310nm | um | 9.2±0.4 | 9.2±0.4 | 9.0±0.4 | ---- | ---- | ---- | |
| 1550nm | um | 10.4±0.8 | 10.4±0.8 | 10.1±0.5 | ---- | ---- | ---- | ||
| NumericalAperture(NA) | ---- | ---- | ---- | 0.200 ± 0.015 | 0.275 ± 0.015 | 0.200 ± 0.015 | |||
| Step(mean of bidirectionalmeasurement) | dB | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | ||
| Irregularities over fiberlength and point | dB | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | ||
| Discontinuity | |||||||||
| Difference backscattercoefficient | dB/km | ≤0.05 | ≤0.03 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | ||
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ≤0.01 | |||||
| Core diameter | um | 9 | 9 | 9 | 50±1.0 | 62.5±2.5 | 50±1.0 | ||
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | ||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | 242±7 | 242±7 | 242±7 | ||
| Coating/chaffinchconcentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ||
| Core/cladding concentricity error | um | ≤0.6 | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | ||
| Curl(radius) | um | ≤4 | ≤4 | ≤4 | ---- | ---- | ---- | ||

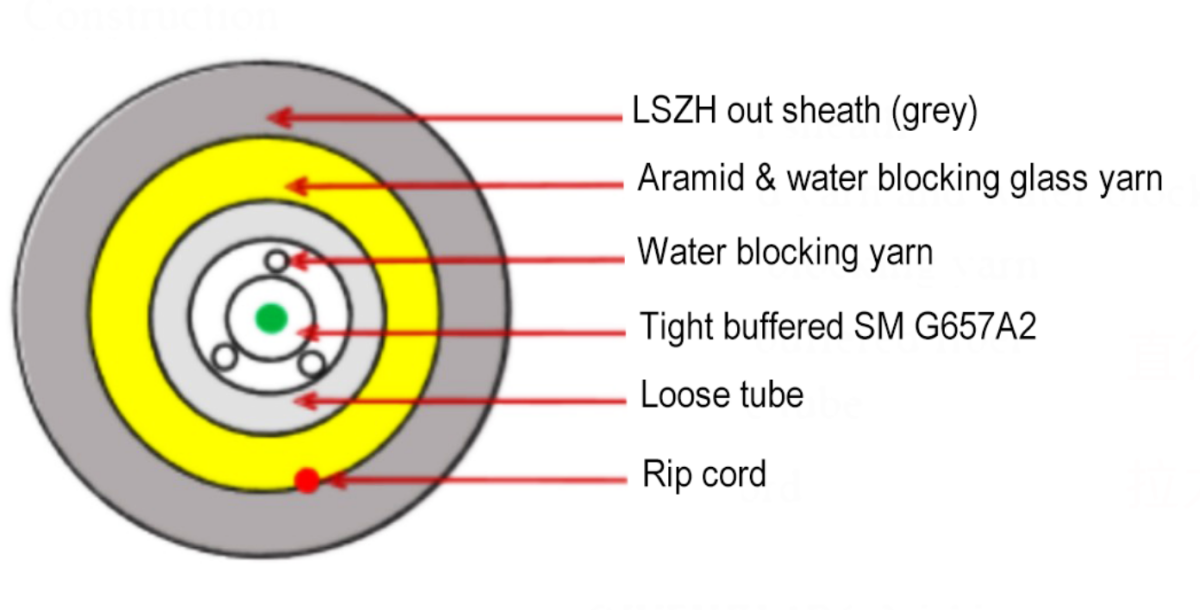

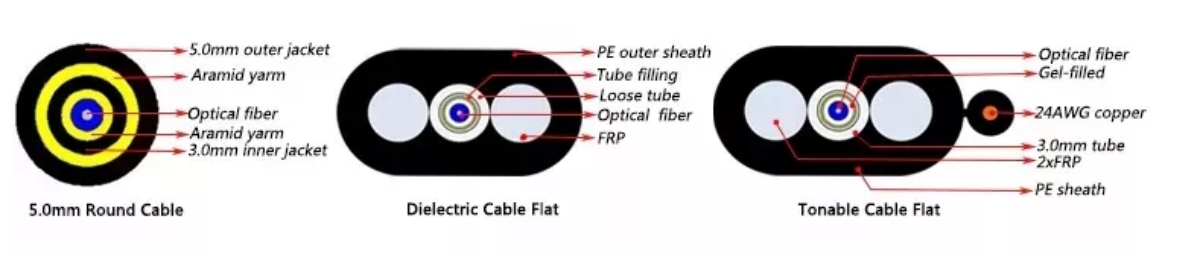

Cable Construction:
Other Cable Type:
