Outdoor Fiber Optical FTTH Drop Cable GJYXFCH

Short Description:

- Fiber Optical FTTH Drop Cable, the outer skin is generally black or white, the diameter is relatively small, and the flexibility is good.

- The Outdoor Fiber Optical FTTH Drop Cable is large used in FTTH (Fiber to the home).

- The cross section is 8-shaped, the reinforcing member is located at the center of the two circles, and the metal or non-metal structure can be used, and the optical fiber is located at the geometric center of the 8-shaped shape.
- The optic fiber inside the cable is mostly G657A2 or G657A1 small bending radius fiber, which can be laid at a bending radius of 20mm.
- It is suitable for entering the house by pipe or distribution openly.

- The unique 8-shaped structure of the drop cable can realize the field end in the shortest time.

Send email to us

Product Detail

Product Tags

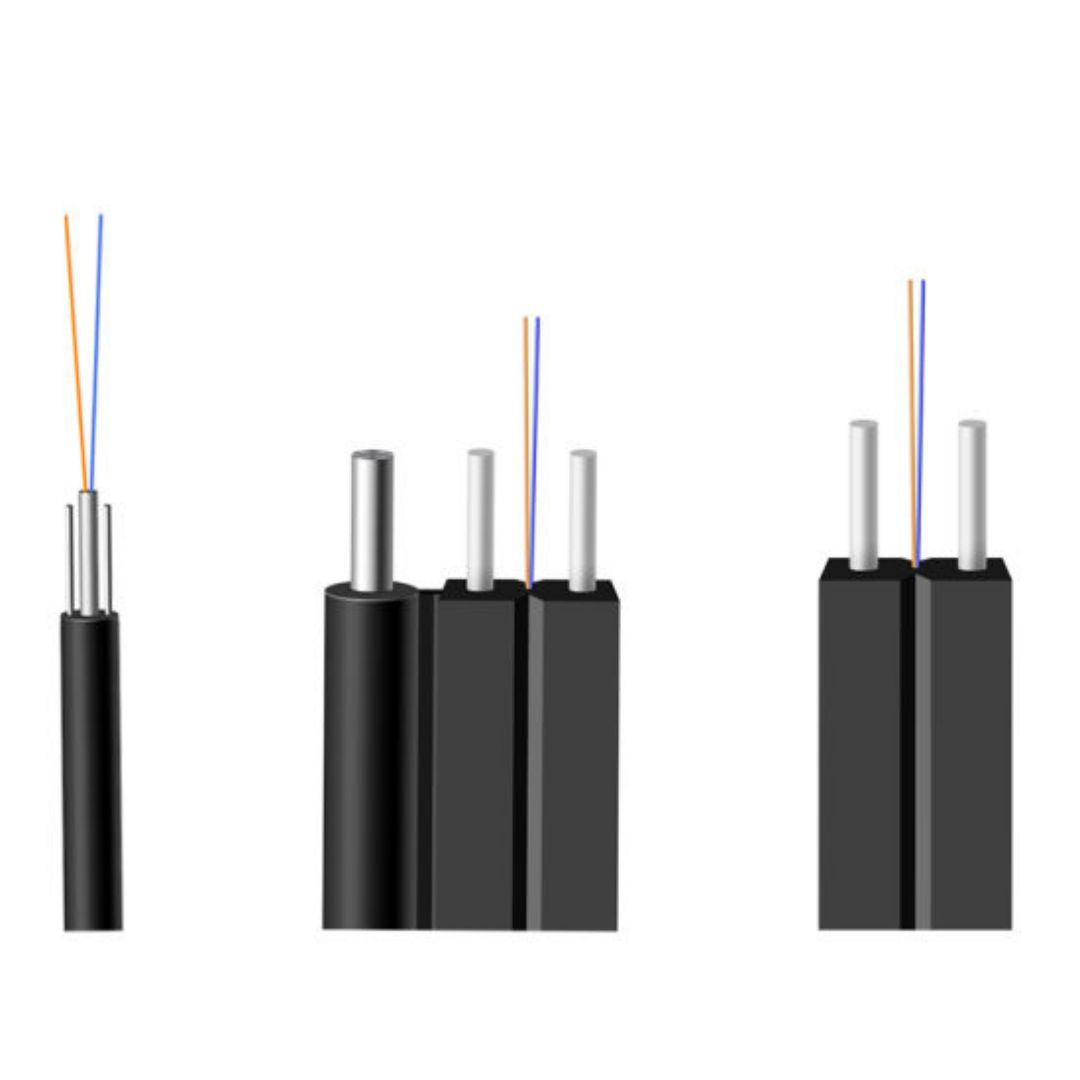

Outdoor Fiber Optical FTTH Drop Cable Structure:

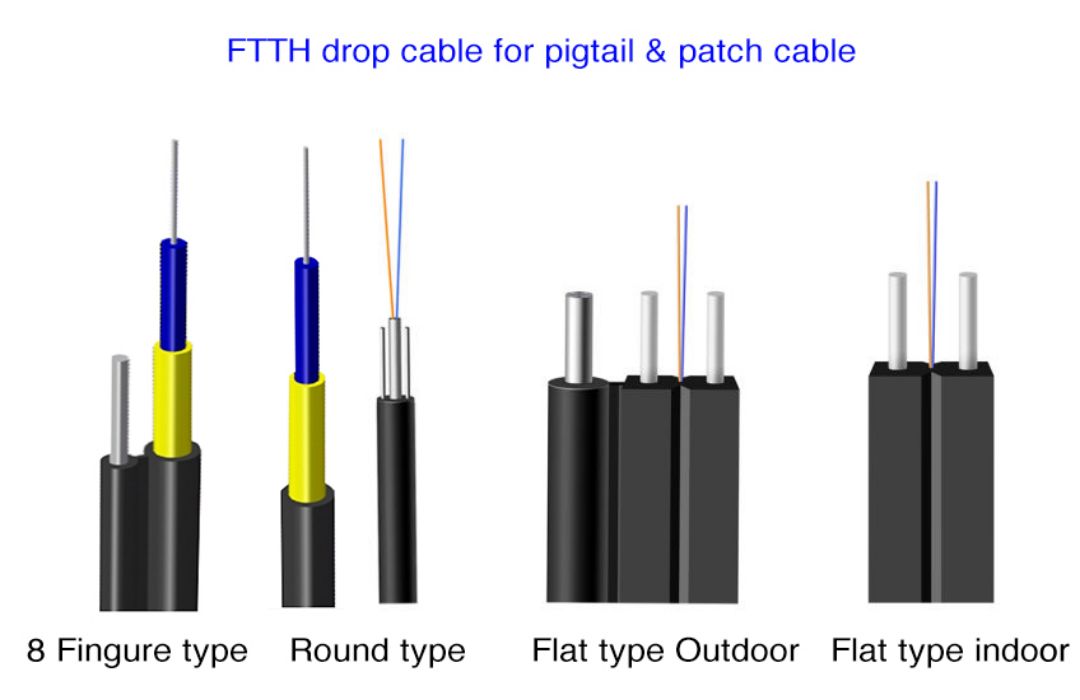

Outdoor Fiber Optical FTTH Drop Cable Application:

Fiber Parameters:

No.	Items		Unit	Specification
No.	Items		Unit	G.657A
1	Mode Field Diameter	1310nm	μm	8.6±0.4
1	Mode Field Diameter	1550nm	μm	9.6±0.5
2	Cladding Diameter		μm	125.0±0.7
3	Cladding Non-Circularity		%	≤1.0
4	Core-Cladding Eccentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Eccentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.4
9	Attenuation(max.)	1550nm	dB/km	≤0.3
10	Macro-benfloss (1turn.7.5mm radius)	1550nm	dB	≤0.5
10	Macro-benfloss (1turn.7.5mm radius)	1625nm	dB	≤1.0
11	Progressiveness		kpsi	≥100

Cable Parameters

Items		Specifications
Fiber Count		2
Colored fiber	Dimension	250±5μm
	Material	Pro-coated
	Color	(blue/red)
Strength member	Material	FRP
	Diameter	0.5MM
	Number	2
Messenger	Material	Aramid yarn
Outer sheath	Material	LSZH
Cable diameter	±0.2	2.0*5.2
Cable weight	±10%	19.0kg/km
Strength member	Strengthening component	Phosphating steel wire
Strength member	Diameter	1.0MM

Mechanical and Environmental Characteristics

Items	Unit	Specifications
Crush（Long Term）	N/10cm	680
Crush（Short Term）	N/10cm	2200
Min. Bend Radius（Dynamic）	mm	30D
Min. Bend Radius（Static）	mm	15D
Installation Temperature	℃	-20～+70
Operating Temperature	℃	-20～+70
Storage Temperature	℃	-20～+70
