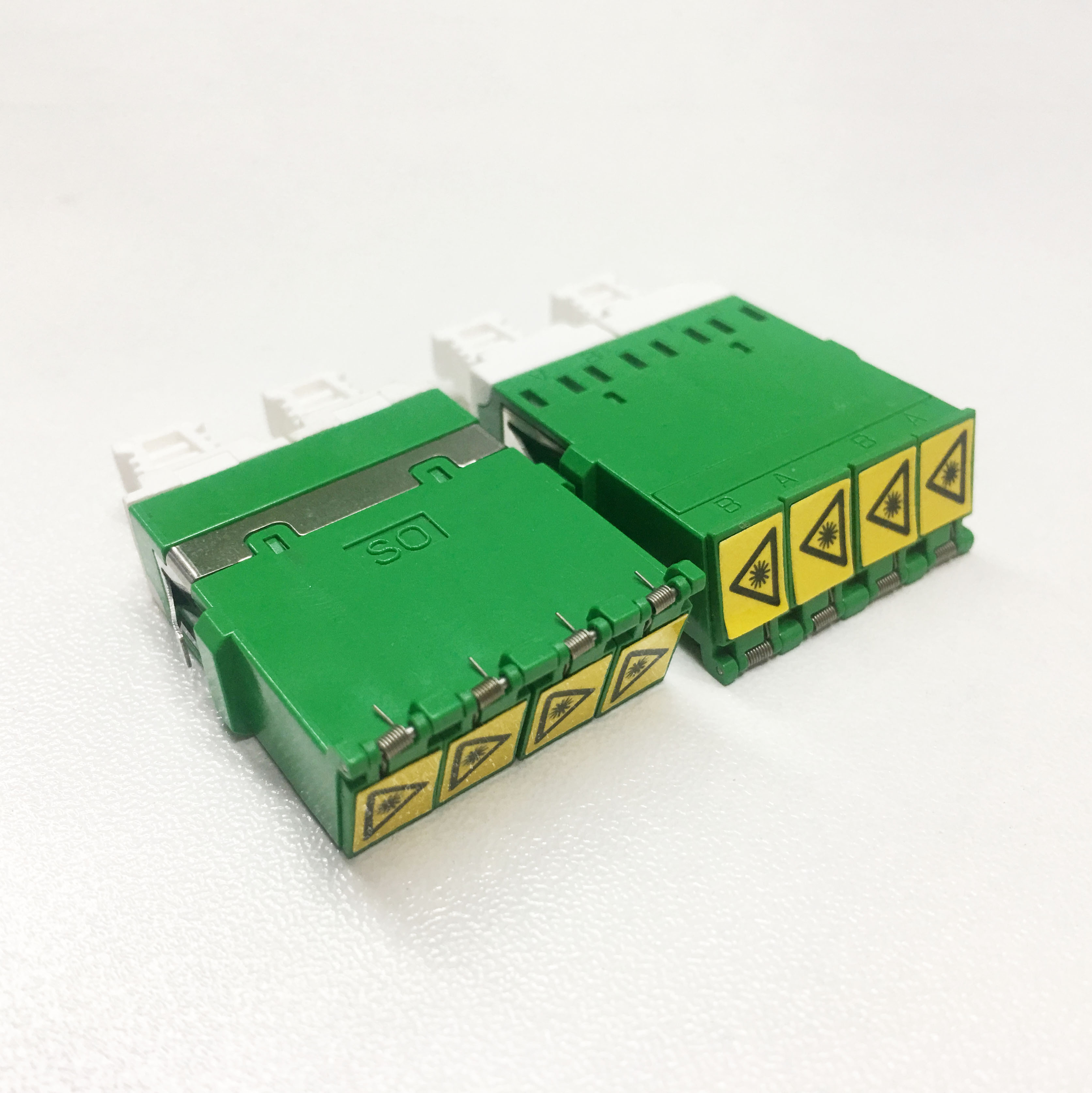

No-flange Auto Shutter Cap Green LC to LC APC Quad Fiber Optical Adapter
Technical data:
| Connector type | Standard LC | |
| Fiber Type | Single mode | |
| G652D, G657A, G657B, G655 | ||
| Type | APC | |
| Fiber count | Quad, 4fo, 4 fibers | |
| Insertion Loss (IL) | dB | ≤0.2 |
| Return Loss (RL) | dB | ≥50dB |
| Exchangeability | dB | IL≤0.2 |
| Repeatability ( 500 remates ) | dB | IL≤0.2 |
| Sleeve material | -- | Zirconia Ceramic |
| Housing Material | -- | Plastic |
| Operating Temperature | °C | -20°C~+70°C |
| Storage Temperature | °C | -40°C~+70°C |
| Standard | TIA/EIA-604 | |
Description:
+ The LC fiber optical adapters (also called couplers) are designed to connect two LC type of fiber optic patch cables together.
+ The fiber optical adapters are designed for multimode or singlemode cables.
+ A fiber optical adapter is a special connector designed to mate or connect two ends of a fiber optic cable with high precision.
+ It is widely used in optical fiber optic patch panel, fiber optic distribution frames (ODFs), fiber optic terminal box, fiber optic distribution box, fiber optic instruments, fiber optic testing equipment. It is providing superior, stable and reliable performance.
+ They have a single fiber connector (simplex), dual fiber connector (duplex) or sometimes four fiber connector (quad) versions.
+ LC fiber optical adapters have high precision alignment sleeves for improved reliability and better reconnectability. The LC adapters come with ceramic sleeves for both single mode and multimode. The housing is available in different colors with options for flange or flangeless body and metal or inbuilt clips.
+ The LC fiber optical connector is used of convenient modular jack (RJ) latch mechanism made. The pins and sleeves used are half the sizes used for normal SC, FC, etc., at 1.25mm.
+ The fiber optical adapter uses a simple design: the ends of two separate fiber optic cables with fiber optic connectors fit into two slots opposite each other.
Features
+ Low IL and High RL
+ Fast and easy connection
+ Fiber: Single mode
+ Connector: Standard LC Duplex
+ Polishing Type: APC
+ Adapter body color: Green
+ Dusty cap type: high cap & auto shutter cap
+ Style: non-flange
+ Durability: 500 mates
+ Sleeve material: Zirconia ceramic
+ Standard: TIA/EIA, IEC and Telcordia compliance
+ Meets with RoHS
Application
+ Fiber to the home (FTTH)
+ Optical fiber telecommunication networks
+ WAN, LAN, CATV
+ Metro, high speed railway systems
- Test equipment
- FTTx (FTTA, FTTB, FTTC, FTTO, ...)
- Fiber Optic Distribution Frame, Patch Panel, Cross Cabinet
- Fiber optic termination box, distribution box, splitter box.

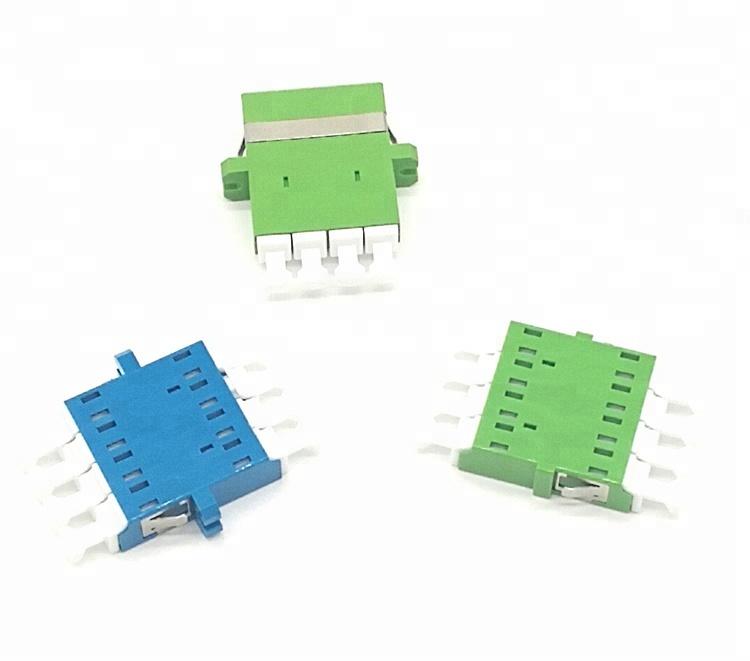

LC fiber optic duplex adapter photo:
Fiber optic adapter family:
