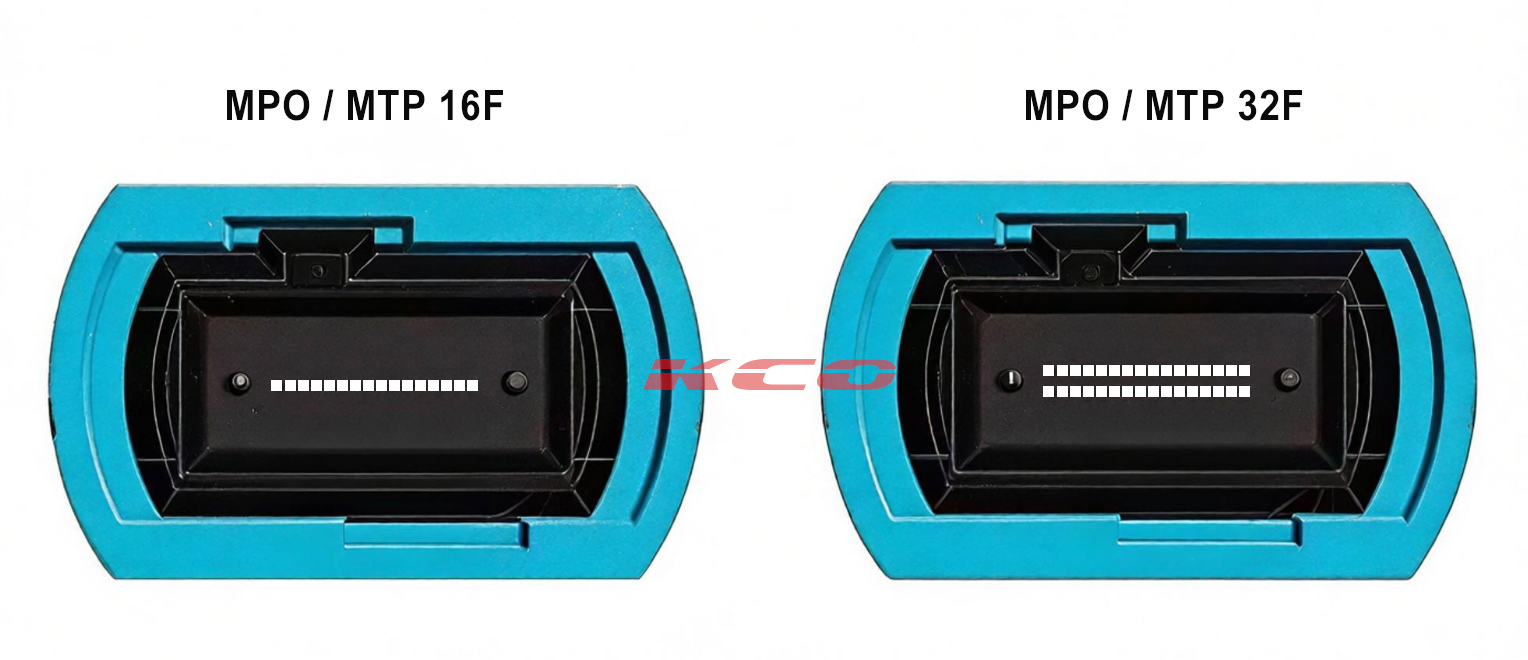

1/ What is MPO / MTP 16F and MPO / MTP 21F?
- An MPO / MTP 16F (16-Fiber) connector is a high-density, multi-fiber push-on optical connector utilizing a single row of 16 optical fibers within the standard MT connector ferrule footprint.
- An MPO / MTP 32F (32-Fiber) connection system refers to a high-density multi-fiber push-on/pull-off optical interface designed to accommodate 32 optical fibers within a single MT connector ferrule or structured assembly (often arranged in double rows of 16 fibers).
2/ MPO / MTP 16F and 32F Trunk Cable Structure:
3/ Technical Data:
| Feature | Specification Details |
|---|---|
| Fiber Layout | Single Row (1×16 for 16F)Stacked Double Row (2×16 for 32F). |
| Applicable Standards | TIA-604-18 (FOCIS 18)IEC-61754-7-3Telcordia GR-326 Core. |
| Transceiver Cores | Native support for QSFP-DD and OSFP optics |
| Common Polarities | Type A (Straight) Type B (Flipped/Crossover)
|
| Optical Polish | APC (Angled Physical Contact, typically 8°) for Single-mode (OS2); APC or Flat for Multimode (OM3/OM4/OM5). |
| Application | Used in 40G/100G/400G data center interconnects, high-density backbone cabling, and direct coupling to 16x25G active network gear. |
4/ Main Application:
- Hyperscale Data Centers: Supports ultra-high-density backbone and cross-connect cabling to maximize rack space and airflow.
- High-Speed Transmissions: Used for scaling and migrating to high-bandwidth networks, including 400G and multi-terabit Ethernet or high-frequency optical testing setups.
- Parallel Optics & Transceivers: Interfaces with multi-fiber parallel optic transceiver modules that require high fiber-count arrays in a small footprint.
- 400G and 800G Networks: Native 16-fiber interfaces eliminate the wasted fiber lanes common when adapting 24-fiber trunks for 8-lane or 16-lane parallel optics, supporting standards like 400G SR8, 800G DR8, and 400G DR4/FR4.
- AI Clusters and GPUs: Provides high-density physical contact and low insertion loss required for high-bandwidth artificial intelligence and machine learning compute fabrics.
- Direct Coupling: Connects directly into 16x25G or similar active optoelectronic devices and high-speed pluggable transceivers (such as QDD-SR8-400G).
- Breakout Configurations: Can be structured in MPO-to-MPO trunk cables or MPO-to-LC / 4xCS/SN breakout assemblies to transition high-density traffic down to individual switch or panel ports.
KCO FIBER supply high quality the MPO / MTP fiber optic patch cable with quick delivery time (production capacity: 3000pcs/ working day).
Contact with our sales team to get best support about technical issue and bulk price.
