Indoor Single mode Simplex 1 Cores Armored Fiber Optic Cable

Short Description:

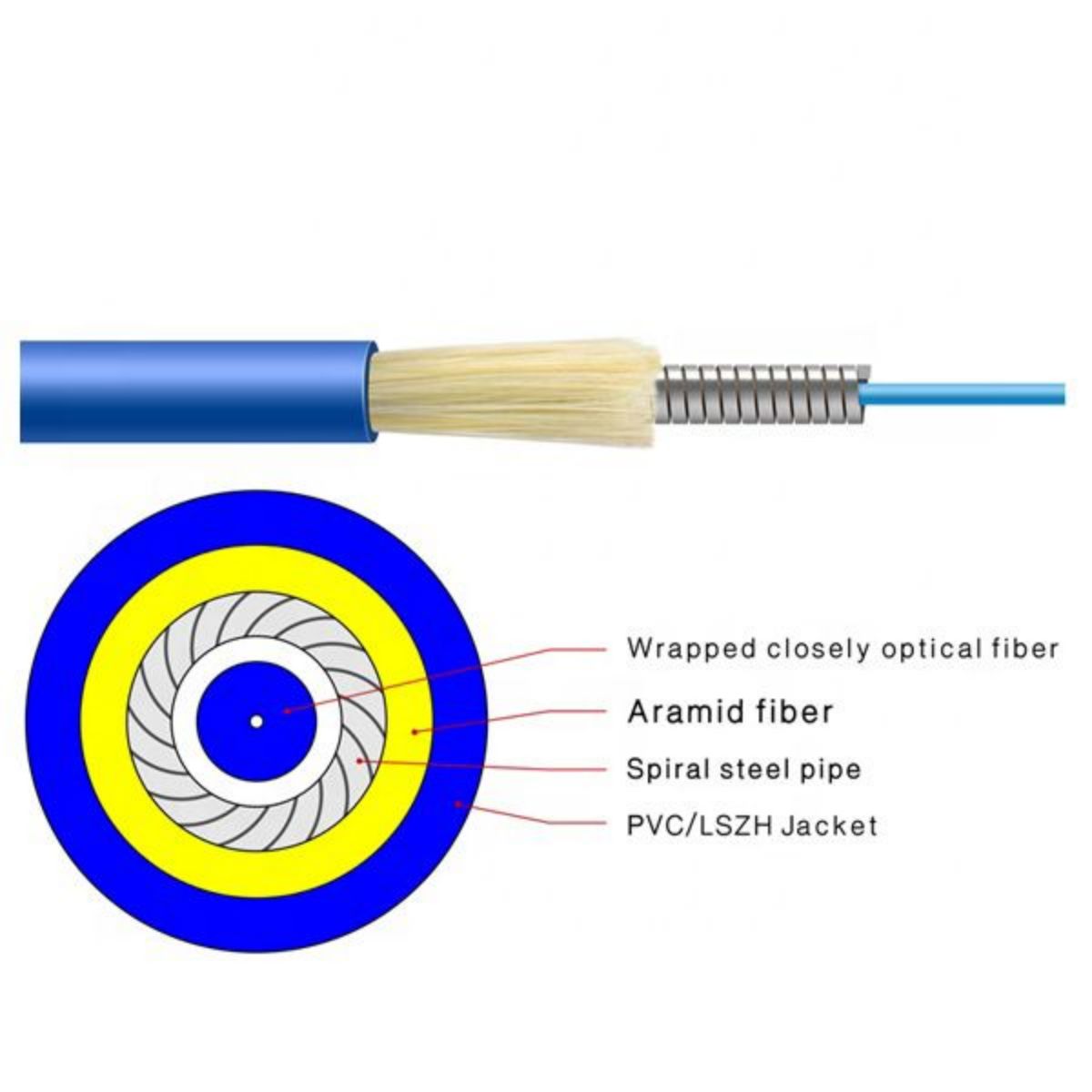

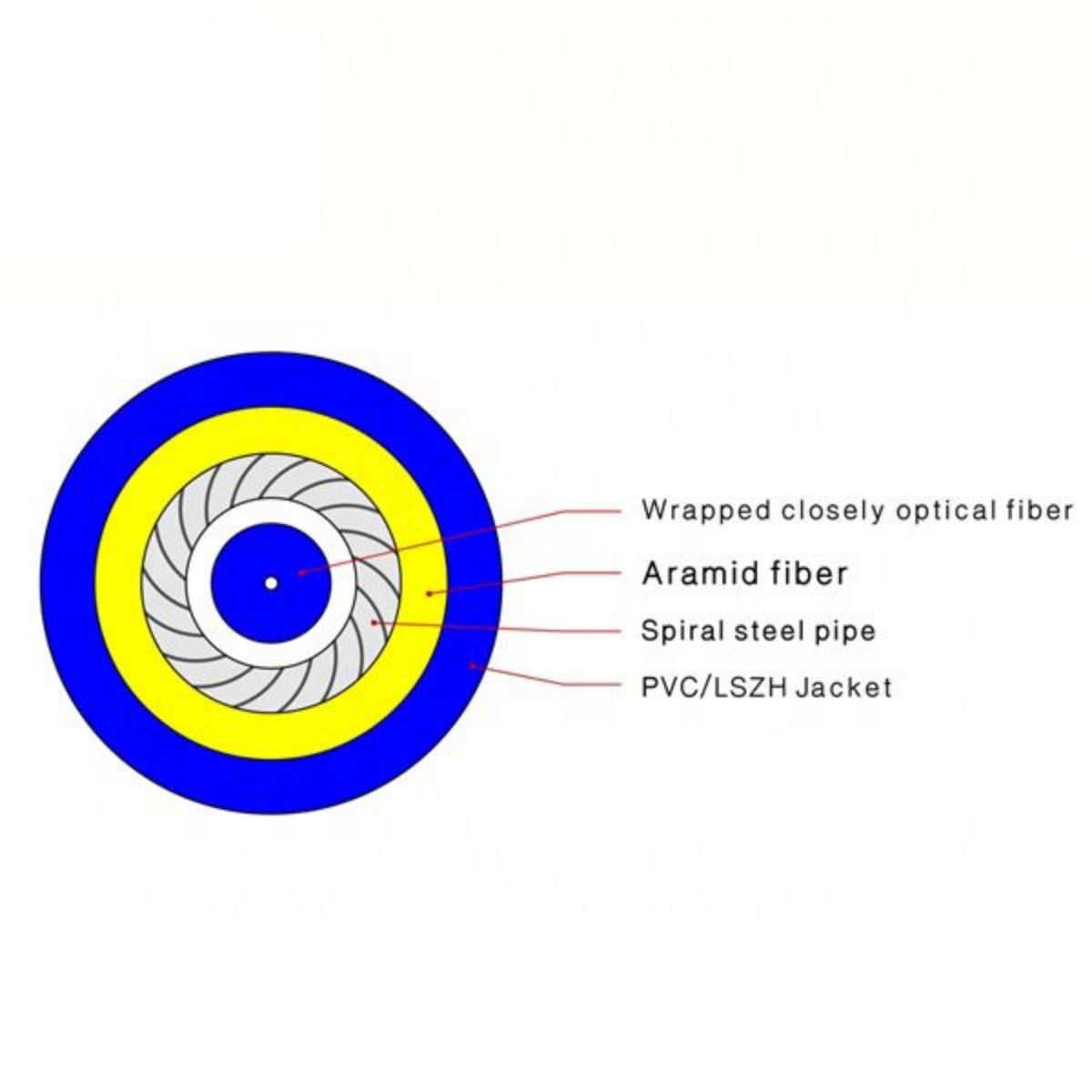

• The Armored fiber optic cables possess several layers to secure the cable.

• The plastic outer jacket provides protection against rodents, abrasion, and twist.

• Then the light steel tube between the optic fibers and the outer jacket offers better protection to the fibers in the center.

• And the Kevlar is placed inside the outer jacket to cover the steel tube.

• Good mechanical and environment characteristics.

• Flame retardant characteristics meet the requirements of relevant standards.

• The mechanical characteristics meet the requirements of relevant standards.

• Soft, flexible, easy to splice, and with big capacity data transmission.

• Meet various requirements of market and clients.

Send email to us

Product Detail

Product Tags

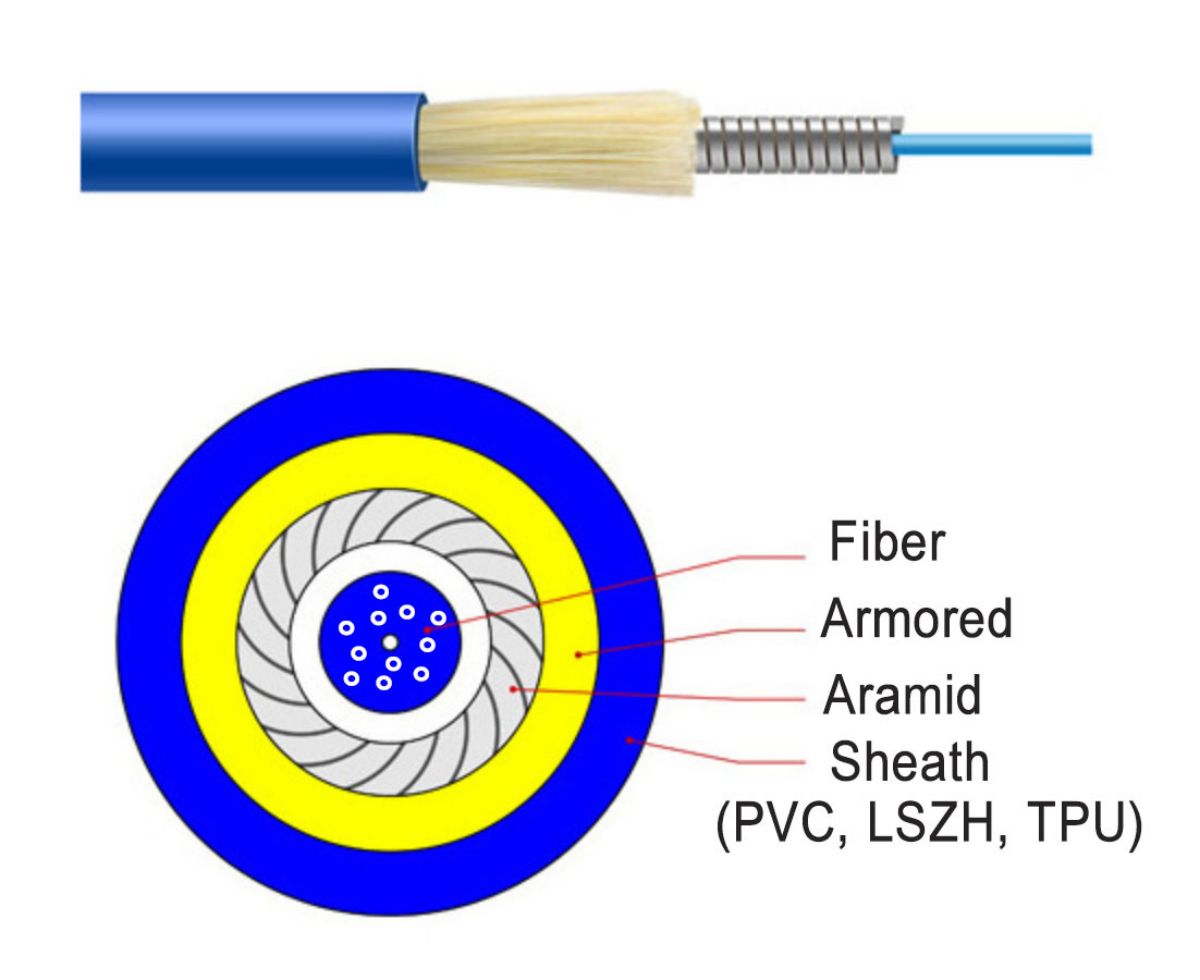

Size:

0.9mm colored fiber * 1 core
Flexible steel tube：
material	SUS204
Outer diameter	1.45±0.05mm
Insider diameter	0.95±0.05mm
Thickness	0.22±0.02 mm
Gap：0.15±0.05 mm
Aramid yarn：
model	1000DEN
Number	5 branches outside the stainless steel tube
Outer sheath material：
Material：PVC, LSZH, TPU
Color	SM (blue, yellow), MM (grey, orange), Outdoor (Black)
Thickness：0.5±0.1 mm
Outer diameter：3.0 ±0.1mm

Specification:

Item		Singlemode		Multimode
Outer diameter		3.0mm		3.0mm
Standard color		Blue		Grey
Inner cable diamerter		0.6mm, 0.9mm Tight Buffered
Inner cable material		PVC, LSZH
Strength member		Aramid Yarn
Cable out sheath material		PVC, LSZH, TPU or customized
Cable weight		15kg/km approx
Operating temperature		-40℃～+80℃
Storage temperature		-40℃～+80℃
Tensile strength	Short term	200N
	Long term	400N
Compression resistant strength		≥3000N/100MM
General attenuation		1310nm	≤0.4dB/km	850nm	≤3.0dB/km
		1550nm	≤0.3dB/km	1300nm	≤1.0dB/km
Minimal Bending radius		≥30D		≥30D

Technical parameters:

• The armored fiber optic cable which can be freely used like electrical wire, this item is protected by flexible stainless steel tube.

• Compare with the regular fiber cable, it have advantage performance of high compression & impact resistance, anti-bug.

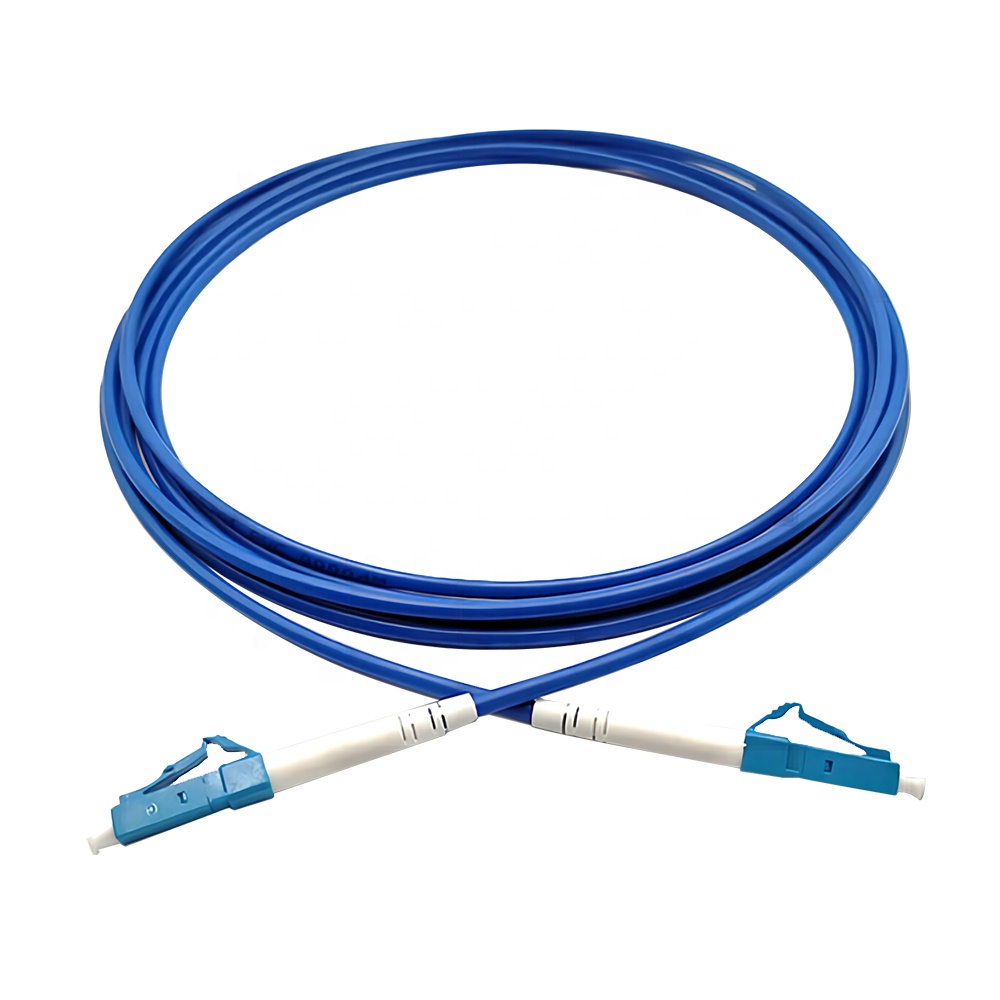

• With fixed standard 3mm fiber optic connector, it is widely used in various terrible environment.

• Mini diameter SUS spring tube reinforced ensures good cursh resistance to 3000N;

• Dupon Kelvar strength member brings good tensile strength of 300N above;

• Outer jacket can be PVC, LSZH or TPU. Comply with RoHS;

• Light, flexible and easy to bend;
