FiberHub FTTA Fiber optic splice enclosure box
Product Specification
| Item | FiberHub |

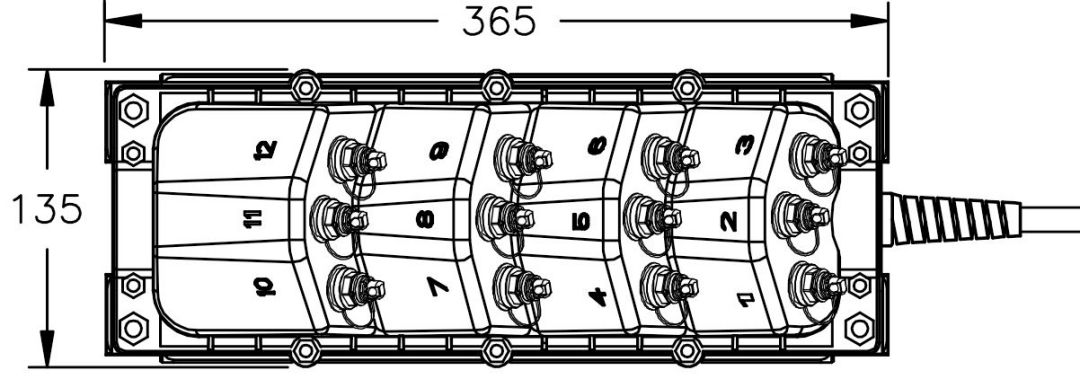

| Dimensions | 374*143*120mm |
| Ingress protection | IP67 |
| Temperature range | -40 to 80 degree |
| Cable strength member | Armored or non-armored |
| Cable type | Hybrid or non-hybrid |
| Round cable OD | 5-14mm |
| Flat cable dimension | 4.6*8.9mm |
| Cable jacket material | LSZH, PE, TPU |
| Bending radius | 20D |
| Cable crush resistance | 200N/cm long term |
| Tensile strength | 1200N long term |
| UV resistance | ISO 4892-3 |
| Fiber protection rating | UL94-V0 |
| Number of PLC | 1 piece or 2 pieces |
| Number of fusion protection sleeve | 1 piece to 24 pieces |
Product Details
• FiberHub FTTA Fiber optic splice enclosure box is design with outdoor waterproof protected the outdoor fiber optic connector such as: Huawei Mini SC, OptiTap, ODVA, PDLC, Fullaxs, … Fiber to the Antenna Rugged Interconnect.
• To meet the needs of the next generation WiMax and long term evolution (LTE) fiber to the antenna (FTTA) connection design for outdoor use harsh requirements, has released the ODVA-DLC connector system, which provides the remote radio between the SFP connection and the base station, used for Telecom applications.
• This new product to adapt the SFP transceiver provides the most widely in the market, so that end users can choose to meet the specific requirements of the transceiver system.
Application：
Feature:

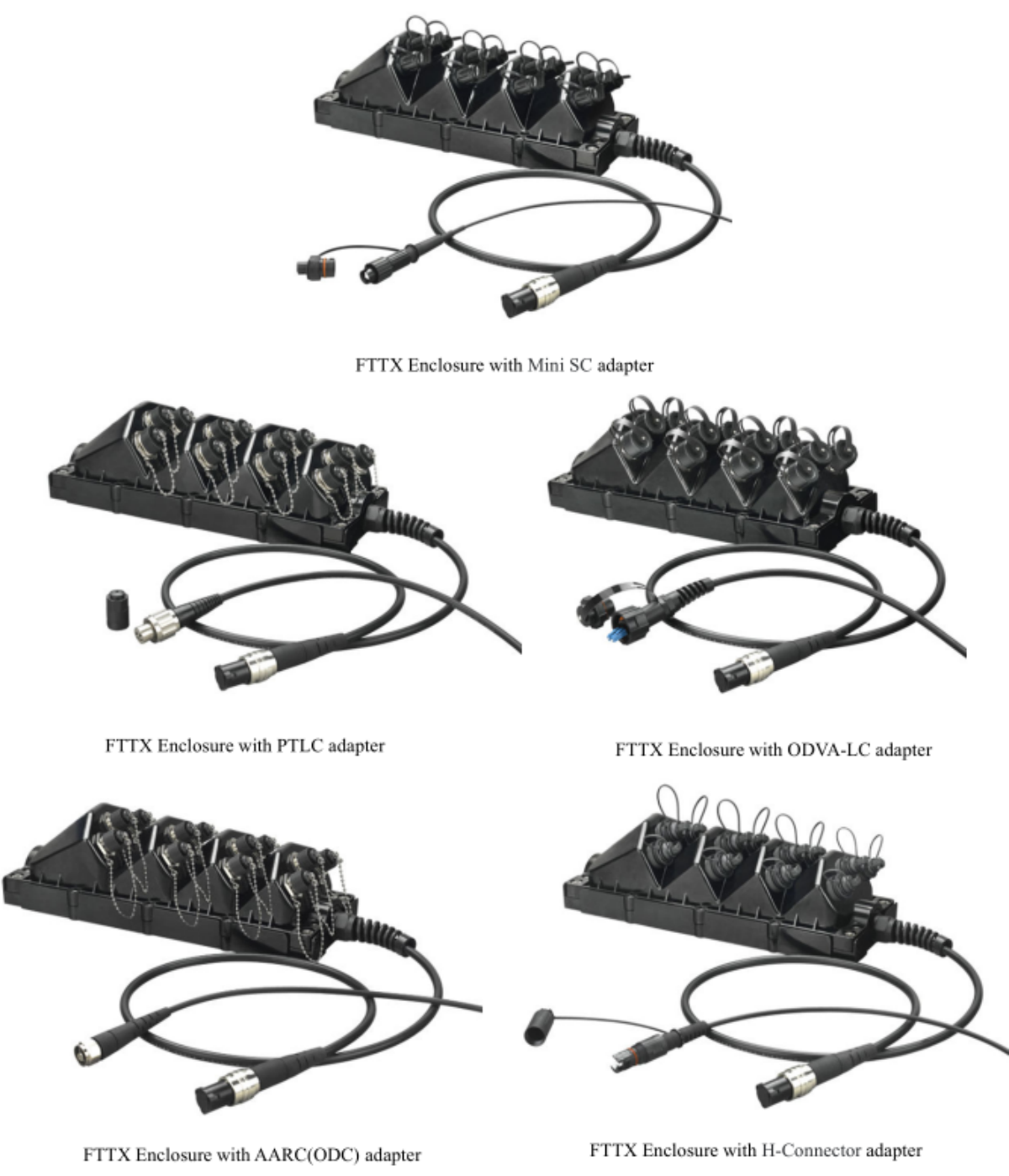

• High compatibility: Can be assembled ODVA, Hconn, Mini SC, AARC, PTLC, PTMPO or power adaptor.
• Factory sealed or field assembly.
• Strong enough: working under 1200N pulling force long term.
• From 2 to 12 ports for single or multi-fiber harsh connector.
• Available with PLC or splice sleeve for fiber divide.
• IP67 waterproof rating.
• Wall-mounting, aerial installation or holding pole installation.
• Decreased angle surface and height make sure no connector interfering when operating.
• Meet IEC 61753-1 standard.
• Cost effective: save 40% operating time.
• Insertion loss: SC/LC≤0.3dB, MPT/MPO≤0.5dB, Return loss: ≥50dB.
• Tensile strength: ≥50 N
• Working pressure: 70kpa~106kpa;
• Using the temperature: -40~+75 ℃
• Relative humidity: ≤85% (+ 30 ℃).
• Protection grade: IP67
• Internal inventory redundant optical fiber, convenient in operation and maintenance.
• Optical fiber can be welding or cold, the applicable scope is wide,especially suitable for the use of multi-storey and high-rise tenants,easy to install, easy to install.
• Material: ABS new resistance fuel, quality assurance, the flame retardant performance accord with
standard of communication industry, flame retardant grade UL94V - level 0
• Suitable adapter : MIni-SC, H connector-SC, ODVA-LC,ODVA-MPO,ODVA-MPT.
• Structure: open type
• Color: grey (color can be customized)
• Sealing way: TPE seals
• Installation method: overhead, hanging.
Installation:
Box works:

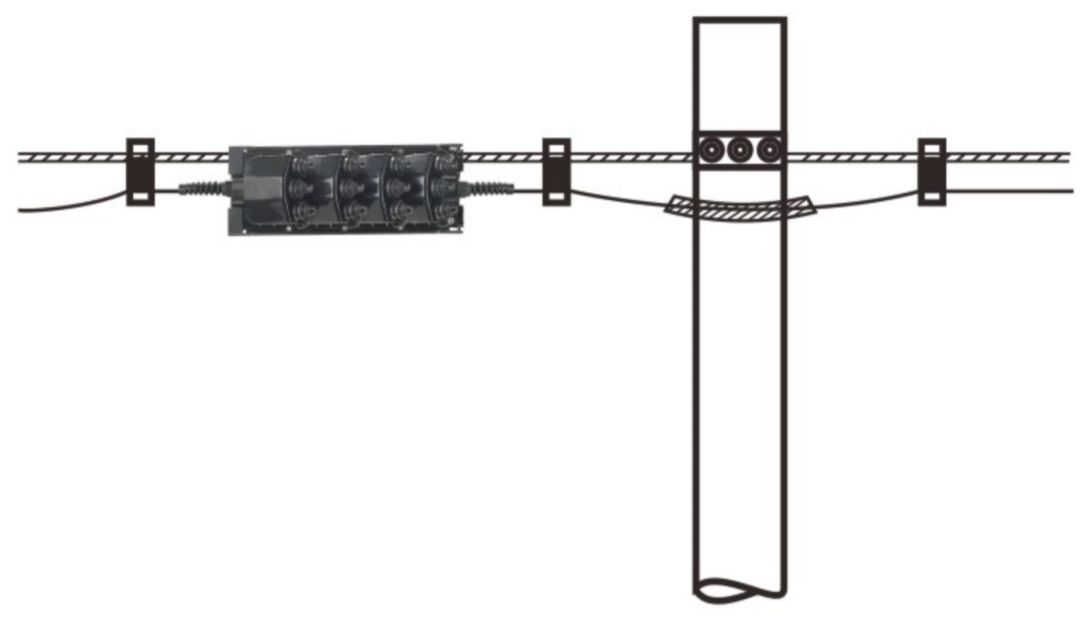

i.Aerial-hanging

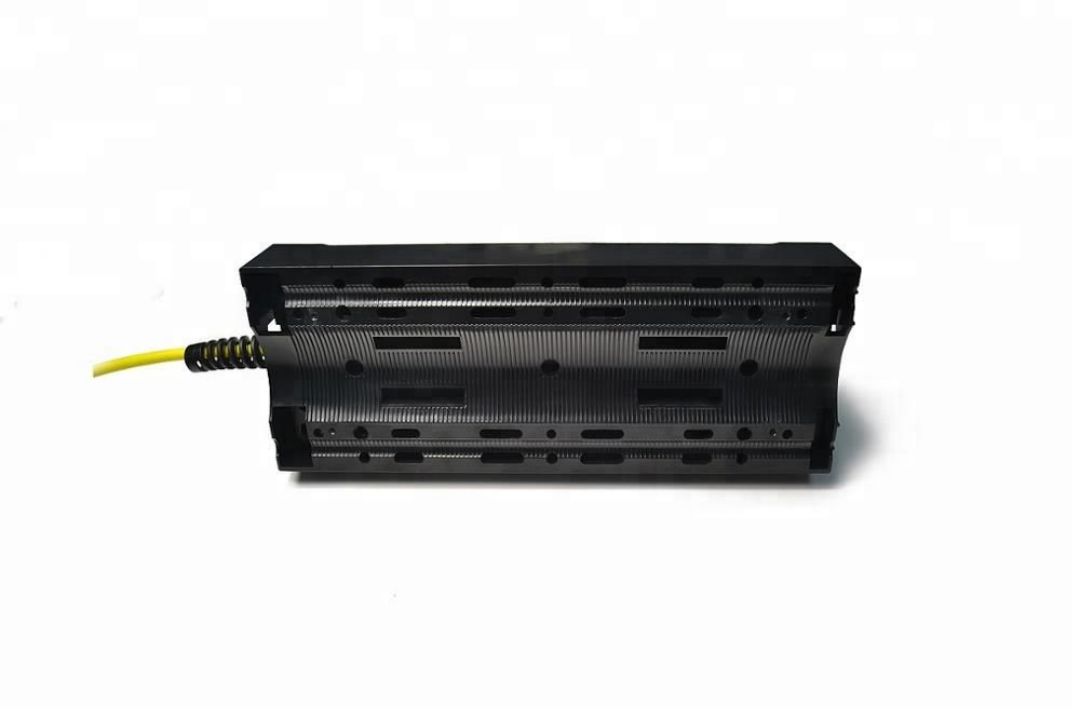

Back:
Transportation and Storage:
• The package of this product adapts to any transportation ways. Avoid collision, drop, direct shower of rain & snow and insolation.
• Keep the product in a draughty and dry store, without
corrosive gas in.
• Storage Temperature Range： -40℃ ~ +60℃

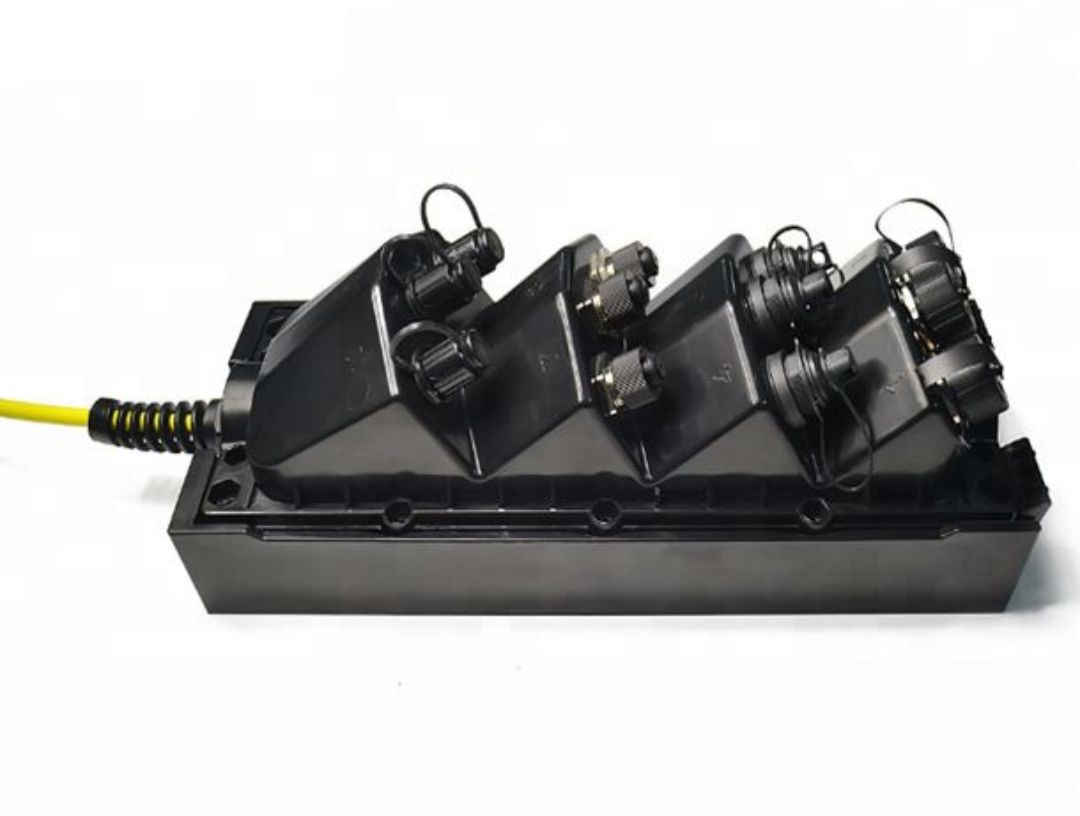

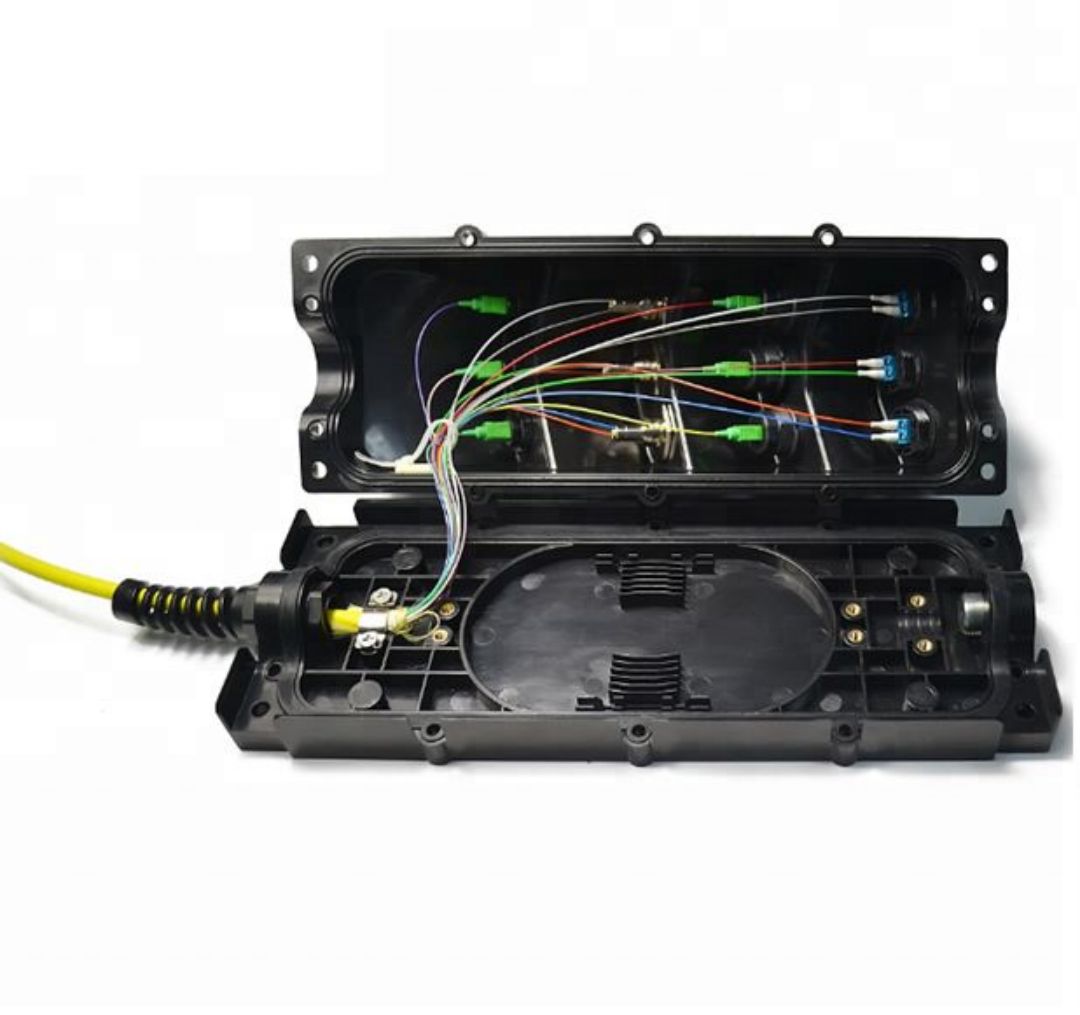

Product photos:
