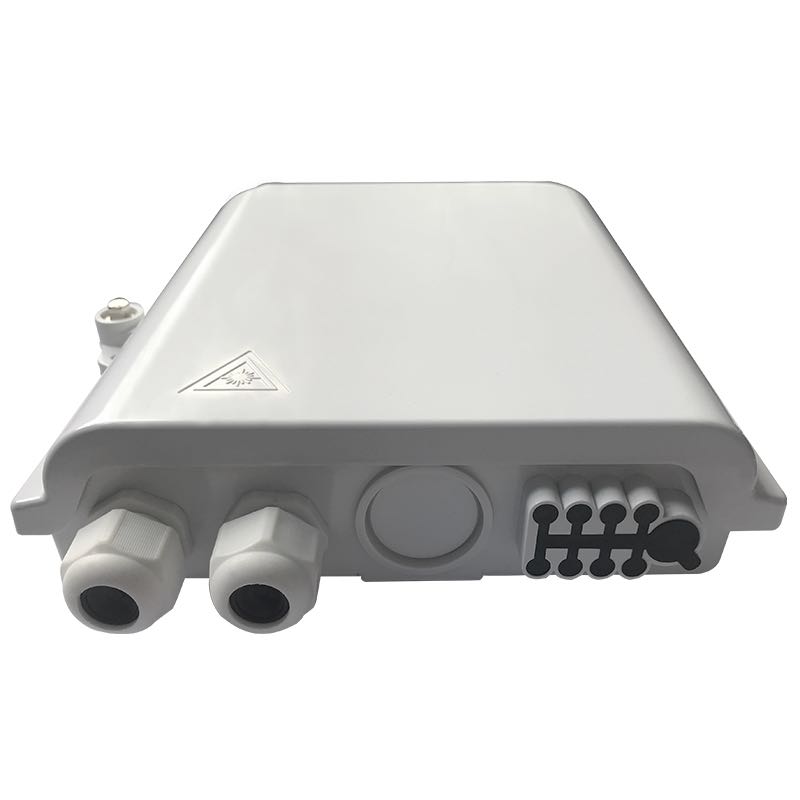

FDB-08A Outdoor Fiber Optic Distribution Box FDB-08A
Product Specification
| Item | Material | Size (mm) | Weight (kg) | Capacity | Color | Packing |
| FDB-08A | ABS | 240*200*50 | 0.60 | 8 | white | 20pcs/ carton/ 52*42*32cm/12.5kg |
Description:
• FDB-08A Outdoor Fiber Optic Distribution Box fiber access termination box is able to hold up to 8/16 subscribers.
• It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.
• It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
• Widely used in the end termination of residential buildings and villas, to fix and splice with pigtails;

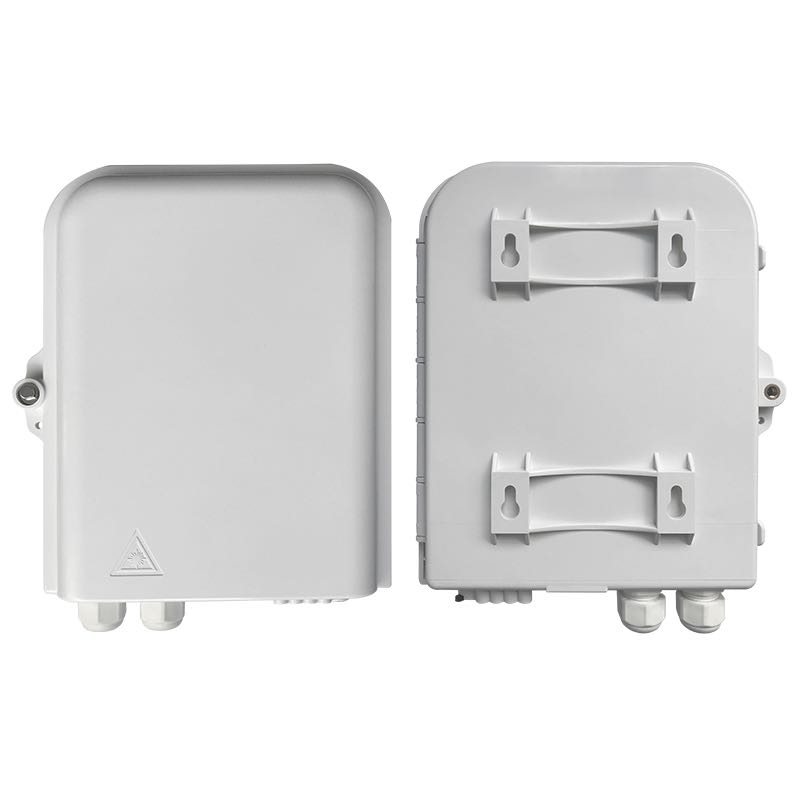

• Can be installed on the wall;
• May adapt variety of optical connection styles;
• Optical fiber can be managed effectively.
• Available for 1:2, 1:4, 1:8 fiber optic splitter.
Features
• Water-proof design with IP-65 Protection level.
• Integrated with splice cassette and cable management rods.
• Manage fibers in a reasonable fiber radius condition.
• Easy to maintain and extend the capacity.
• Fiber bend radius control more than 40mm.
• Suitable for the fusion splice or mechanical splice.
• 1*8 and 1*16 Splitter can be installed as an option.
• Efficient cable management.
• 8/16 ports cable entrance for drop cable.
Application
+ Widely used in FTTH access network.
+ Telecommunication Networks.
+ CATV Networks.
- Data communications Networks
- Local Area Networks
Accessories:

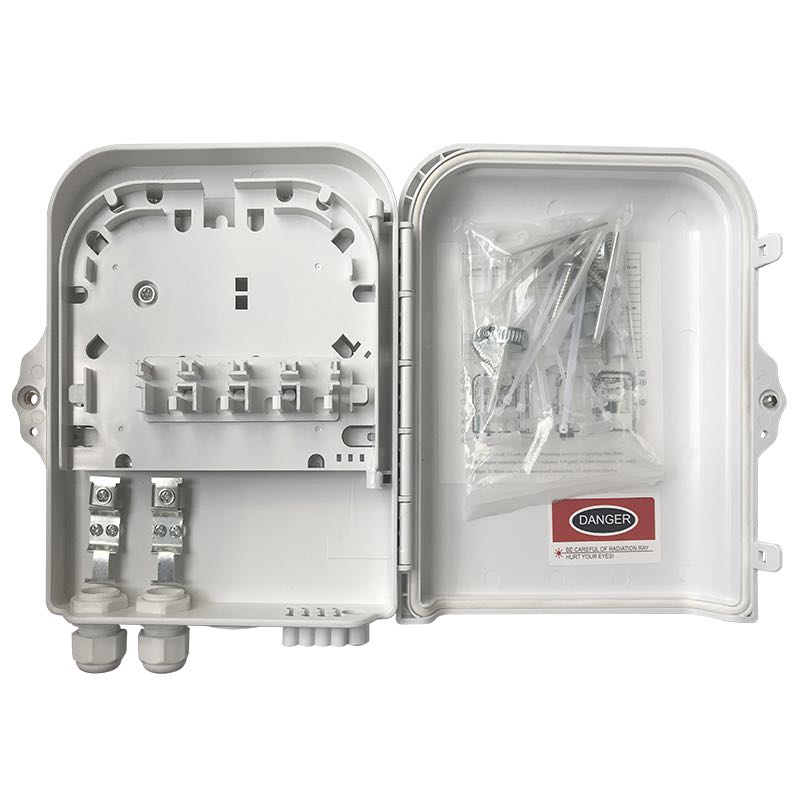

• Empty box cover: 1 set
• Lock: 1/2pcs
• Heat shrink tube: 8/16pcs
• Ribbon tie: 4pcs
• Screw: 4pcs
• Expansion tube for screw: 4pcs
Installation:
1. Insert small diameter cable and fix it.
2. Connect small diameter cable with splitter input cable by fusion splicing or mechanical splicing.
3. Fix the PLC splitter.
4. Connect splitter ribbon fibers with output pigtails that coated loose tube as below.
5. Fix the arranged output pigtails with loose tube to tray.
6. Lead output pigtail to the other side of the tray, and insert adapter.
7. Pre-insert optical drop cables to outlet holes in order, then seal it by soft block.
8. Pre-installed field assembly connector of drop cable, then insert connector to optical adapter in order and tie it by cable tie.
9. Close the cover, the installation is finished.
Relation Product

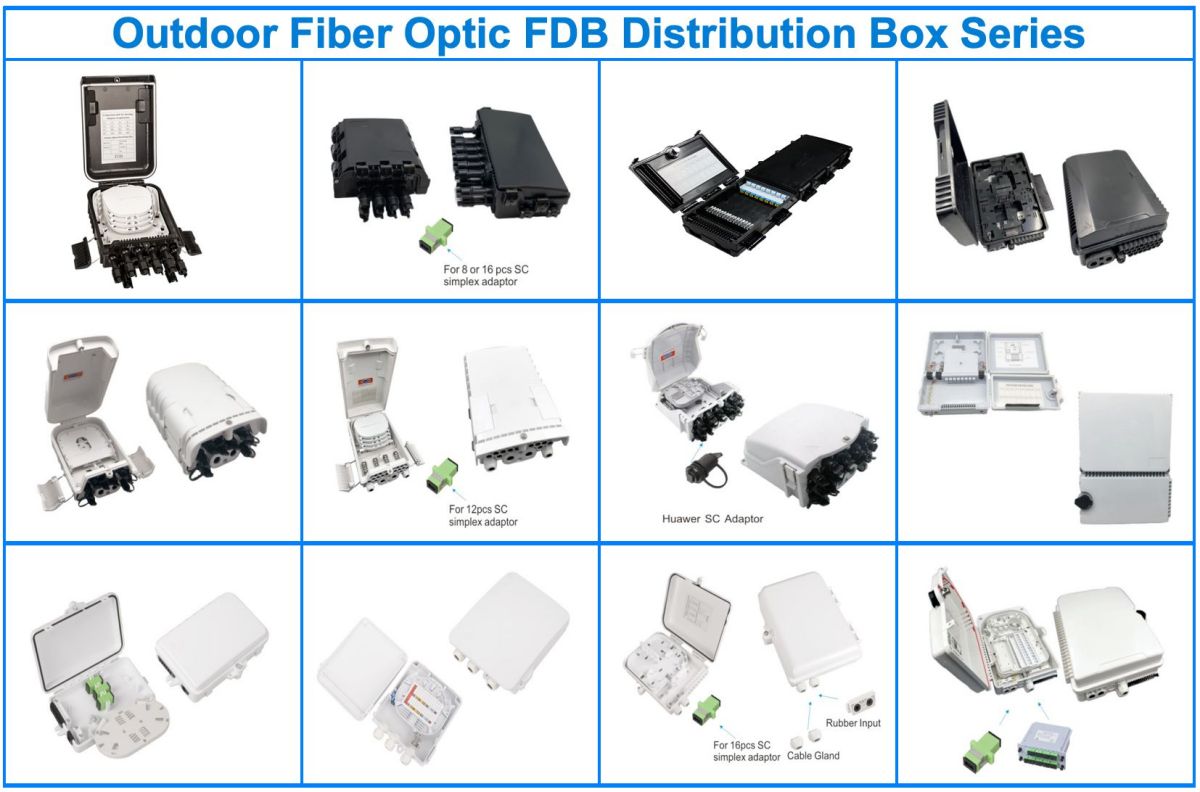

Relation Distribution Box

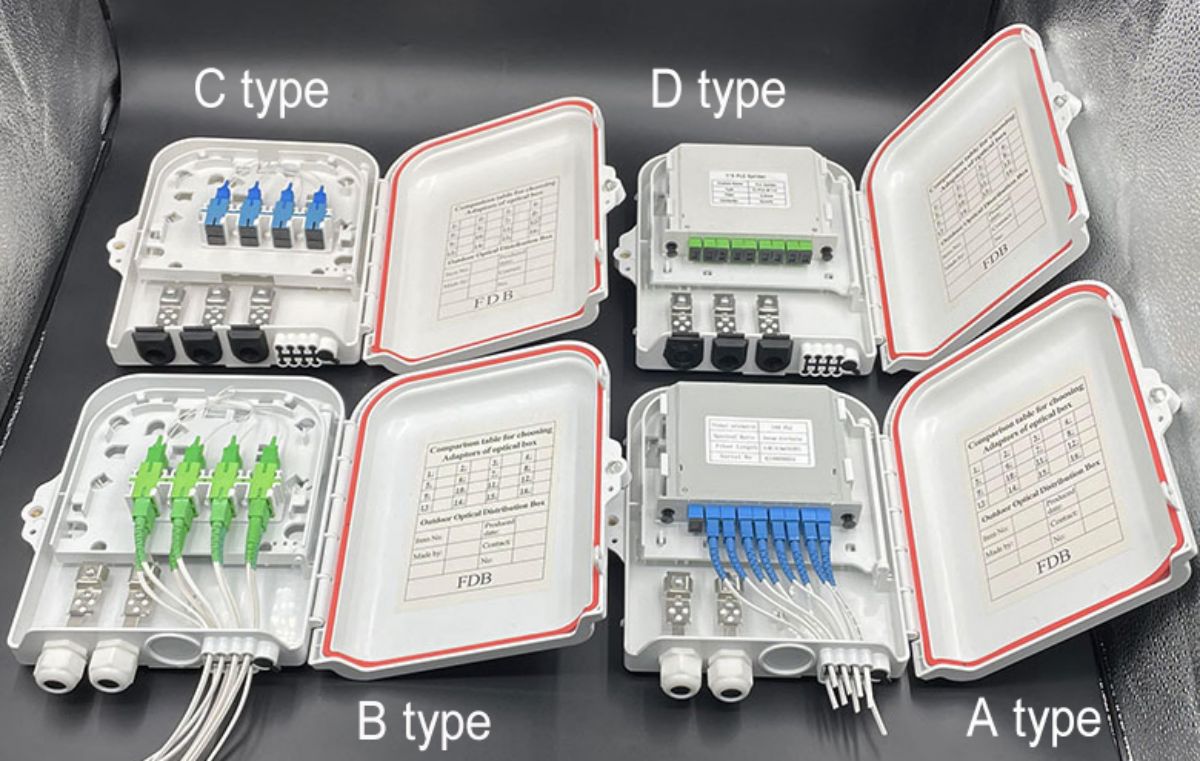

Fdb-08 Series
