Compatible FULLAXS BBU Outdoor Fiber Optic Patch Cable
Product Description
• The compatible Fullaxs connector outdoor cable assembly is matching Ericsson RRU equipment Fullaxs PDLC.
• Next generation WiMAX and Long Term Evolution (LTE)Fiber/Power/Signal To The Antenna (x-TTA) connectivity designs require rugged cable assemblies for outdoor use.
• For direct connection, these cable assemblies need to plug directly into the optical transceivers or other connector types though a bulkhead construction.
• For this specific application, the connector design will need to accommodate for a large tolerance in Z direction.
• Furthermore, the connector shell must allow for easy one handed mating.
• This LC outdoor connector sealing systems were designed to function with a very large Z-axis tolerance, hence accommodating for the broadest range of transceivers on the market.
• This unique feature allows end users to pick almost any transceiver they wish.
• The compatible Fullaxs outdoor cable assembly can make with two sides are Fullaxs water-proof connector or one side with Fullaxs water-proof connector and other side come with other common connector as LC, SC, FC, ST, …
Feature:
• Open bulkhead for easy access to SFP.
• Low insertion loss and added loss.
• Height of attenuation.
• IP67 water, dust proof and corrosion resistant.
• Plug has tolerance free design, free floating on Z-axis.
• The material in the jumper cable are all-weather and UV-resistant.
• 100% Compatible with FullAXS Connectors and has site technical features.
Applications:
+ Multi-purpose Outdoor.

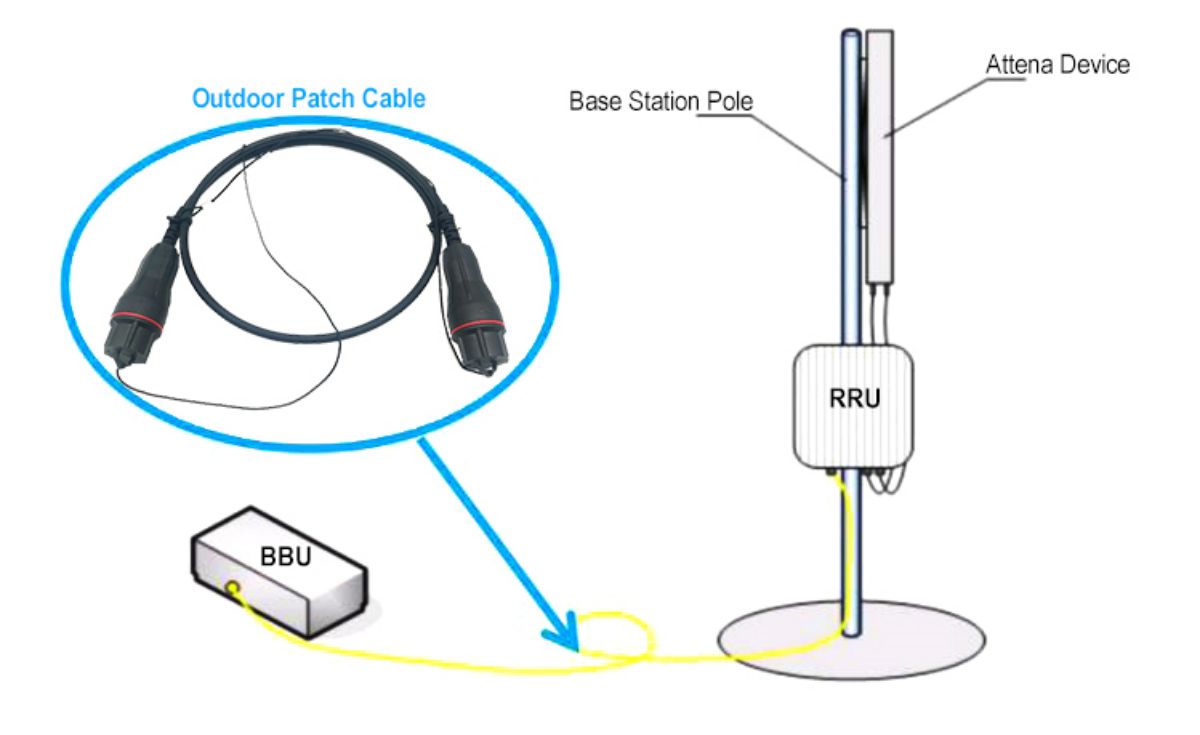

+ For connection between distribution box and RRH.
+ Deployment in Remote Radio Head cell tower applications.
+ For outdoor 3G 4G 5G telecom base station.

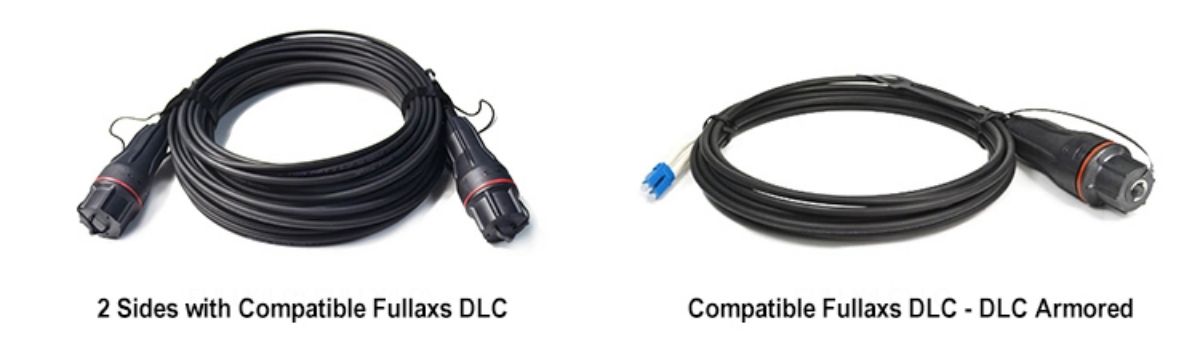

Compatible FULLAXS DLC Outdoor patch cable structure:

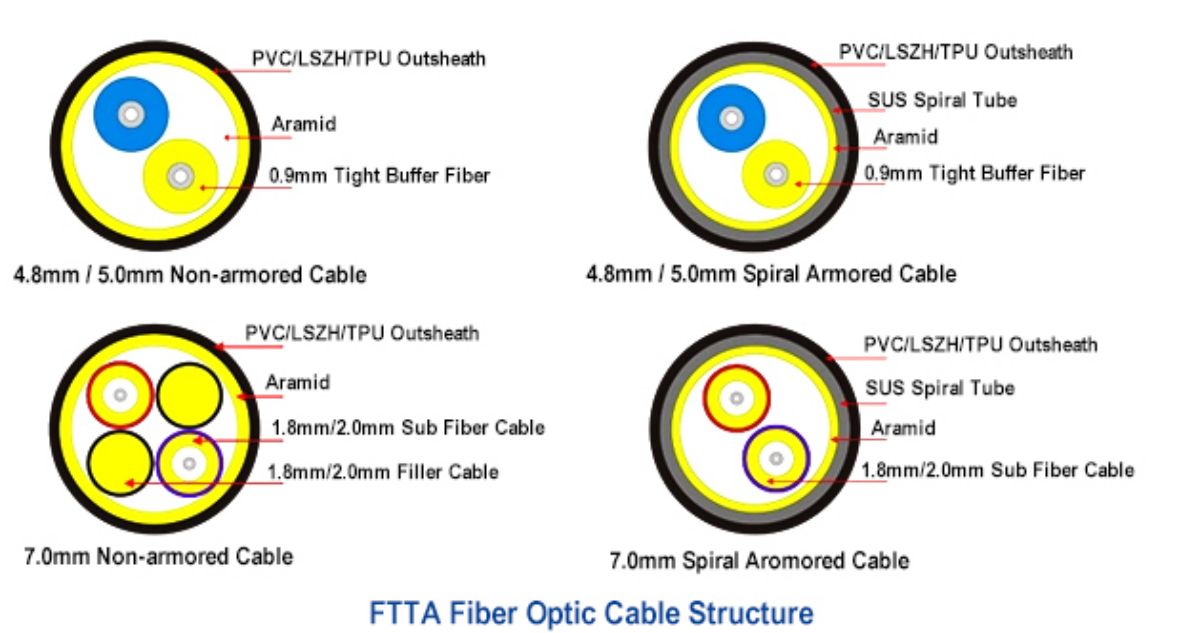

FTTA Tactical Outdoor Cable Structure:
Optical Parameter:
| Item | Parameter | |
| Fiber type | Single mode | Multi Mode |
| G652DG655
G657A1 G657A2 G658B3 |
OM1OM2
OM3 OM4 OM5 |
|
| IL | Typical: ≤0.15BMax.: ≤0.3dB | Typical: ≤0.15BMax.: ≤0.3dB |
| RL | APC: ≥60dBUPC: ≥50dB | PC: ≥30dB |
Ordering information:
| Connector 1 | Compatible Fullaxs Duplex LC/UPC,Compatible Fullaxs Duplex LC/APC,
Compatible Fullaxs Duplex LC MM Compatible Fullaxs SC/UPC, Compatible Fullaxs SC/APC, Compatible Fullaxs FC/UPC, Compatible Fullaxs FC/APC, Compatible Fullaxs ST/UPC, Compatible Fullaxs E2000/UPC , Compatible Fullaxs E2000/APC, Compatible Fullaxs MPO MTP, ... |
| Connector 2 | Compatible Fullaxs Duplex LC/UPC,Compatible Fullaxs Duplex LC/APC,
Compatible Fullaxs Duplex LC MM Compatible Fullaxs SC/UPC, Compatible Fullaxs SC/APC, Compatible Fullaxs FC/UPC, Compatible Fullaxs FC/APC, Compatible Fullaxs ST/UPC, Compatible Fullaxs E2000/UPC , Compatible Fullaxs E2000/APC, Compatible Fullaxs MPO, ... LC/UPC with armored or non-armored, LC/APC with armored or non-armored, DLC/UPC with armored or non-armored, DLC/APC with armored or non-armored, SC/UPC with armored or non-armored, SC/APC with armored or non-armored, FC/UPC with armored or non-armored, FC/APC with armored or non-armored, ST/UPC with armored or non-armored, E2000/UPC with armored or non-armored, E2000/APC with armored or non-armored, |
| Fiber count | 1 fiber,2 fibers,
4 fibers, 8 fibers, 12 fibers, 24 fibers, ... |
| Fiber type | Single mode: G652D. G655, G657A1, G657A2, G657B3, …Multi mode: OM1, OM2, OM3, OM4, OM5 |
| Armored | ArmoredNon-armored |
| Cable Diameter | 2.0mm, 3.0mm, 4.8mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm, ... |
| Cable Sheath Material | PVC, LSZH, TPU, PE, ... |
| Cable Sheath Color | Yellow, Orange, Blue, Gray, Black, ... |
| Length | 0.5m, 1m, 3m, 5m, 7m, 10m, 15m, 20m, 50m, 100m, 150m, ... |

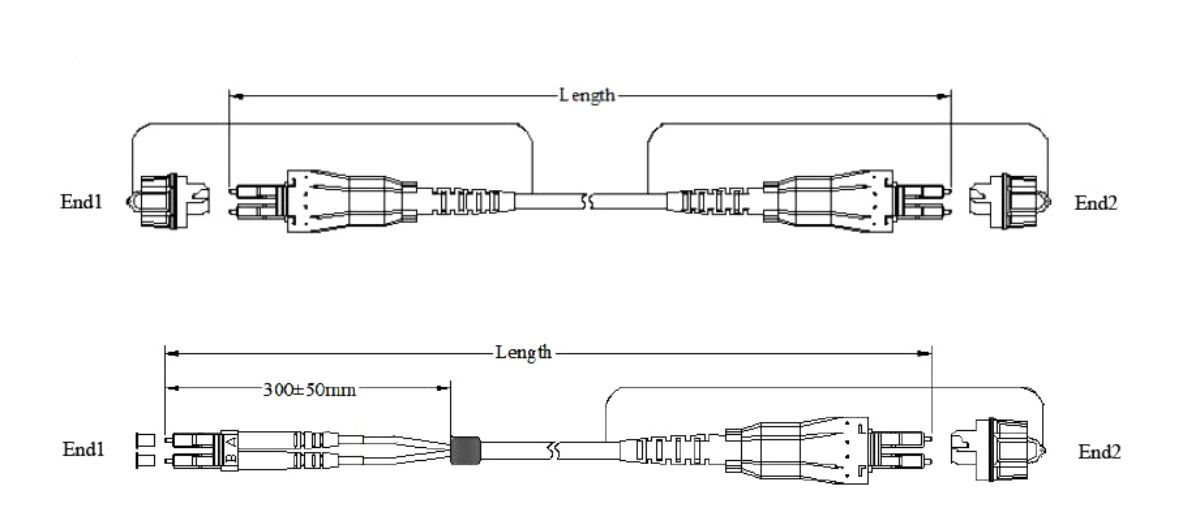

Structure Of Patch Cable:
Structure Of Cable:
