4 cores ST-LC Multimode OM1 OM2 Orange Branch Out Fiber Optical Patch Jumper
Technical Specifications:
| Type | Standard |
| Connector type | LC |
| Fiber Type | Multimode62.5/125 OM150/125 OM3 |
| Cable Type | 2 cores4 cores8 cores
12 cores 24 cores 48 cores, ... |
| Sub-cable Diameter | Φ1.6mm,Φ1.8mm,Φ2.0mm
Customized |
| Cable outsheath | PVCLSZHOFNR |
| Cable outsheath color | OrangeCustomized |
| Cable length | 1m3m5m
10m 20m 50m Customized |
| Polishing Manner | PC |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | ≥ 30dB |
| Repeatability | ±0.1dB |
| Operating temperature | -40°C to 85°C |
Description:
• Optical Fiber jumpers, also called fiber patch cords, link existing hardware to your structured cabling system. Fiber optic options have enjoyed significant market adoption over the past few years thanks to the unparalleled ability of glass fibers to transmit information using light.
• The Fiber Optical Patch Jumpers are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration.
• The Fiber Optical Patch Jumper is a fiber optic cable terminated with a factory-installed connector on one end, leaving the other end terminated. Hence the connector side can be linked to equipment and the other side melted with optical fiber cables.
• The Fiber Optical Patch Jumpers are utilized to terminate fiber optic cables via fusion or mechanical splicing.
• The Fiber Optical Patch Jumpers are usually found in fiber optic management equipment like ODF, fiber terminal box and distribution box.
• The Fiber Optical Patch Jumper is a low-cost, pre-assembled patch cable that designed mainly for indoor interconnection between transmission equipment and patch panels or ODFS etc.
• A Branch Out Fiber Optical Patch Jumper is multi-fibers, usually tight buffered fanout fiber optic cable with a factory installed connector on two ends.
• The LC Branch Out Fiber Optical Patch Jumper 's terminal connetor use LC connector. It is one of most popular fiber optic connector and wide use in all of telecom project.
• LC Branch Out Fiber Optical Patch Jumper is one of common type fiber optic patch cable, it come with two sides of LC connector.
• The LC Branch Out Fiber Optical Patch Jumper use multi-fiber of branch out (or bunch out) cable with sub-cable is tight buffer 1.8mm or 2.0mm cable.
• Normally, the LC Branch Out Fiber Optical Patch Jumpers use 2fo, 4fo, 8fo and 12fo of cable. Sometimes also use 16fo, 24fo, 48fo or more.
• The LC Branch Out Fiber Optical Patch Jumper is using for indoor ODF box and indoor fiber optic distribution frame.
• The 62.5/125 μm (OM1) and 50/125 μm (OM2) multi-mode fiber optical cables is widely deployed in premises applications.
Applications
+ Fiber optic patch panel and fiber optic distriution frame,
+ Passive fiber optic systems,
+ FTTH (Fiber To The Home),
+ LAN (Local Area Network),
+ CATV&CCTV,
+ Fiber optic sensing,
- Wide area networks (WAN);
- Premise installations;
- Data processing networks;
- Video and military active device termination.
Features
• Fiber optic patch panel and fiber optic distriution frame,
• Passive fiber optic systems,
• FTTH (Fiber To The Home),
• LAN (Local Area Network),
• CATV&CCTV,
• Fiber optic sensing,
• Fiber optic testing,
• Metro,
• Fiber Optic Backbone
• Military Instrumentation
• Data Centers, ...
Branch Out Cable Structure:

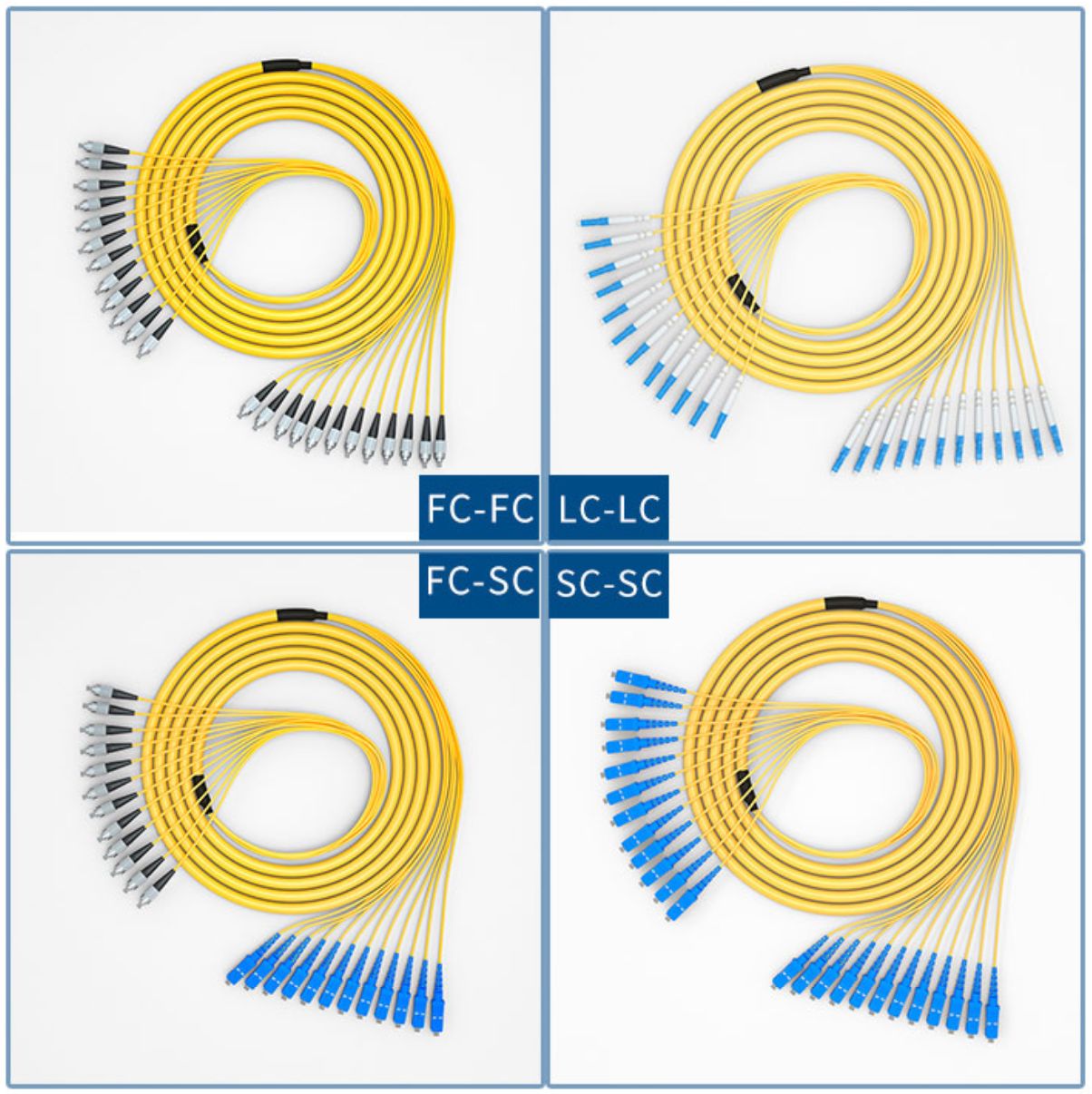

Branch Out Fiber Optical Jumper Type:

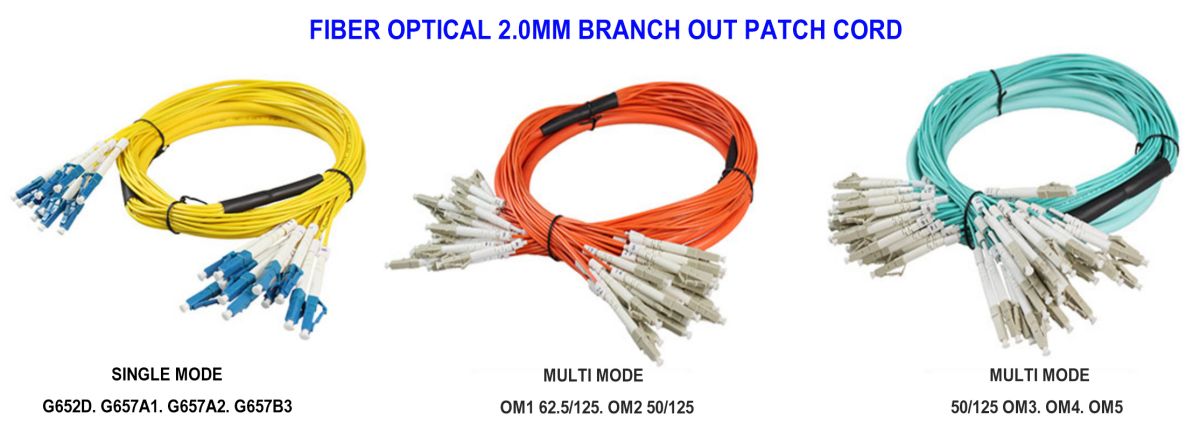

Branch out patch cable SM MM OM3
Branch out patch cable SM MM OM3

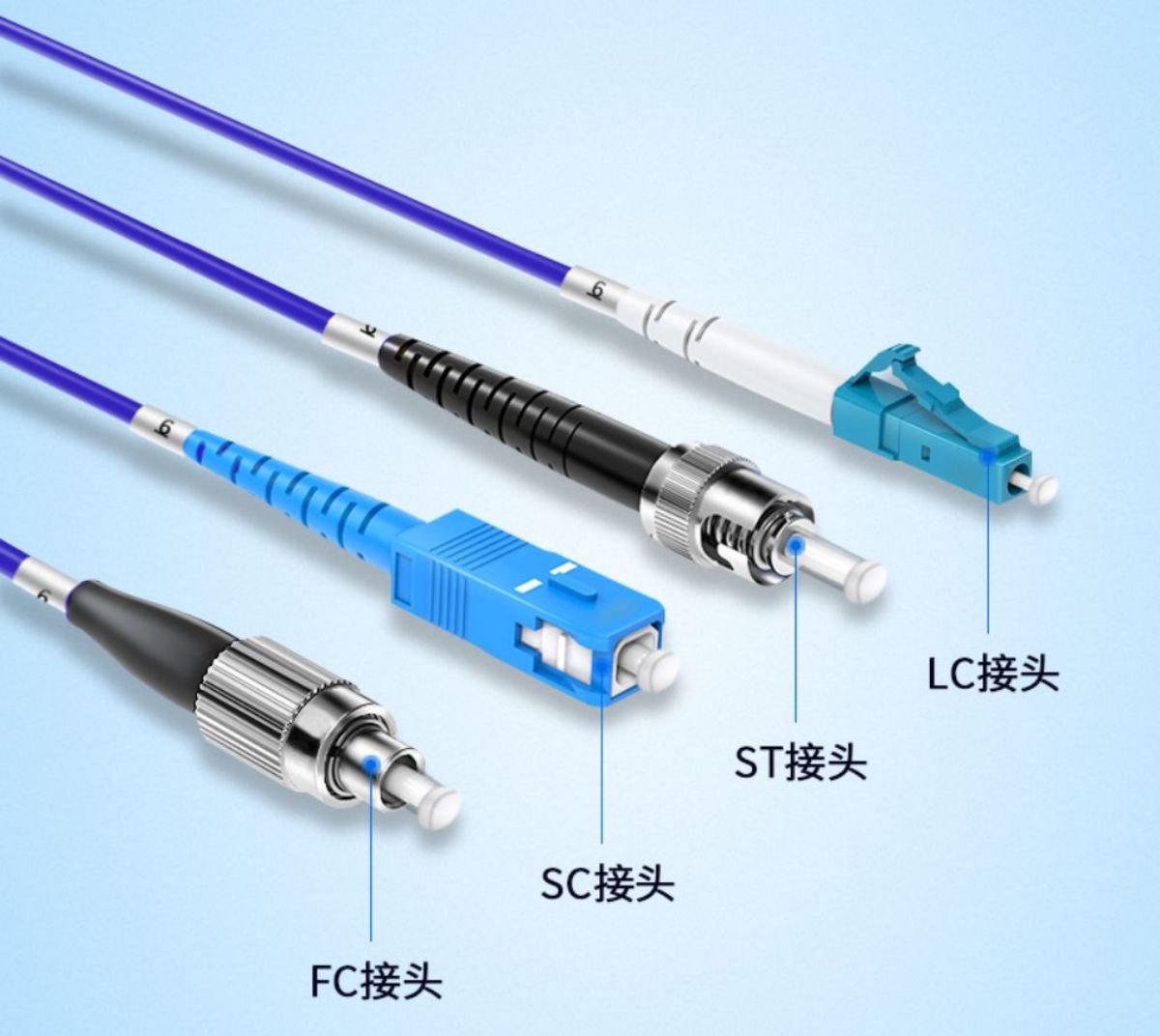

Connector type
mutifiber cable structure
