2 Core 7.0mm Tactical Field Fiber Optic Cable
Optical Fiber Parameter
| Fiber Type | Single mode G652D,G657, G655,Multimode OM1, OM2, OM3, OM4, OM5 |
| Cable Diameter | 7.0±0.2mm |
| Cladding Diameter | 125 ± 1μm |
| Cladding Non-Circularity | ≤ 1% |
| Coating Diameter | 245 ± 10μm |
| Attenuation Coefficient | ≤ 0.36dB/km at 1310nm,≤ 0.22dB/km at 1550nm |
| Chromatic Dispersion | ≤3.5ps/nm/km at 1285~1330nm,≤18ps/nm/km at 1550nm |
| Zero Dispersion Wavelength | 1300~1322nm |
| PMD Coefficient | ≤ 0.2ps/√km |

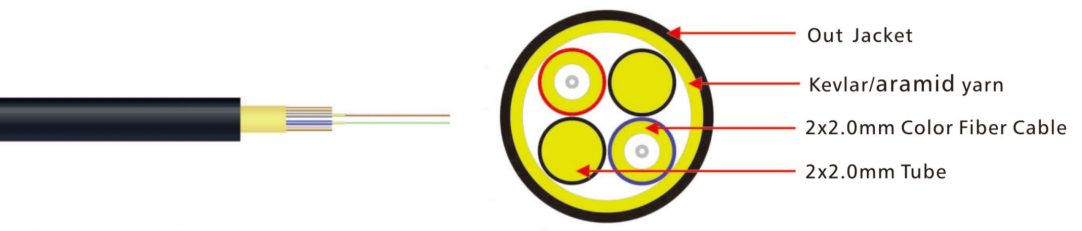

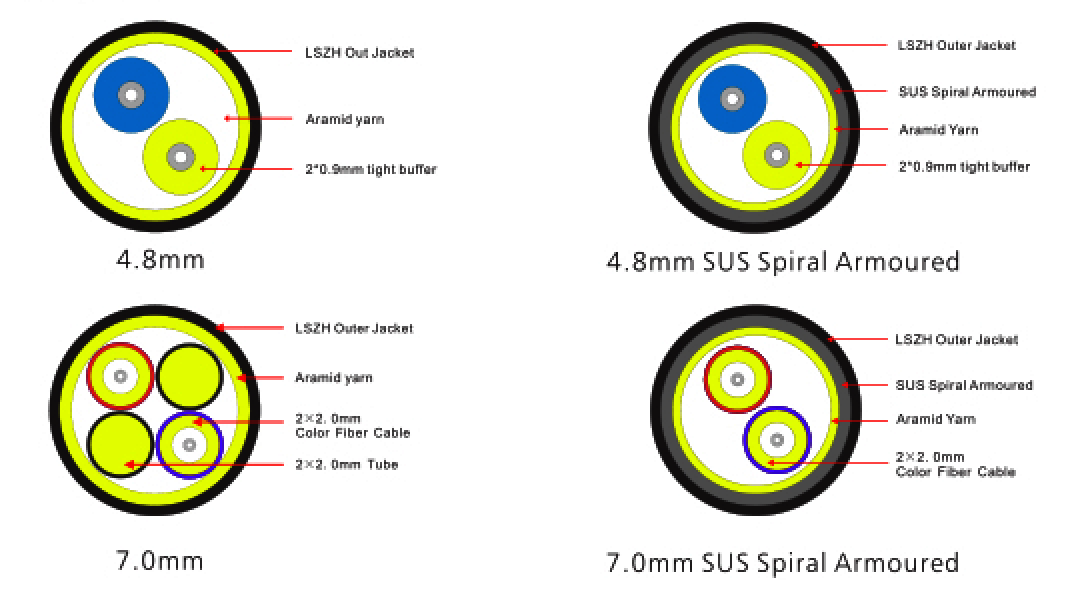

Cable parameter:
| Item | Specification | |
| Fiber Count | 2 | |
| Tight-Buffered Fiber | Diameter | 900±50μm |
| Material | PVC | |
| Color | White | |
| Simplex Cable | Diameter | 1.9±0.1mm |
| Material | LSZH | |
| Color | Blue / Orange | |
| Filler | Diameter | 1.9±0.1mm |
| Material | LSZH | |
| Color | Black | |
| Strength Member | Kevlar | |
| Jacket | Diameter | 7.0±0.2mm |
| Material | LSZH | |
| Color | Black | |
Mechanical and environmental characteristic:
| Item | Unit | Parameter |
| Tension(Long Term) | N | 150 |
| Tension(Short Term) | N | 300 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 600 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Operation Temperature | °C | -20~+60 |
| Storage Temperature | °C | -20~+60 |
Introduction:
• Outdoor Field Army military fiber optic cable use as the optical transmission medium with 2.0mm sub-cable, a layer of aramid yarn is placed outside the compact fiber to enhance the element.
• The cable is competed with outside jacket.
• Outside jacket material can be: PVC, LSZH, TPU, PE or as customer request.
Standards: Comply with standard YD/T1258.2-2003 and IEC 60794-2-10/11
Characteristic:
• Flexibility ,easy to storage and operation
• Polyurethane sheath provide
• Wear resistant, oil resistant, low temperature flexibility
• Aramid yarn strength with stable tension .
• High tensile and high pressure to prevent rat bite, cutting, bending.
• Cable soft, good toughness, installation, maintenance convenient.
Application:
+ Military communication system.
+ Passive optical networks (PON).
+ Coal, oil, natural gas, geological exploration.
- Broadcast television, temporary communication
- FTTx ( FTTH, FTTB, FTTC, FTTA,...)

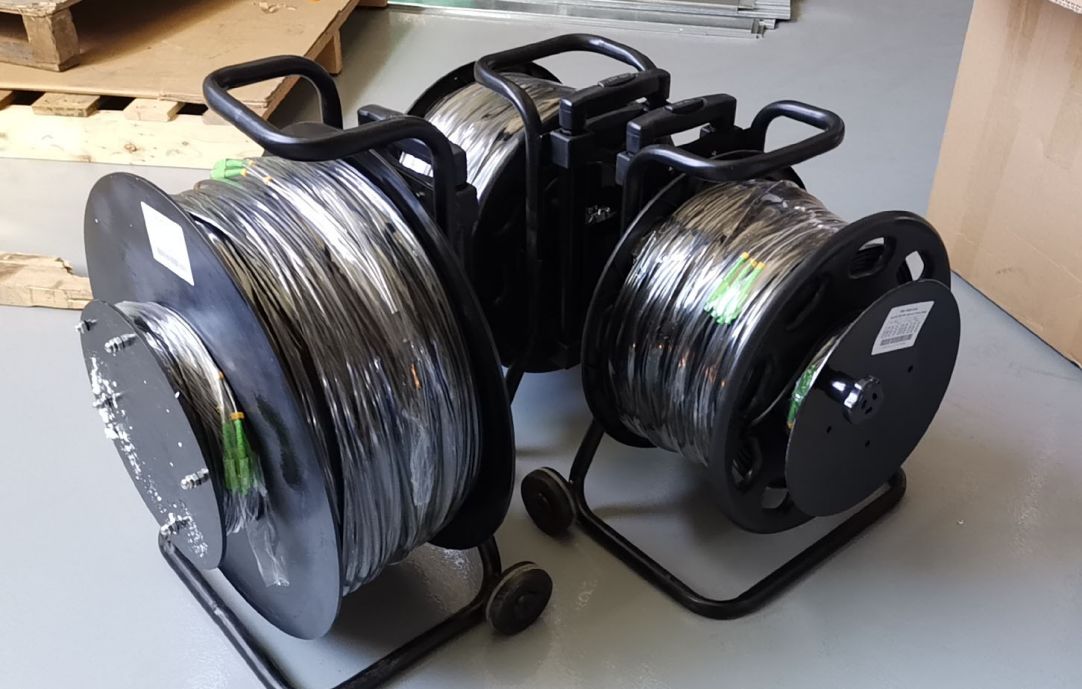

tachtical field fiber optic patch cable
