1*32 1×21 1:32 ABS box type PLC splitter
Product Description:
• PLC splitter are based on Planar Waveguide Technology. They provide a cost effective and space saving networking solution. They are key components in FTTx networks and are responsible to distribute the signal from central office to numbers of promises. They have very wide range of operating wavelength from 1260nm to 1620nm. With it’s compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount system. It is used for small spaces can be easily placed in a formal joint boxes and splice closure, in order to facilitate welding, does not need specially designed for space reserved. Our PLC splitter family features either ribbon or individual fiber output, We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All splitters provide guaranteed optical performance and high reliability that meet GR-1209-CORE and GR-1221-CORE requirement.
• Pigtailed ABS module type PLC fiber optic splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products (Outdoor Fiber Distribution Box) or network cabinets.
Application:
• Fiber to The Point (FTTX).
• Fiber to The Home (FTTH).
• Passive Optical Networks (PON).
• Gigabit Passive Optical Networks (GPON).
• Local Area Networks (LAN).
• Cable Television (CATV).
• Test Equipment.
Feature:
• Low insertion loss.
• Low Polarization Dependent Loss.
• Excellent Environmental Stability.
• Excellent Mechanical Stability.
• Telcordia GR-1221 and GR-1209.
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers' specifications requirements (Customized Connector/ Length/ package...)
Specifications
| Fiber length | 1m
Customized |
|||||
| Connector Type | SC, LC, FC or Customized | |||||
| Optical Fiber Type | G657A
G652D Customized |
|||||
| Directivity (dB) Min * | 55 | |||||
| Return Loss (dB) Min * | 55 (50) | |||||
| Power Handling (mW) | 300 | |||||
| Operating Wavelength (nm) | 1260 ~ 1650 | |||||
| Operating Temperature(°C) | -40~ +85 | |||||
| Storage Temperature(°C) | -40 ~ +85 | |||||
|
Port Configuration |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
| Insertion Loss(dB) Typical | 3.6 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
| Insertion Loss (dB) Max | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| PDL(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temp. Dependent Loss (-40~85 ) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
|
Port Configuration |
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
| Insertion Loss(dB) Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17.0 | 21.0 |
| Insertion Loss (dB) Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 |
| Loss Uniformity (dB) | 1.0 | 1.4 | 1.5 | 2.0 | 2.5 | 2.5 |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
| Wavelength Dependent Loss(dB) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1.0 |
| Temp. Dependent Loss(-40~+85°C) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 |

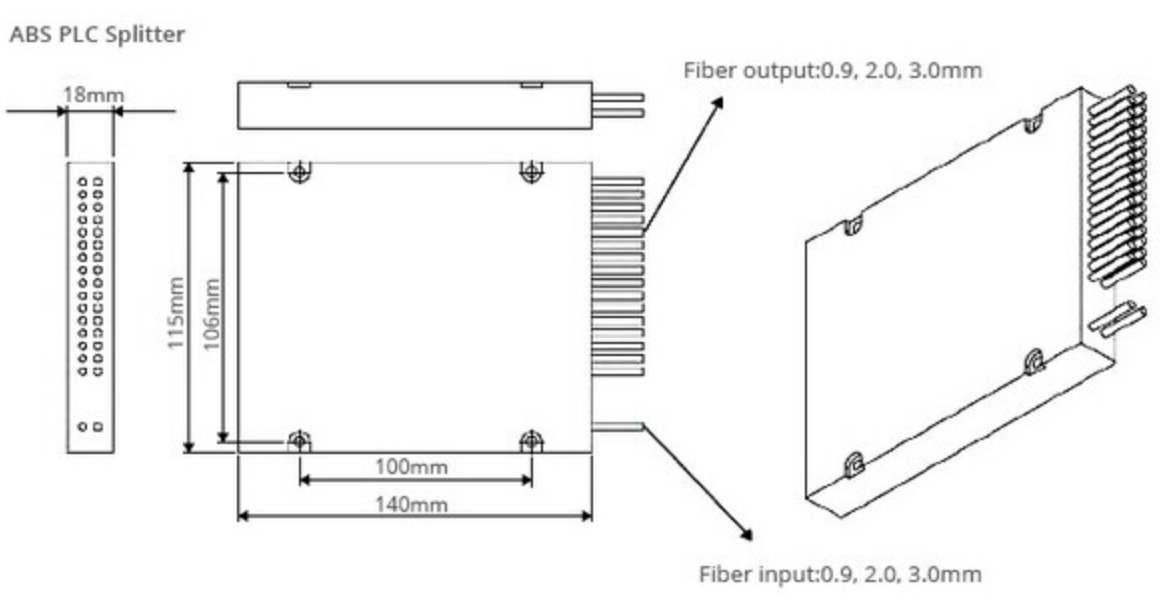

ABS module size:
1x32 size: 140x115x18mm
