Quad Aqua Multimode MM OM3 OM4 LC to LC Optical Fiber Adapter
Technical data:
| Connector type | Standard LC | |
| Fiber Type | Multimode |
|
| OM3, OM4 | ||
| Type | PC | |
| Fiber count | Quad | 4fo, 4 fibers |
| Insertion Loss (IL) | dB | ≤0.3 |
| Return Loss (RL) | dB | ≥35dB |
| Exchangeability | dB | IL≤0.2 |
| Repeatability ( 500 remates ) | dB | IL≤0.2 |
| Sleeve material | -- | Zirconia Ceramic |
| Housing Material | -- | Plastic |
| Operating Temperature | °C | -20°C~+70°C |
| Storage Temperature | °C | -40°C~+70°C |
| Standard | TIA/EIA-604 | |
Description:
+ A fiber optical adapter is a special connector designed to mate or connect two ends of a fiber optic cable with high precision.
+ The LC fiber optical adapters (also called LC fiber optic couplers, LC fiber optic adaptors) are designed to connect two LC fiber optic patch cables or LC pigtail with LC patch cable together.
+ The fiber optical adapters are designed for multimode or singlemode fibers.
+ It is widely used in optical fiber optic patch panel, fiber optic distribution frames (ODFs), fiber optic terminal box, fiber optic distribution box, fiber optic instruments, fiber optic testing equipment. It is providing superior, stable and reliable performance.
+ They have a single fiber connector (simplex), dual fiber connector (duplex) or four fiber connector (quad) versions.
+ LC fiber optical adapters have high precision alignment sleeves for improved reliability and better reconnectability.
+ The housing is available in different colors with options for flange or flangeless body and metal or inbuilt clips.
+ The Quad version of Multimode LC fiber optical adapter with the size is same as SC duplex adapter. It can install in high desity fiber optic patch panel.
+ The Quad version of Multimode LC fiber optical adapter can be beige color for OM1 & OM2 fiber, aqua color for OM3 & OM4 fiber and violet color for OM4 fiber.
Features
+ Low insertion loss and High return loss
+ Fast and easy connection
+ Lightweight and durable plastic housings
+ Fiber: Multimode OM3 OM4
+ Connector: Standard LC Quad
+ Polishing Type: PC
+ Adapter body color: Aqua
+ Dusty cap type: high cap
+ Style: with flange
+ Durability: 500 mates
+ Sleeve material: Zirconia ceramic
+ Standard: TIA/EIA, IEC and Telcordia compliance
+ Meets with RoHS
Application
+ FTTH (Fiber To The Home),
+ PON (Passive Optical Networks),
+ WAN,
+ LAN,
+ CCTV, CATV,
- Test equipment,
- Metro, railway, bank, data center,
- Fiber Optic Distribution Frame, Cross Cabinet, Patch Panel,
- Fiber optic termination box, fiber optic distribution box, fiber optic splitter box.

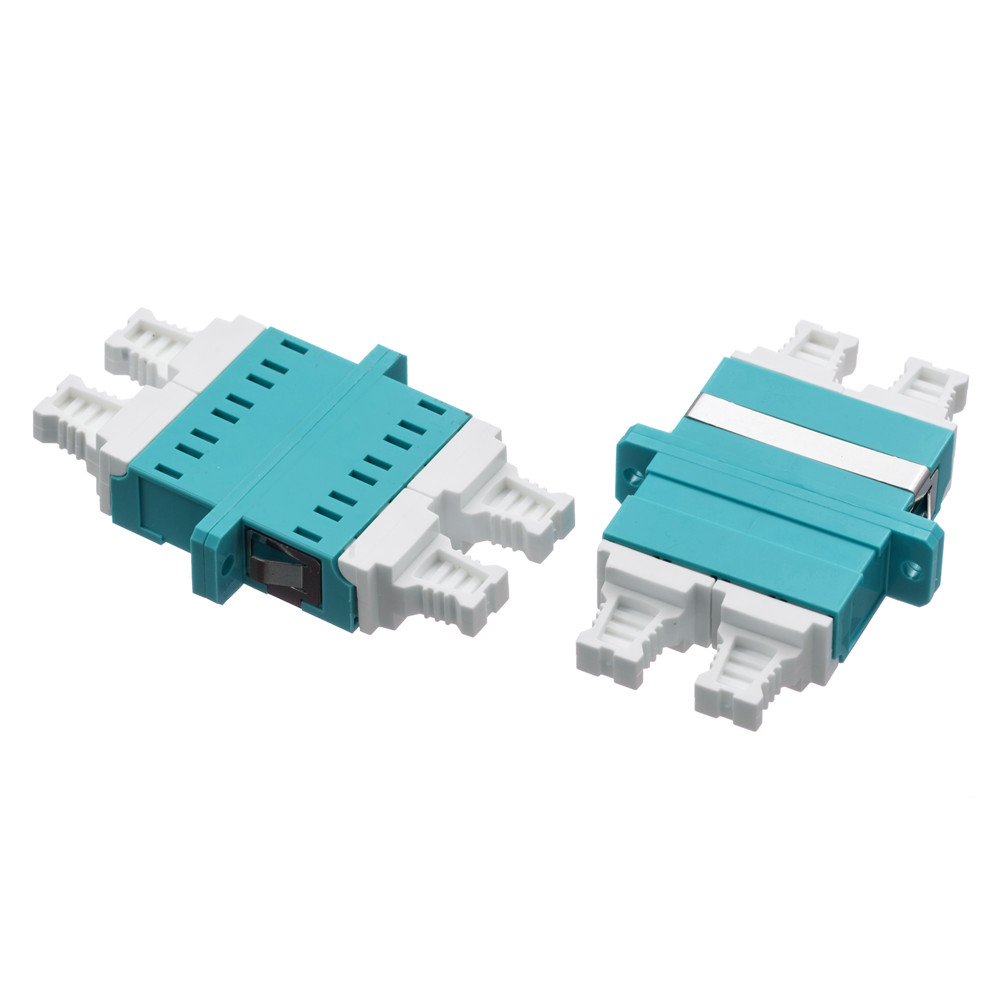

LC fiber optic duplex adapter photo:

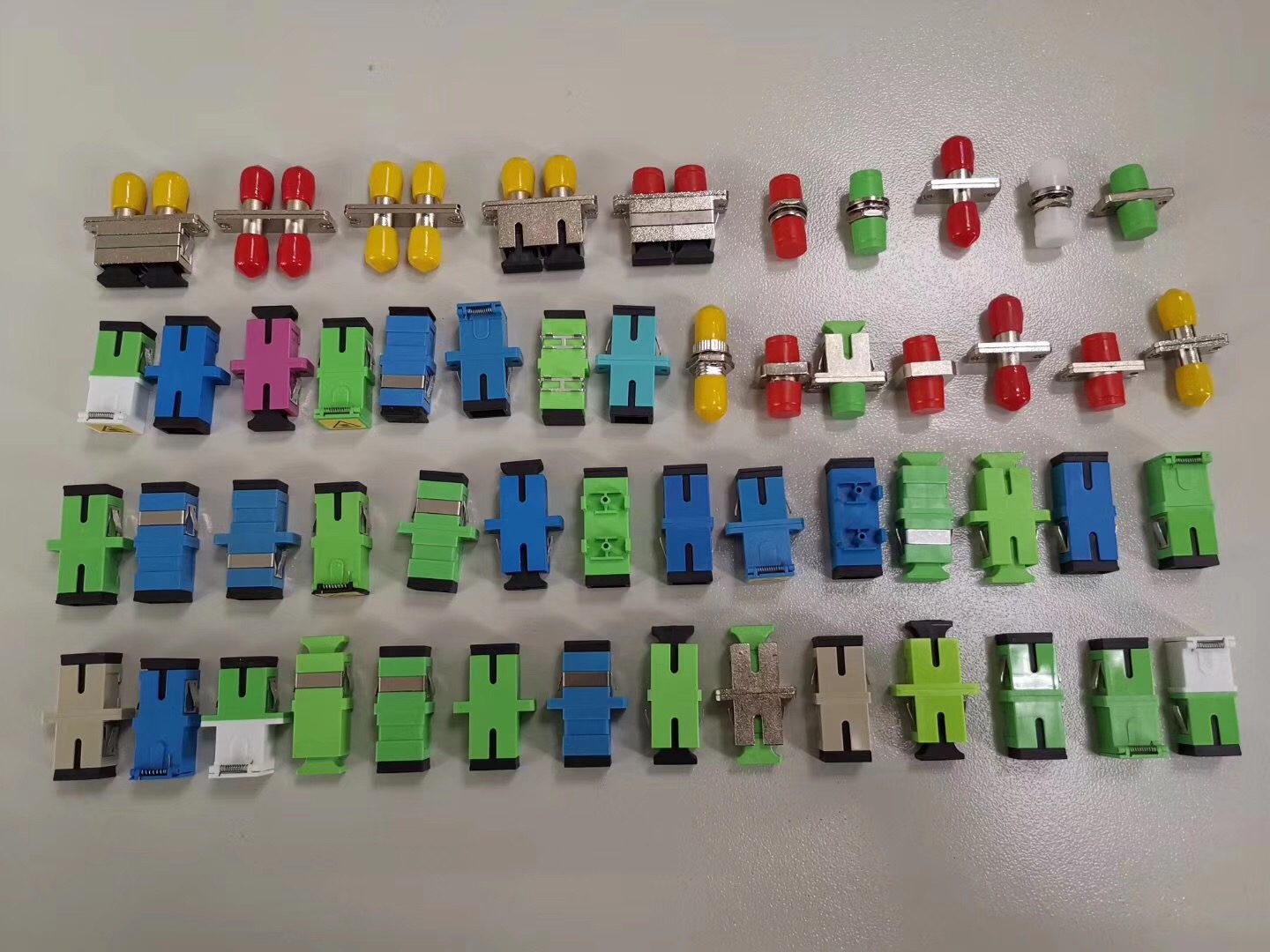

Fiber optic adapter family:
