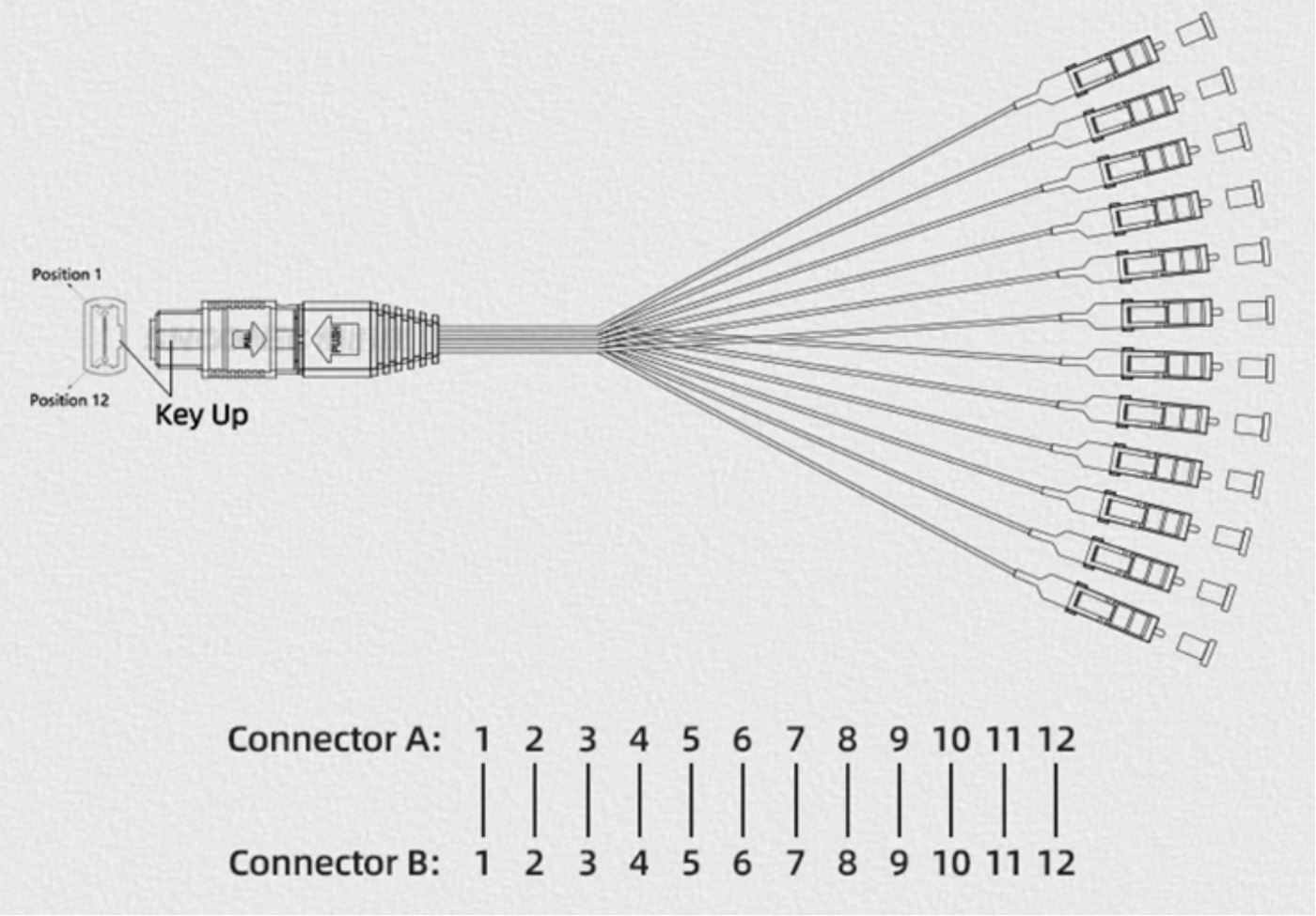

MTP/MPO to LC fanout fiber optic patch cable

Short Description:

- Single mode and multimode (flat) APC (catercorner 8 degree angled)available

- High fiber density (maximum 24 fibers for Multimode)

- Fiber in single connector: 4, 8, 12 24

- Insert/Pull latching connector

- High reflection loss with APC

- Comply with Telcordia GR-1435-CORE specification and Rosh standard

Send email to us

Product Detail

Product Tags

What is a MPO connector?

+ MTP/MPO harness cable, also called MTP/MPO breakout cable or MTP/MPO fan-out cable, is a fiber optic cable terminated with MTP/MPO connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end. The main cable is usually 3.0mm LSZH Round cable, breakout 2.0mm cable. Female and Male MPO/MTP Connector is available and Male type connector has pins.

+ An MPO-LC breakout cable is a type of fiber optic cable that transitions from a high-density MTP MPO connector on one end to multiple LC connectors on the other. This design allows for efficient connectivity between backbone infrastructure and individual network devices.

+ We can offer Single mode and Multimode MTP fiber optical patch cables, custom design MTP fiber optic cable assemblies, Single mode, Multimode OM1, OM2, OM3, OM4, OM5. Available in 8 cores, 12core MTP/MPO patch cables, 24core MTP/MPO patch cables, 48core MTP/MPO patch cables.

Applications

+ Hyperscale Data Centers: Hyperscale data centers rely on high-density cabling solutions to handle massive data loads. MPO-LC breakout cables are ideal for connecting servers, switches, and routers with minimal latency.

+ Telecommunications: The rollout of 5G networks depends heavily on reliable fiber optic infrastructure. MPO-LC breakout cables ensure seamless connectivity for telecom applications.

+ AI and IoT Systems: AI and IoT systems require real-time data processing. MPO-LC breakout cables provide the ultra-low latency and high bandwidth needed for these cutting-edge technologies.

Specifications

Type	Single Mode		Single Mode		Multi Mode
	(APC Polish)		(UPC Polish)		(PC Polish)
Fiber Count	8,12,24 etc.		8,12,24 etc.		8,12,24 etc.
Fiber Type	G652D,G657A1 etc.		G652D,G657A1 etc.		OM1,OM2,OM3, OM4, etc.
Max. Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
	Low Loss		Low Loss		Low Loss
	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.60dB
Return Loss	≥60 dB		≥60 dB		NA
Durability	≥500 times		≥500 times		≥500 times
Operating Temperature	-40℃~+80℃		-40℃~+80℃		-40℃~+80℃
Test Wavelength	1310nm		1310nm		1310nm
Insert-pull test	1000 times＜0.5 dB
Interchange	＜0.5 dB
Anti-tensile force	15kgf
