LC/UPC Male To Female 7dB Fixed Type Fiber Optic Attenuator

Short Description:

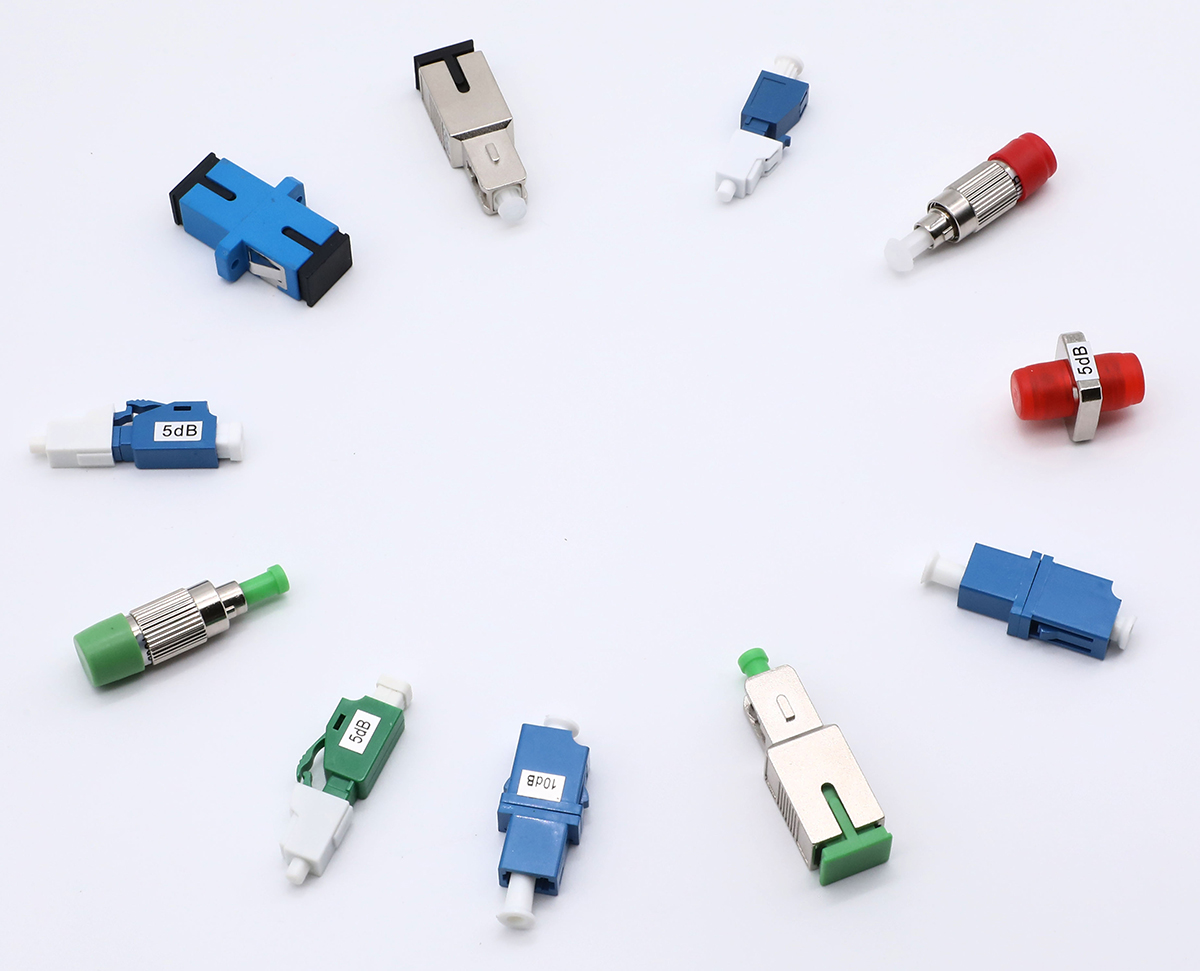

• SC, FC, ST, MU and LC connector styles (ultra and angle polish).

• Long-term reliability.

• Low ripple, wavelength independent attenuation.

• Certified to >125mw continuous power handling capability with no degradation in performance.

• Polarization insensitive.

• High return loss.

• Low insertion loss variation.

• High reliability.

• Wavelength insensitive.

Send email to us

Product Detail

Product Tags

Technical Specifications:

Operation wavelength	SM: 1200 to 1600nm or 1310/1550nm
Operation wavelength	MM: 850nm, 1300nm
Return Loss	≥ 50 db (PC)
	≥ 55 db (UPC)
	≥ 65 db (APC)
Attenuation Accuracy	+/-0.5 db for 1 to 5db attenuation
Attenuation Accuracy	+/-10% for 6 to 30db attenuation
Polarization Dependent loss	≤ 0.2db
Maximum optical Input power	200mW
Operating Temp Range	-25 to +75 degree
Storage Temp Tange	-40 to +80 degree

Description:

• Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.

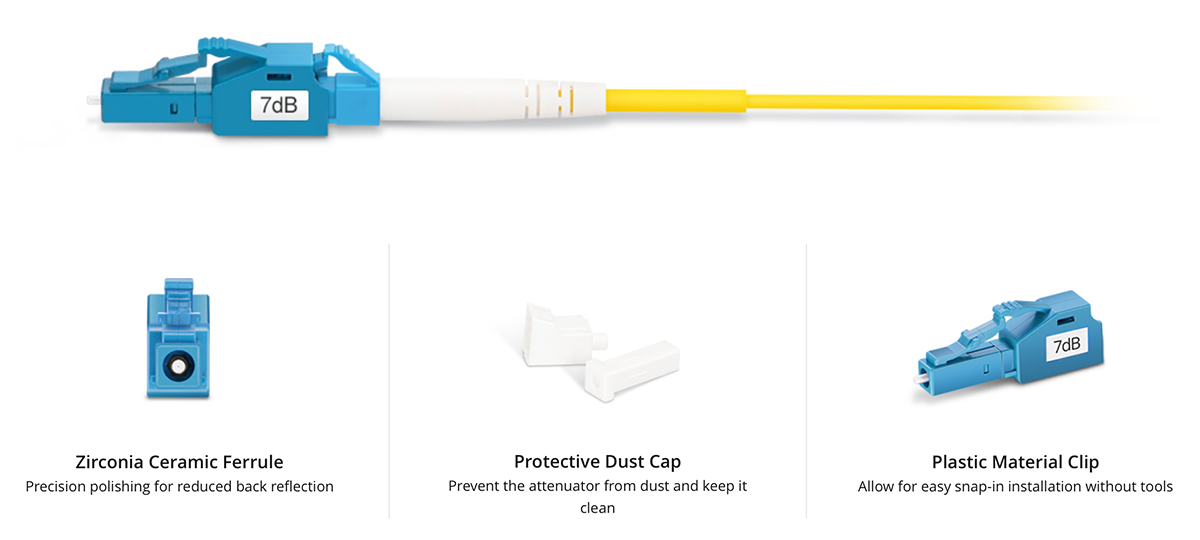

• The LC/UPC male to female fiber optic attenuator come with fame port to connect with the adapter and female port to connect with the LC fiber optic patch cord or pigtail.

• And used for attenuation of the input optical power,avoid optical receiver distortion due to input optical power powerful.

• Fiber optic attenuators are used in the fiber optic links to reduce the optical power at a certain level.

• Using dustproof cap to protect the end-face.

• Using an attenuator to prevent over saturating an optical receiver when the optical power is too high and ensures low bit error rates preventing damage to receiving fiber optic equipment.

• As optical passive devices, the male to female attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.

• The LC/UPC male to female fiber optic attenuator of attenuation range is 1dB to 30dB. For other special attenuation range, please contact with our sales team to confirm.

Relevant Solutions:

- Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.

- With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.

- Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
