Horizontal Type 12fo 24fo 48fo 72fo 96fo Fiber Optic Splice Closure Box FOSC-H0920
Main parts:
| No. | Description | Quantity | Usage |
| 1 | Shell | 1 pc | Protection of optic fiber cable closure |
| 2 | Optic fiber splice tray | 1 pc | Fixing of thermal shrinkable sleeve and holding of fibers |
| 3 | Thermal shrinkable sleeve | 1 Bag | Fusing of optic fibers |
| 5 | Sealing Material | 1 Bag | Sealing of optic fiber cable closure |
| 6 | Plug | 2 pcs | Plugging of cable holes |
| 7 | Insulating tape | 1 pc | Expansion of cable diameter |
Accessories list:
| No. | Name of accessories | Quantity | Usage |
| 1 | Heat shrink tube | 12~96 pcs | Protecting fiber splices |
| 2 | Nylon tie | 12~96 pcs | Fixing fiber with protective coat |
| 3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing |
| 4 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting |
| 5 | Hanging hook | 1 set | For aerial use |
| 6 | Label tape | 1 pc | Sign fiber |
| 7 | Spanner | 1 pc | Install bolts of shell |
| 8 | Desiccant | 1 bag | Desiccating air |
Description:
• Name: Horizontal fiber optic joint splice closure box
• Part number: FOSC-H0920
• Cable entry port: 4 ports
• Max. capacity of fibers: 96 cores
• Size: 380*175*80mm
• Weight: about 1.5kg
• Material: ABS Plastic
• Sealing structure: Silica gel
• Cable Diameter: 7.0-22.0mm
• Working temperature: -40℃ to 65℃
Features:
• Great corrosion resistance
• Suitable for any harsh environment
• Anti-lighting
• Great water-proof function.
Applications:
+ Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.
+ Widely used in FTTH access network
- Telecommunication networks
- CATV networks
Chart of Installation
1. Open the closure
2. Determine length of optic fiber cable to be fixed and stripped inside FOSC
3. Strip off protective coats of optic fiber cable and fiber
4. Separate fiber cores and prepare work prior to fixing fiber cable
5. Fix reinforced core and fiber cable
6. Splice fibers
7. Install thermal shrinkable sleeve and house fibers
8. Check up completely
9. Install optic fiber cable closure

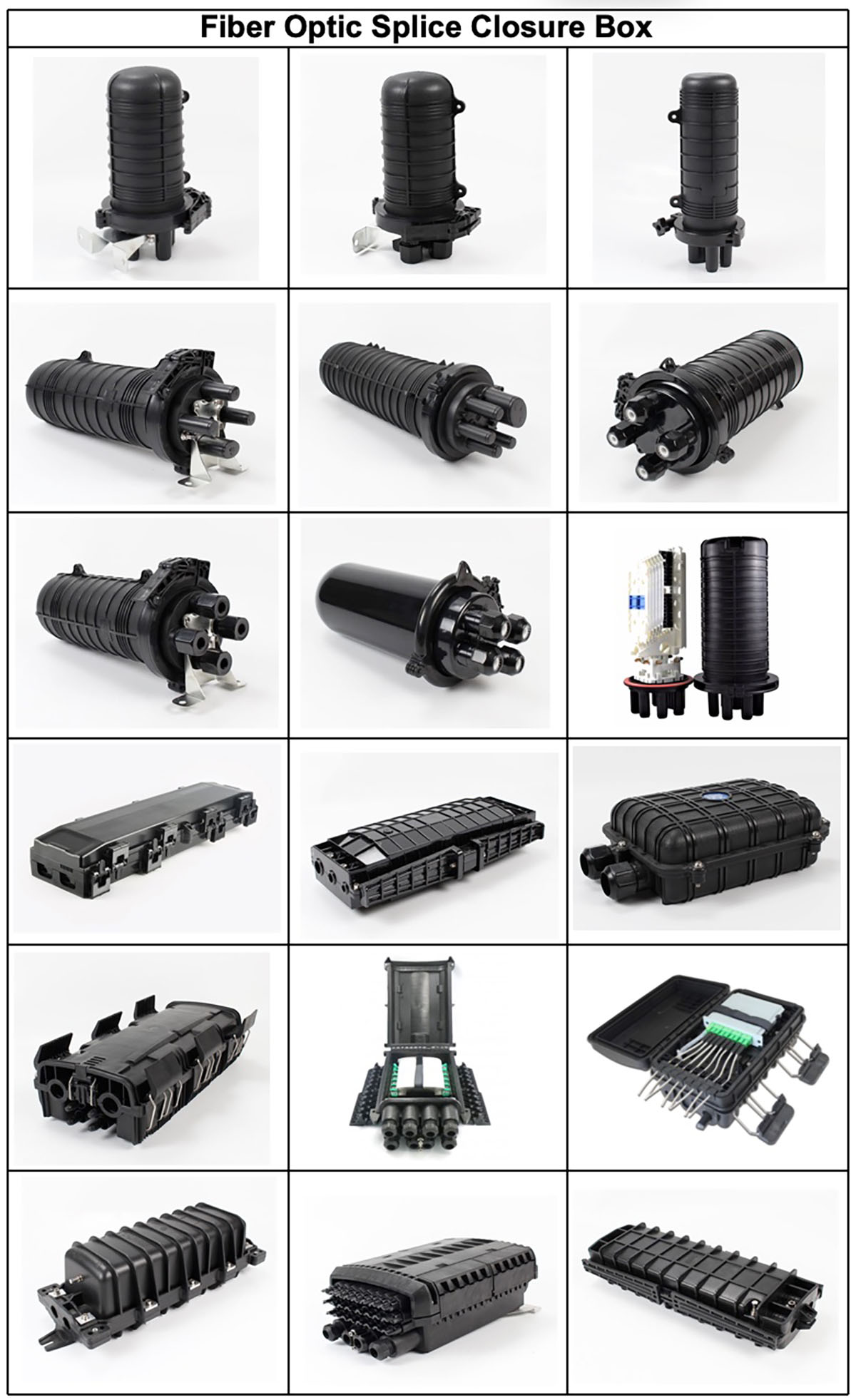

Splice closure box
