High Density 96fo MPO Fiber Optic Patch Panel with 4 modules
Description

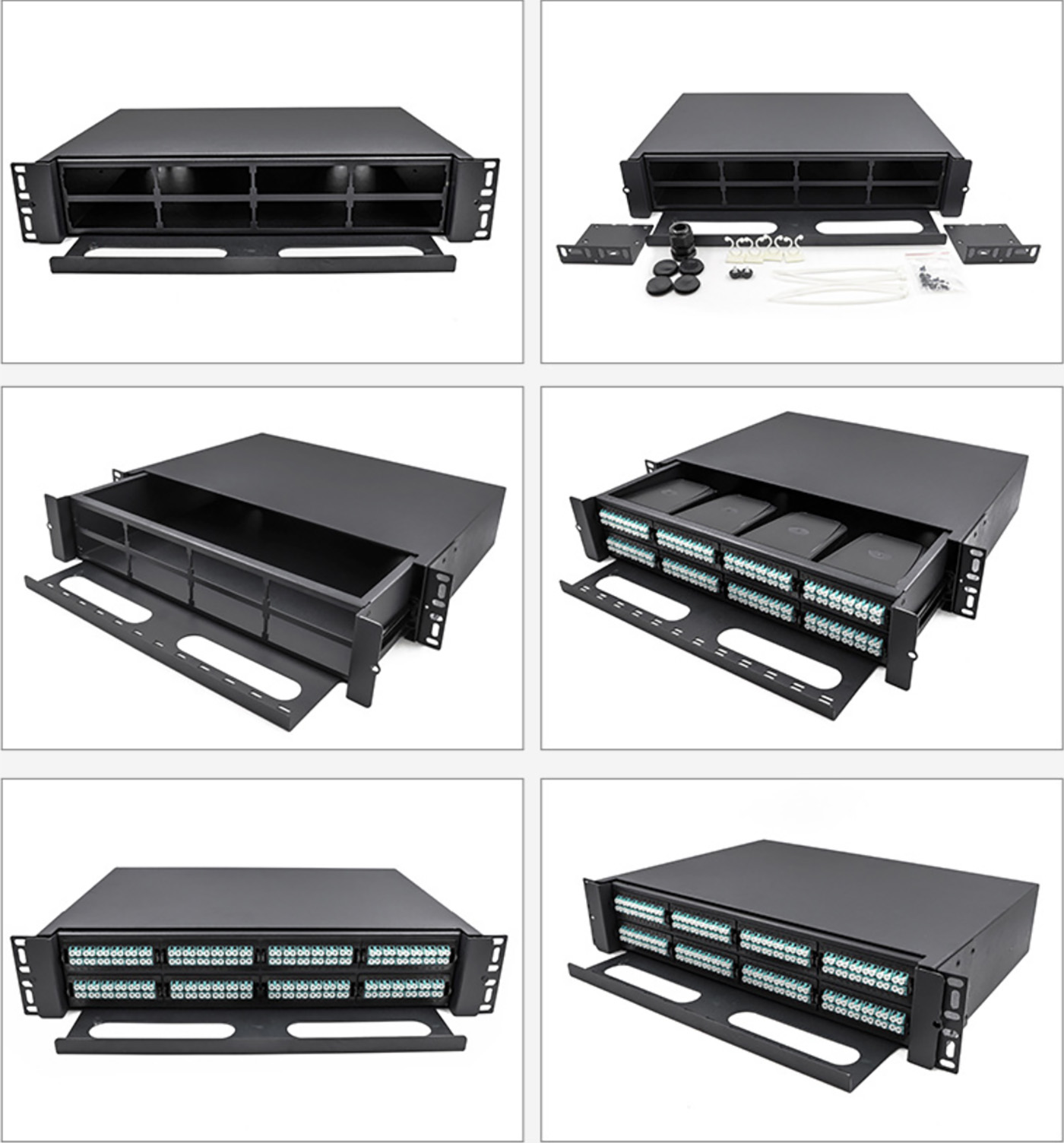

+ Rack mounted optical distribution frame (ODF) KCO-MPO-1U-01 is the device that terminates between the optical cables and the optical communication equipment, with the function of splicing, termination, storing and patching of optical cables.
+ This special patch panel is an MPO pre-terminated ultra-high-density wiring box, 19-inch, 1U height.
+ It is special design for data center which each patch panel can install up to 96 cores of LC.
+ It can be used in high-density wiring applications such as computer centers, computer rooms, and databases.
+ The front and rear removable top cover, pull-out double guide, detachable front bezel, ABS lightweight module box and other technical applications make it easy to use in high-density scenes whether it is in the cable or cable.
+ This patch panel has a total of E-layer trays, each with independent aluminum guide rails.

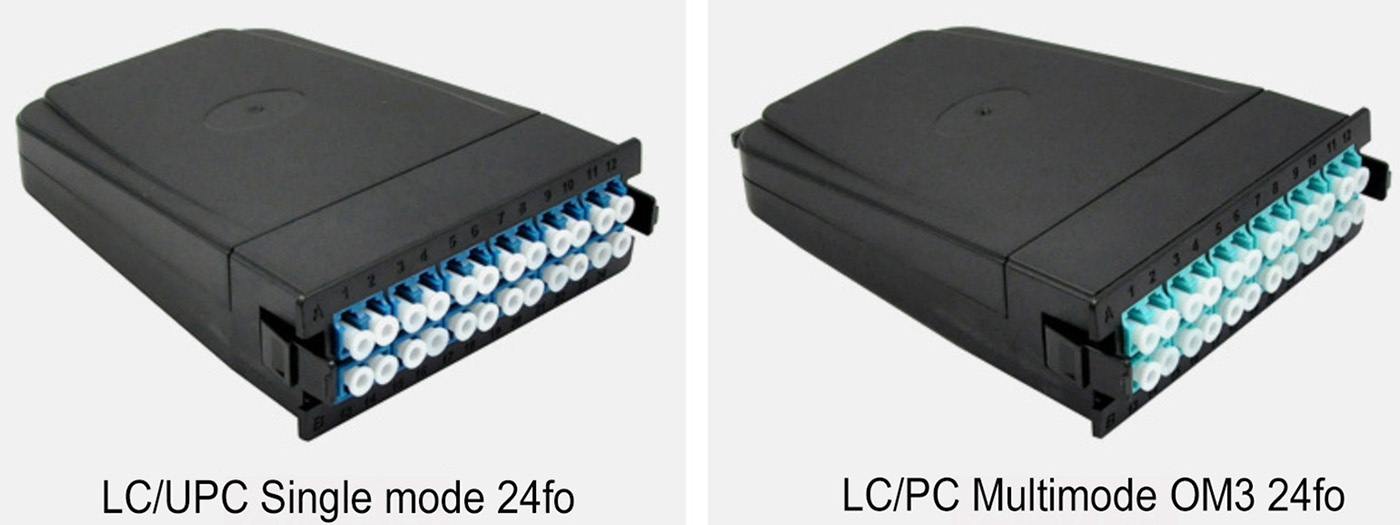

+ Four MPO module boxes are installed on each tray, and each module box is installed with 12 DLC adapter and 24 cores.
Technical request
|
Technical Data |
Data |
|
|
P/N |
KCO-MPO-1U-01-96 |
|
|
Material |
Steel tape |
|
|
MPO Module |
Available |
|
|
Module material |
Plastic |
|
|
Module port |
LC Duplex port: 12 |
|
|
MPO port: 2 |
||
|
Module installation way |
Buckled Type |
|
|
Fiber type |
Sing Mode (SM) 9/125 |
MM (OM3, OM4, OM5) |
|
Fiber count |
8fo/ 12fo / 16fo/ 24fo |
|
|
Insertion loss |
LC ≤ 0.5dB |
LC ≤ 0.35dB |
|
MPO ≤ 0.75dB |
MPO ≤ 0.35dB |
|
|
Return loss |
LC ≥ 55dB |
LC ≥ 25dB |
|
MPO ≥ 55dB |
MPO ≥ 25dB |
|
|
Environment |
Operating temperature: -5°C ~ +40°C |
|
|
Storage temperature: -25°C ~ +55°C |
||
|
Relative humidity |
≤95% (at +40°C) |
|
|
Atmospheric pressure |
76-106kpa |
|
|
Insertion durability |
≥1000 times |
|
MPO Module
Ordering information
|
P/N |
Module no. |
Fiber Type |
Module Type |
Connector 1 |
Connector 2 |
|
KCO-MPO-1U-01 |
1 2 3 4 |
SM OM3-150 OM3-300 OM4 OM5 |
12fo 12fo*2 24fo |
MPO/APC MPO SM MPO OM3 MPO OM4 |
LC/UPC LC/APC LC MM LC OM3 LC OM4 |
|
KCO-MPO-2U-01 |
1 2 3 4 5 6 7 8 |
SM OM3-150 OM3-300 OM4 OM5 |
12fo 12fo*2 24fo |
MPO/APC MPO SM MPO OM3 MPO OM4 |
LC/UPC LC/APC LC MM LC OM3 LC OM4 |
