Fiber Optical Distribution Chassis Frame for LGX Type PLC Splitter

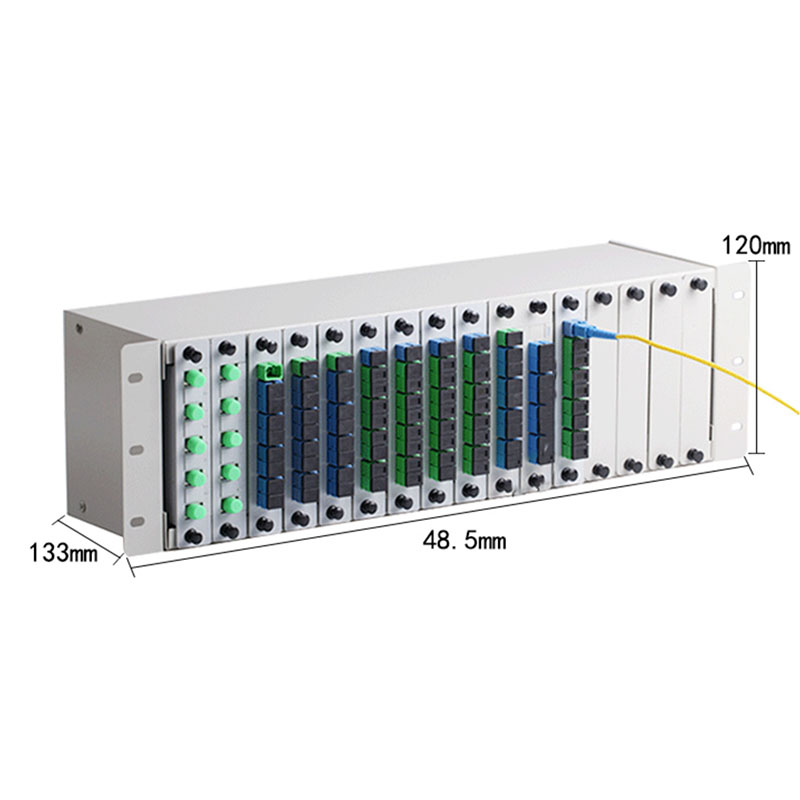

Size:
|
PN |
Number of LGX frame |
Size (mm) |
Weight (kg) |
|
| KCO-3U-LGX | 1*2, 1*4, 1*8 | 16pcs | 485*120*130 | About 3.50 |
| 1*16 | 8pcs | |||
| 1*32 | 4pcs | |||
Specification:
| Material | cold rolled steel tape |
| Thickness | ≥1.0mm |
| Color | grey |
Main performance:
| Insert loss | ≤ 0.2dB |
| Return loss | 50dB (UPC) 60dB (APC) |
| Durability | 1000 Mating |
| Wavelength | 850nm,1310nm,1550nm |
Operating condition:
| Operating temperature | -25°C~+70°C |
| Storage temperature | -25°C~+75°C |
| Relative humidity | ≤85%(+30°C) |
| Air pressure | 70Kpa~106Kpa |
Review:
- Optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fiber optic connections from damage. The basic functions of ODFs provided by today's vendors are almost the same. However, they come into different shapes and specifications. To choose the right ODF is not an easy thing.
- KCO-3U-LGX is fiber optic distribution chassis frame with 3U high, specially design to install LGX type of fiber optic PLC Splitter.
- This is a rack mountable fiber patch panel designed to accommodate to installation the fiber optic splitter in LGX type.
- Flexible standard 19’’ cabinet installation.
- Specially-structured door latch of the cases facilitates door opening and closing.
- With 16 slot, it maximum can install 16pcs of 1*8 SC port LGX type PLC Splitter.
for LGX Type PLC Splitter
Advantages:
- Adopts the international standard 19"frame, Fully-closed structure to ensure the fiber protection, and dust-proof. Electrolysis sheet/Cold-rolled steel frame, electrostatic spraying in the whole surface, nice appearance.
- Front input and all front operation.
- Flexible installation, wall type or back type, facilitates paralleling layout and wire feeding among racks and can be installed in large groups.
- Modular unit box with internal drawer tray integrates distribution and fusing in a tray.
- Suitable for ribbon and non-ribbon optic fibers.
- Suitable for inserting installation of SC, FC.ST (additional flange)adapters, easy to operate and to expand the capacity.
- The angle between the adaptor and the connecting unit face is 30°. That not only ensures the curvature radius of fiber but also prevents the eyes from being hurt during optical transmission.
- With reliable devices for optical fiber cable stripping, storing, fixing and grounding.
- The bending radii in any place are ensured to be more than fixing.
- Realize the scientific management of the patch cords by using many groups of fiber unit.
- Applies single side frontal access to enable upper or lower lead-in, and clear identify.
Applications
- FTTx,
+ Data center,
+ Passive optical network (PON),
+ WAN,
+ LAN,
- Test instrument,
- Metro,
- CATV,
- Telecommunications subscriber loop.
Features
• High strength cold rolled steel tape material,
• Fit for 19'' rack,
• Suitable for LGX box type Splitter,
• 3U, 4U high design.

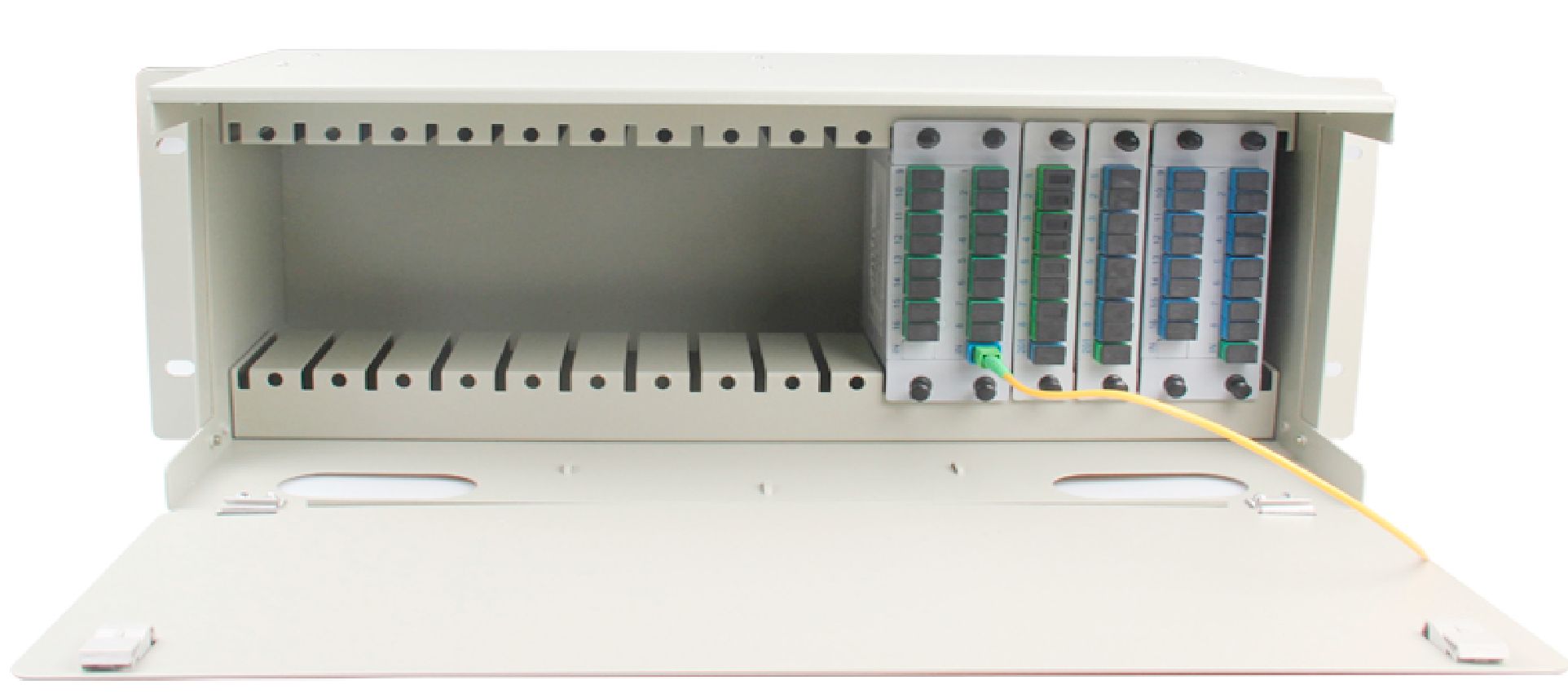

Product photos:

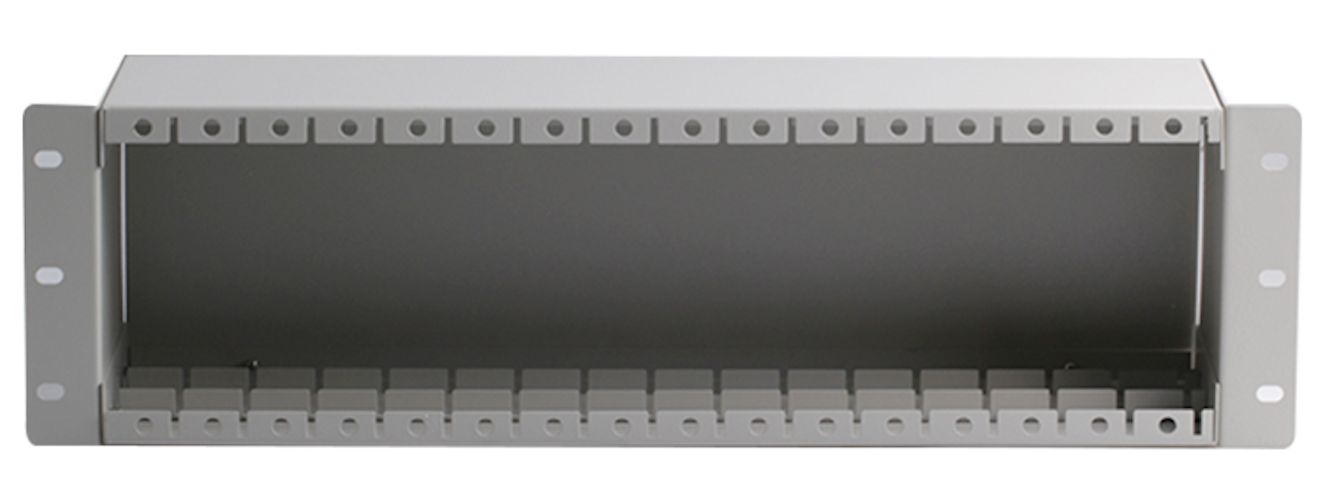

3U height:
4U height:
