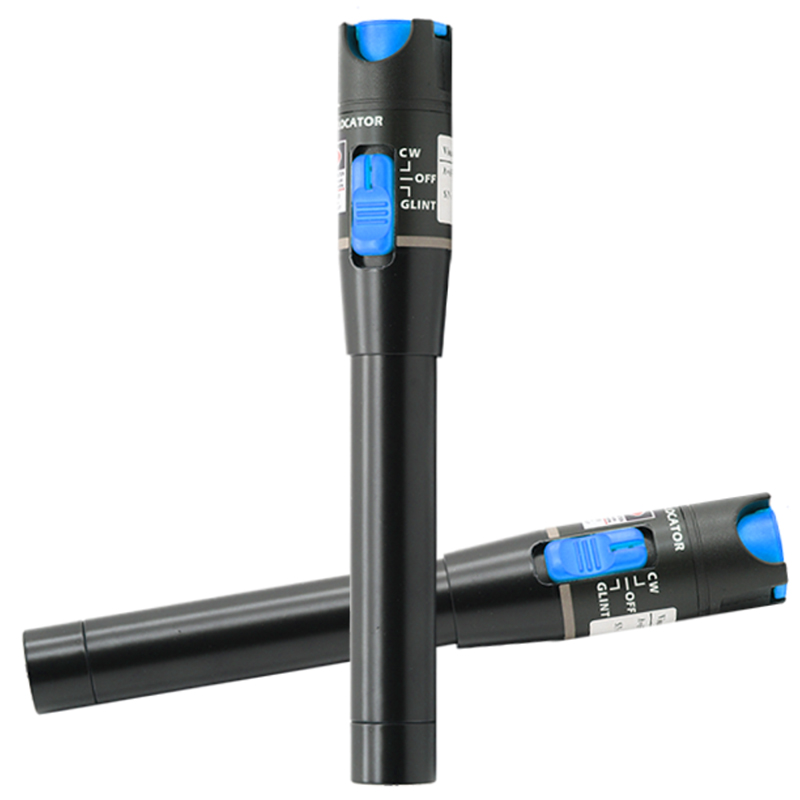

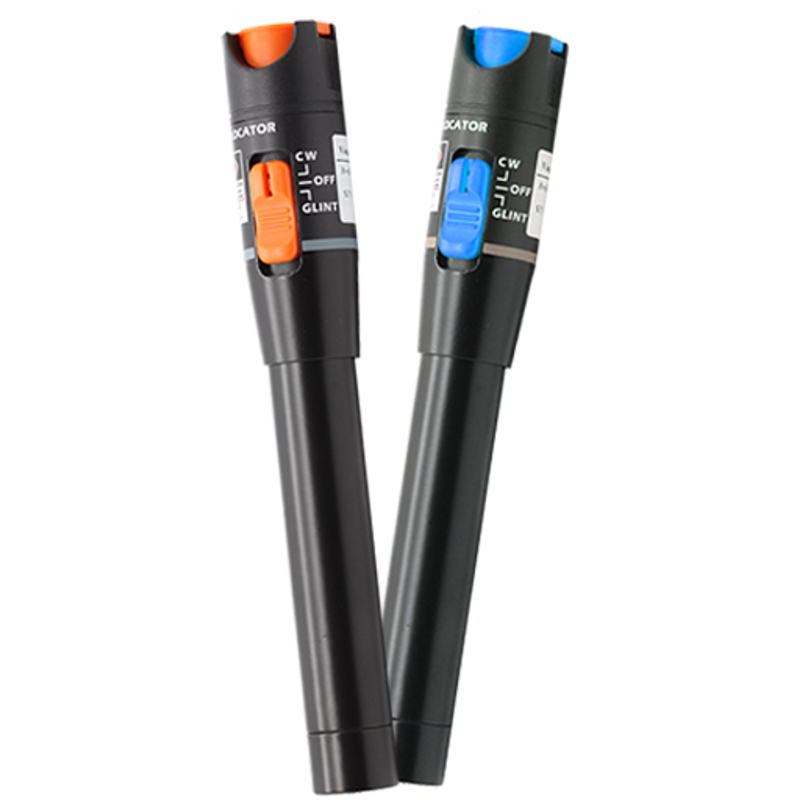

Fiber Optic Visual Fault Locator (VFL)
Corresponding table:
| Item | VFL-08-01 | VFL-08-10 | VFL-08-20 | VFL-08-30 | VFL-08-50 |
| Wavelength | 650nm ± 20nm | ||||
| Output Power | > 1mW | > 10mW | > 20mW | > 30mW | > 50mW |
| Dynamic Distance | 2~ 5 km | 8~12km | 12~15km | 18~22km | 22~30km |
| Mode | Continuous Wave (CW) and Pulsed | ||||
| Fiber Type | SM | ||||
| Connector | 2.5mm | ||||
| Packaging Size | 210*73*30 | ||||
| Weight | 150g | ||||
| Power Supply | AA * 2 | ||||
| Operating Temperature | -10 -- +50 °C< 90%RH | ||||
| Storage Temperature | 20 -- +60 °C< 90%RH | ||||
Descriptions:
• The VFL-08 Series visual fault locator is used for the measurement in single mode or multi-mode fibers.
• Light source is strong, penetrating power is strong
• This red pen imported laser head
• Easy to penetrate 100 thousand meter fiber
• Stable performance
• Ceramic tube can be replaced by itself
• Simple operation
• Extend service life
• User friendly design
• Sliding type switch design
• Let you control the red pen as much as you like
• Frosted body, anti fall, wear-resistant
• The body is made of frosted material
• To prevent damage during use
• It has black color.
• Use high quality Aluminum alloy.
• It is easy to use and small size.
Feature:
• 2.5mm universal connector
• Operates either in CW or Pulsed
• Constant output power
• Lower Battery warning
• Long battery life
• Crash-proof and dust-proof design for laser head
• Laser case ground design prevents ESD damage
• Portable and rugged, easy to use
Application:
+ Test Lab of optical fibers
+ Maintenance in Telecom
+ Maintenance CATV
+ Other Fiber Optic Measurements
+ Insert the fiber into VFL through Fiber Connector.
- It can be used as reference of the multi- core cable
- End to end fiber identification
- Identify the breaks and micro-bend of the pigtail/fiber
- Operation

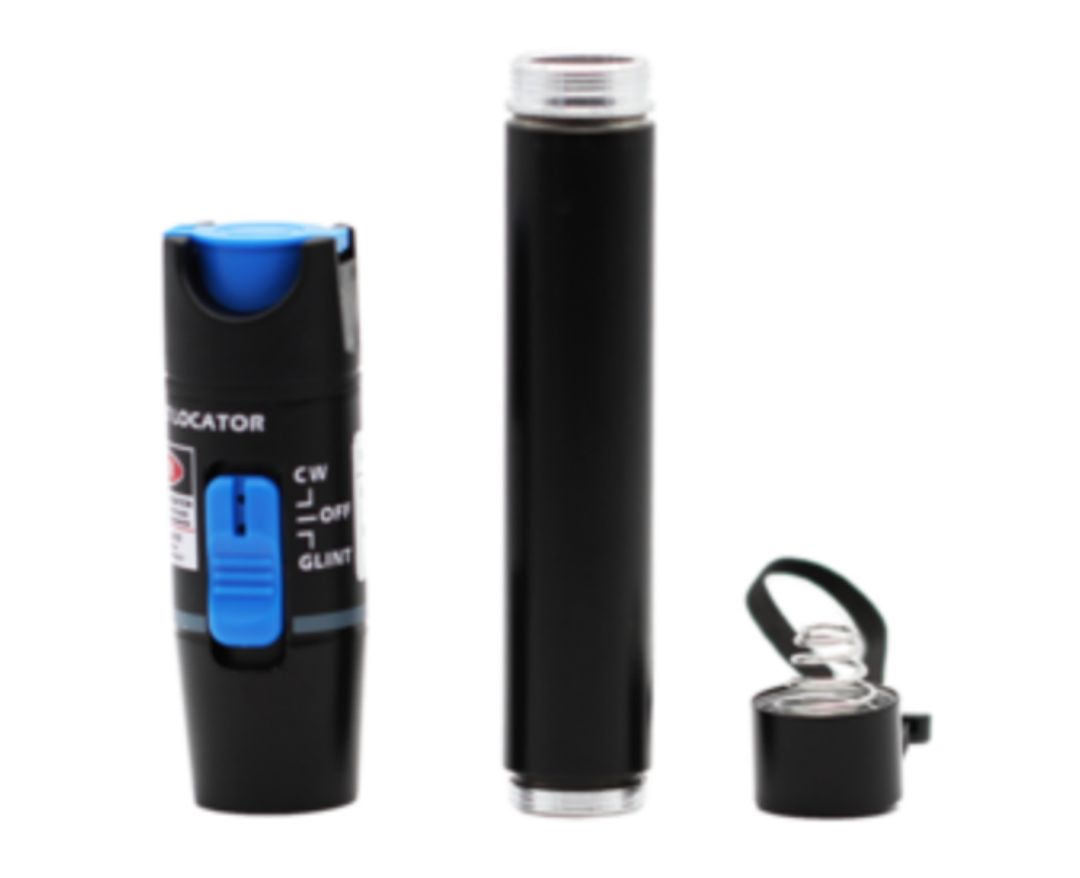

Construction:

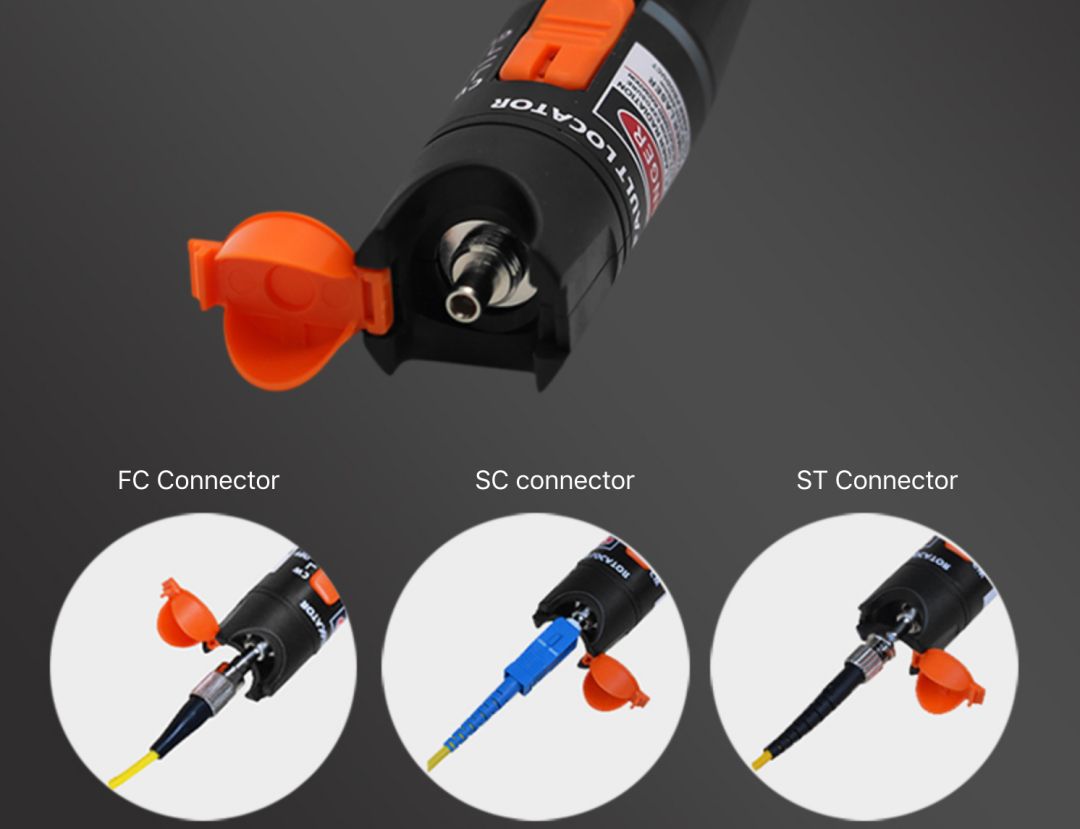

Connector type:
Laser effection:
Cost effective:
√ The Pen type VFL's extremely high efficiency guarantees prolonged operation with two standard AAA alkaline batteries, typically providing 50 hours of uninterrupted operation.
√ Priced to accommodate the tightest budgets, the KCO-VFL-x Pocket Pal is a truly affordable way to locate faults in OTDR dead zones.
√ Its effectiveness justifies purchasing one for just about every fiber technician.
√ We adopt the new technology for AL composite material make the PEN more light.
√ And use import Mitsubishi LD Laser, make the lights signal more gathered and less attenuation
Note:
①It is strictly prohibited to direct the human eye and please take precautions to avoid static electricity releasing.
②The output power is figured out by multi-mode optical fiber at 23℃±3℃.
③Detecting range will be different with different fibers.
④Working hours is figured out by 2*AAA batteries at 23℃±3℃, it will be a little different by using different AA batteries.

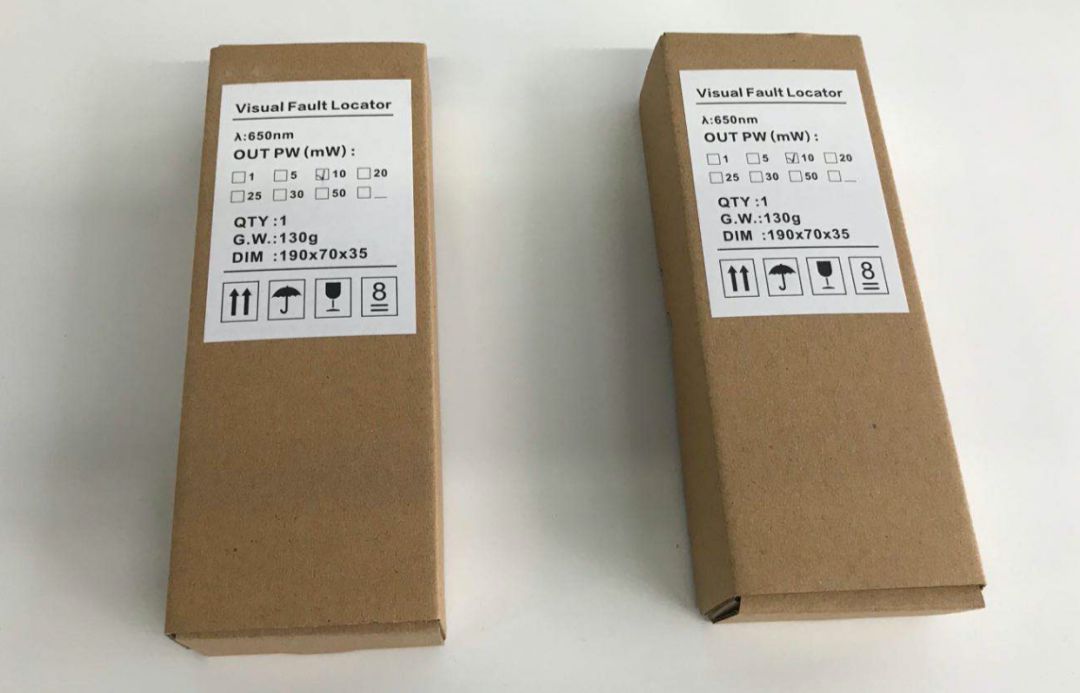

Packing:
