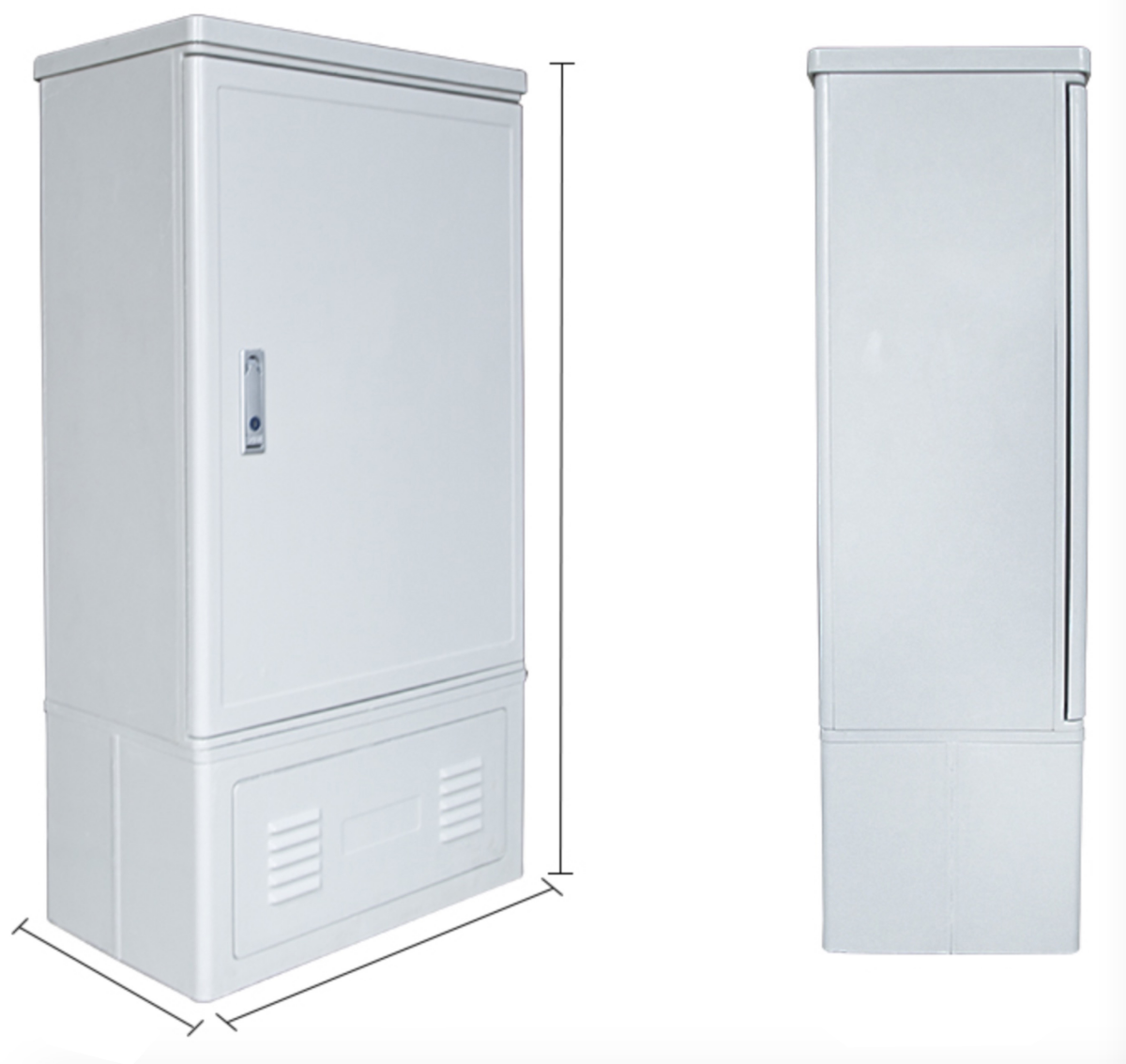

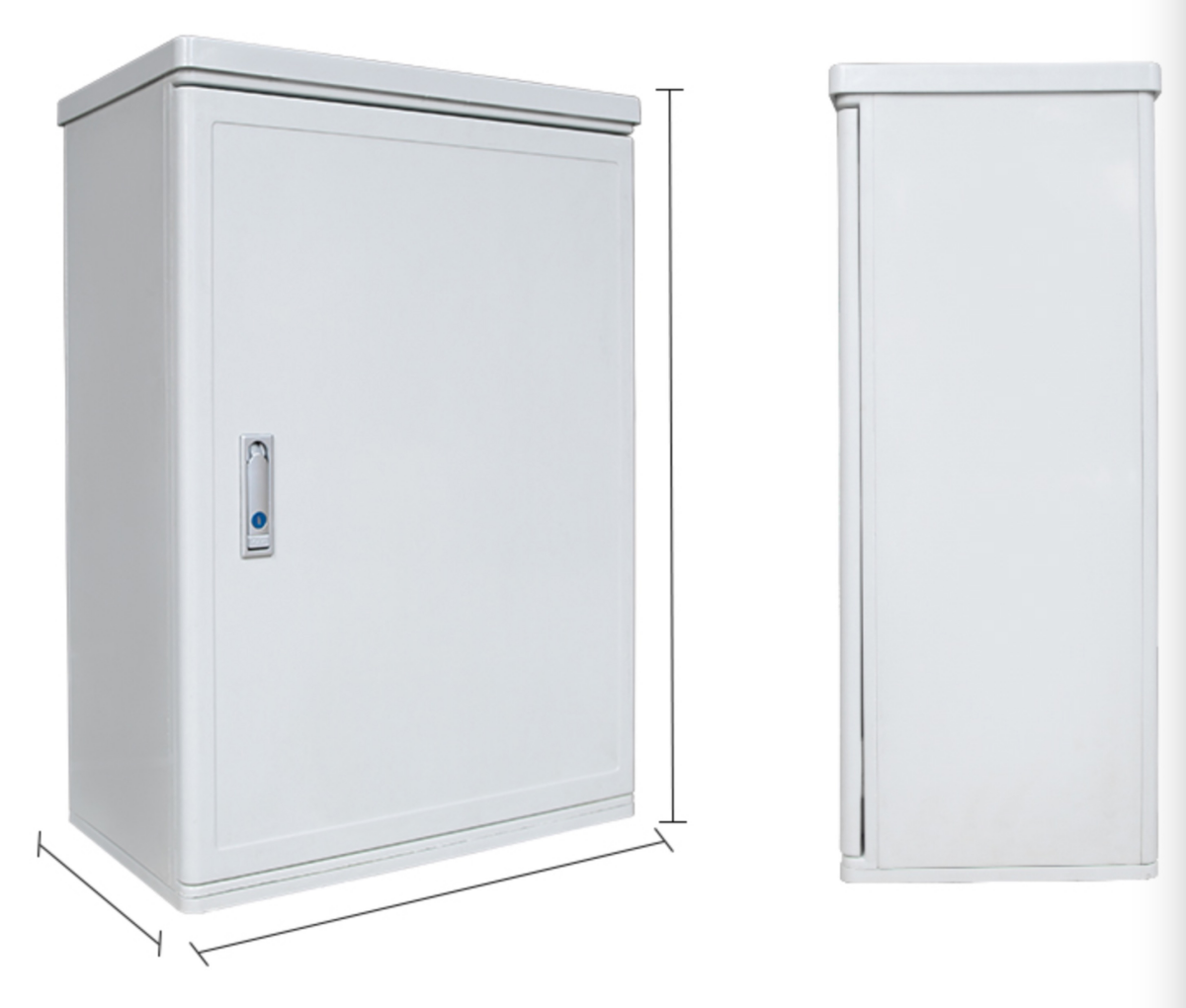

Fiber optic cross connection cabinet
Product Specification
| P/N | Dimension (mm) | Capacity
(SC, FC, ST port) |
Capacity
(LC port) |
Application | Remark |
| FOC-SMC-096 | 450*670*280 | 96 cores | 144 cores | Outdoor Floor Base | Can use FC, SC, etc type Adaptor |
| FOC-SMC-576 | 1450*750*540 | 576 cores | 1152 cores |
Conditions of Use:
| Operating temperature | -45°C - +85°C |
| Relative Humidity | 85% (+30°C pm) |
| Atmospheric pressure | 70 - 106kpa |
Qualification:
| Nominal work wave length | 850nm, 1310nm, 1550nm |
| Connector loss | <=0.5dB |
| Insert loss | <=0.2dB |
| Return loss | >=45dB (PC), >=55dB (UPC), >=65dB(APC) |
| Insulation resistance (between frame and protection grounding) | >1000MΩ/ 500V(DC) |
Sealing performance:
| Dust | better than GB4208/IP6 level requirements. |
| Waterproof | 80KPA pressure, + / - 60°C shock box for 15 minutes, drops of water cannot enter the box. |
Description:

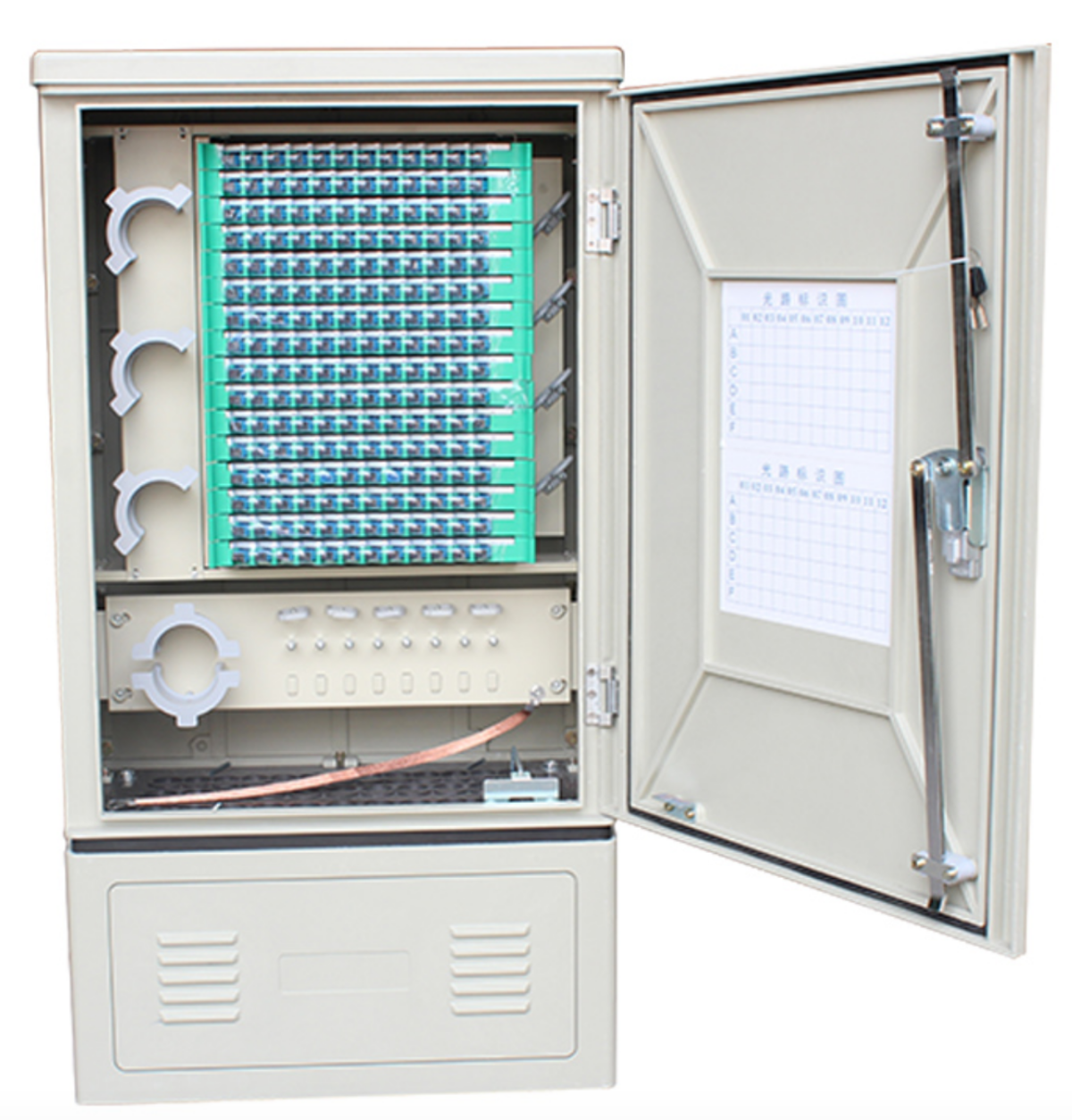

• The cabinet has functions of cable termination, as well as fiber distribution, splice, storage and dispatch. It has good performance of resisting the open-air environment and can resist severe climatic change and serious working environment.
• The cabinet is made from quality stainless steel. It has not only excellent performance of anti-erosion and aging resistance but also pleasing appearance.
• Tcabinet is double-walled with the performance of natural ventilation. Holes are provided at both left and right side at the bottom of the cabinet, fascinating fiber dispatch connection between front and rear.
• The cabinet has Special Designed Case for reducing the temperature changes inside the cabinets, which is particularly useful under extreme environments.
• Lock provided on every cabinet ensures the safety of the fibers.
• Cable fixing cover type that is applicable to common and ribbon optical cable can be adopted for cable reinforcement if required by user.
• Disc-shaped direct splice tray (12 cores/ tray) can be used for direct splicing.
• Accommodates SC, FC and LC and ST adapters.
• Flame-retardant material is adopted for plastic components in the cabinet.
• All operations are fully done at front of the cabinet so as to facilitate installation, operation, construction and maintenance.
Features:
• The SMC box with glass fiber reinforced unsaturated polyester molding compound at high temperature curing.
• This product is suitable for optical fiber access networks, backbone nodes with an excuse for cable wiring devices, optical fiber fusion can be achieved terminal, storage, and scheduling functions, but also for wiring and electrical control boxes for fiber optic local area network, regional network and optical fiber access network.
• The equipment consists of cabinet, base, with one unit of rack melting, melting with one module, cable, fixed ground installations, winding unit components, assemblies and other components to go through, and its sound design makes the cable is fixed and grounded, welding, and surplus fiber coil, connections, scheduling, distribution, testing and other operations are very convenient and reliable.
• High strength, anti-aging, anti-corrosion, anti-static, lightning, fire-retardant characteristics.
• Life span: more than 20 years.
• Protection class IP65 to with stand any harsh environment.
• Can stand on the floor or wall mounted.

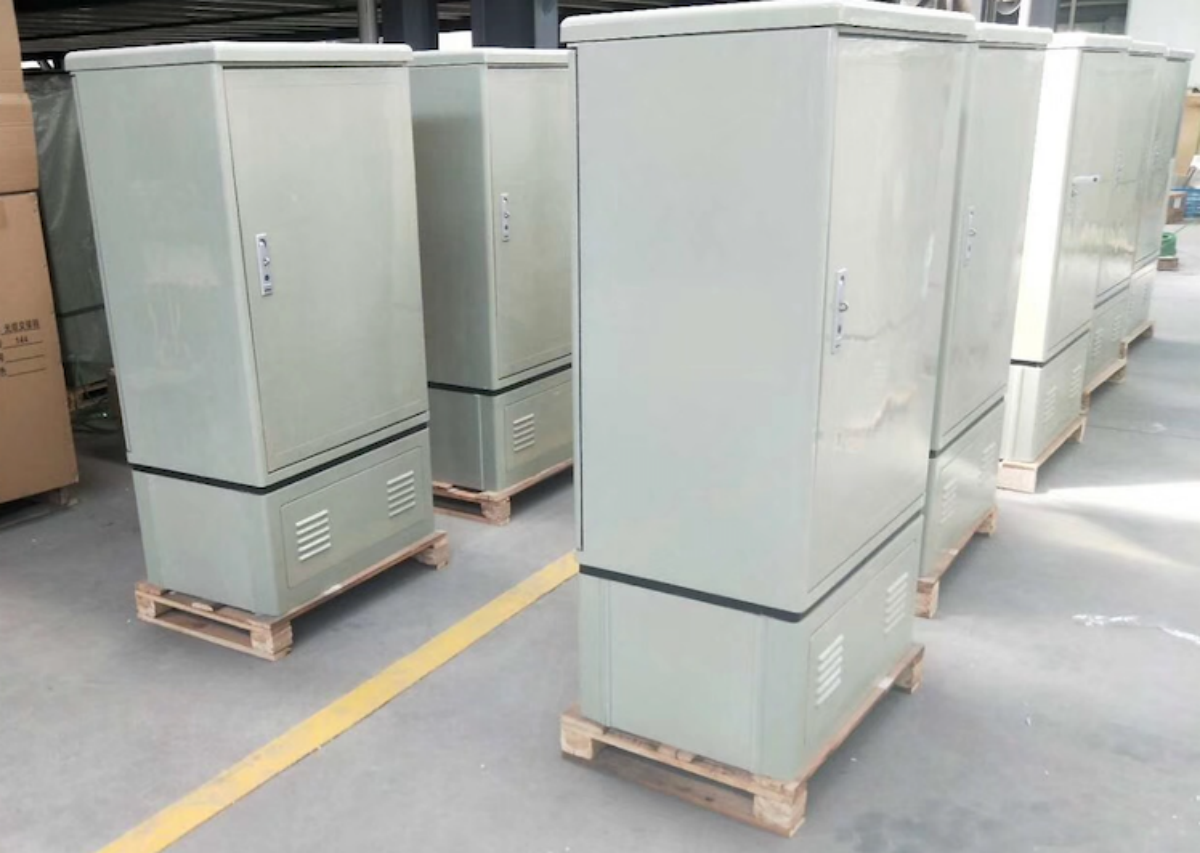

Ware house:
Packing:
