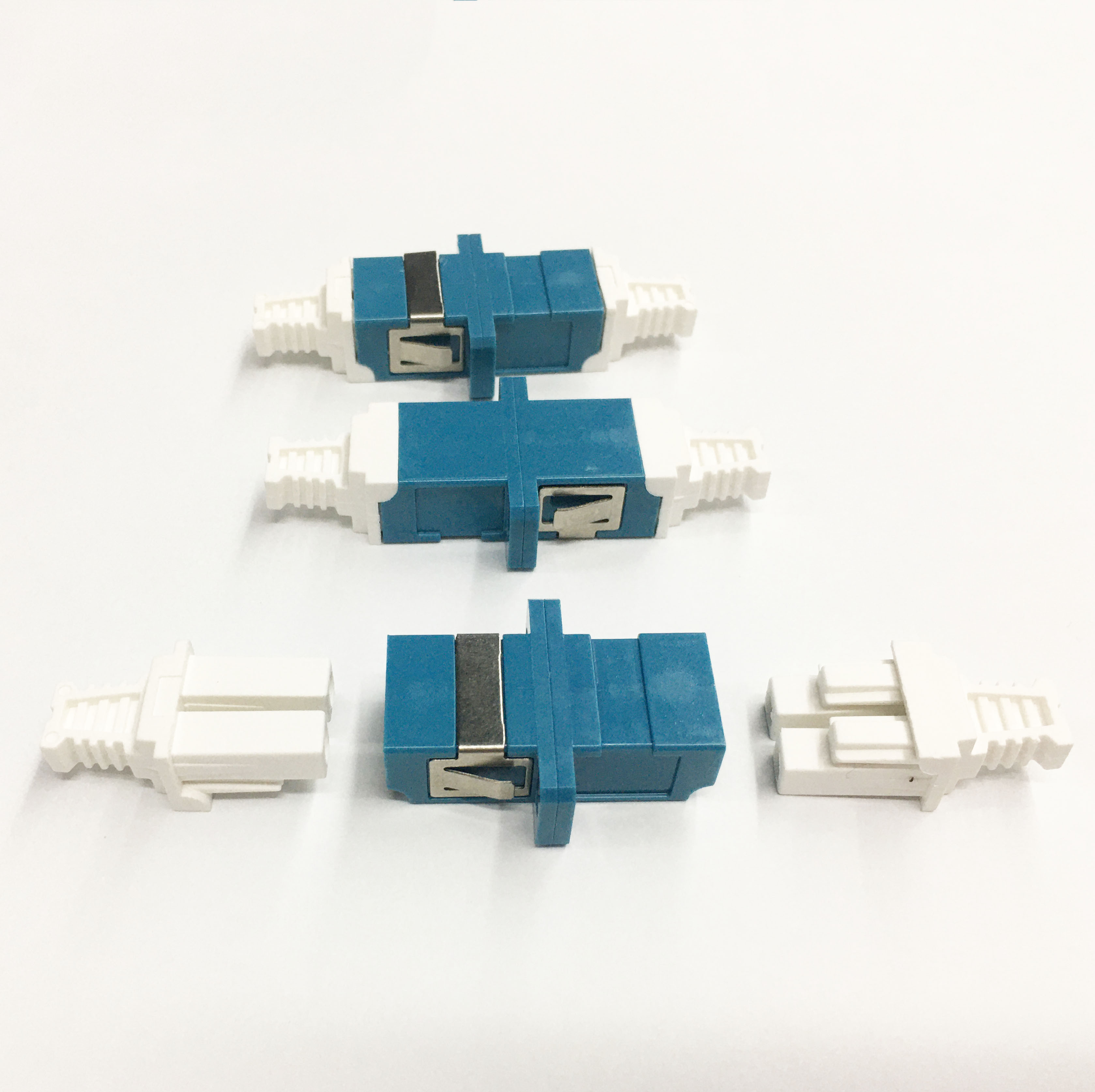

Duplex High Dusty Cap Single Mode SM DX LC to LC Fiber Optic Adaptor

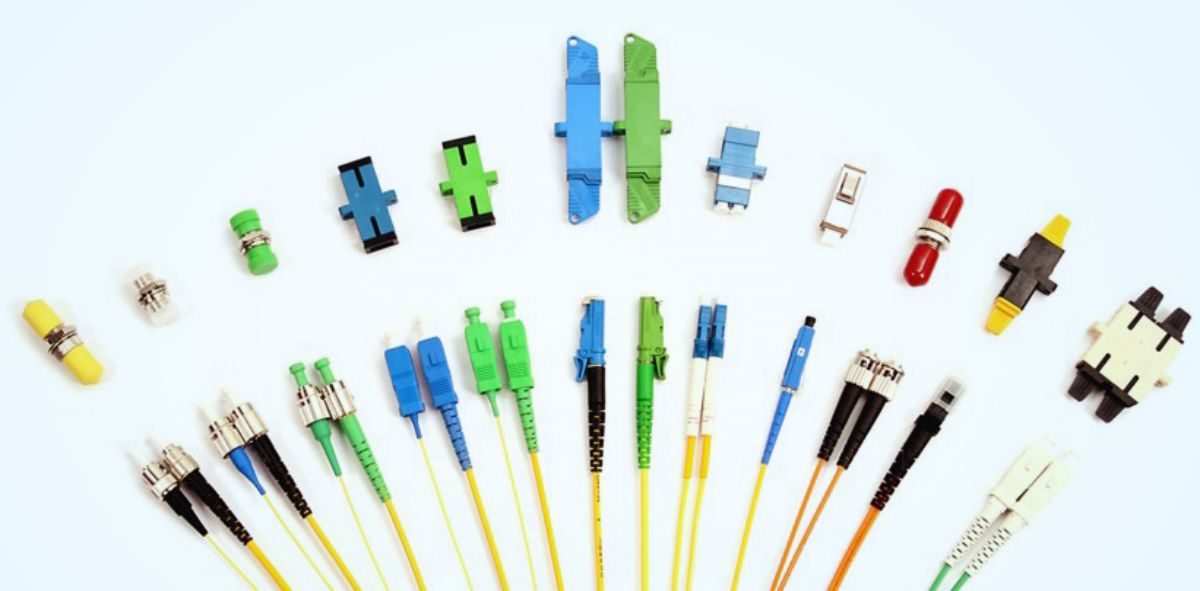

+ Fiber optic adapters (also called couplers) are designed to connect two fiber optic patch cables together.
+ They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad) and even eight fibers together.
+ Adapters are designed for multimode or singlemode cables.
+ The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules).
+ It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables.
+ This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).
+ Fiber optic adapters are used in high density applications and feature a quick plug in installation.
+ Optical fiber adapters are available in both simplex and duplex designs and utilize high quality zirconia and phosphorous bronze sleeves.
+ The unique duplex clip design allows reverse polarity even after completion of the assembly.
+ LC Duplex connectors are small form factor (SFF), utilizing 1.25mm diameter optical ferrules.
+ LC adapters come with simplex, duplex, and quad ports, even when the SC adapter is cut out.

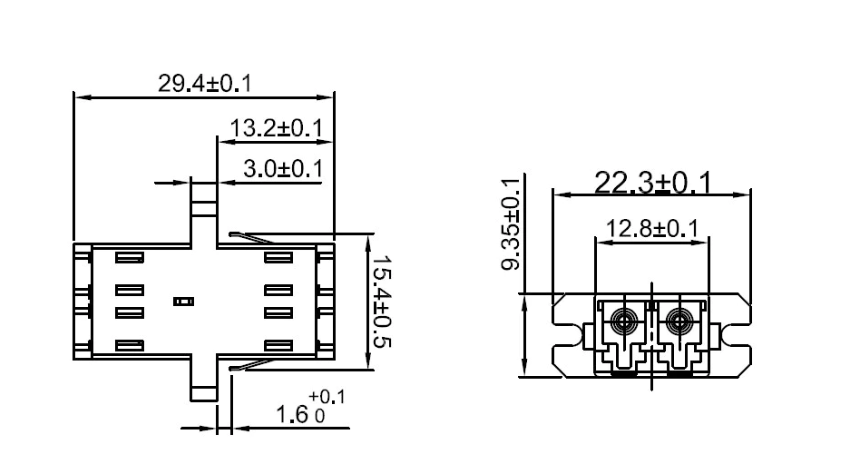

+ LC duplex fiber optic adapter consists of a molded polymer body that contains zirconia ceramic sleeve which provides precision alignment to mate with the LC fiber optic connector.
+ It is deployed when the LC type connection interface is required supporting two optical ports with each adapter.
