Cisco Compatible 100GBASE-SR SWDM4 QSFP28 BiDi 850/880/910/940nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module
Description
+ The Cisco Compatible 100GBASE-SR SWDM4 Bi-Directional QSFP28 transceiver is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using Multi-Mode Fiber (MMF).
+ It can be used for links up to 75m of OM3 fiber, 100m of OM4 or 150nm of OM5.
+ It operates at four different wavelengths, each supporting 25G transmission over existing duplex multimode fiber with standard LC connectors.
+ It offers customers a compelling solution that enables reuse of their existing 10/40G duplex MMF infrastructure for migration to 100 Gigabit Ethernet connectivity.
+ This transceiver is compliant with the QSFP28 MSA and IEEE 802.3bm CAUI-4 electrical interface. Digital diagnostics functions are also available via an I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters.
+ This100GBASE-SR BiDi QSFP28 SWDM4 Optical Transceiver Module, Built-in high-performance Chip, Max. Power Consumption 3.5W enable Prolonged Service Life, Commercial Temperature Range 0 to 70°C
+ Tested in Targeted Switches for Superior Performance, Quality, and Reliability.
+ Built-in Real Time Digital Optical Monitoring Capability for Strong Diagnostic Capabilities.
+ Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850nm/900 nm. Hot Pluggable QSFP28 MSA and RoHS-6 Compliant to Maximize Uptime and Simplify Maintenance
+ Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm and QSFP28 MSA SFF-8636 Specification
+ The 100GBASE-SR BiDi QSFP28 transceiver is a optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using Multi-Mode Fiber (MMF).
+ This transceiver is compliant with the QSFP28 MSA and IEEE 802.3bm CAUI-4 electrical interface.
Advantage

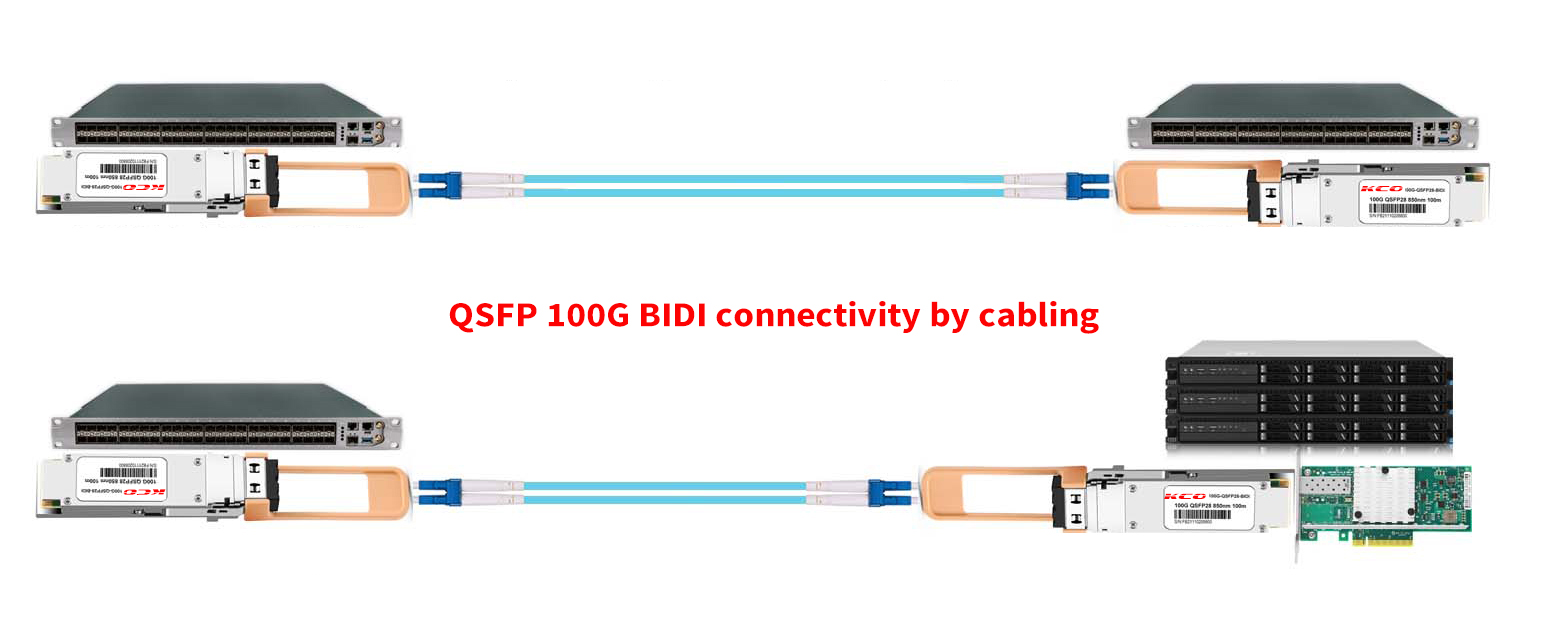

+ Low-power, high-density and high-speed: Seamless Upgrade from 10G to 100G Ethernet
The 100GBASE-SR BiDi QSFP28 transceiver offers data center operators a compelling solution that enables reuse of their existing 10G duplex MMF infrastructure for migration to 100G Ethernet connectivity. It support Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850nm/900 nm.
+ Leading Performance and Quality for 100G
With built-in high performance Macom Chip and equipped with individually designed COB packaging, the QSFP28 transceiver offers high speed and low power in 100G links.
+ Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics. Optical Spectrum Test: No Packet Loss & CRC, Eye Pattern Test, Mask Margin >20%, Bit Error Rate Test, BER 1E-12
+ Wide Compatibility
The 100GBASE-SR BiDi QSFP28 transceiver can compatible with series various brands of Modules and switches, routers, servers, network interface card (NICs) etc.
Specification
|
Part Number |
KCO QSFP 100G SRBD |
|
Form Factor |
QSFP28 |
|
Wavelength |
850nm |
|
Connector |
Duplex LC |
|
Transmitter Type |
VCSEL |
|
DDM/DOM |
Supported |
|
TX Power |
-5.5 – 3dBm |
|
Power budget |
4dB |
|
Power Consumption |
≤3.5W |
|
Protocols |
SFF-8636, SFF-8679, SFF-8024 |
|
Brand |
KCO |
|
Max Data Rate |
103.1Gbps |
|
Max Cable Distance |
70m@OM3/100m@OM4 |
|
Cable Type |
MMF |
|
Receiver Type |
PIN |
|
Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
|
Minimum Receiver Power |
-9.5dBm |
|
Receiver Overload |
3.4dbm |
|
Bit Error Ratio (BER) |
5E-5 (Pre-FEC) |
|
Warranty |
1 Years |
