Aerial Type Fiber Optic Splitter Splice Closure Fosc-gjs22

Short Description:

The product is made of high-quality impact resistant plastic and has a standard user interface that can be turned on repeatedly.

Outdoor application and good UV resistant, impact resistant and waterproof.

It can be loaded with 2pcs 1×8 LGX Splitter or 2pcs steel tube micro PLC Splitter.

Unique flip splice tray, flip angle more than 180 degrees, the splicing area and the distribution cable area is more distinct, reducing the cables crossing.

Numerous application such mid-span, branch and direct splice
3 layer structure and easy to maintain.

It is suitable for the application on NAP in the distributed split PON architecture.

Protection Level: IP67.

Excellent sealing performance. It is compatible with different optical cables.


Product Detail

Product Tags

Size:

Model FOSC-GJS22
Dimension 290*190*110mm
Cable diameter Φ7-φ18mm
Cable port 4pcs round ports16pcs 2*3mm drop cable ports
Max. Split ratio 2pcs 1x8 mini splitter
Max. Splice tray 1pc
Max. Fusion splice 24 cores

Standard Accessories:

Main body 1 set
L=400mm bare fiber buffer tube 2 pcs
Hoop / clamp 2 pcs
3x100 nylon tie 2~6 pcs
Heat shrinkable tube L=60mm 24 pcs
User manual 1pc

Technical parameters:

Optical fiber radius of curvature  ≥40mm
Splice tray additional loss  ≤0.1dB
Temperature range  -40°C ~ +60°C
Anti side pressure  ≥2000N/10cm
Impact resistance  ≥20N.m
Protection class  IP67

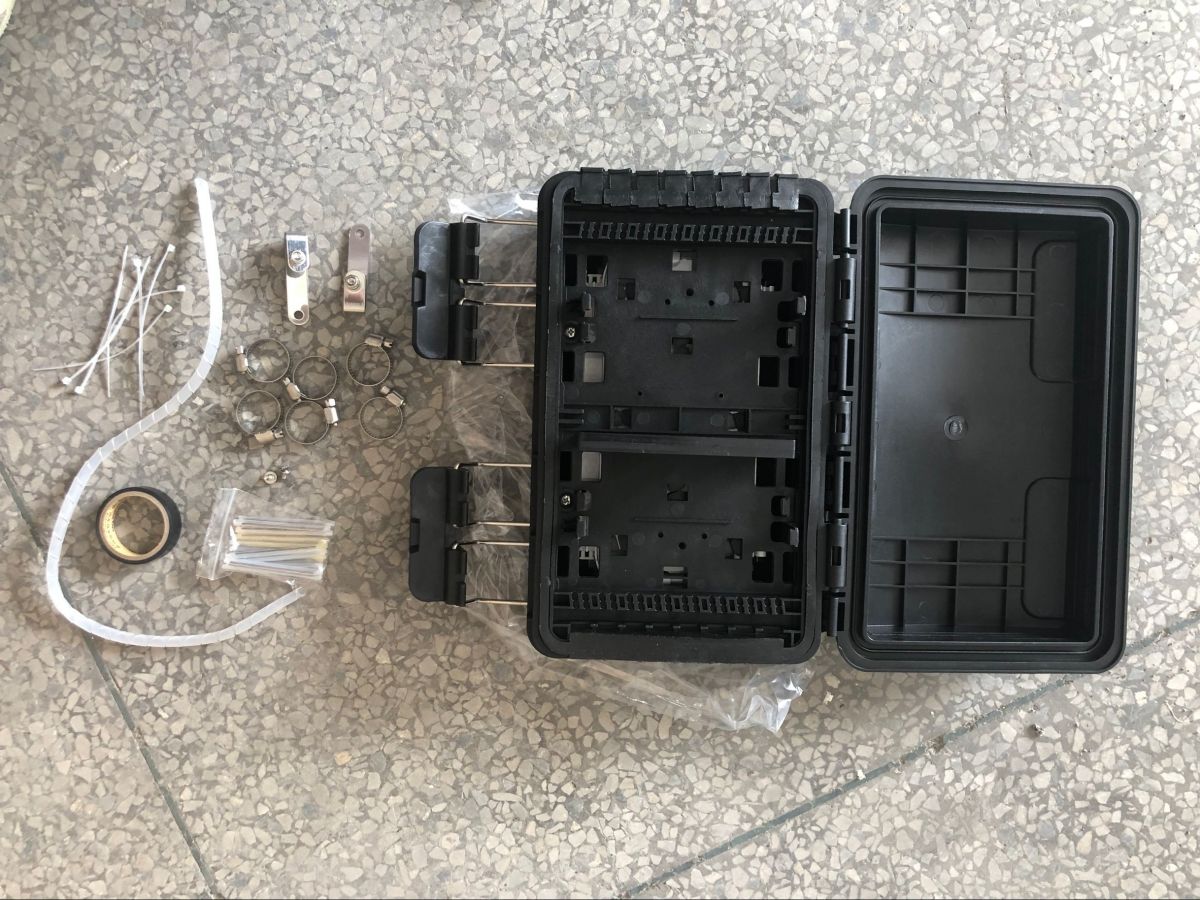

Accessories

Accessories

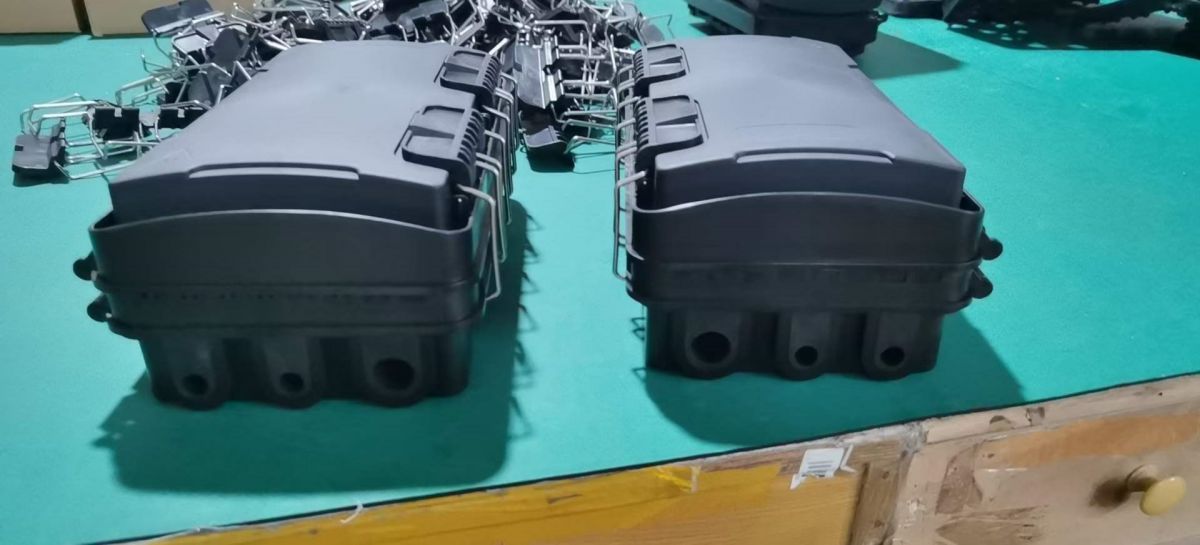

Pre-shippint

Pre-shippint

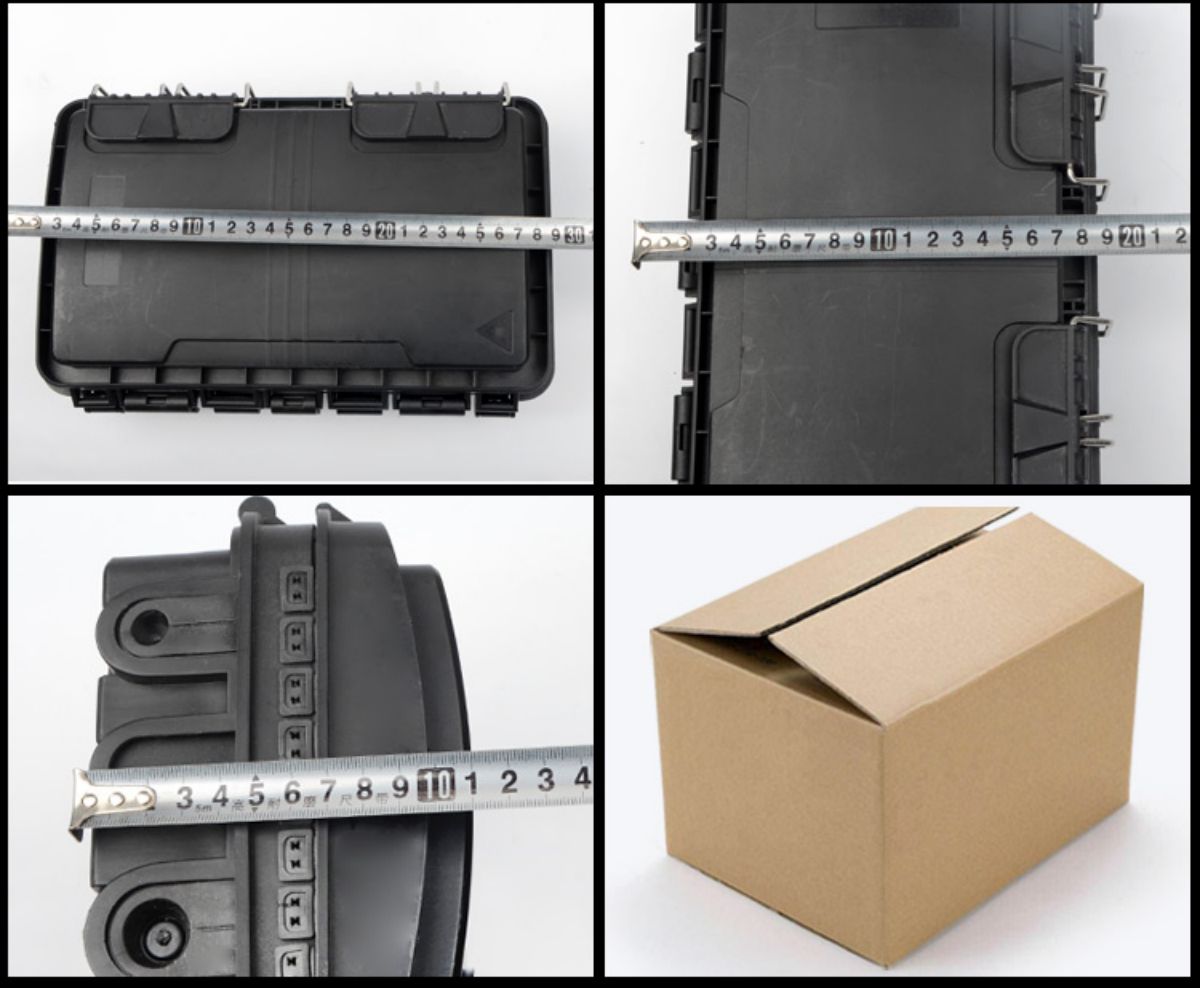

Size-packing

Size-packing

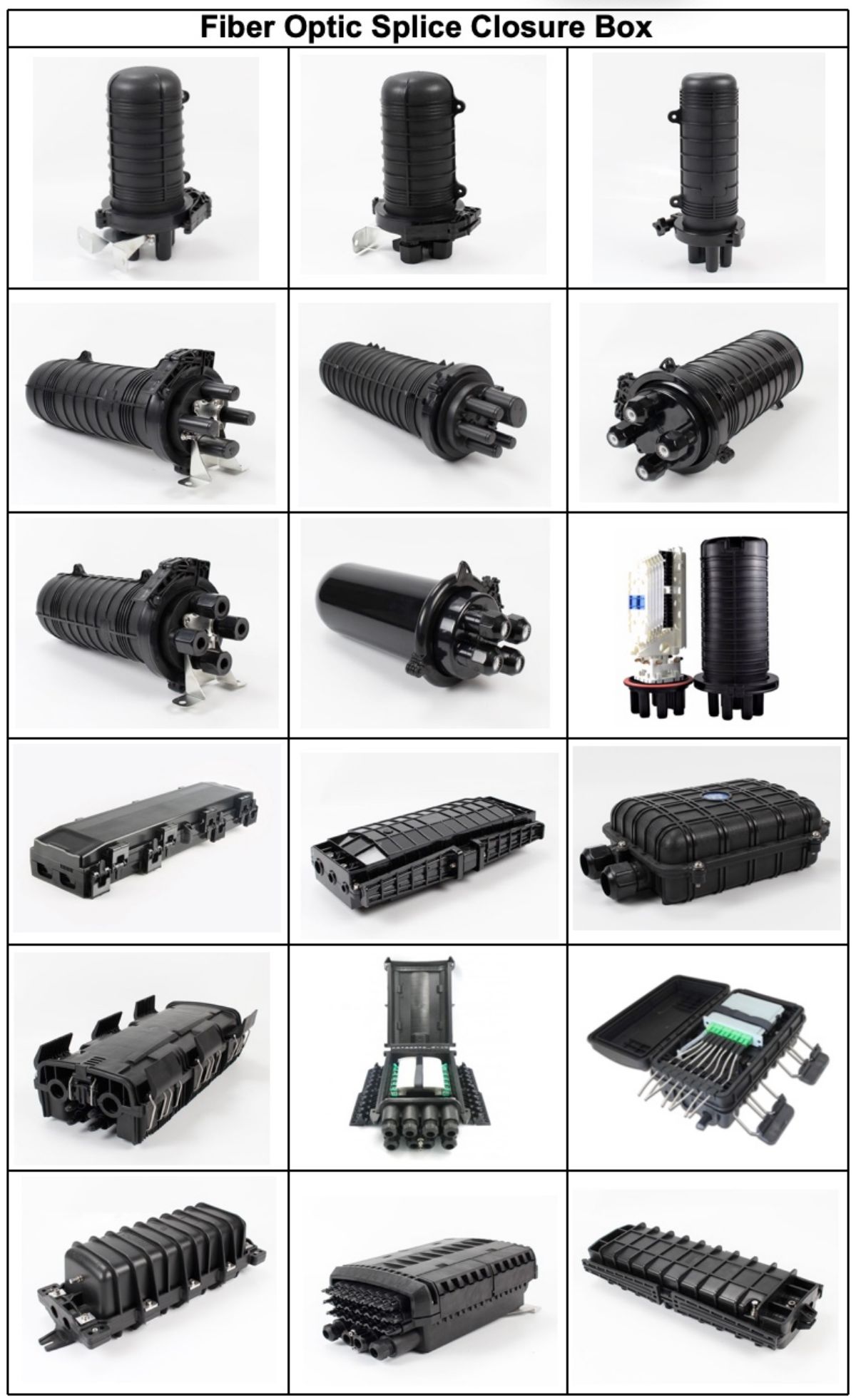

Splice closure box

Splice closure box
