800GBASE 2xDR4/DR8 OSFP Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF Fiber Optical Transceiver Module
Description
+ The KCO-OSFP-800G-DR8 fiber optic transceiver application for the OSFP transceiver is to provide ultra-high-speed, low-latency connectivity in data centers and High-Performance Computing (HPC) environments, enabling 800 Gigabit Ethernet (800GE) and InfiniBand NDR (Next-gen Data Rate) connections up to 500 meters on single-mode fiber.
+The KCO-OSFP-800G-DR8 fiber optic transceivers support breakout connections for 2x400G, 4x200G, or 8x100G links and are compatible with devices like NVIDIA switches, ConnectX-7 adapters, and BlueField-3 DPUs.
+The KCO-OSFP-800G-DR8 fiber optic module optical transceiver module is designed for 800GBASE Ethernet throughput up to 500m link lengths over OS2 single-mode fiber (SMF) using a wavelength of 1310nm via dual MTP/MPO-12 APC connectors.
+This KCO-OSFP-800G-DR8 fiber optic transceiver is compliant with IEEE 802.3ck, IEEE 802.3cu and OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
+This twin-port KCO-OSFP-800G-DR8 OSFP finned-top transceiver is used in Ethernet air-cooled switches.
+ Featured with low latency, low power, and reliability, it can link upward in spine-leaf architectures for switch-to-switch applications, downward for top-of-rack switch links to Ethernet network adapters, and/or to BlueField-3 DPUs in compute servers and storage subsystems. It is the ideal solution for HPC computing, AI, and cloud data centers.
Specifications
|
P/N |
OSFP-800G-DR8-SM1310 |
|
Vendor Name |
KCO |
|
Form Factor |
Twin-port OSFP Finned Top |
|
Max Data Rate |
850Gbps (8x 106.25Gbps) |
|
Wavelength |
1310nm |
|
Max Cable Distance |
500m |
|
Connector type |
Dual MTP/MPO-12 APC |
|
Fiber type |
SMF |
|
Transmitter Type |
EML |
|
Receiver Type |
PIN |
|
TX Power |
-2.9~4.0dBm |
|
Minimum Receiver Power |
-5.9dBm |
|
Power Budget |
3dB |
|
Receiver Overload |
4dBm |
|
Max Power Consumption |
16.5W |
|
Extinction Ratio |
>3.5dB |
|
Modulation (Electrical) |
8x100G-PAM4 |
|
Modulation (Optical) |
Dual 4x100G-PAM4 |
|
Packaging Technology |
COB (Chip on Board) Packaging |
|
Modulation Format |
PAM4 |
|
CDR (Clock and Data Recovery) |
TX & RX Built-in DSP |
|
Inbuilt FEC |
No |
|
Protocols |
OSFP MSA HW Rev 4.1, CMIS Rev 5.0, IEEE 802.3cu-2021, IEEE P802.3ck D2.2 |
|
Warranty |
5 Years |

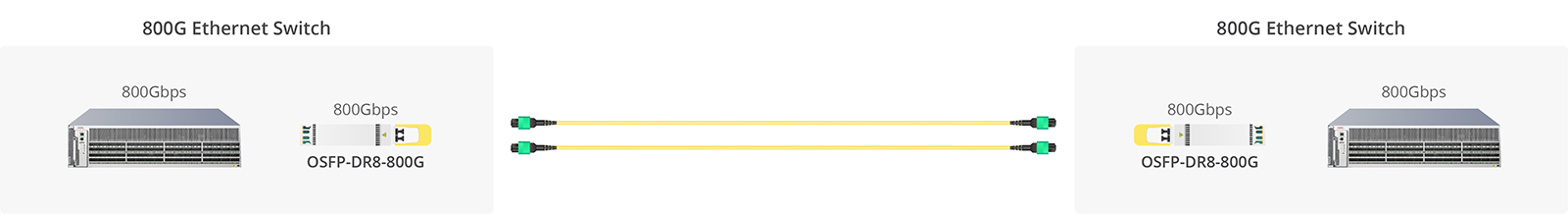

Applications and benefits
+ High-Performance Data Centers:The KCO-OSFP-800G-DR8 module provides the necessary bandwidth for interconnecting switches, servers, and other network infrastructure within large-scale data centers to support cloud computing and large-scale data transmission.
+ High-Performance Computing (HPC):HPC clusters require massive data transmission speeds for large-scale computations. The KCO-OSFP-800G-DR8 facilitates these connections for supercomputers and other HPC systems.
+ Ethernet and InfiniBand:It supports both Ethernet and InfiniBand protocols, offering versatility for different networking needs within the data center.
+ Flexible Breakout Capabilities:The KCO-OSFP-800G-DR8 of DR8 standard allows for the module to function as a single 800G link or to be "broken out" into multiple lower-speed links (2x400G, 4x200G, or 8x100G), connecting to various devices like NICs or DPUs.
+Long-Reach Single-Mode Fiber (SMF):Utilizing single-mode fiber, the DR8 standard supports connections up to 500 meters, providing robust connectivity over substantial distances within a facility.
