8 cores Multimode OM3 Aqua LC Branch Out Optical Fiber Pigtail

Short Description:

• Branch cable with sub-cable 2.0mm (or 1.8mm);

• SC, LC, ST, FC, E2000, DIN, MU, D4, MTRJ, … connector type for different options;

• Single mode fiber (SM fiber) and Multimode Fiber (MM Fiber) are availabel;

• Low insertion loss;

• High return loss;

• Various connector types available;

• Easy installation;

• Environmentally stable;

• Many cable type are availble;

• ROHS standard produce.

• Support OEM service.

Send email to us

Product Detail

Product Tags

Technical Specifications:

Type	Standard
Connector type	LC
Fiber Type	Mutlimode 50/125 OM3 10G
Cable Type	2 cores4 cores8 cores12 cores 24 cores 48 cores, ...
Sub-cable Diameter	Φ1.6mm,Φ1.8mm,Φ2.0mm,Customized
Cable outsheath	PVCLSZHOFNR
Cable length	1.0m1.5mCustomized
Polishing Manner	PC
Insertion Loss	≤ 0.3dB
Return Loss	≥ 30dB
Repeatability	±0.1dB
Operating temperature	-40°C to 85°C

Description:

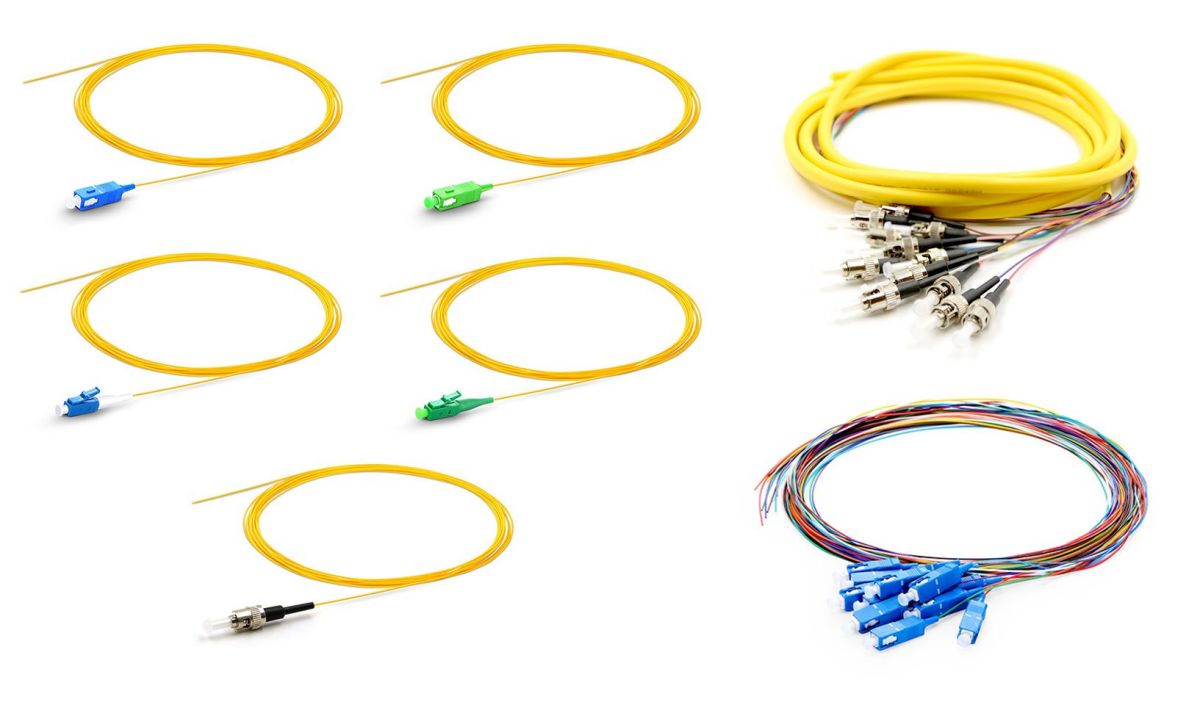

• The optical fiber pigtails are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration.

• The optical fiber pigtail has fiber connector installed at only one end, and the other end is left empty.

• The optical fiber pigtail is a fiber cable end with fiber optic connectors at only either side of the cable while leaving sleep issues no connectors, so the connector side could be from the equipment and the other part can be melted with optical cable fibers.

• The optical fiber pigtail is a kind of optical cable terminated with an optical connector on one end and unterminated fiber on the other. Therefore the end with a connector can be linked to the equipment while the other side is melted together with another optical fiber.

• The optical fiber pigtail can be considered as fiber optic patch cable since they are similar in structure, and a fiber patch cable can be divided into two pigtails.

• The optical fiber pigtail assembly has various different interfaces and couplers.

• A optic fiber pigtail is a single, short, usually tight-buffeed fiber optic cable with a factory-installed connector on one end, and un-terminated fiber on the other end.

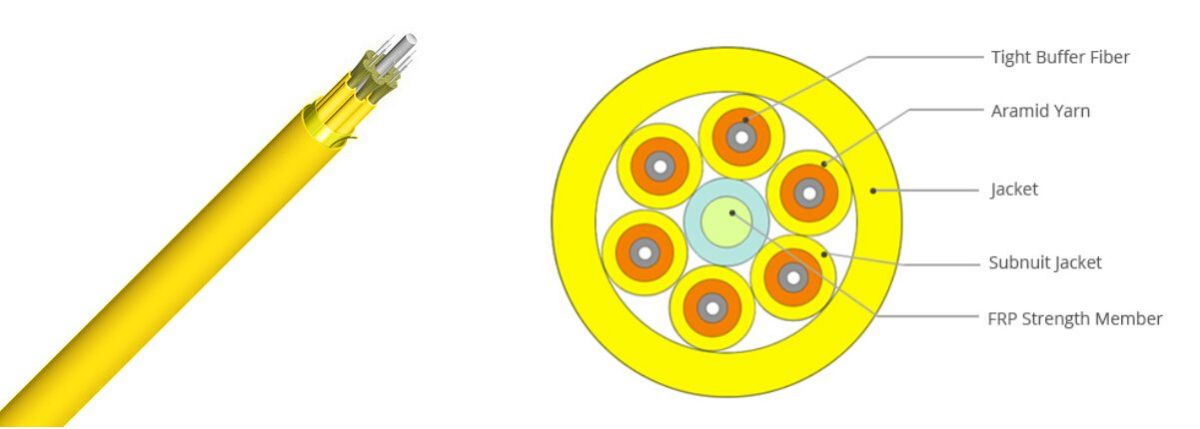

• The LC branch out optical fiber pigtail uses multi-fiber of fanout cable with sub-cable is tight buffer 1.8mm or 2.0mm cable.

• Normally, the LC branch out optical fiber pigtails use 2fo, 4fo, 8fo and 12fo of cable. Sometimes also use 16fo, 24fo, 48fo or more.

• The branch out optical fiber pigtail are make by bunch out (or break out) cabe. It can be Multimode OM1 (62.5/125), OM2 (50/125), OM3 (50/125) 10G, OM4 (50/125), OM5 (50/125) or also Singe mode G652D, G657A1, G657A2, G657B3.
