40Gb/s QSFP+ TO QSFP+ Active Optical Cable
Description
+ The KCO- QSFP-H40G-AOC-xM 40G QSFP+ active optic cables are high performance, low power consumption, long reach interconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2Gfiber channel, PCIe, and SAS.
+ It is compliant with the QSFP MSA and IEEE P802.3ba. QSFP AOC is an assembly of 4 full-duplex lanes, where each lane can transmit data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.
+ KCO- QSFP-H40G-AOC-xM is one kind of parallel transceiver that provides increased port density and total system cost savings.
Applications
+ 40GBASE-SR4 at 10.3125Gbps per lane
+ InfiniBand QDR
+ Other optical links
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Supply Voltage |
Vcc3 |
-0.5 |
- |
+3.6 |
V |
|
|
Storage Temperature |
Ts |
-10 |
- |
+70 |
°C |
|
|
Operating Humidity |
RH |
+5 |
- |
+85 |
% |
1 |
|

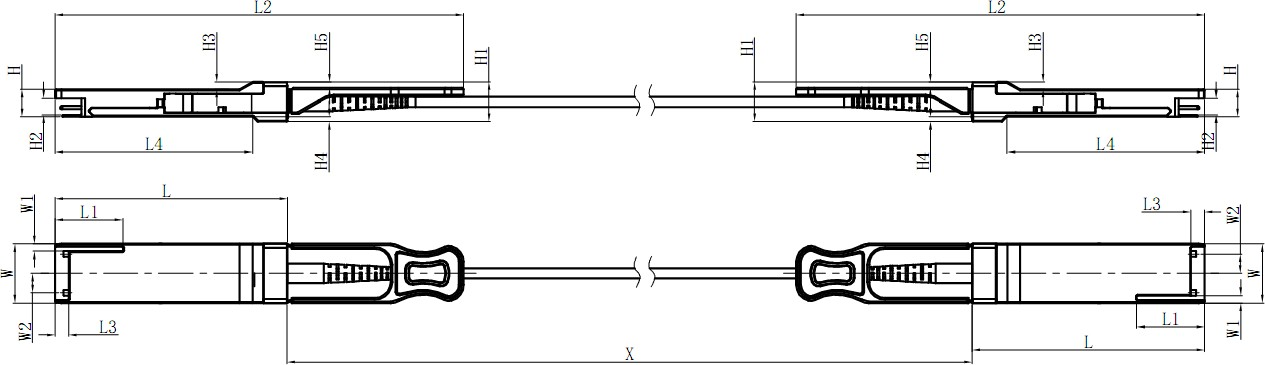

Unitmm |
Max |
Type |
Min |
|
L |
72.2 |
72.0 |
68.8 |
|
L1 |
- |
- |
16.5 |
|
L2 |
128 |
- |
124 |
|
L3 |
4.35 |
4.20 |
4.05 |
|
L4 |
61.4 |
61.2 |
61.0 |
|
W |
18.45 |
18.35 |
18.25 |
|
W1 |
- |
- |
2.2 |
|
W2 |
6.2 |
- |
5.8 |
|
H |
8.6 |
8.5 |
8.4 |
|
H1 |
12.4 |
12.2 |
12.0 |
|
H2 |
5.35 |
5.2 |
5.05 |
|
H3 |
2.5 |
2.3 |
2.1 |
|
H4 |
1.6 |
1.5 |
1.3 |
|
H5 |
2.0 |
1.8 |
1.6 |
|
H6 |
- |
6.55 |
- |
Specifications
|
Cable Length (Unit: m) |
Tolerant (Unit: cm) |
|
＜1.0 |
+5/-0 |
|
1.0~4.5 |
+15/-0 |
|
5.0~14.5 |
+30/-0 |
|
≥15.0 |
+2%/-0 |
