19” drawer type 96 cores fiber optic rack mountable patch panel
Product Specification
| Name | 19' fiber optic patch panel/ Rack mount |
| P/N | KCO-RM-1U-Rrawer-02 |
| Type | Drawer type |
| Size | 485x300x44.5mm |
| Adapter port | 12 or 24 |
| Color | Black (white optional) |
| Capacity | Max. 24 cores |
| Steel thickness | 1.0mm |
| Insert loss | ≤ 0.2dB |
| Return loss | 50dB (UPC), 60dB (APC) |
| Durability | 1000 Mating |
| Wavelength | 850nm,1310nm,1550nm |
| Operating temperature | -25°C~+40°C |
| Storage temperature | -25°C~+55°C |
| Relative humidity | ≤85%(+30°C) |
| Air pressure | 70Kpa~106Kpa |
| Connector | SC, FC, LC, ST, etc |
| Cable | 0.9mm~22.0mm |
Description:
• The 1U 2U optic fiber rack mount patch panels are always installed in the cabinet and widely used for connecting optical fiber and equipment of central office.
• The front panel can be drawed out and the rack mount is removable.
• The rack mount modulized design with cold steel and black power.
• It could be assembled with various pigtails and adapters.
• Its standard 19 inch size is properly designed to control control the bend radius of the cable inside the enclosure to avoid extra optical loss.
• Each Patch Panel is fully loaded with adaptors plate, splices trays and accessories to ready for installation.
Advantage
• Complete compatible with 19" fiber optic distribution frame.
• The shell is high intensified & insulated material, thus having excellent mechanic performance.
• It is solid and durable.
• Strength core and shell was Insulation,add with grounding lead.
• Can be installed against wall.
• Full accessories for convenient operations.
• Excellent design.
• Fiber lead grounding and perfect fixup reliable.
• Pigtail fixup reliable and perfect protection.
• Apply to extensive field.
• Convenient operations and maintenance.
Features
• Reliable fastening, Stripping and earthling devices for optic fiber.
• Suitable for LC, SC, FC, ST and E2000, ... adapter.
• Fit for 19'' rack.
• Accessories make fiber avoid damaging.
• Slide out design, easy to access the back and splicer.
• High-quality steel, beautiful appearance.
• Maximum capacity: 96 fibers.
• All material meet ROHS compliant.
Application
+ 1U (≤24 cores), 2U (≤48 cores) Fiber Optic Patch Panel series of optic distribution boxes, which are middle capacity and both side operation, are suitable for central offices connection points in the OAN, data centers, local area network etc.
Accessories:
• Empty box cover: 1 set
• Lock: 1/2pcs
• Heat shrink tube: 8/16pcs
• Ribbon tie: 4pcs
• Screw: 4pcs
• Expansion tube for screw: 4pcs
Accessories list:
• ODF Box
• Splice Tray
• Protective sleeve
• Adapter ( if request).
• Pigtail (if request).
Qualification:
- Nominal work wave-length: 850nm,1310nm,1550nm.
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss: >=50dB(UPC), >=60dB(APC)
- Insulation resistance (between frame and protection Grounding): >1000MΩ/500V(DC)

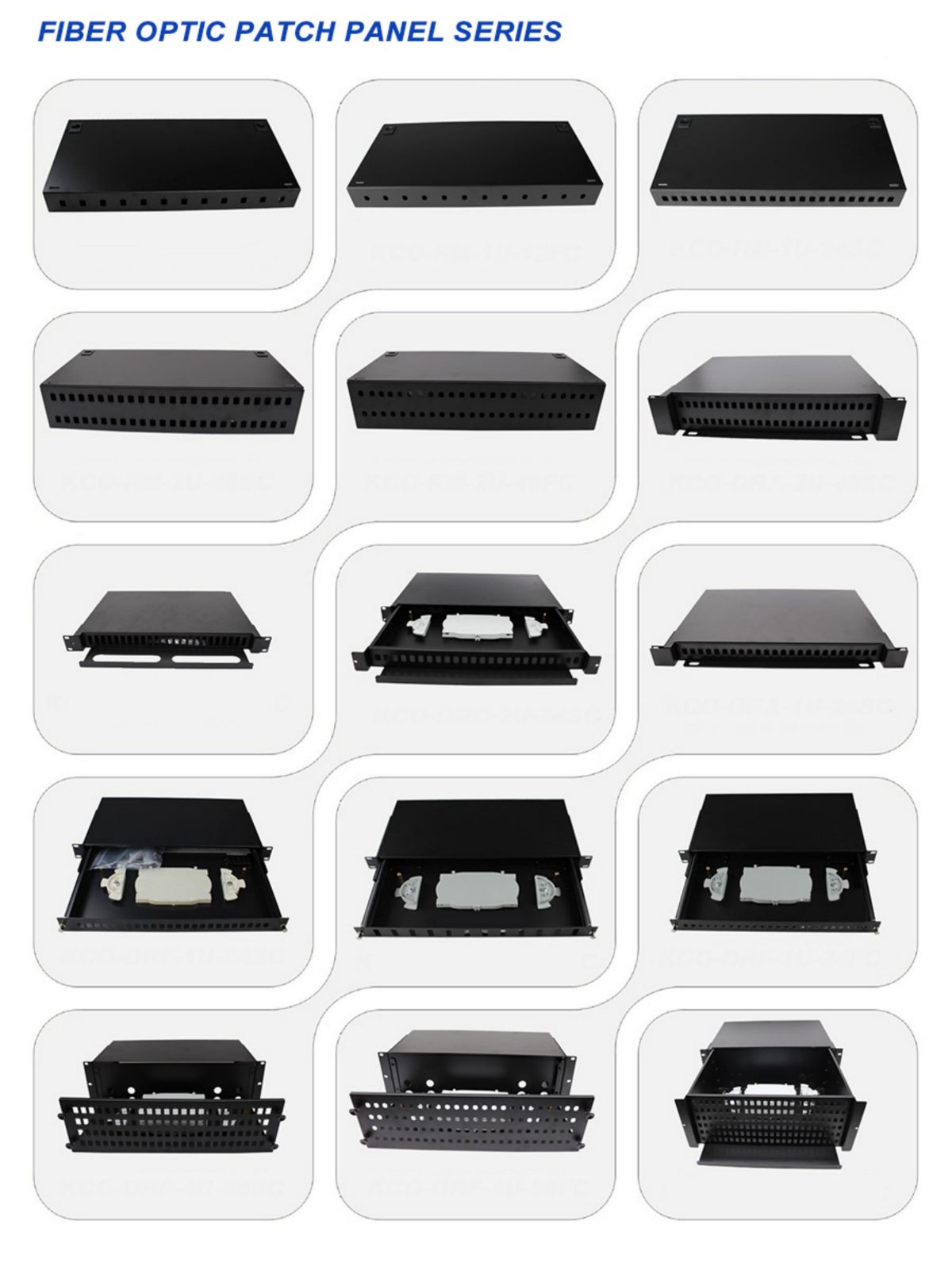

Odf Patch Panel Series
