144 cores Single Mode G657A2 LC/UPC Fanout Optic Fiber Patch Cable
Technical Specifications:
| Type | Standard |
| Connector type | SC/APC |
| Fiber Type | 9/125 Single mode: G652D, G657A1, G657A2, G657B3 |
| Cable Type | Simplex,Mutli-fibers, ... |
| Cable Diameter | Φ0.9mm,Φ0.6mm,Customized |
| Cable outsheath | PVCLSZHOFNR |
| Polishing Manner | APC |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | APC ≥ 55dB |
| Repeatability | ±0.1dB |
| Operating temperature | -40°C to 85°C |
Description:
• The Fiber Optical Pigtails are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration.
• The Fiber optic pigtail is a fiber optic cable terminated with a factory-installed connector on one end, leaving the other end terminated. Hence the connector side can be linked to equipment and the other side melted with optical fiber cables.
• The fiber optic pigtail are utilized to terminate fiber optic cables via fusion or mechanical splicing. High-quality pigtail cables, coupled with correct fusion splicing practices offer the best performance possible for fiber optic cable terminations.
• The fiber optic pigtails are usually found in fiber optic management equipment like ODF, fiber terminal box and distribution box.
• A fiber pigtail is a single, short, usually tight-buffered fiber optic cable with a factory-installed connector on one end, and un-terminated fiber on the other end.
• The SC/APC connector is a fiber-optic connector with a threaded body, which was designed for use in high-vibration environments. It is commonly used with both single-mode optical fiber and polarization-maintaining optical fiber.
• SC/APC fiber optic pigtail is one of common type fiber optic pigtail, it come with one side of SC/APC connector only.
• The termination connector can be Single mode UPC, APC or Mutlimode PC.
• Normally, the cable use single mode G652D, and also have other choose use single mode G657A1, G657A2, G657B3 or Multimode OM1, OM2, OM3, OM4, OM5.
Applications
+ Fiber optic patch panel and fiber optic distriution frame,
+ Passive fiber optic systems,
+ Fiber Optic Telecommunications,
+ LAN (Local Area Network),
+ FTTH (Fiber To The Home),
+ CATV&CCTV,
- High speed transmission systems,
- Fiber optic sensing,
- Fiber optic testing,
- Metro,
- Data Centers, ..
Features
• Come with LC/UPC connector
• Low insertion loss
• High return loss
• 100% pre-terminated and tested in factory to ensure transfer performance
• Rapid configuration and networking, reduce installation time
• Supports 40G and 100G network applications Jacket material: PVC, LSZH, OFNR, OFNP
• Available in OM1, OM2, OM3, OM4, G652D, G657 fiber glass
• Supports up to 4F, 8F, 12F, 24F, 48F, 72F, 96F, 144F, or more
• OEM service is avaibable
• Easy installation
• Environmentally stable
• Rohs compliant.

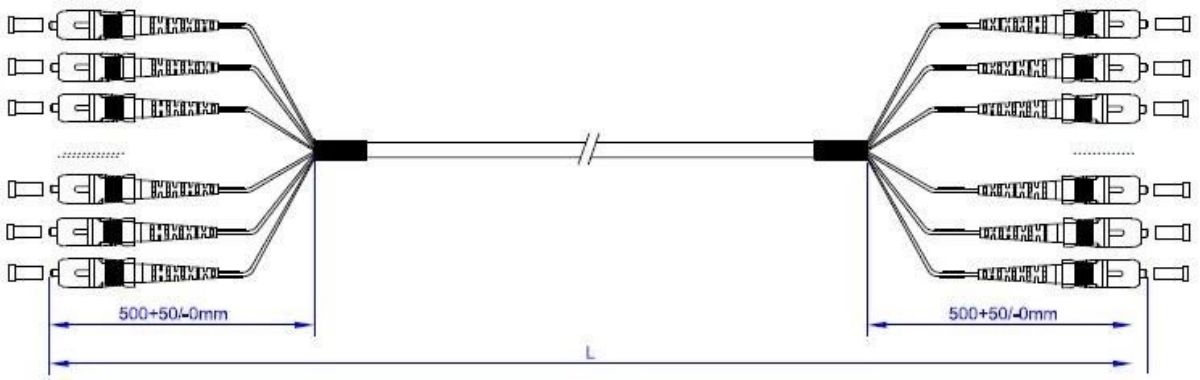

Fanout Patch Cable Structure:

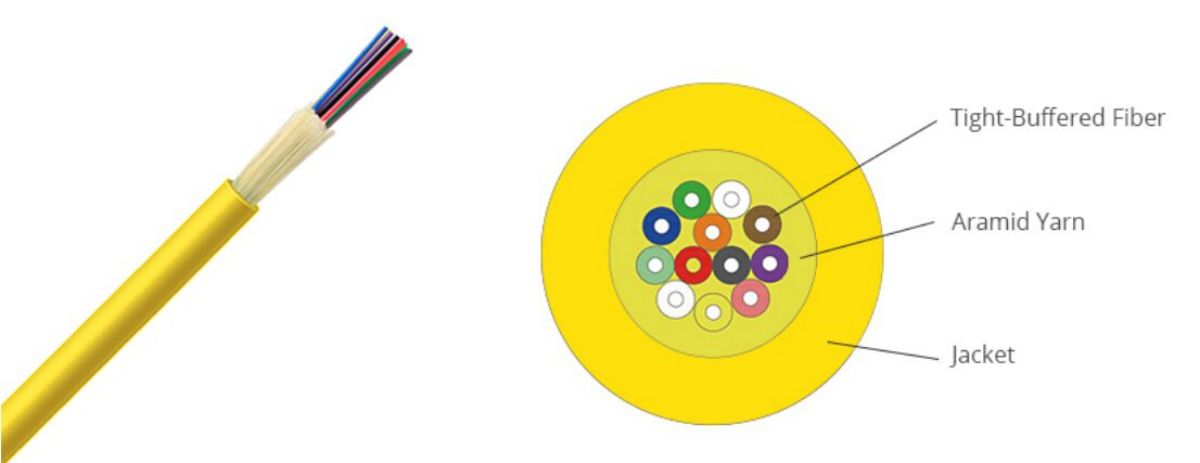

Fanout Cable Structure:
