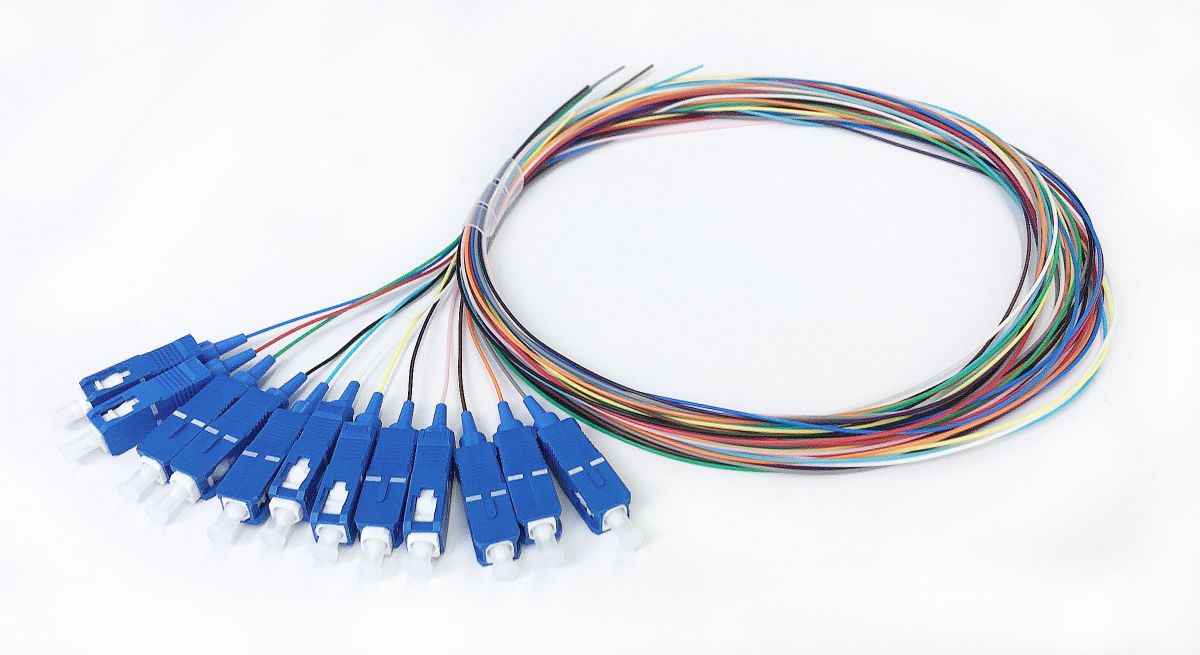

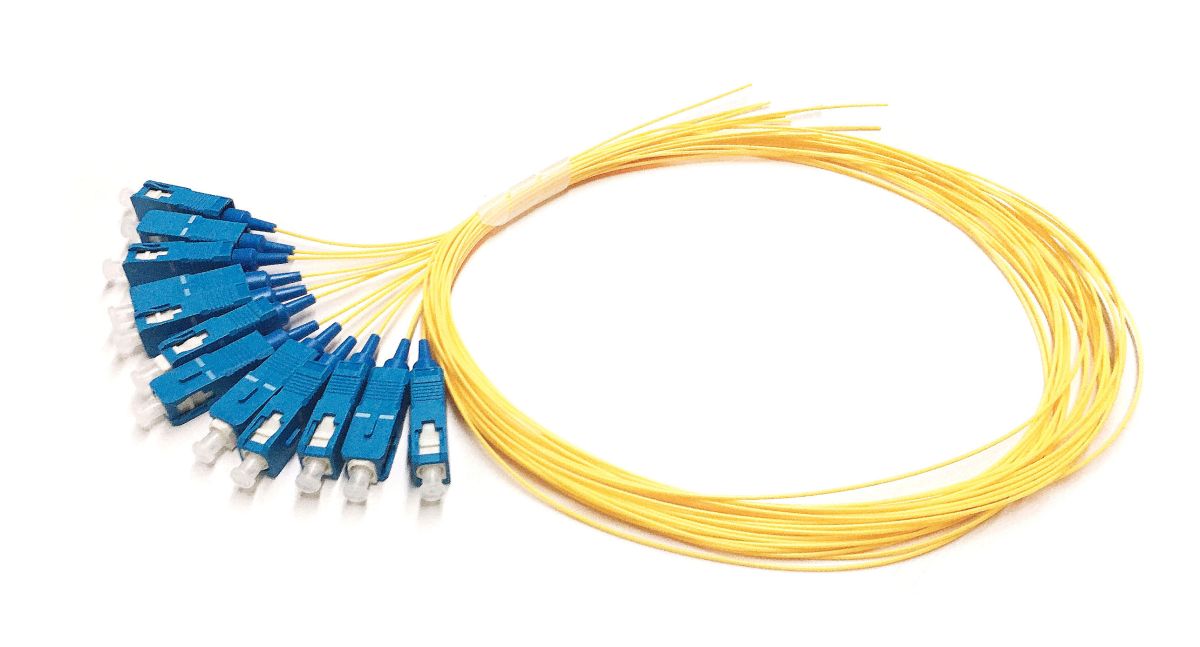

12 cores SC/APC 0.9mm Single Mode G657A1 Fiber Optic Pigtail

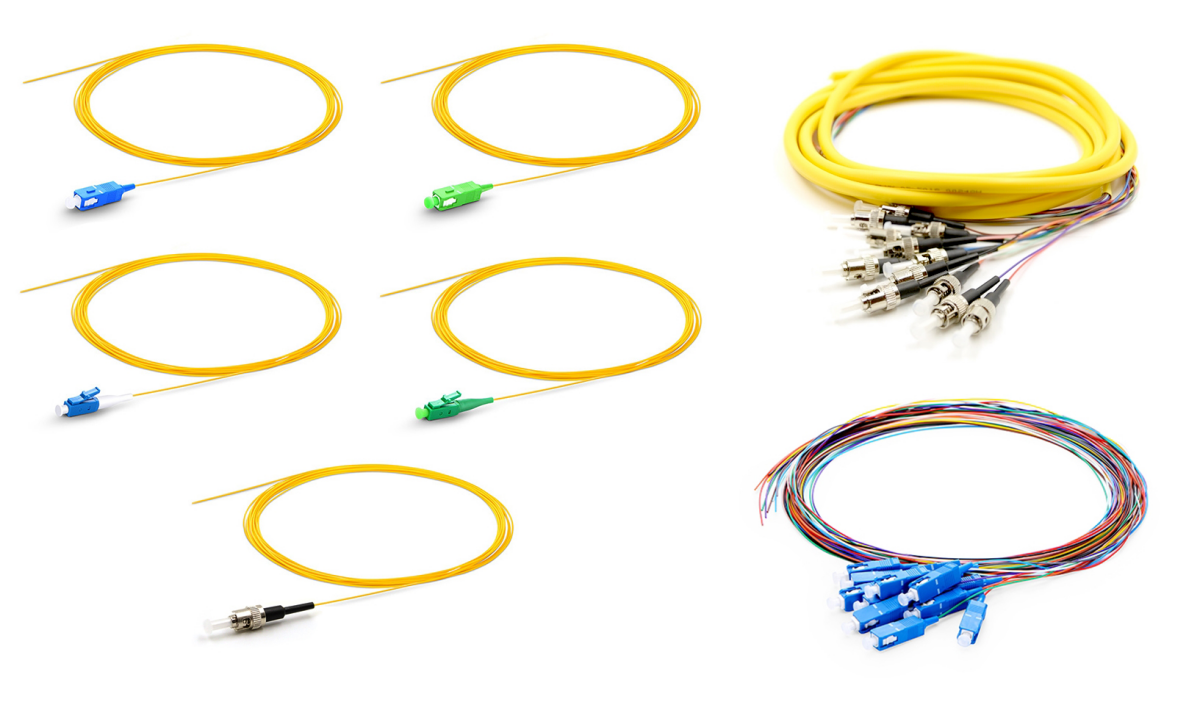

• The Fiber Optical Pigtails are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration.

• The Fiber optic pigtail is a fiber optic cable terminated with a factory-installed connector on one end, leaving the other end terminated. Hence the connector side can be linked to equipment and the other side melted with optical fiber cables.

• The fiber optic pigtail are utilized to terminate fiber optic cables via fusion or mechanical splicing. High-quality pigtail cables, coupled with correct fusion splicing practices offer the best performance possible for fiber optic cable terminations.

• The fiber optic pigtails are usually found in fiber optic management equipment like ODF, fiber terminal box and distribution box.

• A fiber pigtail is a single, short, usually tight-buffered fiber optic cable with a factory-installed connector on one end, and un-terminated fiber on the other end.

• The SC/APC connector is a fiber-optic connector with a threaded body, which was designed for use in high-vibration environments. It is commonly used with both single-mode optical fiber and polarization-maintaining optical fiber.

• SC/APC fiber optic pigtail is one of common type fiber optic pigtail, it come with one side of SC/APC connector only.

• The termination connector can be Single mode UPC, APC or Mutlimode PC.

• Normally, the cable use single mode G652D, and also have other choose use single mode G657A1, G657A2, G657B3 or Multimode OM1, OM2, OM3, OM4, OM5.
