10Gb/s SFP+ Active Optical Cable

Short Description:

- The KCO-SFP-10G-AOC-xM Compatible SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors and operate over Multi-Mode Fiber (MMF).

- This KCO-SFP-10G-AOC-xM AOC is compliant with SFF-8431 MSA standards.

- It provides a cost-efficient solution as compared to using discrete optical transceivers and optical patch cables and is suitable for 10Gbps connections within racks and across adjacent racks.

- The optics are completely contained inside the cable, which—without LC optical connectors to clean, scratch, or break—dramatically increases reliability and lowers maintenance costs.

- AOCs are most often used for creating 1-30m short switch-to-switch or switch-to-GPU links.

Send email to us

Product Detail

Product Tags

Features

+ Support 10GBASE-SR/10G Fiber Channel application

+ Compliant to SFP+ Electrical MSA SFF-8431

+ Compliant to SFP+ Mechanical MSA SFF-8432

+ Multi rate of up to 11.3Gbps

+ Transmission distance up to 150m (OM3)

+ +3.3V single power supply

+ Low power consumption

+ Operating case temp: Commercial: 0°C to +70 °C

+ RoHS compliant

+ Password protection for A0h and A2h

Applications

+ 10GBASE-SR at 10.31Gbps

+ InfiniBand QDR, SDR, DDR

+ Other optical links

Electrical Characteristics

Parameter		Symbol	Min.	Typ.	Max.	Units	Notes
Transmitter
Differential Data Input Swing		V_in,P-P	200	-	1600	mV_PP
Input Differential Impedance		Z_IN	90	100	110	Ω
Tx_Fault	Normal Operation	V_OL	0	-	0.8	V
Tx_Fault	Transmitter Fault	V_OH	2.0	-	V_CC	V
Tx_Disable	Normal Operation	V_IL	0	-	0.8	V
Tx_Disable	Laser Disable	V_IH	2.0	-	V_CC+0.3	V
Receiver
Differential Date Output		V_out	370	-	1600	mV
Output Differential Impedance		Z_D	90	100	110	Ω
Rx_LOS	Normal Operation	V_OL	0	-	0.8	V
Rx_LOS	Lose Signal	V_oH	2.0	-	V_CC	V

Optical Characteristics

Parameter	Symbol	Unit	Min	Typ	Max	Notes
Optical transmitter Characteristics
Data Rate	DR	Gbps	9.953	10.3125	11.3
Center Wavelength Range	λc	nm	820	850	880
Laser Off Power	Poff	dBm	-	-	-45
Launch Optical Power	P0	dBm	-6.0			1
Extinction Ratio	ER	dB	3	-	-
Spectral Width (RMS)	RMS	nm	-		0.45
Optical Receiver Characteristics
Data Rate	DR	Gbps	9.953	10.3125	11.3
Bit Error Rate	BER	dBm	-	-	E-12	2
Overload Input Optical Power	P_IN	dBm	2.4	-	-	2
Center Wavelength Range	λc	nm	820	-	880
Receiver Sensitivity in Average Power	Sen	dBm	-	-	-9.9	3
Los Assert	LosA	dBm	-26	-	-
Los De-Assert	LosD	dBm	-	-	-12
Los Hysteresis	LosH	dB	0.5	-	-

Note:

Coupled into 50/125 MMF.
Measured with PRBS 2³¹-1 test pattern @10.3125Gbps.BER=10E-12

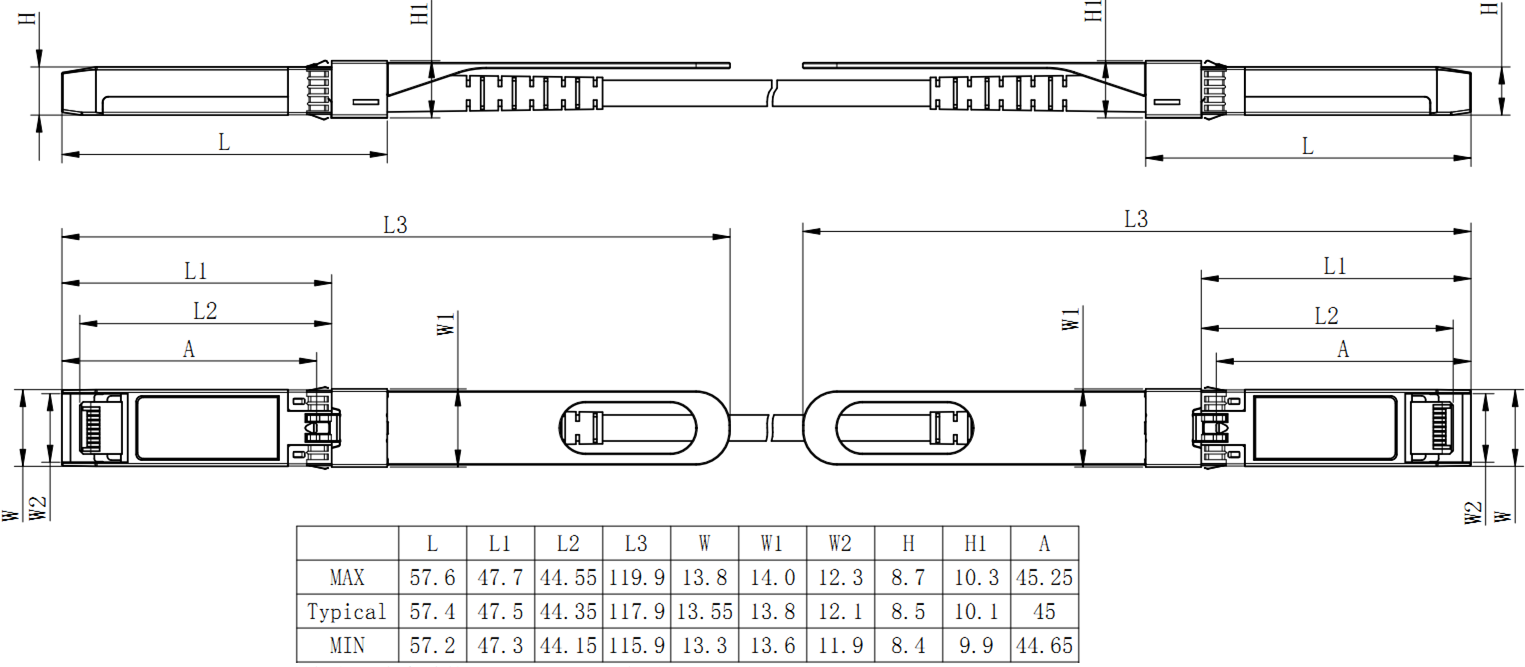

Optical Characteristics

Parameter	Value	Units
Diameter	3	mm
Minimum bend radius	30	mm
Length tolerance	Length < 1 m: +5 /-0	cm
	1 m ≤length ≤ 4.5 m: +15 / -0	cm
	5 m ≤length ≤ 14.5 m: +30 / -0	cm
	Length≥15.0 m +2% / -0	m
Cable color	Aqua (OM3); Orange (OM2)
