100Gb/s SFP28 Active Optical Cable
Description
+ Active optical cables provide a lightweight and slim alternative to copper cables, simplifying cable management.
+ The KCO-QSFP28-100G-AOC-xM 100G QSFP28 to QSFP28 AOC Cable is a Four-Channel, Pluggable, Parallel, fiber-epic QSFP+ AOC for 100 Gigabit Ethernet and Infiniband EDR Applications.
+ KCO-QSFP28-100G-AOC-xM 100G AOC Cable is a high-performance module for short-range multi-lane data communication and interconnect applications.
+ It integrates four data lanes in each direction with 100 Gbps bandwidth.
+ Each lane can operate at 25.78125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber.
+ By offering a cost-efficient alternative to discrete optical transceivers and patch cables, these AOCs are ideal for establishing 100Gbps connections within racks and adjacent racks.
Applications
+ 100GBASE-SR4 at 25.78125Gbps per lane
+ InfiniBand QDR, EDR
+ Other optical links

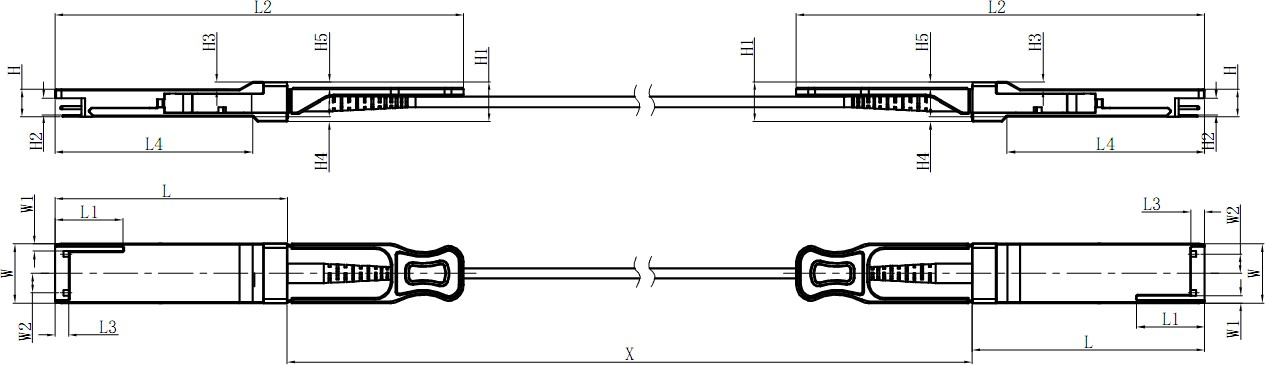

Mechanical
|
Unit mm |
Max |
Type |
Min |
|
L |
72.2 |
72.0 |
68.8 |
|
L1 |
- |
- |
16.5 |
|
L2 |
128 |
- |
124 |
|
L3 |
4.35 |
4.20 |
4.05 |
|
L4 |
61.4 |
61.2 |
61.0 |
|
W |
18.45 |
18.35 |
18.25 |
|
W1 |
- |
- |
2.2 |
|
W2 |
6.2 |
- |
5.8 |
|
H |
8.6 |
8.5 |
8.4 |
|
H1 |
12.4 |
12.2 |
12.0 |
|
H2 |
5.35 |
5.2 |
5.05 |
|
H3 |
2.5 |
2.3 |
2.1 |
|
H4 |
1.6 |
1.5 |
1.3 |
|
H5 |
2.0 |
1.8 |
1.6 |
|
H6 |
- |
6.55 |
- |
Specifications
|
P/N |
KCO-QSFP28-100G-AOC-xM |
|
Connector |
QSFP28 to QSFP28 |
|
Cable Length |
Customized |
|
Jacket Material |
OFNP |
|
Operation Temperature |
0~ 70 °C (32 to 158°F) |
|
Vendor Name |
KCO Fiber |
|
Max Data Rate |
100Gbps |
|
Fiber Cable |
OM3 MMF / OM4 MMF |
|
Minimum Bend Radius |
7.5mm |
|
Protocols |
40G/100G Ethernet, Infiniband EDR |
